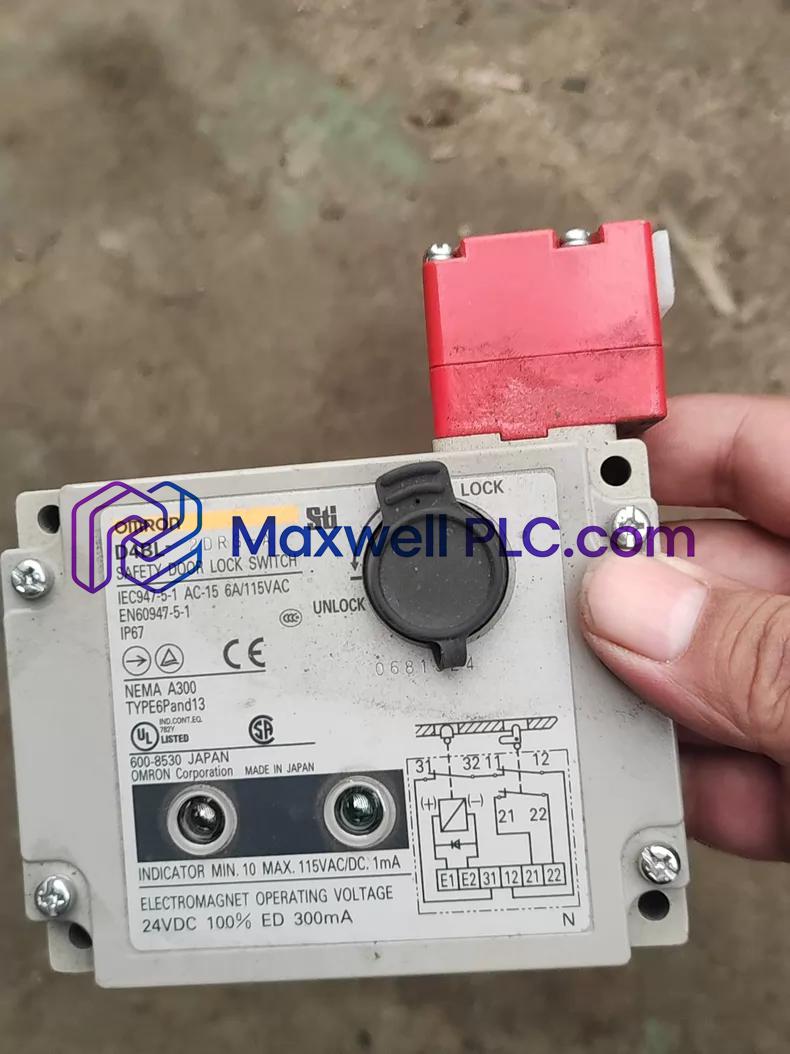

The Omron D4BL-2DRG-A serves as the primary D4BL Guard Lock Safety-door Switch utilized to execute physical access control and solenoid-driven door holding across EtherNet/IP deterministic networks platforms. It maintains an active mechanical lock via 24 VDC coil energization while interrupting safety circuits through slow-action NC contacts upon target key removal or loss of solenoid hold current.

Nomenclature & Code Breakdown

• D4BL: Base series guard lock safety-door switch housing architecture.
• 2: Dual G1/2 conduit entry ports for field wiring interface.
• D: Contact block design featuring 2NC slow-action door detection contacts plus 1NC slow-action lock monitor contact.
• R: Four head insertion orientations supported (pre-set for right-side mounting at factory).
• G: Solenoid-driven locking mechanism with mechanical spring release sequence (24 VDC).
• A: Integrated visual indicator unit operating at 10 to 115 VAC/VDC with orange and green LED displays.

Technical & Operating Specifications

Deterministic Network Safety Integration

The D4BL-2DRG-A delivers status feedback directly to remote safety I/O units, maximizing effective I/O density scaling within deterministic network architectures like EtherNet/IP. Built-in contact blocks interface with low-latency safety controllers, ensuring deterministic signal updates without introducing backplane delay. Native firmware flash compatibility in host controllers allows real-time execution of emergency stop sequences and door interlocking logic across automated cells.

Package Kit Scope

• 1 x Omron D4BL-2DRG-A Safety Switch Body
• 1 x Auxiliary Release Key
• 1 x Product Specification Sheet

Mounting & Terminal Mounting Recommendations

Head Position Adjustment

• Remove the four head retaining screws to reposition the insertion slot into any of four 90 deg orientations.
• Tighten head screws evenly to a torque rating of 1.3 to 1.5 N m to ensure structural integrity and IP67 sealing.

Conduit Wiring Practices

• Utilize IP67-rated G1/2 conduit fittings to prevent moisture ingress through entry ports.
• Torque terminal screws to 0.6 to 0.8 N m to establish reliable electrical contact on standard wire conductors.

Frequently Asked Questions

• What is the operating voltage range for the integrated LED indicator in the D4BL-2DRG-A?

  The orange and green LED indicator module operates across a input voltage range of 10 to 115 VAC or VDC.

• What locking mechanism is configured on the D4BL-2DRG-A model?

  This unit features a 24 VDC solenoid-energized lock with a mechanical release mechanism upon power removal.

• How many total NC contact pairs are integrated into this switch block?

  The switch block contains three NC slow-action contacts split between two door position contacts and one lock status contact.

• Can the actuator entry orientation be adjusted prior to installation?

  Yes, the top switch head can be unbolted and rotated into four distinct 90 deg mounting directions.

• What degree of environmental protection is provided by the switch housing?

  The switch assembly meets IP67 ingress protection standards according to EN 60947-5-1 guidelines.

• What thread standard is specified for the cable entry ports?

  The housing features two G1/2 conduit thread entry ports for standard cable gland connection.

• What is the maximum mechanical operating frequency allowed for this switch?

  The mechanical switch housing supports an actuation frequency up to a maximum limit of 30 operations per minute.

• How is the door manually unlocked during a total system power failure?

  The integrated auxiliary release key must be rotated manually to unlock the switch mechanism when de-energized.
