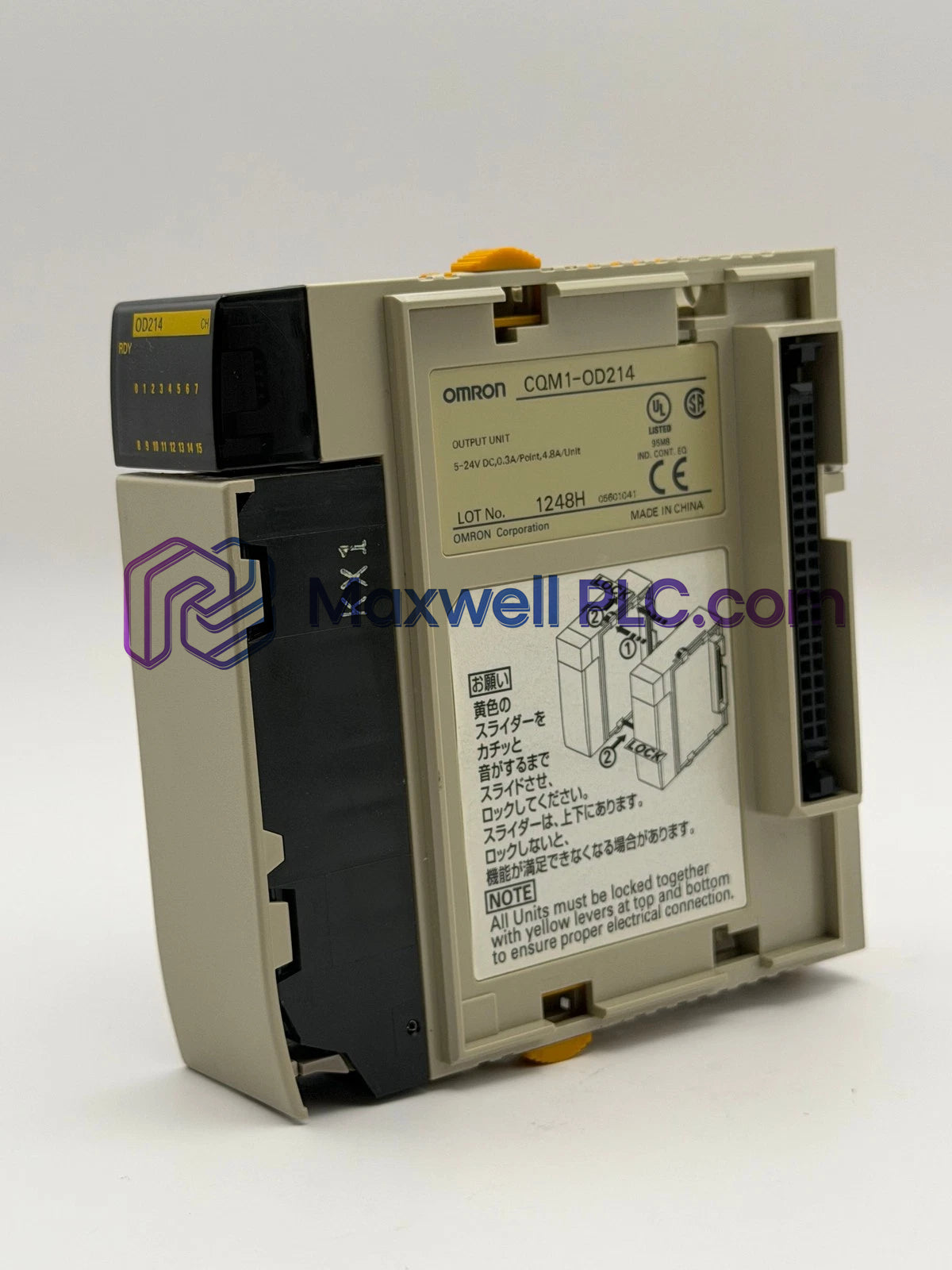

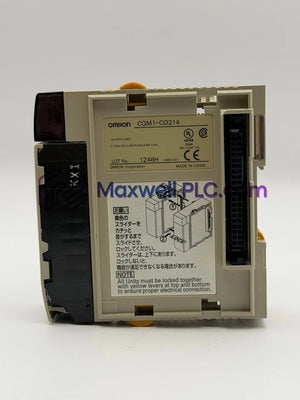

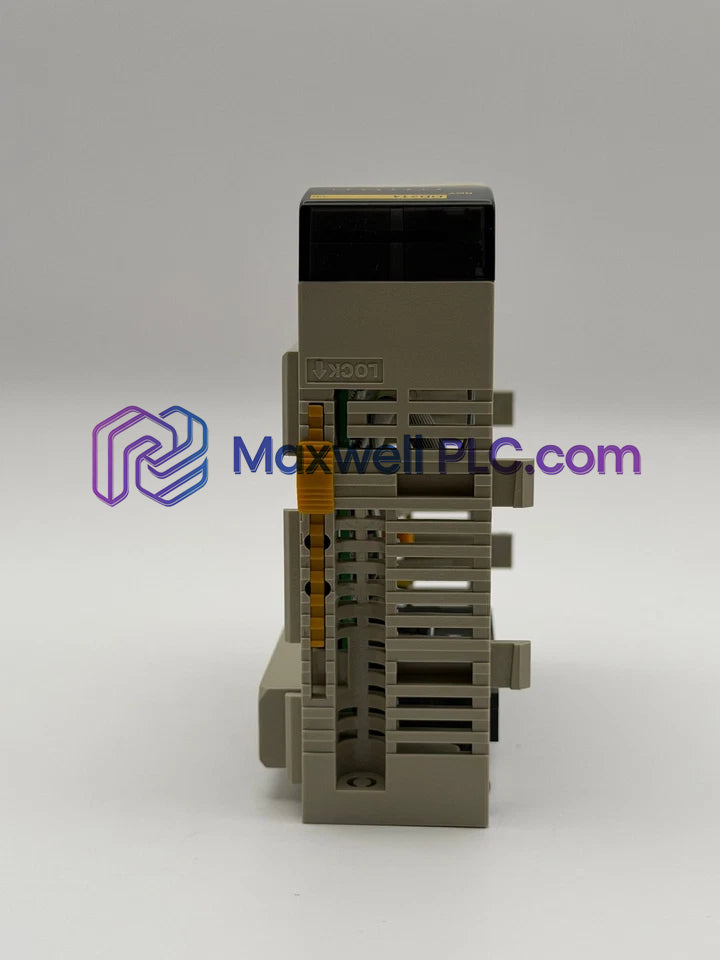

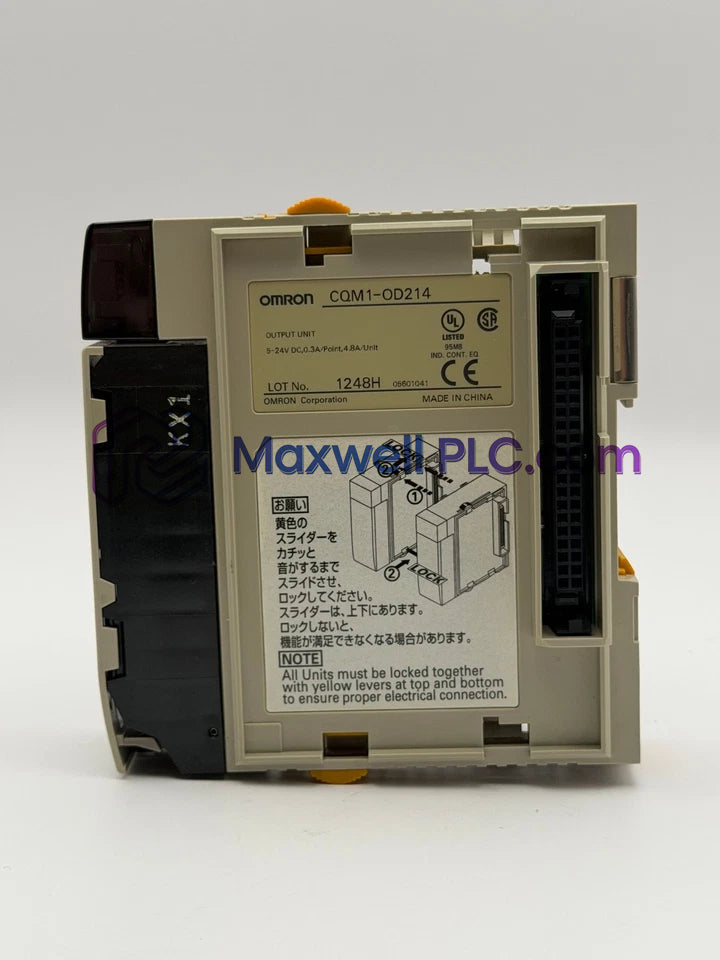

The Omron CQM1-OD214, also cataloged as the CQM1-OD214 Transistor Output Module, operates as a dedicated hardware component for solid-state DC switching and digital control signal driving within CQM1 PLC Series system racks. This output unit routes high-side PNP switching logic directly to external actuators, relays, and indicator circuits via terminal bus connections. It provides physical switching execution while maintaining electrical separation between internal logic circuitry and external load wiring.

Module Designation & Variant Mapping

• CQM1: Identifies the modular programmable logic controller architecture and backplane standard.
• OD: Specifies a digital transistor output hardware interface function.
• 214: Designates 16-point PNP switching configuration with internal fuse protection and specific current handling characteristics.

Technical Performance Parameters

System Backplane & Signal Integrity

The hardware interfaces directly with the system backplane bus communication velocity Licences protocol to execute deterministic output state updates every PLC scan cycle. High-density I/O density scaling allows 16 discrete PNP outputs to operate simultaneously under strict backplane timing without compromising internal noise immunity or triggering firmware flash compatibility faults across connected modules.

Scope of Delivery

• 1 x Omron CQM1-OD214 Module
• 1 x Terminal Block Protective Cover
• 1 x Product Documentation Sheet

Site Installation Practices

Mechanical Alignment & Mounting

• Power down the main rack supply prior to attaching the module to the CPU or adjacent I/O unit.
• Engage the top and bottom interlocking sliders firmly until the module clicks into the adjacent unit backplane connector.
• Ensure the assembly is mounted on a standard 35 mm DIN rail or panel surface within a protective enclosure.

Wiring & Electrical Grounding

• Wire external loads using 22 AWG to 16 AWG stranded copper conductors connected to the terminal block.
• Connect external DC power supplies to the designated service power terminals observing correct polarity (+V and COM).
• Route DC output field wiring away from high-voltage AC power lines to minimize induced electromagnetic interference.

Questions & Answers

• Can the internal 3.5 A fuses be replaced in the field if blown?

  No. The internal fuses are soldered directly to the circuit board and are non-user replaceable; blown fuses require module servicing.

• What is the default output switching configuration for this unit?

  The unit utilizes PNP transistor outputs that switch the positive side (+V) of the external power supply to the connected load.

• Does this unit support hot-swapping while the PLC rack is powered?

  No. Removing or inserting the unit while the backplane is energized can damage the internal driver circuits and backplane bus.

• How is the external service power supply calculated for 16 active points?

  The service supply requires 60 mA minimum plus 3.5 mA per active ON point at 5 VDC to 24 VDC external supply voltage.

• What happens if an external load short-circuit occurs on an output channel?

  The internal 3.5 A fuse will blow to protect the internal printed circuit board traces from catastrophic thermal failure.

• What is the maximum response delay when switching an output state?

  The maximum turn-on delay time is 0.1 ms and the maximum turn-off delay time is 0.4 ms under rated load conditions.

• Are output channels individually isolated from one another?

  No. All 16 output points share a single common return line and 1 common circuit layout across the terminal strip.

• How is state indication provided on the front interface?

  Individual green LED indicators on the front panel display the ON or OFF logic state of each output channel in real time.
