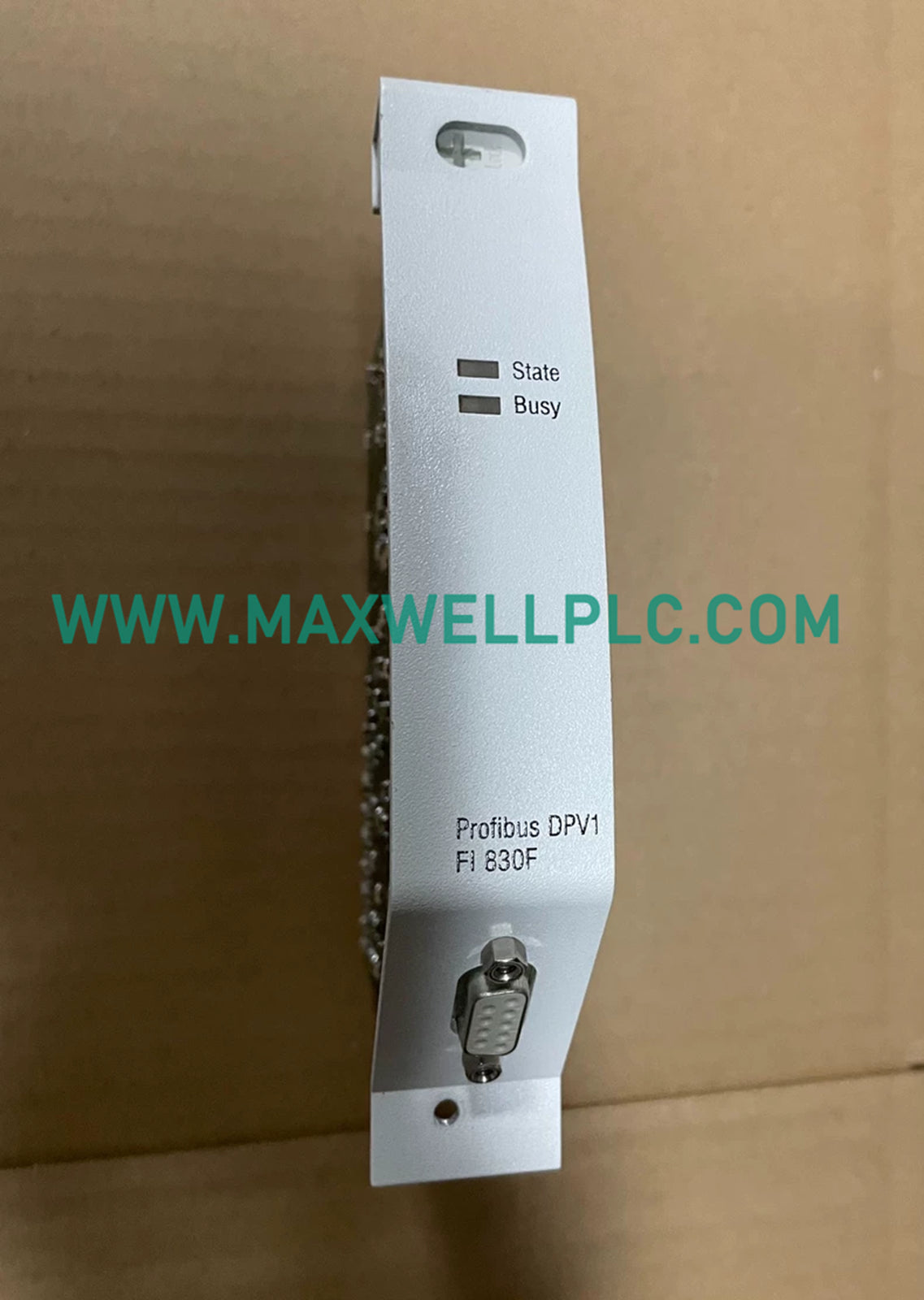

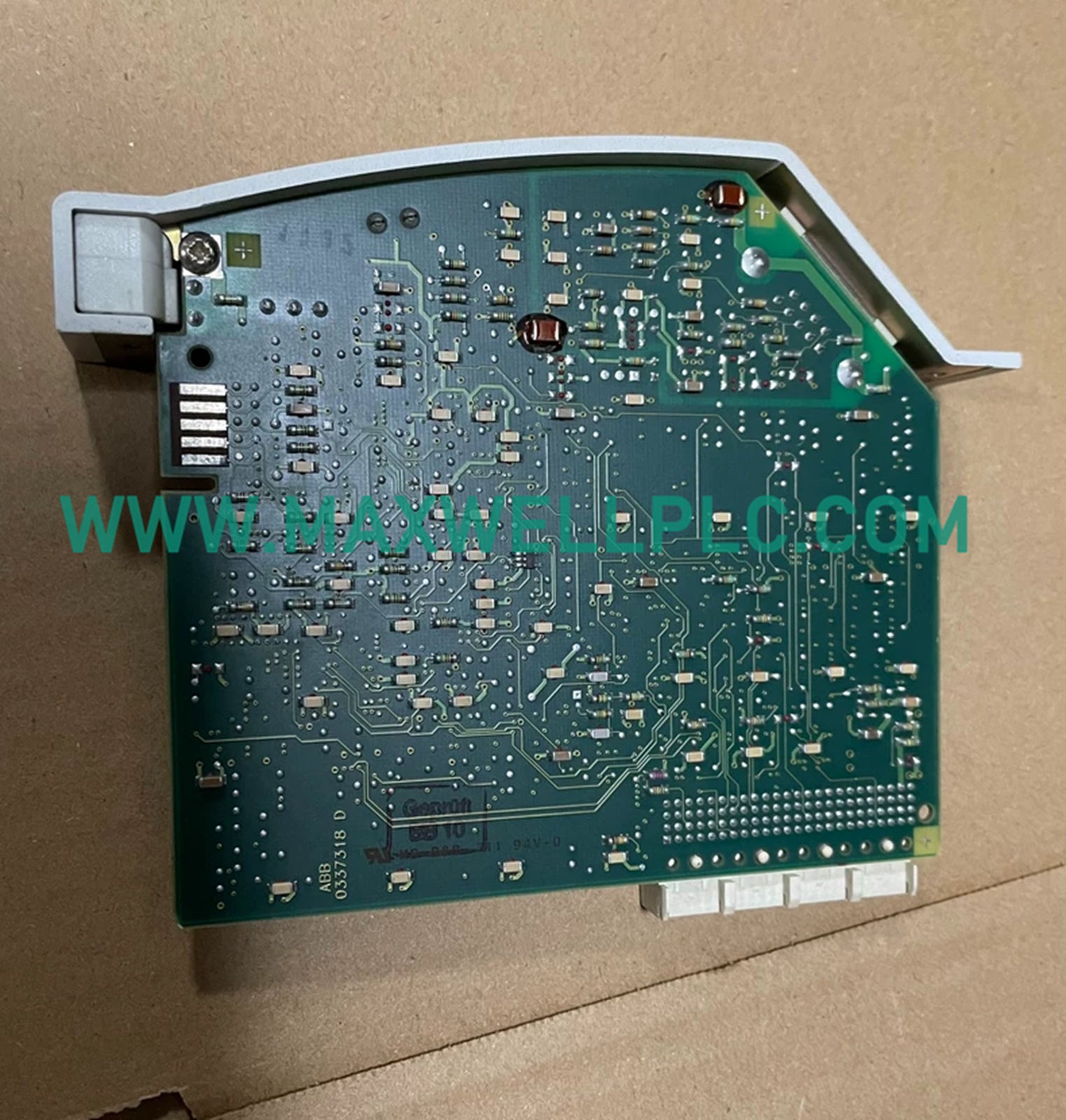

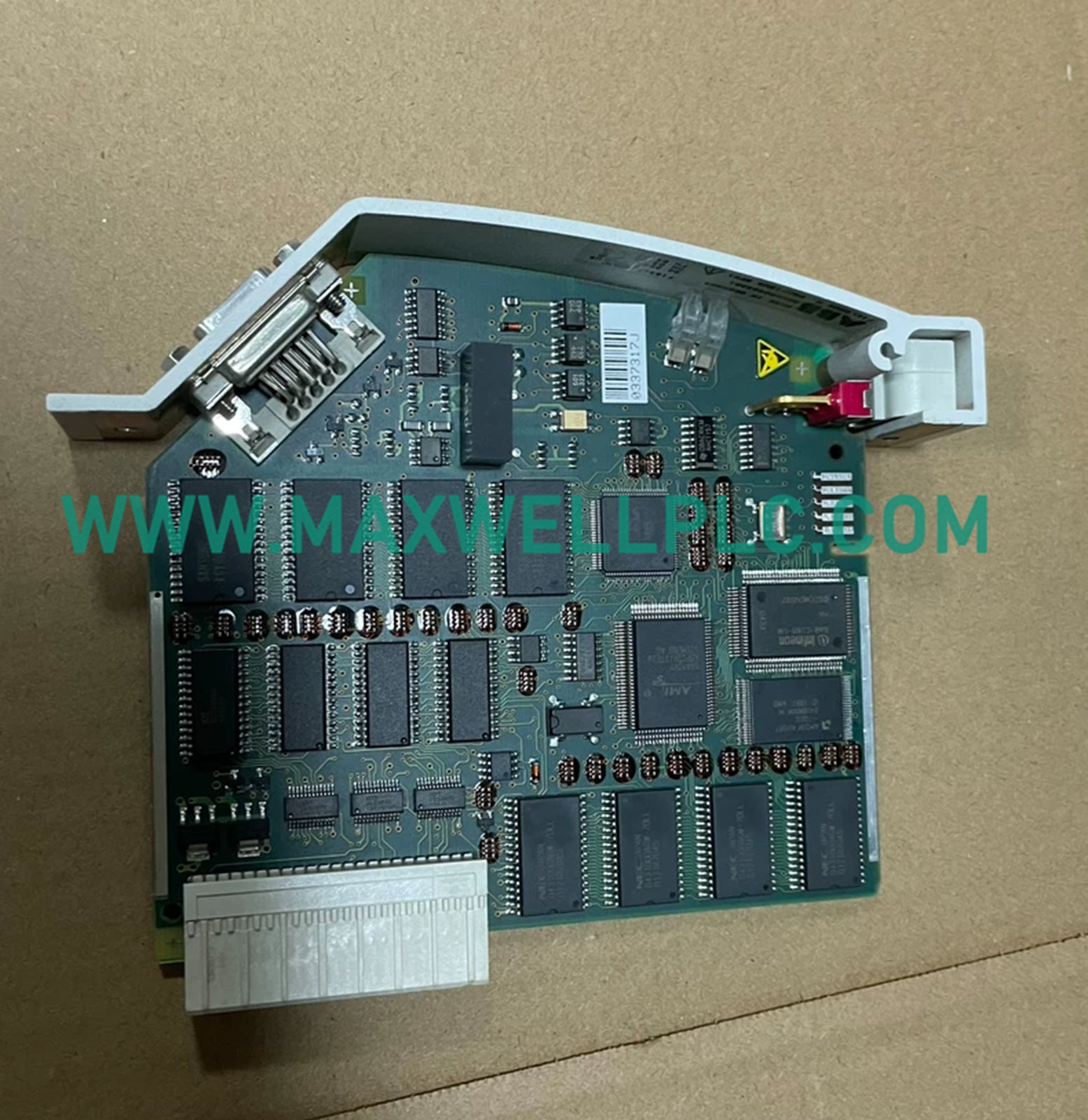

The FI830F 3BDH000032R1, also cataloged as the FI830F Fieldbus Modules, operates as a dedicated hardware component for signal processing or control execution within industrial automation architectures. The hardware serves as a communication interface between the controller base unit and field devices via the PROFIBUS DP protocol. It supports master functionality to coordinate up to 126 slave nodes, offloading cyclic data exchange tasks from the main central processing unit to optimize bus cycle times.

Technical Specifications

Brand-Specific Technical Block

The module interfaces directly with the ABB Freelance AC 800F backplane communication structure via specialized dual-port shared memory. The internal 256 KB memory buffer decouples the fieldbus cycle from the controller task execution interval, ensuring deterministic scanning profiles. It communicates with the host PM 802F or PM 803F processor nodes over the parallel system bus.

For line redundancy configurations, the physical RS-485 interface connects to external RLM01 redundancy modules to duplicate the transmission paths. The firmware architecture handles PROFIBUS DP V1 acyclic services for asset management parameters alongside standard cyclic I/O mapping, maintaining complete protocol isolation between the field level and the processing core.

Ordering Information

• Standard Package: ABB FI830F 3BDH000032R1 hardware module, factory anti-static packaging, product label sheet.
• Optional Accessories: RLM01 Redundancy Link Module, standard PROFIBUS DP bus connectors, standard DIN rail mount hardware.

Installation Guidelines

• Mounting and Slot Insertion: The module inserts into any of the 4 available option slots on the PM 802F/PM 803F base unit. Ensure the DIN rail meets standard specifications and the controller chassis connects to the central functional earth terminal.
• Wiring and Shielding: Connect the PROFIBUS DP cable using shielded twisted-pair medium. The cable shield must expose electrical contact to the metallic connector shell for grounding via the module interface frame.
• Termination: Active termination resistors must operate at both physical ends of the PROFIBUS DP segment. Do not enable termination on intermediate nodes.
• Thermal management: Maintain 50 mm clearance above and below the controller assembly to ensure passive convective airflow within the specified operating boundaries.

Frequently Asked Questions

Q: What is the behavior of the module during a hot-swap procedure?

A: The module can be extracted or inserted while the controller is powered, triggering an automated driver initialization sequence without stopping the CPU.

Q: How does the module handle backplane load current?

A: It draws its primary logic operating current directly from the 24 VDC system backplane bus provided by the controller base unit.

Q: What is the redundancy switching delay when paired with an RLM01 module?

A: Switching occurs at the physical layer within the microsecond range, maintaining uninterrupted data flow to the active controller node.

Q: Which firmware versions are compatible with the FI830F module?

A: The module requires Freelance software version 6.2 or higher for proper diagnostic mapping and hardware description file recognition.

Q: What level of electrical signal isolation does the PROFIBUS interface provide?

A: The RS-485 interface features galvanic isolation up to 500 VAC between the field networks and the internal backplane logic circuit.

Q: What are the field wiring constraints regarding maximum cable length at 12 Mbps?

A: At the maximum transmission speed of 12 Mbps, the copper segment length must not exceed 100 meters without repeating hardware.

Q: Can the module act as a PROFIBUS DP slave device?

A: No, the hardware architecture is fixed to operate exclusively as a master station class 1 or class 2 on the network.

Q: How is the PROFIBUS node address assigned to the module?

A: The address configuration is defined within the Freelance engineering software tool and downloaded directly to the controller non-volatile memory.
