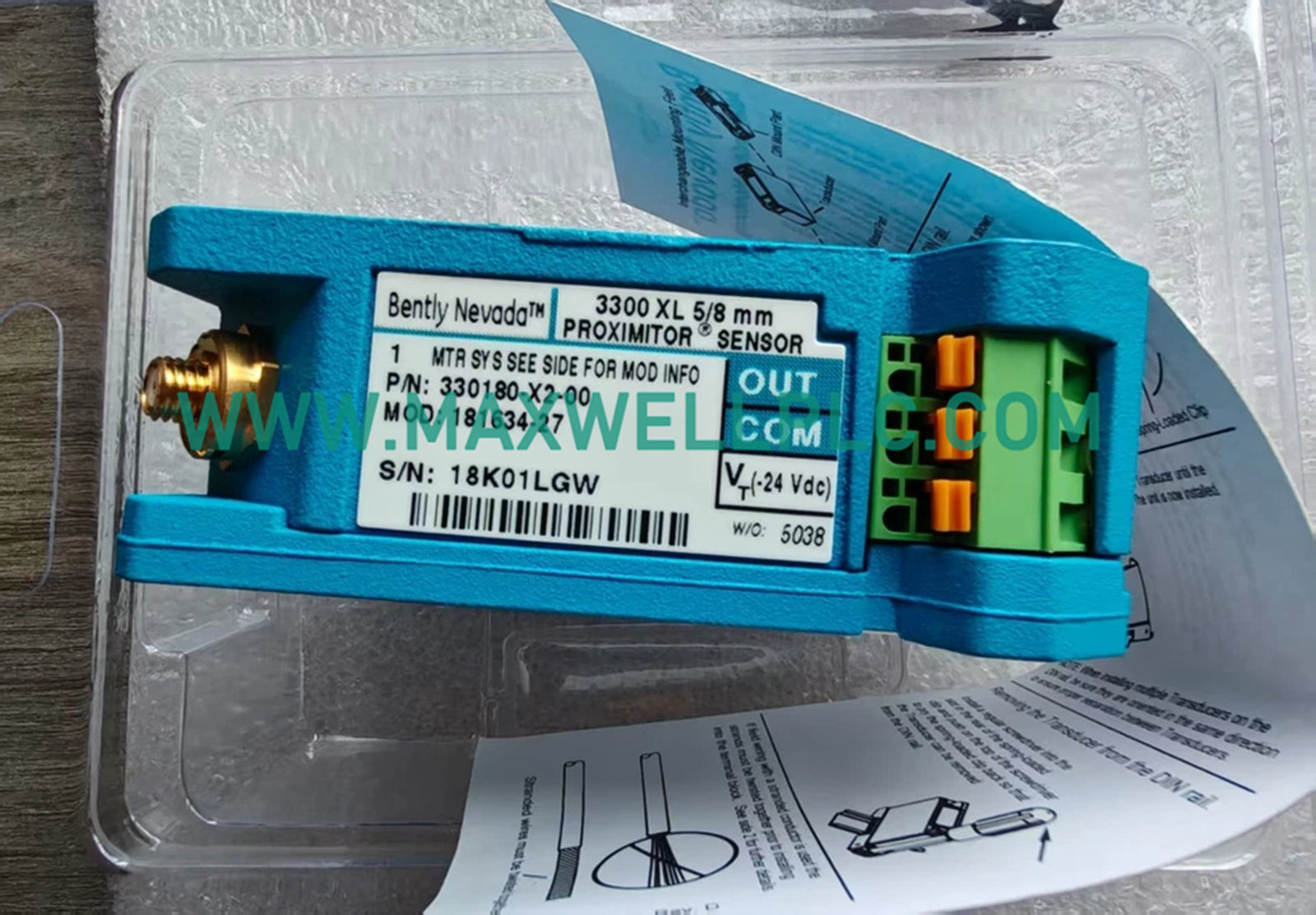

The Bently Nevada 330180-X2-00 MOD:181634-27, operating as the 330180-X2-00 MOD:181634-27 Proximitor Sensor, executes high-frequency radio frequency signal conversion to translate eddy-current probe interactions into linear voltage metrics for heavy turbomachinery monitoring frameworks.

Model Architecture and Suffix Matrix

• Base Model: 330180 (3300 XL Proximitor Unit)
• System Length Option: X2 (Configured for 12 [1.0 meter] or 52 [5.0 meters] loop options)
• Hazardous Approvals: 00 (Not required / standard commercial classification)
• Factory Modification: MOD:181634-27 (Specialized engineering customization build)

Technical Specifications Matrix

Rotor Dynamics Architecture and Signal Processing

The unit functions by supplying a radio frequency carrier signal to the attached coaxial cable and probe tip, creating an electromagnetic field against the observed rotating shaft. Physical displacement alters the impedance load on the probe face, which internal filtering networks demodulate into a precise voltage signal. Initial calibration requires setting a nominal gap voltage of -10 VDC to position the operational point directly in the middle of the linear range, ensuring uncorrupted tracking of rotor dynamics, radial vibration, and axial position parameters. Furthermore, strict adherence to cross-talk suppression protocols prevents adjacent sensor interference.

Delivery Package Contents

• 1 x 330180-X2-00 MOD:181634-27 Proximitor Sensor module
• 1 x Technical documentation insert

Mechanical Deployment and Wiring Guidelines

• Enclosure Mounting: Secure the housing directly to a grounded panel surface within a protective industrial instrument cabinet.
• Coaxial Interfacing: Fasten the coaxial connector finger-tight onto the sensor terminal, restricting tool application to prevent thread damage.
• Bend Radius Limit: Maintain a strict minimum bend radius of 25.4 mm on all coaxial cable runs to preserve characteristic impedance.
• Shield Grounding: Terminate the coaxial signal shield exclusively at the monitor rack input to eliminate ground loops and common-mode noise.

Engineering Inquiries and Operational FAQs

• What function does the MOD:181634-27 suffix designate?

  It indicates a specialized factory-engineered hardware modification applied to the baseline circuit board to meet unique customer application constraints.

• How does the proximitor manage input voltage fluctuations?

  Internal regulation components stabilize the circuitry against clean DC supply variations ranging from -17.5 VDC to -26 VDC without changing output scaling.

• Are 3300 XL system components fully interchangeable?

  Yes, individual probes, extension cables, and proximitor units can be swapped freely without requiring custom bench calibration or matching.

• What causes an unexpected shift in baseline gap voltage?

  Shifts typically stem from target surface scoring, moisture ingress in the coaxial connections, damaged insulation, or loose system grounding.

• Why is maintaining the 25.4 mm minimum bend radius mandatory?

  Exceeding the bend limit physically alters the coaxial cable geometry, generating signal reflections and measurement inaccuracies.

• Does this specific 00 approval configuration support hazardous areas?

  No, the 00 suffix denotes that hazardous area certifications are not included, restricting deployment to non-classified industrial environments.

• Can this device measure steady position and dynamic vibration simultaneously?

  Yes, the frequency response covers from 0 Hz up to several kilohertz, capturing both slow thermal expansion and high-speed vibration vectors.

• What materials are utilized for the probe tip and case construction?

  The probe tip consists of polyphenylene sulfide, while the probe case is manufactured from AISI 303 or 304 stainless steel.
