Product Overview

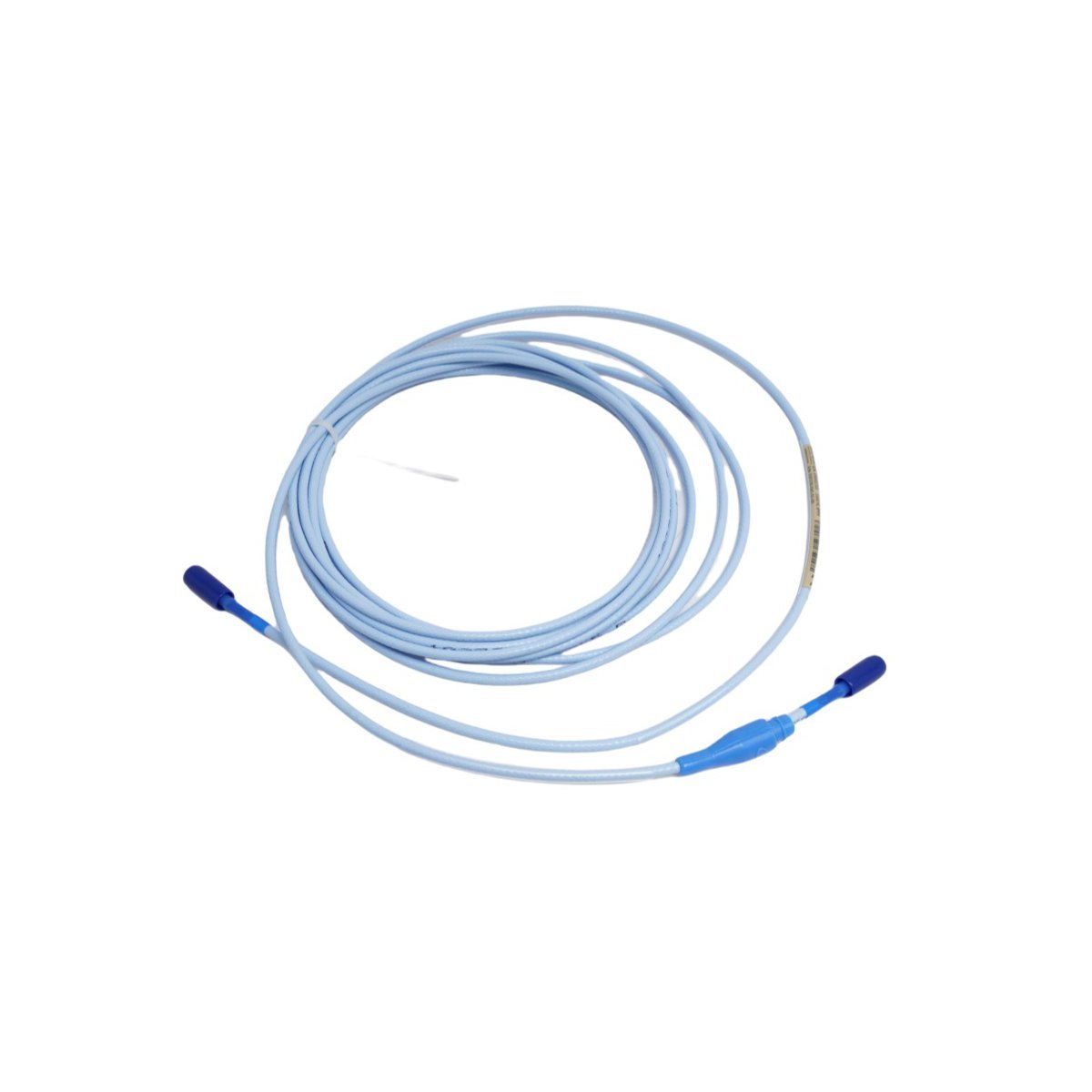

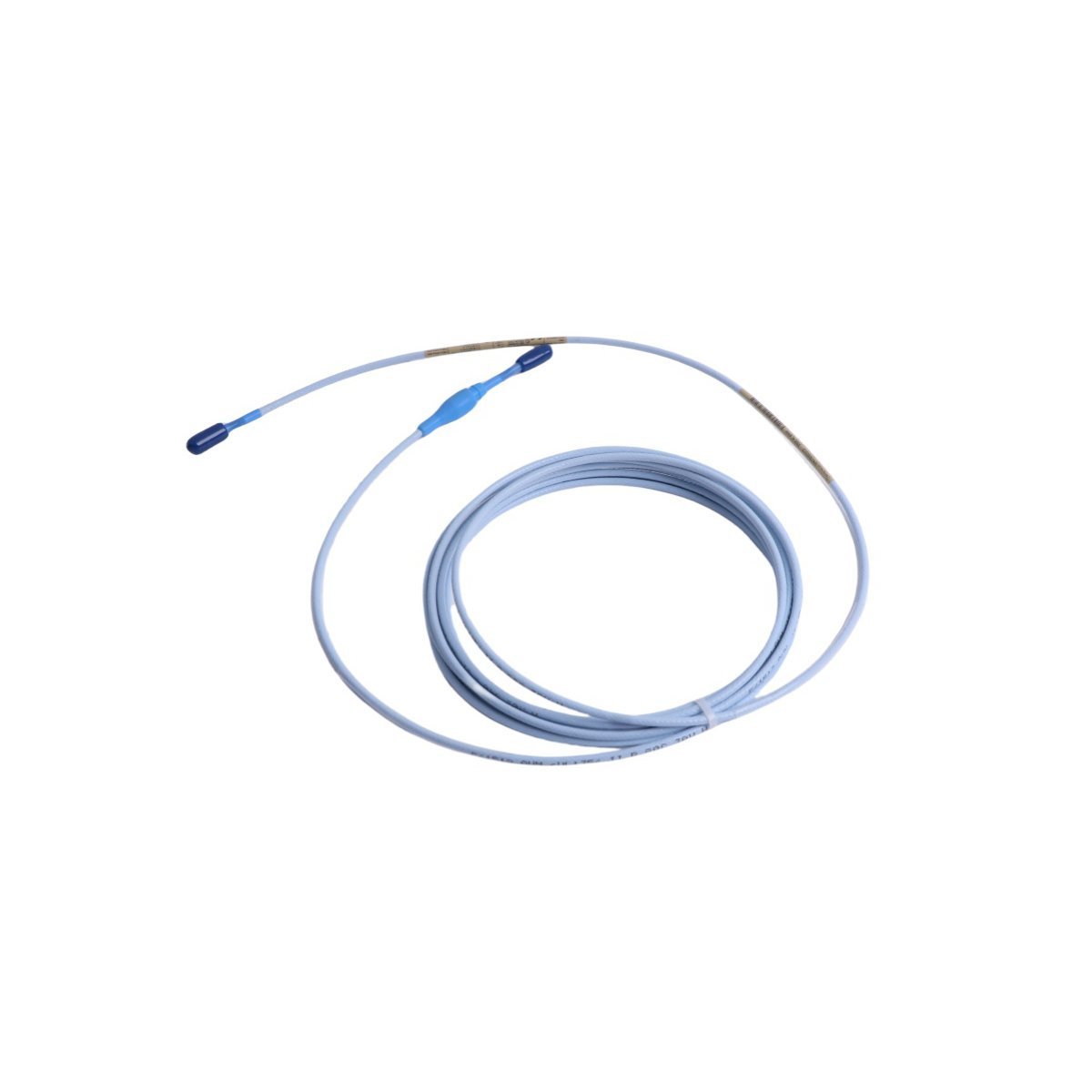

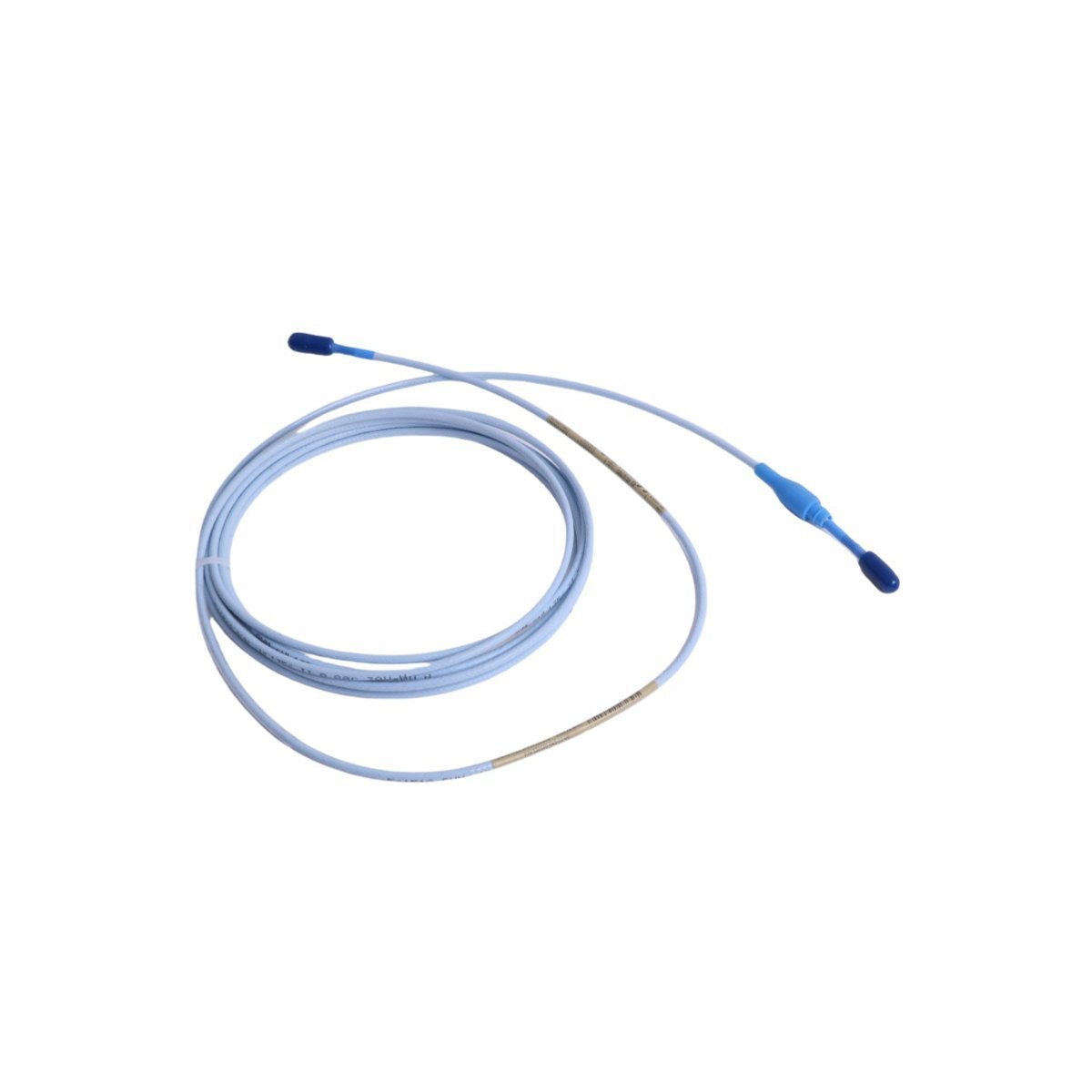

The Bently Nevada 330130-045-02-CN is a high-reliability extension cable assembly engineered for the 3300 XL 8 mm Proximity Transducer System. In the context of industrial vibration monitoring, this cable serves as the critical signal transmission link between the proximity probe installed at the machine bearing housing and the Proximitor sensor located in the remote instrumentation cabinet. By maintaining strictly controlled impedance characteristics, this assembly ensures that the high-frequency eddy-current signal remains undistorted during its transit through the plant environment. The "-CN" suffix denotes specialized regional compliance, ensuring the assembly meets stringent regulatory standards while providing the physical durability required for harsh, high-vibration industrial sectors. This cable is not merely a wiring accessory; it is a calibrated component of the transducer loop that directly influences the precision of rotor displacement and vibration measurements.

Technical Specifications

Model Configuration Explanation

The 330130-045-02-CN part number provides a precise technical description of the assembly:

• 045: Cable length (4.5 meters)

• 02: Connector configuration (Standard miniature coaxial)

• CN: Regional configuration (Standardized for specific regulatory compliance)

Typical Applications

Extension cables of this caliber are essential for maintaining monitoring system accuracy in complex industrial layouts:

• Gas and Steam Turbines: Providing reliable signal pathways from sensors inside hot, high-pressure casings to external control rooms.

• Centrifugal Compressors: Facilitating signal transmission across large machinery frames where distance between sensors and monitoring racks is significant.

• Industrial Electric Motors: Ensuring vibration data integrity in environments with high electromagnetic interference.

• Hydroelectric Generators: Enabling sensor connectivity across large structural footprints in power plants.

• Predictive Maintenance Systems: Serving as the backbone for vibration data acquisition in plant-wide condition monitoring programs.

System Compatibility

The 330130-045-02-CN is strictly intended for the Bently Nevada 3300 XL transducer ecosystem. It is electrically matched to work in tandem with 3300 XL 8 mm proximity probes and their respective Proximitor sensors. Using this extension cable with legacy 3300 series hardware or non-Bently Nevada systems is strictly advised against, as it will introduce impedance mismatches, signal attenuation, and potential phase shifts that compromise the validity of the rotor dynamics data. When replacing cables in a 3500 Monitoring System, ensure the channel configuration supports the specific length and calibration parameters of this 4.5-meter assembly.

Installation Best Practices

• Cleanliness: Before coupling, use a non-residue cleaner to ensure the connector mating surfaces are free of oils, dust, or industrial contaminants.

• Connection Procedure: Firmly engage the click-loc connectors. Ensure a secure, hand-tightened fit; avoid using pliers which can crush the delicate coaxial structure.

• Conduit Management: Always route the extension cable through dedicated, grounded metallic conduits. This provides physical protection and serves as a vital shield against high-frequency electrical noise.

• Bend Radius: Adhere to a minimum bend radius of at least 5 times the cable diameter to prevent internal dielectric deformation, which can alter electrical impedance.

• Grounding Strategy: Maintain a single-point ground connection at the instrumentation cabinet to avoid ground loops, which are a common source of 50/60 Hz signal noise.

Product Advantages

• Impedance Precision: Engineered to maintain a constant 75-ohm impedance, ensuring the transducer signal remains linear and accurate from the probe to the Proximitor.

• Environmental Toughness: The high-temperature fluoropolymer jacket is resistant to chemical attack, hydraulic oils, and extreme ambient heat common in turbomachinery.

• Interference Rejection: Superior shielding capabilities minimize the risk of external signal degradation, providing clean raw waveform data for sophisticated diagnostic software.

• Seamless Integration: Designed to be fully compatible with the Bently Nevada 3500 platform, simplifying site-wide maintenance and spare parts standardization.

Ordering Information

• 330130-045-02-CN Extension Cable

• Protective connector dust covers

• Installation instruction document

• Note: Always verify the required total cable length against the site layout before ordering, as cable length is a fixed variable in transducer loop calibration.

Frequently Asked Questions

• Q: Can this cable be used with 5 mm NSv probes?

• A: No, 330130 cables are designed for the 8 mm XL system. Using them with 5 mm NSv components will cause severe measurement errors due to impedance mismatch.




• Q: Is the 4.5-meter length adjustable in the field?

• A: No, the cable is a precision-calibrated component. Cutting or splicing the cable will fundamentally change its electrical properties, rendering it unusable.




• Q: How do I know if the extension cable is causing signal noise?

• A: If you observe high noise floors on the raw waveform or intermittent DC bias shifts, inspect the cable for kinks or loose connectors at the Proximitor end.




• Q: Does this cable need to be replaced if the probe is changed?

• A: Not necessarily, provided the probe is of the same 3300 XL 8 mm type and the connector condition remains optimal.




• Q: Can I run this cable with power lines?

• A: It is strongly recommended to route the signal cable in a separate, dedicated conduit away from high-voltage AC lines to prevent induced interference.




• Q: Are these connectors waterproof?

• A: They are not designed for direct immersion. They should be housed in a junction box or a protected environment to avoid moisture-related signal attenuation.




• Q: What is the significance of the "CN" suffix?

• A: The "CN" suffix indicates that the assembly complies with specific regional regulatory and manufacturing standards for the target market.




• Q: How many times can these connectors be coupled/uncoupled?

• A: While durable, the miniature coaxial connectors are designed for a finite number of mating cycles; avoid excessive handling during routine machine maintenance.




• Q: Why does the cable jacket feel stiff?

• A: The fluoropolymer jacket is designed for high-temperature resistance, which naturally makes the cable slightly less flexible than common PVC-based control cables.




• Q: Should I use tape to seal the cable connections?

• A: Only if recommended by your specific plant safety standards. In most cases, well-seated connectors and a clean, dry junction box are sufficient.
