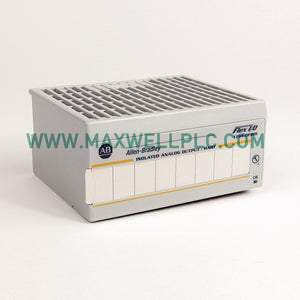

Configured for precision analog signal generation and HART communication loop control in industrial automation networks, the Allen-Bradley 1794-OE8H (1794-OE8H Flex 8 Point Analog Output Module) provides direct physical/electrical execution.

Nomenclature and Suffix Breakdown

• Platform Identifier: 1794
• Module Series: Flex I/O HART Analog Module
• Variant Code: OE8H (8 point single-ended output with HART capability configuration)

Hardware Specification Matrix

Allen-Bradley Industrial Control and Drive Architecture

• Backplane Bus Communication Velocity: Maintains high-speed deterministic data exchange across the modular Flexbus backplane architecture to ensure synchronized analog output updates.
• Profinet and EtherNet/IP Deterministic Networks: Interfaces seamlessly with high-speed fieldbus adapters to translate network control words into precise physical analog output signals without communication latency.
• I/O Density Scaling: Optimizes panel space by packing 8 HART-enabled analog output channels into a compact modular housing designed for high-density architectures.
• Firmware Flash Compatibility: Supports system integration requirements through standard backplane communication protocols, allowing transparent controller coordination during runtime operations.

Delivery Package Contents

• 1 x Allen-Bradley 1794-OE8H Flex 8 Point Analog Output Module
• 1 x Hardware Specification and Instruction Sheet

Physical Mounting and Hardware Installation Guidelines

• DIN-Rail Fastening: Mount the module securely onto a standard 35 mm DIN rail within an appropriate enclosure, adhering to the open-style IP20 protection constraints.
• Thermal Management: Ensure sufficient ambient airflow around the unit to sustain reliable operations across the specified operating temperature range up to +55 deg C.
• Wiring and Shielding: Route analog output signal cables separately from high-voltage AC power lines, and properly terminate shielded twisted-pair cables to ground at one end to minimize electromagnetic interference.

Technical Operation Queries

• How many analog output channels are integrated into this module?

  The unit features 8 single-ended analog output channels for precision control loop execution.

• Does the module support HART protocol communication?

  Yes, the module is equipped with full HART capability to support digital communication overlay on the analog output loops.

• What is the nominal operating voltage required for module power?

  The module operates using a standard 24 V DC supply voltage across its field power terminals.

• How many diagnostic and status LED indicators are present?

  The front faceplate includes 17 LED indicators for monitoring channel status and operational health.

• What are the physical dimensions and weight of the module?

  The estimated shipping dimensions measure 9.2 cm x 4.8 cm x 7.6 cm with an overall mass of 0.2 kg.

• Where is this specific hardware component manufactured?

  The country of origin is the United States, with distribution processing routed through Xiamen, China.

• What is the specified operating temperature range for the hardware?

  The module is rated for stable operation in ambient temperatures from 0 deg C to +55 deg C.

• How should signal cables be protected from electrical noise?

  Installers must use shielded twisted-pair wiring and ensure correct single-point grounding to mitigate electromagnetic coupling in industrial environments.
