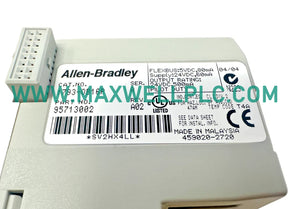

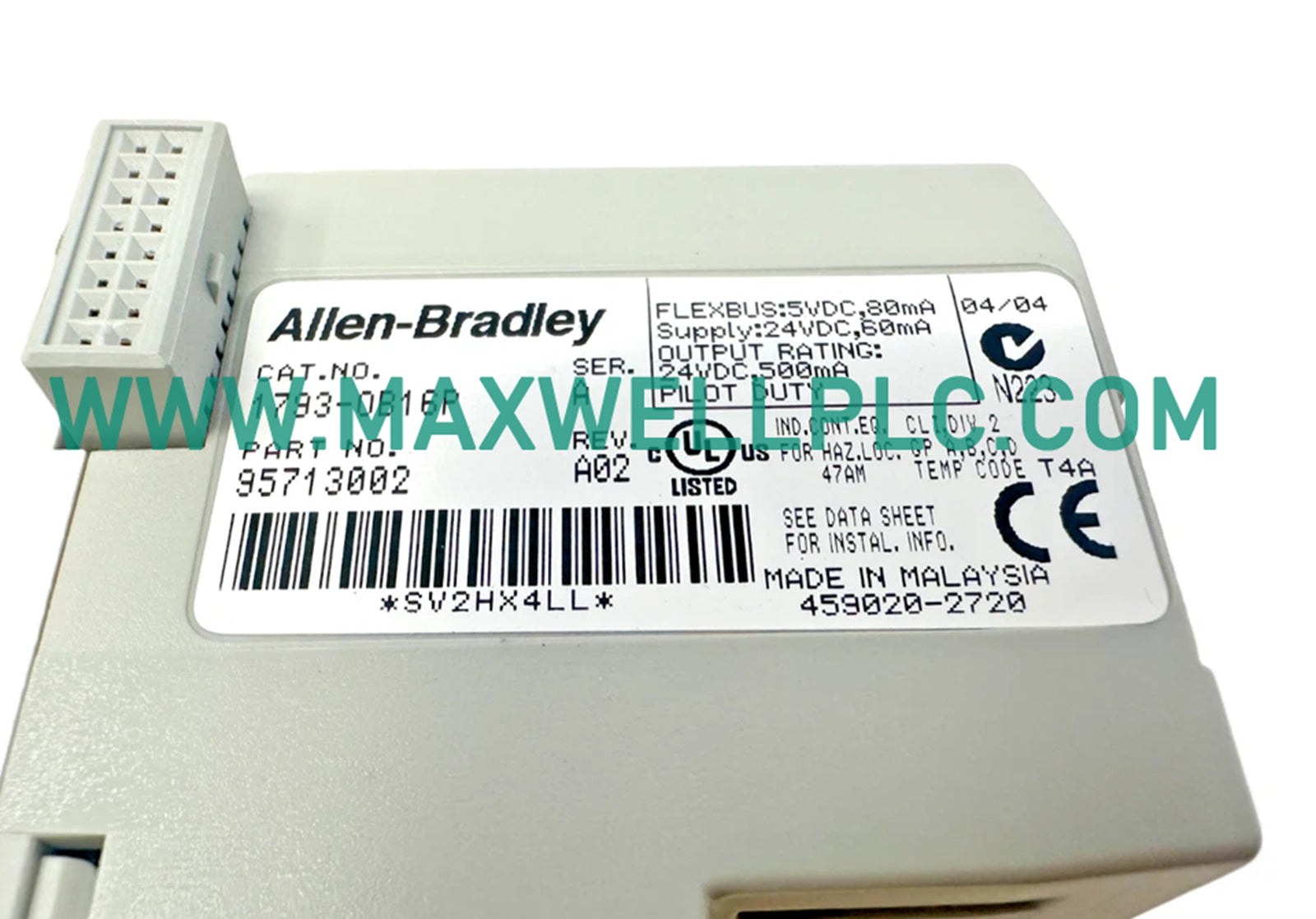

Configured for high-density DC load switching in industrial control applications, the Allen-Bradley 1793-OB16P (1793-OB16P Digital Output Module) provides direct physical/electrical execution. This hardware assembly coordinates commands from an upstream controller to drive actuators, indicators, relays, or solenoids. It executes binary logic switching across multiple dedicated circuits, utilizing an integrated terminal interface configuration to manage physical field connections on standard mounting tracking structures.

Functional Matrix Allocation

The structural breakdown of the catalog identifier designates specific operational traits. The "1793" prefix confirms the hardware series form factor and footprint compatibility within the module line. The "OB" string designates a DC sourcing digital output circuit architecture, while the "16" parameter defines the discrete connection point density. The "P" suffix denotes integrated electronic protection circuits designed to isolate the module components during overload or short-circuit events on field lines.

Functional Parameter Array

Network Backplane Context

This assembly functions natively within the industrial control system architecture, interacting directly with core protocols to support I/O density scaling requirements. Physical backplane bus communication velocity Licences govern the deterministic scheduling of output updates, preventing transmission lag when interfacing via EtherNet/IP networks. Command execution tracks internal logic states directly, ensuring that firmware flash compatibility matches across associated adapter units while minimizing backplane bus power overhead.

Package Component List

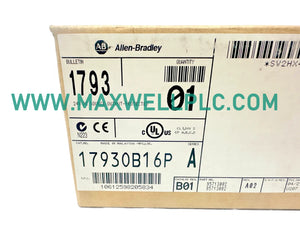

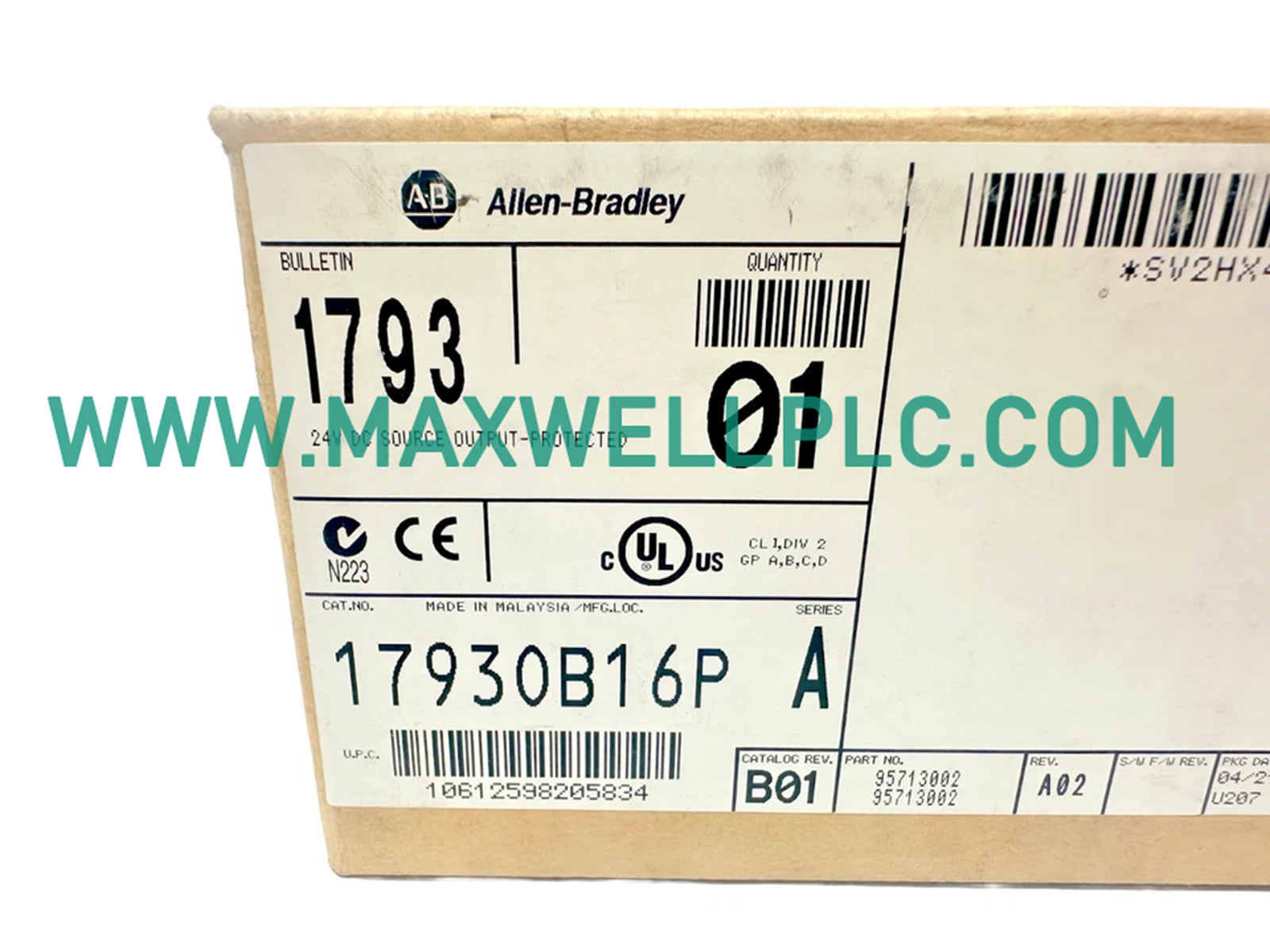

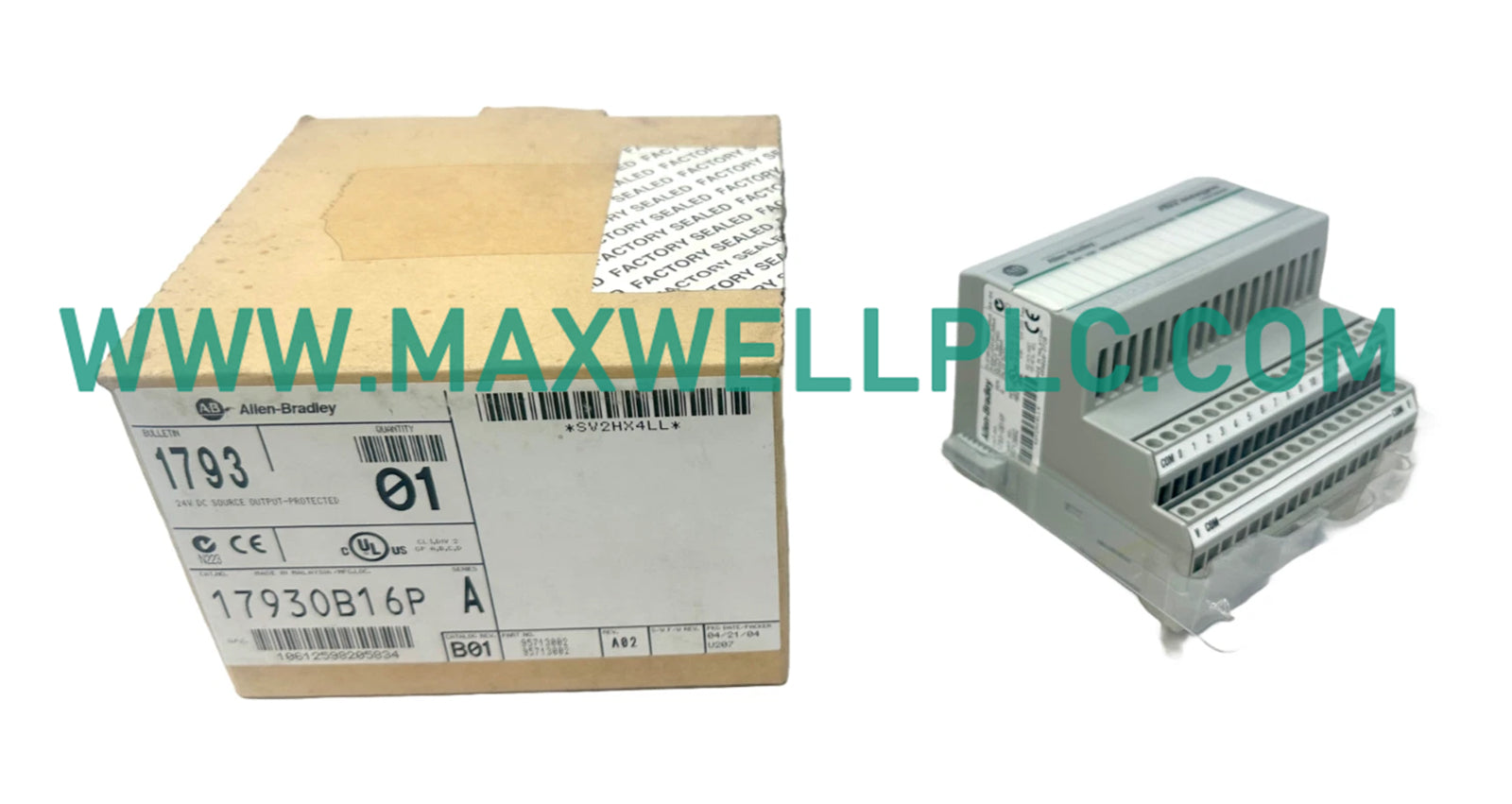

• 1 x 1793-OB16P digital output hardware module
• 1 x mechanical installation data sheet

Wiring and Alignment Directives

• Spring-Clamp Termination Action

  Insert an appropriate terminal tool straight into the designated actuator slot to open the clamp, seat the stripped conductor wire fully inside, and release the tension tool.

• DIN Rail Engagement Matrix

  Hook the upper mounting tab onto the top edge of the DIN rail, then apply downward and inward pressure until the bottom locking mechanism locks firmly onto the tracking.

• Separation of Field Circuit Conductors

  Route all 24 VDC digital output wiring through physical wire ducts separated from high-voltage AC motor lines to prevent inductive noise coupling.

• Protective Circuit Reset Check

  Following an overload event, verify the external fault condition is eliminated before re-energizing the loop to allow the internal protection block to clear.

Technical Performance FAQ

• What procedure is required to replace the internal fuses after an electrical short circuit occurs on a field point?

  The module utilizes built-in electronic protection that automatically limits current during faults. There are no internal mechanical fuses that require physical replacement by maintenance personnel.

• Is this discrete hardware assembly rated for physical insertion or removal while the backplane power loop is active?

  No. Hot-swapping this module while the backplane is energized can cause electrical transitions that result in processor faults or hardware component damage. Power must be completely isolated before removal.

• How does the system firmware flash compatibility affect the operational execution of this specific sourcing module?

  As an I/O module, operation depends on the communication adapter firmware. The module hardware structure requires no standalone firmware flash modifications to process incoming controller data packets.

• What physical configuration must be verified to ensure the integrated spring-clamp contacts remain stable during high vibration?

  The wire insulation must be stripped to the specified length, and the conductor must be inserted fully into the block to ensure the spring mechanism exerts constant retention force.

• Does the current draw of the external 24 VDC sourcing outputs affect the backplane bus power capacity?

  No. The power delivered to the external field loads is derived directly from an independent external 24 VDC source connected to the terminal infrastructure, not from the internal bus loop.

• What failure diagnostic signature is generated if a point experiences a persistent overcurrent state?

  The hardware shifts the faulted channel into a protective trip state, which triggers a localized channel fault status bit that is transmitted across the communication network to the processor.

• Can the 16 independent points of this module be configured to switch negative ground potential circuits?

  No. This module is hardwired exclusively as a sourcing component. It supplies positive 24 VDC potential to the load, requiring the opposite side of the load to connect to the common ground.

• What isolation characteristics exist between the internal backplane logic and the field-side output electronics?

  The module features built-in galvanic isolation between the internal logic side and the external field circuits, which blocks voltage transients from entering the backplane bus infrastructure.
