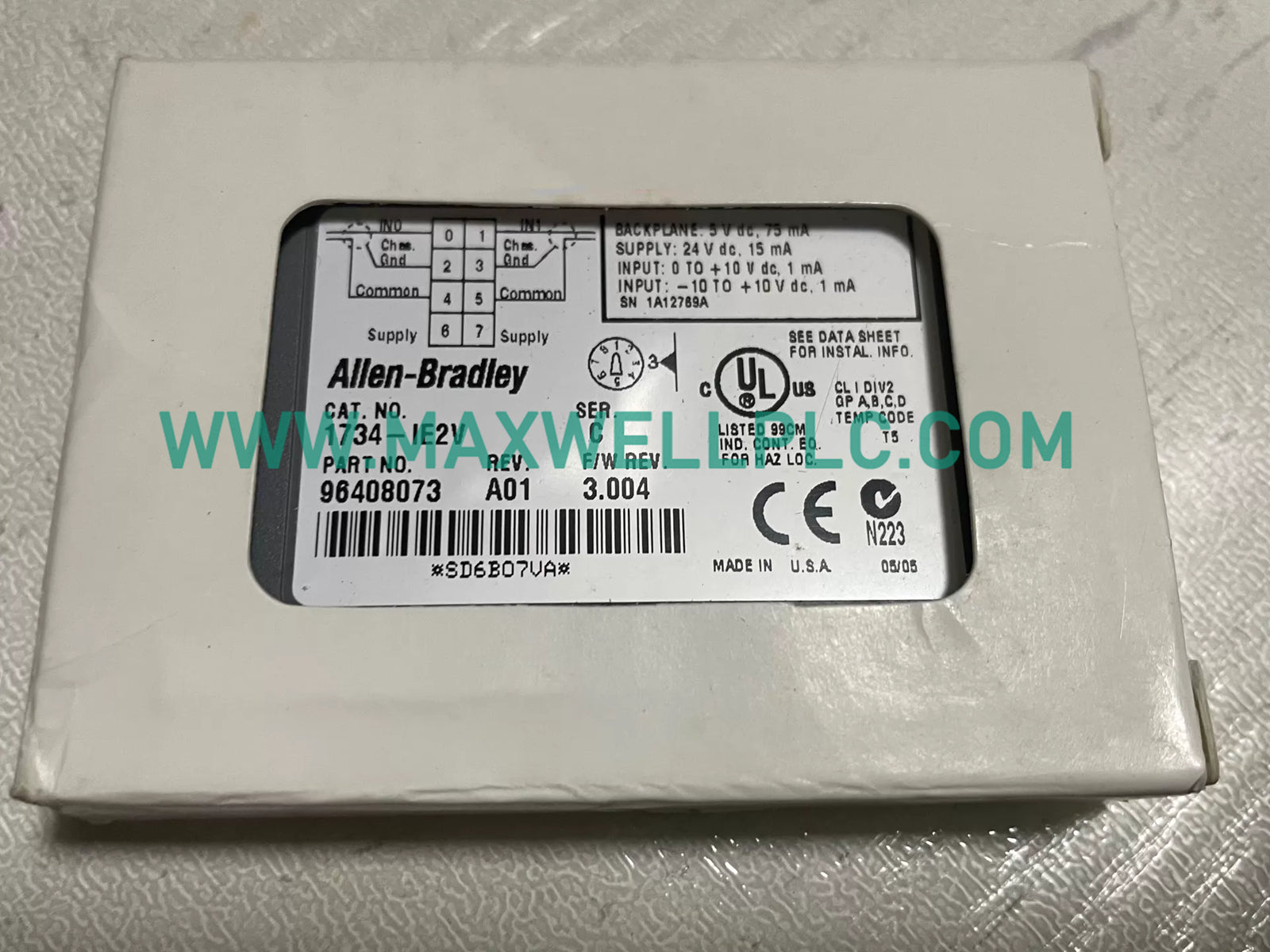

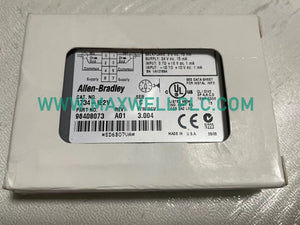

Configured for analog voltage signal acquisition within distributed automation architectures, the Allen-Bradley 1734-IE2V (1734-IE2V POINT I/O Analog Input Module) executes precision voltage conversion at the local node level.

Model Cataloging and Variant Identifiers

• Primary Catalog Number: 1734-IE2V
• Alternative Part Reference: 1734IE2V
• Hardware Architecture: POINT I/O
• Functional Module Class: 2-Point Non-Isolated Voltage Analog Input

Hardware Specifications Matrix

Backplane Communication and Deterministic Processing

The module integrates directly with the local POINTBus architecture, supporting backplane bus communication velocity parameters and firmware flash compatibility. This ensures seamless integration with host controllers across deterministic EtherNet/IP networks, maintaining scalable I/O density handling without control latency degradation.

Bill of Materials and Order Contents

• 1 x 1734-IE2V Analog Input Module hardware assembly
• 1 x Mechanical keyswitch configuration guide
• 1 x Technical documentation reference sheet

Mechanical Deployment and Field Wiring Instructions

• DIN-Rail Securing: Mount the open-style module firmly onto a standard 35 mm industrial DIN rail inside the enclosure.
• Key Switch Setting: Verify the physical keyswitch position is accurately set to 3 prior to base insertion.
• Shielded Cabling: Terminate input signal cable shields to designated earth ground bars to mitigate ambient electrical noise.
• Loop Verification: Ensure voltage input circuits remain within non-isolated operational limits before system energization.

Technical Inquiry and System Verification

• How many input channels does this analog module provide?

  The module provides 2 single-ended, non-isolated voltage input channels.

• What conversion technique is utilized for analog measurements?

  The module employs a Delta Sigma conversion architecture.

• What is the specified absolute accuracy of the input channels?

  The absolute accuracy is 0.1% Full Scale at an ambient temperature of 25 deg C.

• In what data format are the acquired measurements processed?

  Data is processed and transmitted in a Signed Integer format.

• What is the pre-configured physical keyswitch position?

  The physical keyswitch position is set to 3.

• What enclosure rating does the hardware assembly feature?

  The unit features an open enclosure type rating.

• What is the recorded weight of the individual hardware unit?

  The module weighs 0.04 kg.

• What are the estimated packaging dimensions for shipping?

  The shipping dimensions are 1.1 x 5.5 x 7.6 cm.
