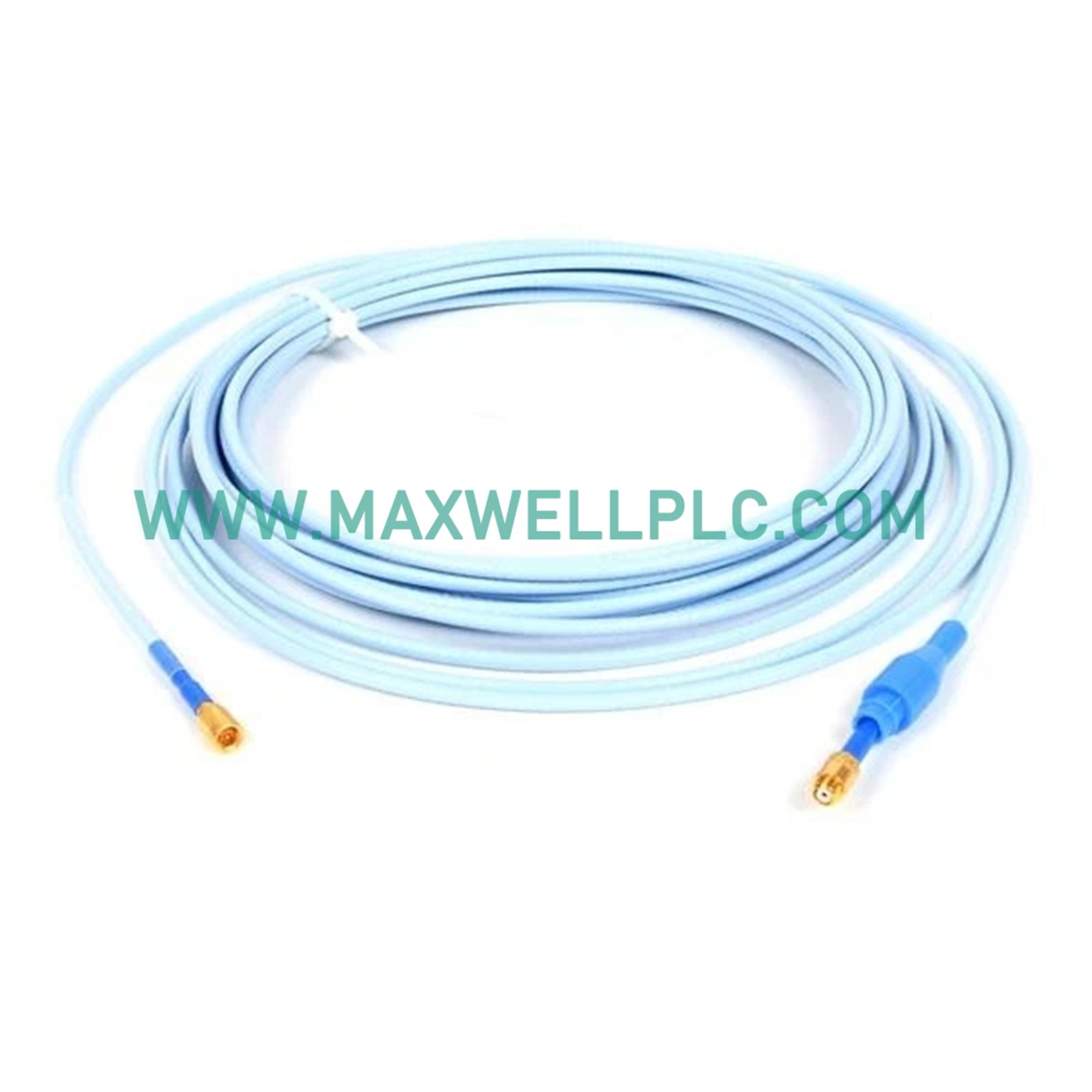

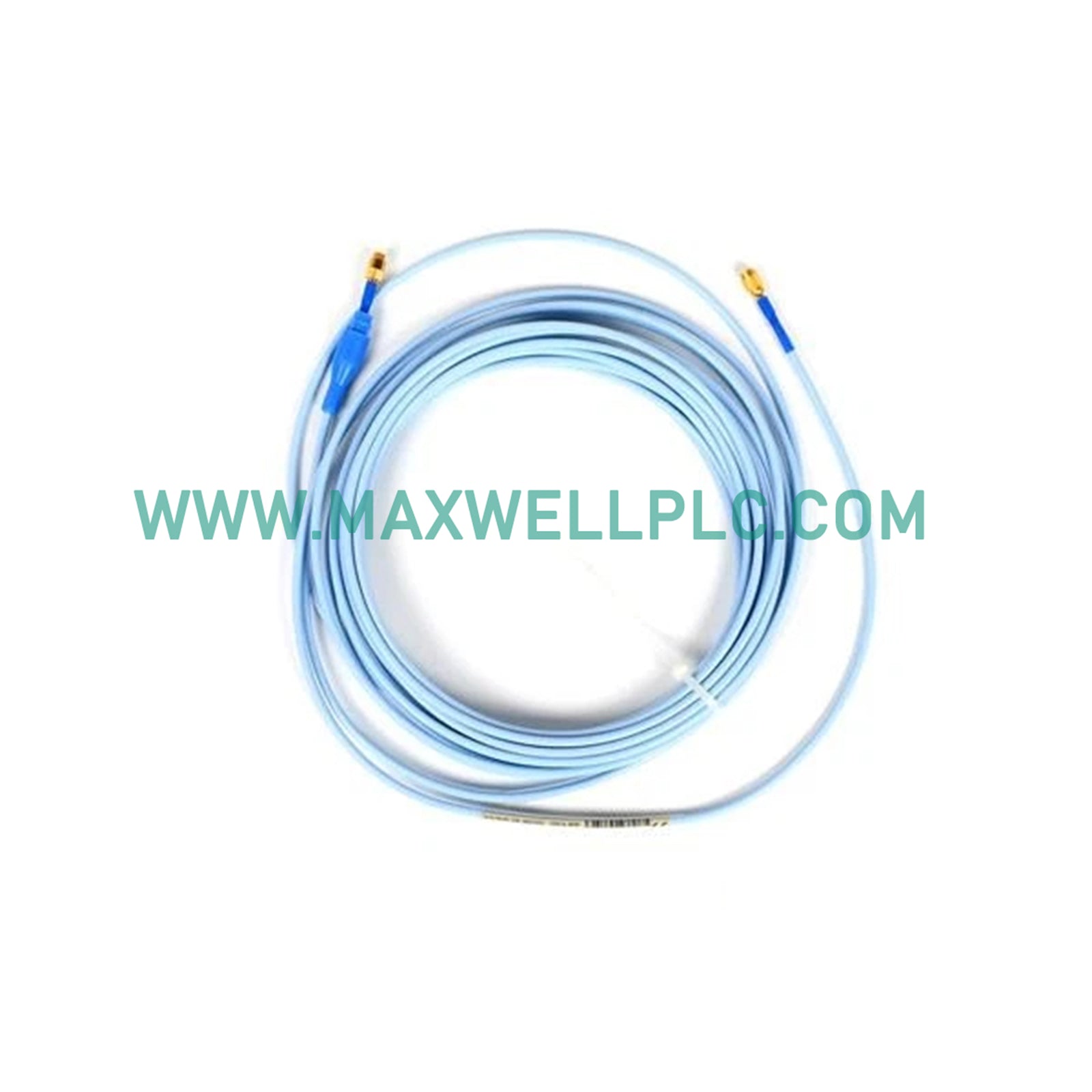

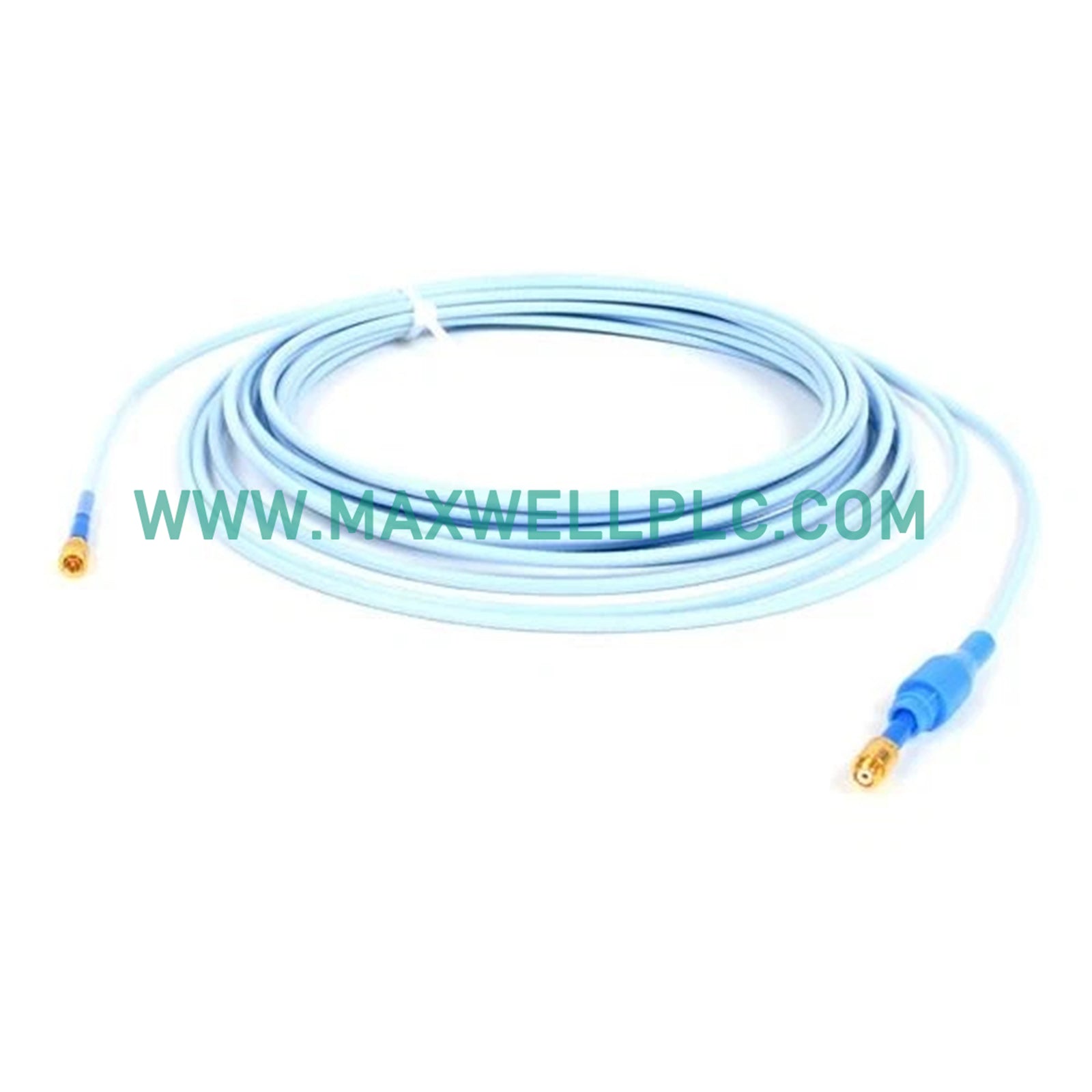

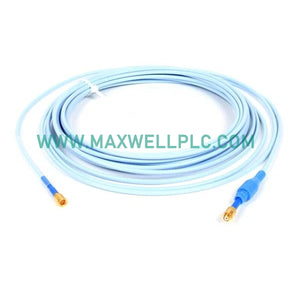

The Bently Nevada 146054-12-05-02-05 serves as the primary 146054 Ceramic Capped Proximity Probe utilized to execute static and dynamic displacement measurements across 3300 XL platforms. Utilizing eddy-current induction principles, this instrument tracks shaft position, axial movement, and vibration in aggressive process streams while resisting high pressure and chemical degradation at the sensing tip.

Suffix Configuration & Design Codes

The ordering options for this specific probe build determine its mechanical housing, electrical length, and safety certifications:

• 146054: Base model for the 3300 XL Ceramic Capped Probe (3/8-24 UNF thread, unarmored).
• -12: Defines an overall threaded case length of 1.2 inches.
• -05: Specifies a 0.5-meter (1.6 feet) integrated coaxial cable length.
• -02: Selects a miniature coaxial ClickLoc connector on a standard cable configuration.
• -05: Designates international agency approvals including CSA, ATEX, and IECEx for hazardous environments.

Technical & Mechanical Parameters

Eddy-Current Probe Scaling and TSI Validation

In turbomachinery instrumentation (TSI) setups, the 146054-12-05-02-05 probe establishes a high-frequency magnetic field from its alumina ceramic-protected tip. When paired with a matched 3300 XL Proximitor, the transducer system translates physical gap variations into a proportional analog voltage output.

Calibration against a standard AISI 4140 steel target yields a scale factor of 200 mV/mil (7.87 V/mm). During machinery loop commissioning, field engineers perform gap voltage validation, establishing a center-range bias of approximately -10 VDC. The ceramic-to-metal interface at the front tip is helium-leak tested to withstand process environments like anhydrous ammonia, protecting the coil from chemical corrosion and preventing path shorting.

Included Hardware Checklist

• 1 x Bently Nevada 146054-12-05-02-05 3300 XL Ceramic Capped Proximity Probe
• 1 x ClickLoc miniature coaxial connector (pre-installed)
• 1 x Coaxial connector protector sleeve
• 2 x Hexagonal mounting locknuts

Mechanical Mounting & Installation Guidelines

• Thread and Hole Preparation

  Verify the bracket or housing wall is tapped to accept standard 3/8-24 UNF threads. Ensure the hole is clear of metallic shavings and burrs that could damage the probe casing or corrupt the eddy-current path.

• Alumina Ceramic Tip Care

  The alumina ceramic cap is hard and pressure-sealed, but brittle. Do not subject the tip to mechanical impacts or overtighten it against the target shaft during baseline gap adjustment.

• Unsealed Rear Isolation

  The front ceramic-to-metal joint is hermetically sealed, but the rear of this probe casing has no rear seal. Ensure the cable exit and back-end are completely isolated from destructive liquids, water, ammonium hydroxide, or hydrogen sulfide.

• Cable Bend Limitation

  During routing, protect the standard unarmored cable by maintaining a minimum bend radius of 25.4 mm (1.0 inch). Sharp turns can damage the internal coaxial shield.

Technical FAQ

• Can the rear of the 146054-12-05-02-05 probe be exposed to process fluids?

  No, only the front tip has a hermetic ceramic-to-metal seal. The rear is unsealed and must be protected from liquids, ammonia, and moisture.

• What is the default calibration material for this proximity probe?

  The probe is calibrated by default for AISI 4140 steel. Other target alloys will alter the scale factor and require Proximitor recalibration.

• How is the integrated ClickLoc connector protected from field contaminants?

  The system comes with a connector protector sleeve that keeps moisture, lubricating oil, and particulate matter out of the coaxial mating junction.

• What is the maximum pressure rating for the alumina ceramic tip?

  The front-end ceramic-to-metal interface is helium leak tested to sustain process pressures of up to 34 bar (500 psi).

• Can this 0.5-meter probe lead connect directly to a TSI monitor rack?

  No. It must be paired with an extension cable to establish a total electrical length of either 5.0 or 9.0 meters matching the Proximitor.

• What is the consequences of using a non-matched system length?

  Using mismatched probe and extension cable lengths alters system impedance, resulting in severe measurement drift and scale factor errors.

• Does this model configuration include stainless steel protective armor?

  No, the "-02" connector and cable-type option specifies a standard unarmored cable lead.

• What target gap voltage represents the center of the 80 mils linear range?

  A target gap voltage of approximately -10 VDC corresponds to the center of the probe's 2.0 mm linear measuring range.
