SMC Redefines Vacuum Handling for High-Speed Flexible Packaging Lines
Pneumatics specialist SMC has introduced the ZP3P-WJT series, a specialized family of oval bellows suction cups designed to eliminate material deformation when lifting thin films, pouches, and liquid bags. By expanding the physical surface contact zone across an elongated geometry, the new hardware stabilizes flexible product packaging during high-acceleration sorting sequences. This unique design allows packaging plant operators to handle challenging, non-rigid shapes using single-point pick arrays, significantly reducing mechanical complexity and lowering maintenance overhead across secondary assembly lines.
The rapid proliferation of lightweight consumer pouches, stick packs, and liquid-filled bags has forced modern packaging facilities to adapt their pick-and-place infrastructure to accommodate non-rigid material profiles. Traditional round suction cups tend to concentrate vacuum forces on a narrow, centralized focal point, which frequently causes thin plastic films to wrinkle, buckle, or separate from the gripper entirely as internal contents shift during transit. To counteract this sagging effect, system integrators have historically relied on intricate multi-cup manifolds. However, these complex clusters introduce substantial weight to the end-of-arm tooling, demand extensive vacuum hose routing networks, and increase total structural failure points.

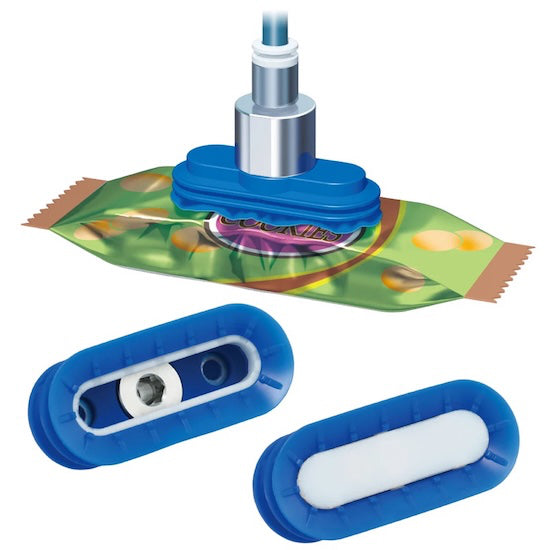

SMC addresses this core intralogistics bottleneck by utilizing an elongated oval profile that distributes vacuum lifting force evenly over a expanded surface plane. This structural configuration enables a single ZP3P-WJT component to match the stable weight distribution of two or three traditional round components combined. To ensure reliable performance across variable material thinness levels, the system incorporates two distinct insert attachment configurations. The first insert variant actively dampens thin-film puckering inside the bellows pocket, whereas the alternative flat-faced attachment actively irons out packaging wrinkles during initial contact, ensuring a continuous, airtight seal on highly irregular surfaces.
Material integrity and strict hygienic design criteria serve as fundamental parameters within this consumer product sector. The suction cup bodies are molded entirely from food-compliant elastomer compounds, manufactured without the addition of standard industrial oils, silicones, or chemical rust inhibitors to eliminate the risk of surface contamination on product packaging. Furthermore, the components are molded in a highly visible blue hue, providing quick visual contrast during routine maintenance checks. If a material fragment breaks away due to prolonged wear, automated optical inspection systems or plant floor technicians can instantly locate the debris, minimizing product recall risks and preventing extended manufacturing downtime.
By optimizing the physical mechanics of the vacuum interface, the new series delivers a practical optimization path for high-throughput pick-and-place lines running sensitive or fluctuating product lines. The built-in upper bellows structure acts as a mechanical shock absorber, maintaining reliable suction even when products arrive misaligned, slightly inflated, or with shifted internal contents. Eliminating multi-hose arrays simplifies pneumatic control schematics, streamlines automated changeover programs, and reduces the volume of critical spare parts inventory. This hardware development allows machinery builders to construct cleaner, more responsive robotic gripper platforms that handle modern, lightweight consumer goods without compromising line velocity or structural product presentation.
