SICK Expands Edge Computing Capabilities with Multi-Protocol SIG300 IO-Link Master Gateway
To accelerate edge data processing and minimize network latency on modern production lines, factory automation pioneer SICK has launched an intelligent sensor integration gateway engineered for decentralized control.

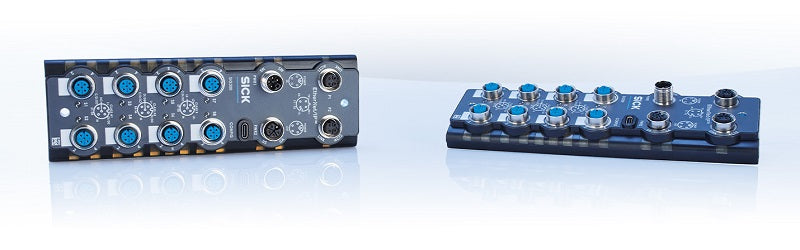

The digitization of the lowest architectural layers of industrial manufacturing requires robust fieldbus gateways that can bridge the gap between raw physical sensing and enterprise analytics. As smart sensors proliferate across multi-vendor packaging lines, material handling systems, and assembly cells, standard I/O distribution blocks frequently become bandwidth bottlenecks, lacking the computational capacity to process information locally. Responding to the structural demand for localized intelligence and simplified control panel layouts, SICK has introduced the SIG300 Sensor Integration Gateway. This 8-port IO-Link master serves as an edge-computing hub that shifts basic boolean processing loops away from the primary industrial PLC hardware, allowing field devices to execute standalone logic decisions independently and lowering the computational burden on the central factory network.
The core electronic architecture of the SIG300 portfolio builds heavily upon previous gateway models while introducing crucial fieldbus variations to suit highly dynamic B2B manufacturing plants. A critical addition is the integration of high-speed EtherCAT support, placing the device alongside existing product variants optimized for PROFINET and EtherNet/IP topologies. To support concurrent industrial internet of things data collection, every module in the product family features integrated IT communication channels including RESTful API and MQTT, with native OPC UA integration scheduled for subsequent firmware updates. This parallel data path configuration ensures that high-frequency diagnostic data and process telemetry can bypass the core control loop entirely, streaming directly to on-premise edge servers or cloud analytics platforms for deep machine-health evaluations and prescriptive maintenance planning without impacting deterministic machine timing.
Physical device connectivity across the terminal interface is managed via eight multi-purpose ports that can be individually reconfigured as standard digital inputs or discrete digital outputs. By utilizing dual-signal tracking across distinct pins within a single port configuration, the physical connection footprint can scale up to accommodate sixteen independent digital signals through standard splitter cables. To drive larger actuator sub-assemblies and high-draw smart sensors without auxiliary power injectors, SICK has engineered the hardware to support increased power delivery thresholds. The configuration provides up to 2 Amps per channel on Class A ports, while two dedicated Class B ports deliver a combined 4 Amps of galvanic isolated supply current. When individual pins are utilized as discrete digital outputs, they can supply 200 mA directly to heavy load devices, providing significant leeway for engineering teams to connect complex stack lights, pneumatic manifolds, and specialized instrumentation directly to the machine-mounted enclosure.
System commissioning and ongoing device management are executed through the SOPASair web server interface, which is accessed directly through a physical USB-C port to allow local configuration without requiring active network parameters or pre-installed software suites. Within this localized web interface, a dedicated logic configuration layer allows engineers to build, simulate, and execute simple conditional logic blocks right on the gateway itself. This edge computing capability allows localized subsystems—such as an automated tank level monitoring array interacting with a signaling column—to execute closed-loop adjustments in real time with zero involvement from the primary programmable logic controllers. By consolidating multi-protocol network versatility, rugged hardware power outputs, and localized decision-making engines into a singular, compact housing, the system provides an effective foundation for machine builders aiming to implement modular, future-proof automation line architectures.
Written by: Christopher Vance, a network integration engineer with over twelve years of experience designing high-speed fieldbus topologies, configuring edge-computing I/O blocks, and optimizing smart sensor infrastructure for automotive and packaging applications.
