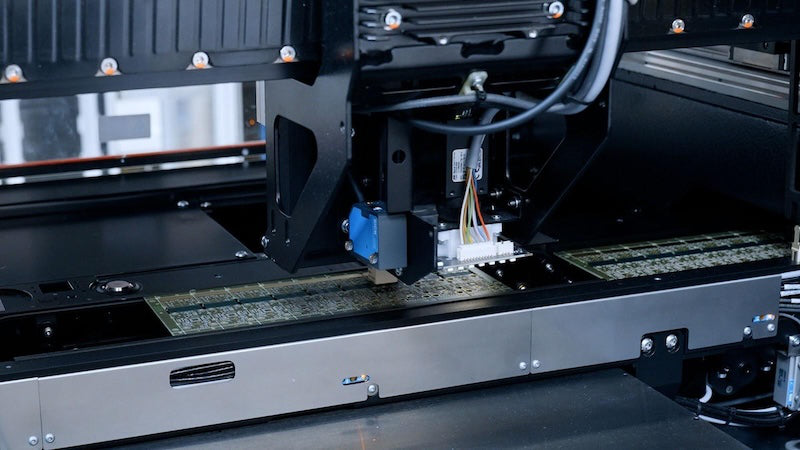

SICK Debuts OD200 Laser Displacement Sensor for Micron-Level Accuracy on Challenging Surfaces
SICK has introduced a high-performance laser distance sensor designed to eliminate measurement dropouts on highly reflective, dark, or heavily textured materials. The newly launched OD200 series utilizes an advanced optical triangulation core paired with dynamic signal evaluation algorithms to achieve stable, repeatable measurements where conventional displacement instruments fail. By stabilizing data acquisition on volatile surfaces like woven carbon fiber, polished die-cast aluminum, and injection-molded plastics, this short-range sensor helps quality control teams maintain strict tolerances on rapid inline inspection tracks.
Industrial metrology setups frequently struggle with erratic laser scattering caused by stray factory lighting or fluctuating target reflectivity. When a sensor encounters a mirrored metallic edge or a low-contrast matte black surface, standard optical receivers often produce noisy data, resulting in false rejects or process downtime. SICK resolves this operational bottleneck by pairing optimized light spot geometry with a high-resolution internal receiver matrix. This architectural setup enables the OD200 to capture clean surface profiles under harsh ambient lighting conditions, preventing data clipping and giving plant operators the reliable precision needed to sustain continuous, high-yield manufacturing outputs.
On the technical performance front, the OD200 handles demanding process dynamics by supporting internal sampling rates up to 3 kHz alongside a positioning repeatability down to 2 µm. The hardware footprint is distributed across multiple distinct sub-models spanning variable measuring windows from 25 mm up to 160 mm, allowing system engineers to select the exact standoff depth required for small-part presence verification or precise robotic tool tracking. Despite its advanced optoelectronic design, the device maintains a plug-and-play installation methodology. Commissioning can be executed directly through the sensor’s onboard menu buttons or via SICK’s standardized SOPAS configuration wizard, allowing field technicians to mount and sync the compact device in tight machine corners without extensive training overhead.
A core advantage of the platform is its deeper integration into the factory floor’s data ecosystem via integrated IO-Link bus communication, operating alongside standard analog voltage and discrete digital outputs. Beyond simply broadcasting raw distance dimensions, the digital interface lets control systems continuously monitor critical health parameters such as real-time laser exposure durations, target signal strength, and optical peak widths. Maintenance crews can funnel these diagnostic data points directly into centralized predictive analytics software packages to track gradual environmental changes, such as dust buildup on the lens or slight component shifts, adjusting the sensor on the fly before a critical machine fault occurs. This smart telemetry foundation makes the OD200 an incredibly practical, time-saving tool for modern automated assembly lines focused on absolute zero-defect production.
