Rockwell Automation has provided an in-depth operational showcase at its Milwaukee headquarters, detailing the automated manufacturing systems utilized to construct its latest Allen-Bradley control products while previewing new wave-aware motor protection and single-pair Ethernet network topologies.

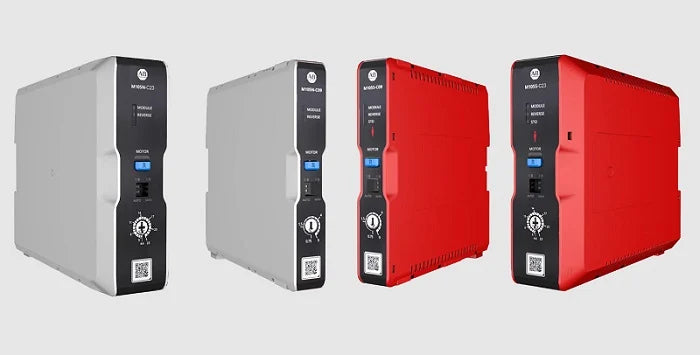

Industrial manufacturing plants and machine control panel builders face continuous pressure to decrease wiring complexity, lower structural installation costs, and extend the operational life of electromechanical switching components. In standard motor control layouts, traditional three-phase contactors frequently experience severe mechanical and electrical degradation caused by electrical arcing. When standard contactor contacts open or close randomly relative to the AC voltage phase, switching at peak current points generates repetitive electrical arcs that induce pitting, carbon scoring, and high thermal stress on the physical contact surfaces. This degradation shortens the mean time between failures (MTBF) for control hardware and poses an ignition hazard in volatile industrial environments. To address these vulnerabilities, Rockwell / Allen Bradley has developed its new M100 line of motor starters, integrating precise waveform detection to orchestrate switching operations at the exact instant the multi-phase alternating current waveform crosses zero volts. By adjusting the open timing of each individual phase contact based on dynamic line feedback, the starter systematically eliminates arc formation, boosting device longevity and minimizing structural degradation inside high-density control cabinets.

Beyond improving electromechanical durability, the facility demonstration highlighted a structural shift in control panel wiring architecture through the introduction of the EtherNet/IP In-Cabinet solution. Traditional automation panel configurations require a sprawling matrix of point-to-point discrete I/O cables to link individual motor starters, pilots, and auxiliary operators back to a central programmable logic controller. This massive cable infrastructure takes up premium physical space, complicates diagnostic isolation during commissioning, and increases point-of-failure vulnerabilities. The new in-cabinet networking platform resolves this layout bottleneck by migrating standard point-to-point configurations to a centralized single-pair Ethernet (SPE) fieldbus routed via a flat ribbon cable. A small dedicated gateway translates standard Ethernet traffic from the controller down to this flat cable bus, which uses specialized insulation-displacement punch-in adapters to distribute power and bidirectional data simultaneously. This unified architecture provides dedicated lines for high-speed data transmission, network node power, and field device coil actuation, allowing maintenance technicians to tap new nodes into intermediate sections of the ribbon cable on demand without re-terminating existing system lines.

The deployment of this single-pair Ethernet infrastructure yields significant advantages for asset lifecycle visibility and real-time machine diagnostics. Because every node along the ribbon cable communicates directly with the primary industrial controller, the network enables constant tracking of operational current draws, line voltages, and localized thermal profiles across every integrated starter. Maintenance groups can ingest this granular field data directly into enterprise-level predictive analytics software to predict imminent coil failures or contact abnormalities long before a critical system shutdown occurs. Furthermore, operators can configure adaptive diagnostic indicators, such as changing the colors of illuminated pushbuttons to reflect real-time safety metrics, and pinpoint the exact physical location of a malfunctioning node instantly through distinct software IDs.

To streamline the configuration of these connected control panels and support small-scale process deployments, the software engineering ecosystem is transitioning from Connected Components Workbench (CCW) to the modern FactoryTalk Design Workbench platform. This engineering software is specifically optimized to interface with Micro810 units and Ethernet-enabled variants of the Micro800 series, accelerating system commissioning through a more intuitive development environment. Within the physical assembly lines at the Milwaukee facility, these advanced control technologies are deployed to optimize the automated assembly of the Allen-Bradley 100-C series contactors. Engineered in partnership with Calvary Robotics, the manufacturing line uses an iTRAK modular linear conveyance system to transport sub-assemblies through synchronized stations. A coordinated network of SCARA, delta, gantry, and articulated robotic arms equipped with specialized mechanical grippers build each contactor to exact order specifications, demonstrating a highly optimized, automated ecosystem that uses its own advanced hardware to manufacture the next generation of industrial control devices.
