The ongoing miniaturization of internet of things hardware has forced electronic component designers to look beyond the surface area of printed circuit boards. Modern smart sensors deployed across wearable medical technology, portable diagnostic equipment, and dense industrial monitoring networks face compounding mechanical restrictions where package thickness, net component weight, and total volumetric boundaries dictate design viability. As edge devices assimilate complex telemetry functions, traditional semiconductor packaging methodologies increasingly restrict further mechanical optimization. To solve these spatial constraints, Renesas Electronics has expanded its low-power microprocessing line by offering advanced chip scale packaging options, enabling hardware engineers to shrink device dimensions without compromising computational power, thermal efficiency, or manufacturing scalability.

Conventional integrated circuit packaging options, including low-profile quad flat packages and quad flat no-lead variants, have served as the foundational bedrock of mass-market electronics due to their mature assembly pipelines and mechanical robustness. However, these traditional formats introduce substantial physical overhead, with the outer plastic molding and lead configurations drastically exceeding the dimensions of the internal silicon die. When developing ultra-thin or weight-sensitive electronic assemblies, this extra material creates an artificial bottleneck. Renesas addresses this layout restriction through the implementation of wafer level chip scale packaging, a technique wherein encapsulation and contact formation are completed directly onto the silicon wafer prior to individual die singulation. This specialized manufacturing flow yields a finished package that is typically less than 1.2 times the scale of the raw silicon die, delivering an ultra-low-profile footprint that brings the component's physical mass incredibly close to its organic silicon limits.

Structurally, the WLCSP methodology eliminates the internal wire bonds common to legacy packaging. Instead, the raw microcontroller die is mated directly to an integrated redistribution layer, an interposer structure that reroutes the native bond pads into a highly concentrated, localized matrix of lead-free solder balls. This array allows the micro-component to be handled and mounted using standard automated surface-mount technology and high-volume ball grid array reflow manufacturing lines. To protect the thinned, vulnerable silicon from mechanical fracturing and environmental degradation, specialized passivation coatings are applied to the exterior surface, providing necessary structural shielding against physical impact and ultraviolet radiation while remaining fully compatible with high-speed pneumatic pick-and-place machinery.

By eliminating non-essential material encasements, this streamlined micro-architecture provides distinct mechanical and electrical advantages over alternative packaging strategies. Shorter internal interconnect lines drastically reduce parasitic inductance and electrical resistance, yielding cleaner signal integrity and lower dynamic power draw at high operating frequencies. Thermally, the direct connection between the silicon die, the redistribution layer, and the printed circuit board via concentrated solder spheres ensures an exceptionally low thermal resistance pathway, allowing heat to dissipate rapidly into the system substrate. This rapid thermal transfer prevents localized hot spots, making the configuration highly superior to standard packages in sealed, unventilated sensor housings.

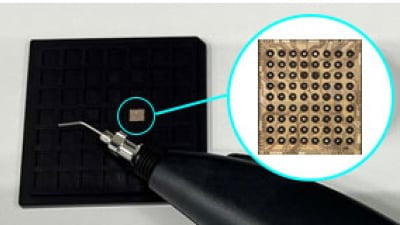

Renesas has demonstrated the practical implementation of this high-density format within its RA4L1 low-power MCU series, featuring an Arm Cortex-M33 processing core tailored for battery-critical edge nodes. The newly available 72-ball WLCSP option occupies a minimal footprint of just 3.64mm × 4.28mm with an ultra-thin vertical profile of 0.5mm. Despite its miniature physical stature, the microcontroller houses an 80MHz central processing unit alongside 512KB of dual-bank flash memory. The hardware is further supplemented by a robust suite of integrated communication peripherals, including on-chip SPI, I2C, and next-generation I3C serial interfaces, multiple low-power UARTs, specialized low-latency analog front ends, and a full-speed USB interface.

Adopting ultra-fine pitch components with spacing metrics at or below 0.5mm requires stringent layout strategies and tight PCB design tolerances. Hardware engineering groups must utilize advanced trace widths, precise via configurations, and high-density interconnect substrates to break out the tight contact matrix. However, when managed through proactive manufacturing collaboration, the technology allows development teams to build an entirely new tier of hyper-compact consumer and medical electronics, ranging from specialized optical transceiver modules and smart biometric sensors to miniature hearables and digital imaging arrays.
