Pilz Expands Decentralized Control Architectures with IP67 Rated IO-Link Safety Master Hub
To streamline fieldbus deployment and reduce cable complexity on the factory floor, Pilz has commercialized a ruggedized, decentralized safety network interface capable of maintaining strict regulatory compliance under extreme environmental stress.

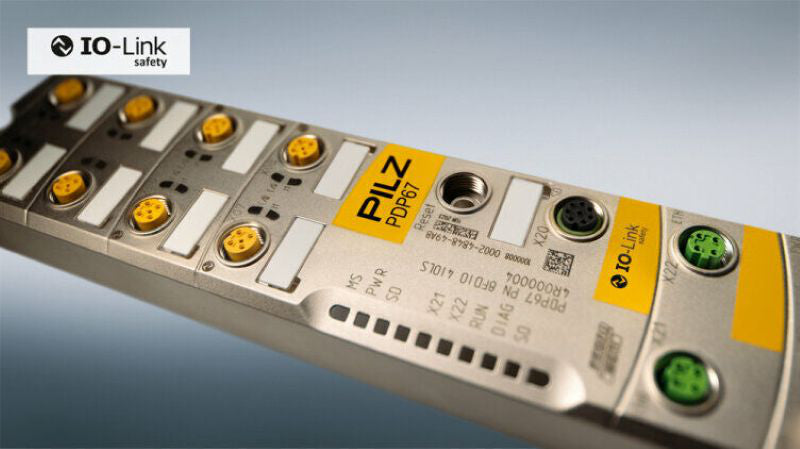

Modern factory floor designs increasingly favor modular machinery over rigid centralized panel architectures, requiring automated safety systems to migrate closer to the physical field devices. Traditional infrastructure mandates that every safety interlock switch, emergency stop button, and optoelectronic light curtain run dedicated, shielded conductors back to a central control cabinet, creating a highly complex wiring topology that complicates diagnostic troubleshooting and delays commissioning cycles. To address this structural inefficiency, industrial safety specialist Pilz has launched its PDP67 IO-Link safety master. This remote module serves as a decentralized interface to the primary programmable safety controller, shifting point-to-point field wiring to a localized network architecture. By decoupling safety critical data from standard processing loops while maintaining bidirectional communications, this system allows original equipment manufacturers and system integrators to scale up production cells with minimal modification to the core electrical prints.
The hardware implementation of the PDP67 master focuses heavily on physical survivability and fieldbus flexibility in challenging processing environments. Enclosed in a fully sealed housing certified to IP67 and IP69 specifications, the module is resilient against high-pressure washdowns, corrosive chemical exposure, airborne particulate matter, and moisture ingress. This specialized environmental hardening allows for direct on-machine mounting without the protection of secondary control enclosures, proving highly advantageous for food and beverage processing lines, chemical refineries, and outdoor heavy industrial sites. The physical connection plane utilizes standardized M12 connector threads to ensure broad compatibility with multi-vendor field instruments, featuring four specialized Class A IO-Link safety ports alongside four configurable digital ports. Each of these auxiliary channels contains two safe digital inputs and outputs capable of interfacing with legacy safety sensors featuring standard OSSD outputs, enabling plant engineers to modernize existing infrastructure without retiring functional field assets.
Operating with full certification up to Performance Level e (PLe) according to ISO 13849-1 and Safety Integrity Level 3 (SIL 3) per IEC 62061, the network node maintains absolute deterministic execution across its communication bus. Access to the internal firmware for device configuration, fieldbus parameter assignment, and real-time diagnostic evaluation is managed through an embedded web server, removing the requirement for specialized proprietary programming tools. This localized data transparency ensures that maintenance personnel can isolate specific process anomalies or device faults at the machine level, preventing widespread plant downtime during minor component failures. By integrating foundational safety logic with the high-throughput capabilities of modern IO-Link protocols, Pilz provides B2B procurement managers and plant engineers with a reliable, scalable foundation for decentralized automation that significantly reduces total lifecycle costs and simplifies regulatory validation.
