Pepperl+Fuchs Simplifies Intralogistics Topology with Single-IP G20 Ethernet Motor Control Module
Pepperl+Fuchs has expanded its decentralized drive portfolio with the launch of the G20 Ethernet motor control module, an intelligent conveyor control architecture engineered to streamline high-density material handling systems by managing up to 120 motorized rollers through a single network IP address.

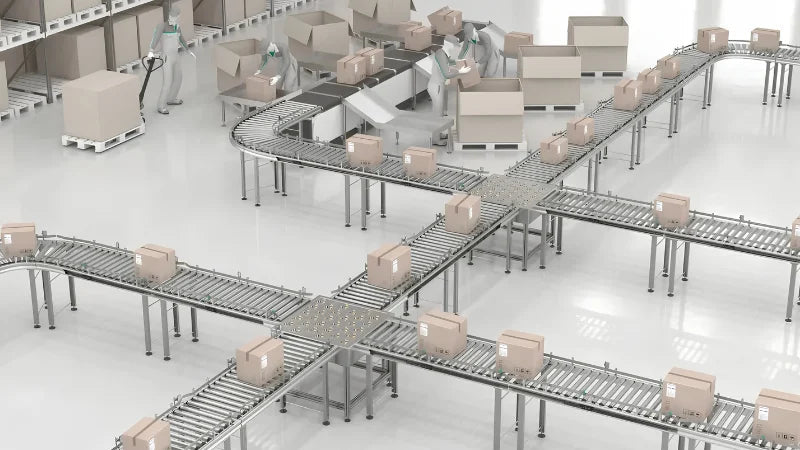

Modern fulfillment centers, sorting facilities, and manufacturing plants depend on sprawling, highly interconnected roller conveyor networks to maintain throughput. Historically, scaling these material handling systems meant grappling with network address exhaustion and complex fieldbus commissioning, as each field module or zone controller typically demanded its own dedicated IP address. The new G20 system circumvents this bottleneck by employing a master-replica routing topology. Under this framework, a single central fieldbus gateway interfaces directly with the primary industrial network via EtherNet/IP or PROFINET, acting as a consolidated communication hub. This master controller orchestrates up to four separate sub-networks of daisy-chained motor modules. Each individual sub-network supports a maximum of 15 dual-motor modules, allowing automation engineers to scale up to 60 modules—representing 120 individual brushless DC motors operating at either 24 V or 48 V DC—without consuming extra slots on the plant-wide IP allocation table.
Beyond network infrastructure optimization, the G20 platform enhances decentralization by integrating hybrid control modes that optimize PLC processing efficiency. The system supports Zero-Pressure Accumulation (ZPA) mode natively at the module level. In this configuration, the photoelectric sensors connected directly to the M8 ports of the G20 module trigger localized, embedded logic routines to manage product spacing and prevent product collisions automatically. By offloading these high-frequency, repetitive zone-interlock tasks from the central processor, facilities can substantially reduce PLC scan times. For complex routing, sorting, merges, and variable speed zones, users can seamlessly transition segments into PLC-controlled mode. This allows the centralized controller to retain full deterministic command over individual motor speed profiles, directional acceleration, and explicit diagnostics. Because both ZPA and PLC-driven operation can coexist simultaneously across the same physical conveyor line, system integrators have the flexibility to deploy hybrid control architectures that match localized mechanical requirements.
In alignment with Industry 4.0 data acquisition paradigms, the G20 system bridges the gap between operational technology and enterprise cloud applications. Alongside standard deterministic fieldbus communication, each Ethernet controller features concurrent non-interfering data channels utilizing an embedded OPC UA server and a standard REST API interface. This dual-stack communication capability allows reliability engineers and IT systems to pull real-time diagnostics, runtime telemetry, current draw analytics, and sensor health parameters directly from the conveyor hardware. Consequently, facilities can implement advanced predictive maintenance software and asset management strategies without modifying the underlying PLC control code or risking network jitter on the critical control loop.
From a physical deployment perspective, the hardware is explicitly designed to withstand the harsh environments of high-volume logistics hubs. The G20 modules feature a rugged, low-profile IP67-rated enclosure engineered for tool-free mounting directly within the structural channel of the conveyor's side frame rail. This recessed mounting configuration completely shields the electronic housing and industrial cabling from accidental impacts caused by forklifts, maintenance carts, or misaligned pallets, while simultaneously functioning as an integrated cable management raceway. Capable of operating across a wide temperature envelope from -25°C to 70°C, the module is equally suited for deep-freeze cold storage environments and high-temperature manufacturing floors, delivering a resilient, future-ready footprint for modern supply chain automation.
