Next-Gen Thermal Management: Danfoss Launches CoolTrain™ for Rapid Liquid Cooling Deployment
Bridging the Gap in Liquid Cooling Infrastructure

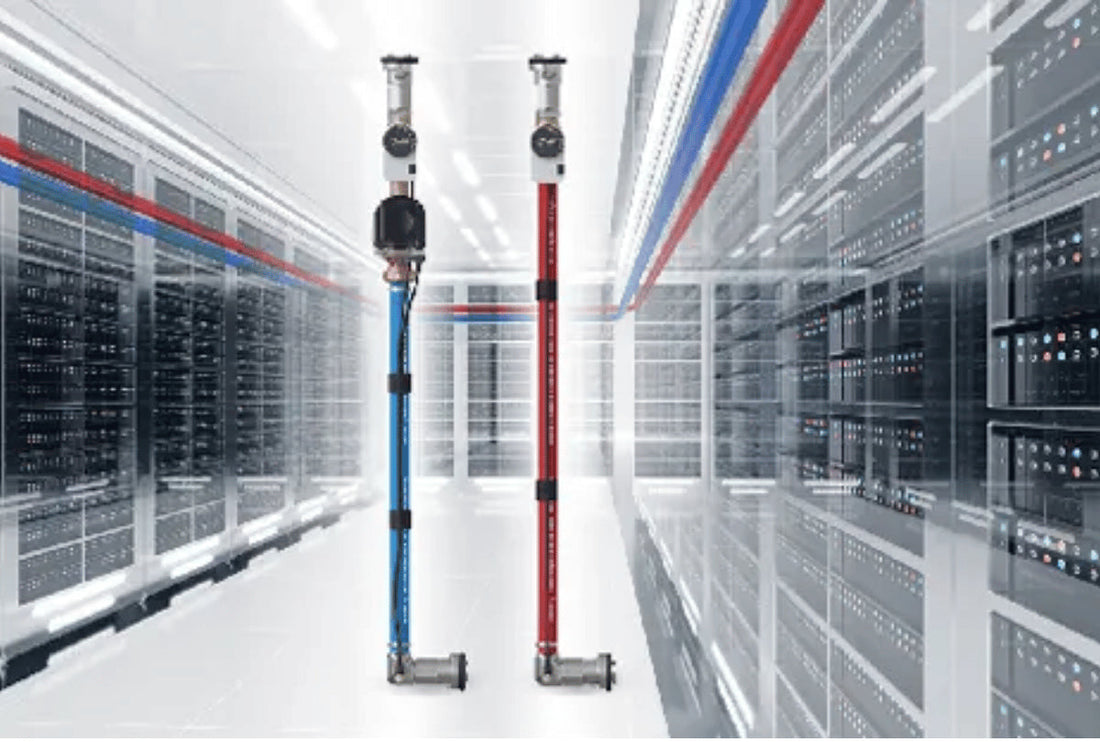

The rapid expansion of the Industrial Metaverse and AI workloads has made traditional air cooling obsolete for modern server racks. However, the move to liquid cooling is often hindered by slow, high-risk manual piping. Danfoss addresses this bottleneck with the CoolTrain™, a pre-engineered bridge between the facility’s TCS cooling loops and the server rack. By shifting the assembly to a controlled factory environment, Danfoss delivers a hermetically sealed unit that reduces installation time from hours to minutes, significantly lowering the total cost of ownership (TCO) for large-scale deployments.
Smart Hydronic Balancing and Performance Optimization
At the heart of the CoolTrain™ system is the AB-QM Pressure Independent Control Valve (PICV). This technology provides continuous, automatic hydronic balancing, ensuring that coolant flow is precisely matched to the actual thermal load of the rack. Unlike static systems that waste energy by forcing pumps to work at peak capacity, the CoolTrain™ optimizes pump efficiency. For operators looking for deep data integration, the optional NovoCon® S digital actuator turns the cooling loop into a smart data source, providing real-time telemetry on flow rates and temperatures directly to the DCIM (Data Center Infrastructure Management) system.
Engineering Reliability and Material Integrity
Leakage is the primary concern for any liquid cooling deployment. Danfoss mitigates this risk by utilizing the FD83 interlockable coupling and high-durability Boston® hoses. Every CoolTrain™ unit is pressure-tested and cleaned to ISO 4406 standards before shipment. The materials selected for the valve train are strictly corrosion-resistant, having passed rigorous compatibility tests with modern coolants to ensure a decades-long service life in aggressive industrial environments.
Technical Specifications and Scaling Capacity
| Metric | Specification Details |
| Nominal Diameter | 1” |
| Flow Capacity | 8.3–83 LPM (2.2–22 GPM) |
| Cooling Capacity | 55 kW (Supports up to 65 kW at ΔT=10K) |
| Max Pressure | 145 psi |
| Leakage Rate | ISO 5208 Class A (Zero Leakage) |
| Cleanliness | Certified to ISO 4406 Factory Standards |
| Temperature Range | 15–65°C (59–149°F) |
Empowering the Future of Green Data Centers
The launch of CoolTrain™ signifies a major step toward achieving sustainability goals in the tech sector. By improving both Water Usage Effectiveness (WUE) and power efficiency, Danfoss enables facilities to handle high-density racks without compromising on environmental standards. This solution is now available for global specification, providing a robust, software-ready foundation for the next generation of liquid-cooled data centers.
