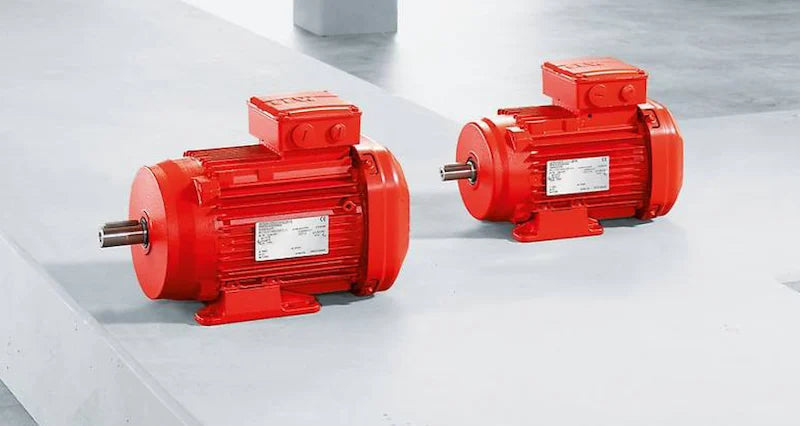

Mastering Three Phase Motor Wiring and AC Voltage Distribution
Alternating current distribution serves as the backbone of modern heavy industry, driving the heavy-duty machinery, material handling networks, and processing plants that keep global supply chains moving. Within these demanding environments, multi-phase power systems are preferred over standard single-phase residential lines due to their superior efficiency, constant power delivery, and ability to start massive rotational loads without specialized starting capacitors. However, navigating the intersection of international voltage standards, distinct frequency requirements, and complex terminal box configurations frequently presents challenges for system integrators, plant electricians, and procurement specialists. To address this knowledge gap, this comprehensive technical resource provides a deep dive into the practical mechanics of alternating current voltage as it relates directly to heavy-duty powertrain infrastructure.
Developing a highly optimized factory floor requires a clear understanding of electrical phase dynamics and load characteristics. While single-phase wiring is adequate for low-power control panels and localized auxiliary tools, it introduces pulsating torque characteristics that can accelerate mechanical wear on large industrial assets. Utilizing a balanced three-phase distribution system solves this issue by delivering three distinct, overlapping sinusoidal currents separated by one hundred and twenty electrical degrees. This configuration creates a smoothly rotating magnetic field within the stator windings of an induction motor, resulting in exceptional operational efficiency and localized torque stability. For procurement managers sourcing spare parts or updating aging infrastructure via a B2B digital sales platform, understanding these underlying power dynamics is essential to selecting the exact hardware footprint required for continuous-duty manufacturing applications.
Translating incoming line power into reliable physical rotation requires careful attention to the internal configuration of the motor terminal box. Depending on the global region and specific plant grid architecture, a single induction motor may need to be adapted for either low-voltage or high-voltage operation. This flexibility is typically achieved by manipulating the copper jumper links across the terminal pins to form either a Delta or a Wye connection pathway. A Delta configuration connects the internal stator windings end-to-end, making it ideal for managing lower line voltages with higher phase currents. Conversely, a Wye configuration links one end of all three windings to a single common point, distributing the electrical stress across the coils to safely handle higher incoming voltage supplies. Misidentifying these internal wiring topologies during commissioning can result in catastrophic insulation breakdown, localized overheating, or immediate winding failure.
A frequent point of confusion during field installations involves the role and deployment of a neutral conductor within multi-phase systems. In standard utility distribution and single-phase branch circuits, the neutral line is essential for carrying return currents back to the transformer panel and stabilizing voltage drops across unbalanced loads. However, a properly wound three-phase induction motor represents a perfectly symmetrical, balanced inductive load. Because the vector sum of the currents in all three phases resolves to zero at any given millisecond, the neutral connection is functionally obsolete within the motor terminal box itself. Eliminating the need for a neutral run back to the central distribution frame allows engineering teams to optimize cabling architecture, reduce raw material expenses, and streamline field installation timelines without sacrificing system safety or grounding integrity.
