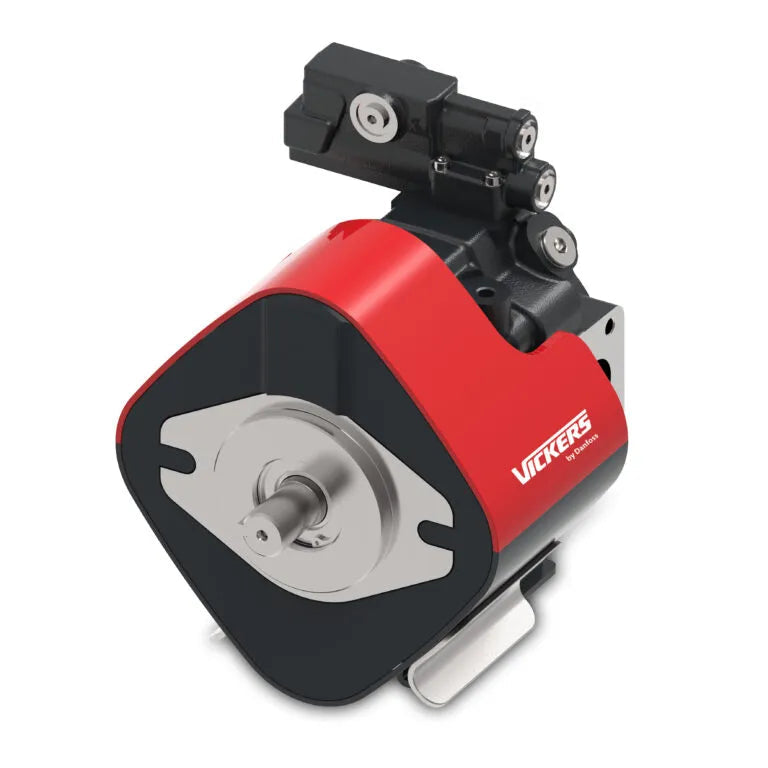

Danfoss Reengineers Industrial Hydraulics With Energy-Recuperating Vickers PVMX Axial Piston Pump
The introduction of the Danfoss Vickers PVMX platform addresses a critical engineering shift toward the hybridization of industrial power transmission, blending the high force density of hydraulics with the precise dynamic control of electric servo drives. Entering the market in an initial 28-cc displacement configuration, this medium-pressure pump delivers a continuous operating threshold of 350 bar fluid pressure while pushing maximum rotational velocities up to 3,800 rpm. This represents a substantial 35 percent speed optimization over legacy Vickers medium-pressure architectures, directly matching the peak performance characteristics of modern high-torque AC synchronous servo motors. By closing the speed gap between the prime mover and the hydraulic pump, plant engineers can accelerate overall machine cycle times while deploying more compact, energy-dense electrical footprints in the control cabinet.
Acoustic management represents another key engineering milestone for this series, with the internal rotating group generating a mere 72 decibels at an operating threshold of 280 bar and 3,000 rpm. This low noise emission level directly helps manufacturing facilities comply with stringent international workplace safety regulations without requiring expensive secondary acoustic dampening enclosures.
Architecturally, the PVMX stands out through its native two-quadrant hydraulic distribution design, enabling seamless, bidirectional fluid flow reversal without the inclusion of complex external directional control valves. Reversing the flow orientation is executed instantly either by reversing the rotational direction of the driving servo motor or by cycling the pump across its internal over-center mechanism. This hardware consolidation simplifies complex circuit topologies, lowers fluid friction losses, and sharpens response times during critical motion control sequences such as rapid cylinder retraction, proportional deceleration curves, and active pressure relief cycles.
The core differentiator of the PVMX lies in its proactive approach to sustainability and thermal efficiency through integrated mechanical energy recuperation. During specific phases of the machine cycle, such as gravity-assisted vertical press descents or high-inertia actuator deceleration, the hydraulic fluid reverses roles, routing backward through the pump assembly to turn the component as a hydraulic motor. This action mechanically drives the connected servo motor, forcing it to act as an electrical generator that feeds regenerated power back into the facility grid or a shared DC bus network.
This regenerative braking functionality drastically reduces the aggregate heat load transferred to the hydraulic oil reservoir, allowing system designers to specify much smaller heat exchangers and reduce cooling fluid consumption. When evaluated against conventional fixed-speed induction motor pump systems, the on-demand operation of the PVMX eliminates persistent idling losses. The combination of motor downsizing, active power recuperation, and reduced cooling overhead yields documented energy efficiency improvements up to 80 percent, contingent upon the specific duty cycle profiles of the host machinery.
Built to integrate smoothly into global manufacturing platforms, the pump strictly complies with both ISO mounting configurations and SAE interface standards. Danfoss offers a wide selection of control logic adaptations, including classic pressure compensation, highly responsive load sensing, and versatile dual displacement options. This versatility, paired with multiple input drive shaft profiles, modular through-drive configurations, and flexible porting orientations, ensures that the PVMX functions as an ideal drop-in solution for both new machinery builds and complex brownfield retrofit projects seeking a modern automation upgrade.
