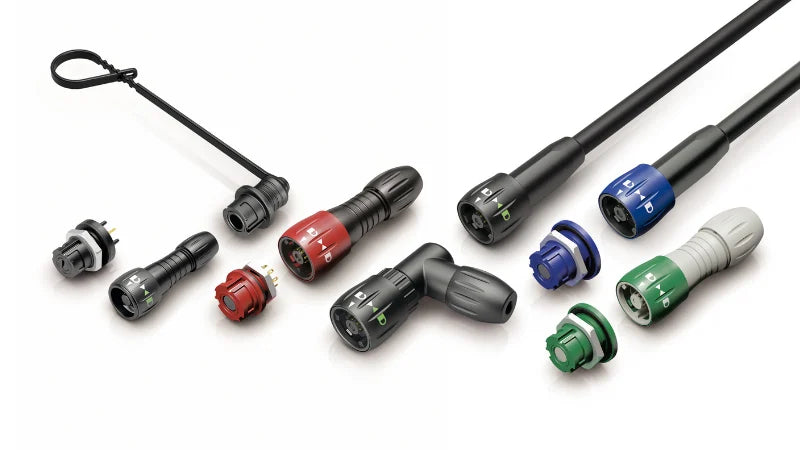

Binder Unveils Not Connected Closed Circular Connectors with Automatic Interface Sealing
Binder has introduced the Not Connected Closed (NCC) circular connector family, featuring an innovative spring-loaded internal sealing mechanism that isolates electrical contacts from dust, oils, and moisture even when completely unmated.
In standard industrial automation deployments, laboratory test benches, and clinical healthcare environments, circular electrical interfaces are highly vulnerable to degradation during the periods they remain disconnected. Traditional panel-mount receptacles rely on external rubber tether caps or plastic covers to maintain environmental protection between operational cycles. In practice, operators frequently neglect to reattach these protective caps, leaving delicate contact pins exposed to airborne particulates, ambient humidity, washdown detergents, and oily residues common to the factory floor. Over time, this passive exposure accelerates galvanic corrosion, compromises insulation resistance, and induces intermittent signal degradation, forcing premature hardware replacements. The engineering methodology behind Binder’s NCC platform addresses this vulnerability by building a mechanical barrier directly into the internal housing of the female panel connector, ensuring that the interface transitions autonomously into a sealed state the moment the male plug is withdrawn.
This autonomous isolation is achieved through a precision spring-guided sealing disk housed within the receptacle. When the plug is disengaged, the spring mechanism instantly forces the internal cover forward, creating an immediate environmental seal flush against the connector opening. Upon re-insertion, the advancing plug mechanically overcomes the spring tension, smoothly depressing the protective cap into a recessed cavity to establish clean electrical connectivity. This configuration streamlines operations by eliminating separate loose accessories, simplifying standard layout modifications, and guaranteeing continuous interface hygiene. To accommodate varying spatial and data transmission requirements, Binder is offering the platform in two standardized configurations: the Series 670 subminiature format equipped with five signal contacts, and the Series 770 miniature variant configured with eight contact paths suitable for high-density control signals and low-power distribution loops.
The mechanical resilience and environmental ratings of these series are explicitly optimized for high-volume, repetitive industrial cycles. Constructed from rugged, DEHP-free plastic resins, both versions feature an intuitive bayonet locking mechanism that allows for tool-free, rapid-twist connection while resisting accidental decoupling from industrial vibrations or umbilical cable tugging. The Series 670 delivers IP54 protection when unmated and escalates to a fully submersible IP67 rating once securely coupled, maintaining mechanical integrity across more than 1,000 mating cycles. For harsher operational zones, the premium Series 770 maintains a continuous IP67 rating whether mated or unmated, engineered to withstand over 5,000 complete insertion cycles. This durability makes it a crucial asset for modular testing setups, frequently modified automated workstations, and multi-sensor arrays that depend on stable contact parameters across long-term lifecycles.
Recognizing the strict cross-industry demand for material safety compliance, Binder has further developed a specialized medical-grade version within the Series 770 lineage. This clinical iteration conforms strictly with ISO 10993-5 biocompatibility guidelines, having undergone exhaustive validation testing to guarantee zero cytotoxicity in sensitive, patient-proximate diagnostic environments. By merging advanced chemical safety compliance with a high-cycle mechanical infrastructure, the platform allows medical device manufacturers and laboratory technicians to deploy identical, standardized interconnect architectures across both heavy industrial control panels and delicate patient-monitoring instrumentation. This standardization helps maintenance groups unify their component inventory, streamline procurement pipelines, and incorporate advanced predictive analytics software monitoring protocols across diverse automated systems with the confidence that critical field connections remain impervious to environmental degradation.
