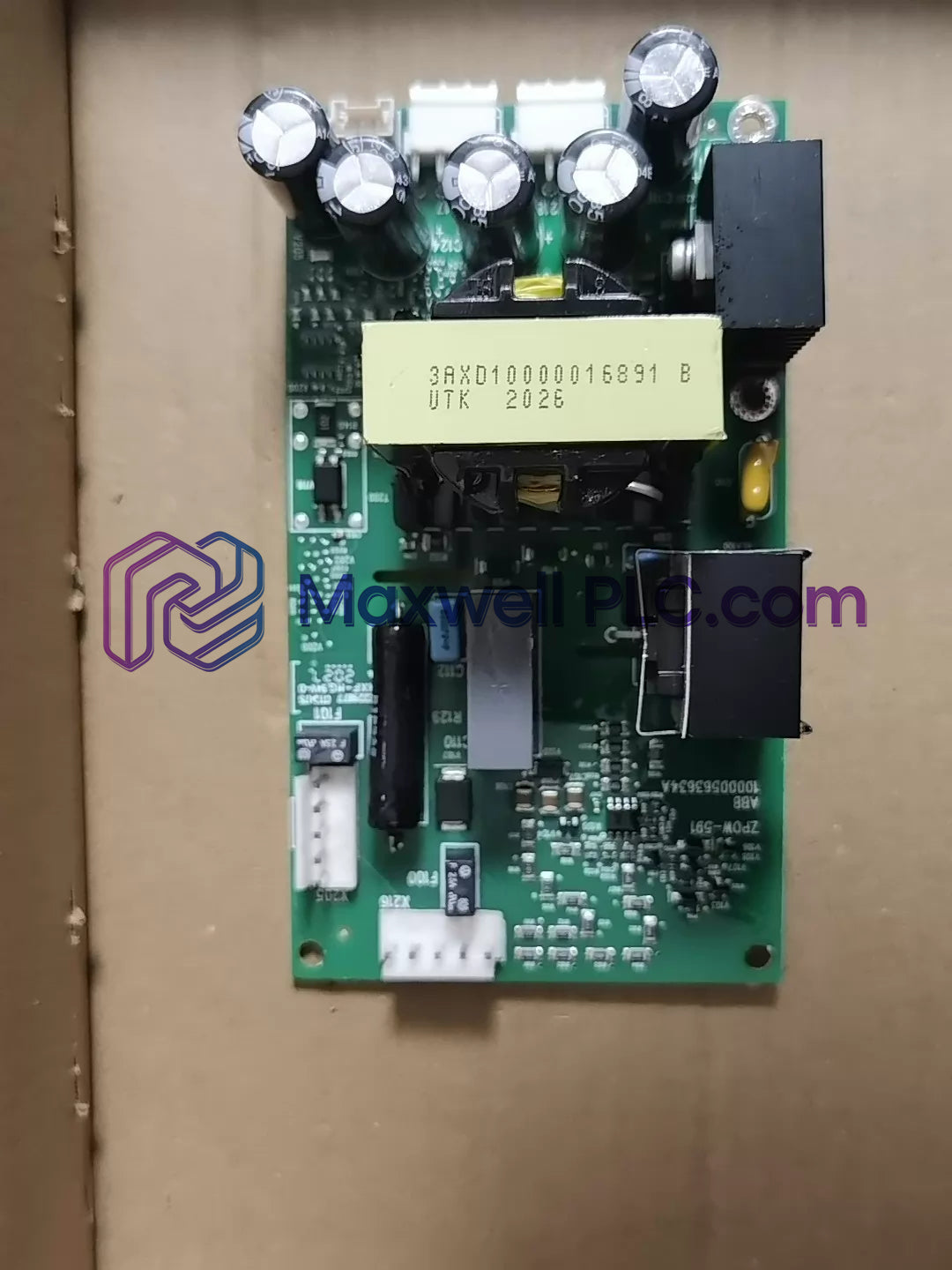

The ABB ZPOW-591 3AUA0000075499, also cataloged as the ZPOW-591 power supply board, operates as a dedicated hardware component for auxiliary internal DC voltage conversion and regulation within ACS580 and ACS880 drive systems.

Module Configuration & Order Matrix

• Manufacturer Ordering Code: 3AUA0000075499
• Hardware Model Designation: ZPOW-591 / ZPOW591
• Product Function: Auxiliary internal switch-mode power supply board
• Host Drive Compatibility: ABB ACS580 and ACS880 variable frequency drives
• Primary Voltage Source: Intermediate DC bus / rectifier feedback unit

Technical Performance Specifications

Backplane Power Bus & Firmware Architecture Integration

The power board interfaces directly with the drive internal backplane bus to deliver stabilized low-voltage DC rails for gate control, logic cards, and communication slots. Optimized backplane bus communication velocity licences ensure stable telemetry monitoring of internal power rails over Profinet / EtherNet/IP networks. Hardware-level firmware flash compatibility ensures synchronized fault detection when overvoltage or brownout conditions occur across the DC link.

Standard Commercial Package Contents

• 1 x ABB ZPOW-591 power supply board (3AUA0000075499)
• 1 x Fastening screw set with grounding lock washers
• 1 x Technical hardware overview document

Mechanical Installation & Wiring Regulations

• High-Voltage Isolation: Ensure main AC feed and high-voltage DC bus lines are completely isolated, verifying bus discharge below 50 VDC prior to servicing.
• ESD Safe Handling: Touch grounded metal enclosure surfaces or wear a grounded wrist strap before touching board components to prevent static discharge damage.
• Grounding Fasteners: Torqued structural mounting screws must be securely fastened to establish low-impedance grounding paths to the drive metal chassis.
• Cable Shield Anchorage: Secure auxiliary wiring shields using metal clamps connected directly to the enclosure ground rail to suppress electromagnetic interference.

Field Engineering FAQ

• What is the primary input voltage source for the ZPOW-591 board?

  The board draws power directly from the main DC intermediate bus or rectifier unit, accepting input levels from 510 to 1000 VDC.

• Can the ZPOW-591 board be installed or removed while the drive is energized?

  Hot-swapping is strictly prohibited; all AC mains supplies and DC bus voltages must be completely de-energized before maintenance.

• What thermal operating limits govern board installation inside drive enclosures?

  The card operates within a certified thermal range of -10 to +60 deg C without experiencing thermal output derating.

• How does the power supply board maintain noise immunity for logic circuits?

  The board maintains voltage conversion efficiency above 85 % while limiting DC output ripple noise to less than 1 % peak-to-peak.

• Which drive series utilize the ZPOW-591 auxiliary power board?

  This power supply board is designed specifically for integration across ABB ACS580 and ACS880 variable frequency drive platforms.

• What rated input current is drawn during peak load operation?

  Under nominal operating loads, the primary high-voltage DC input current draw is rated at <= 1.5 A.

• How are power fault conditions communicated to the main CPU card?

  Internal monitoring circuits send immediate brownout or overvoltage fault signals across the internal backplane bus to trigger drive protection routines.

• What precautions must be observed regarding physical ground connections?

  All metallic mounting standoffs and grounding screws must be fully seated against the drive chassis to ensure a low-impedance ground path.
