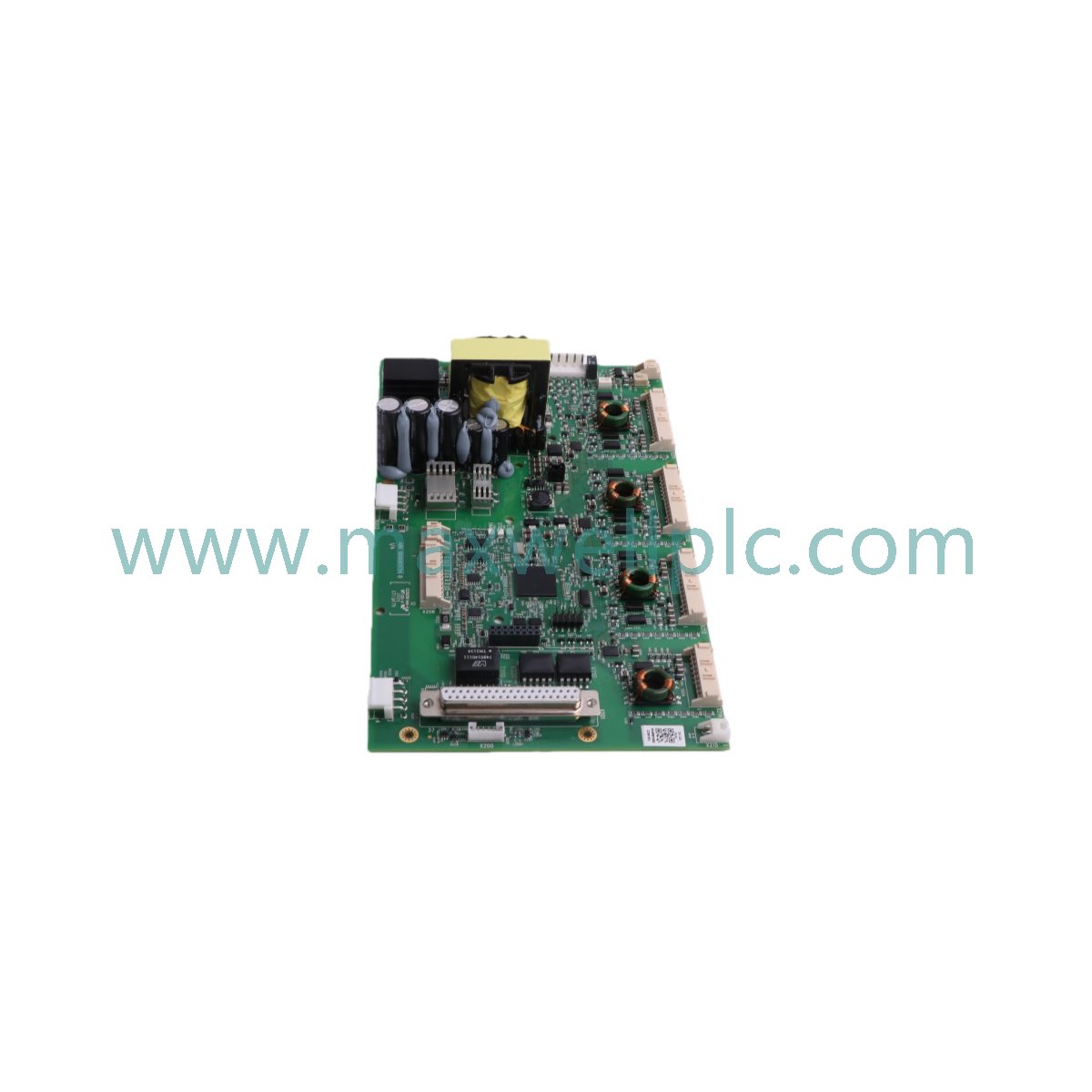

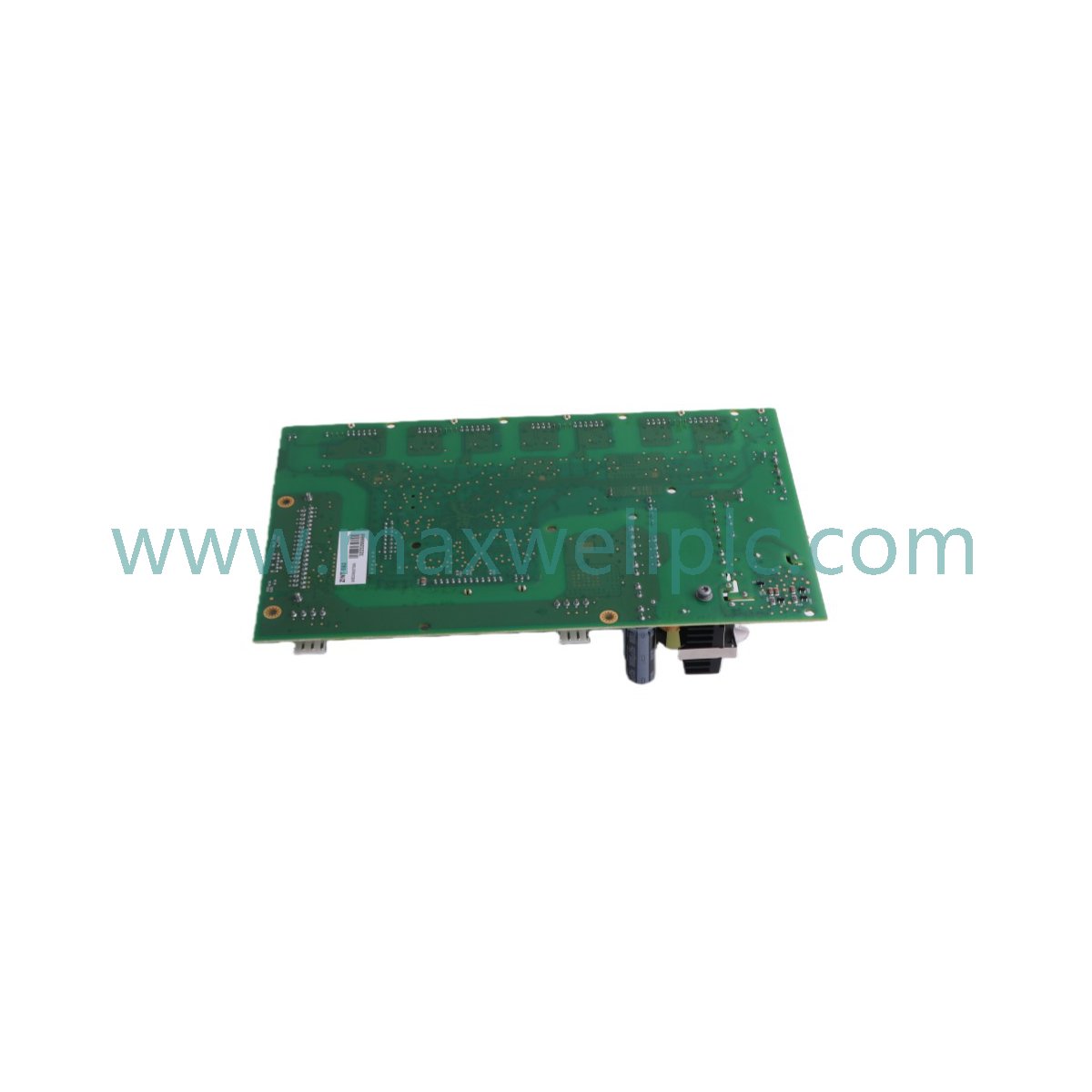

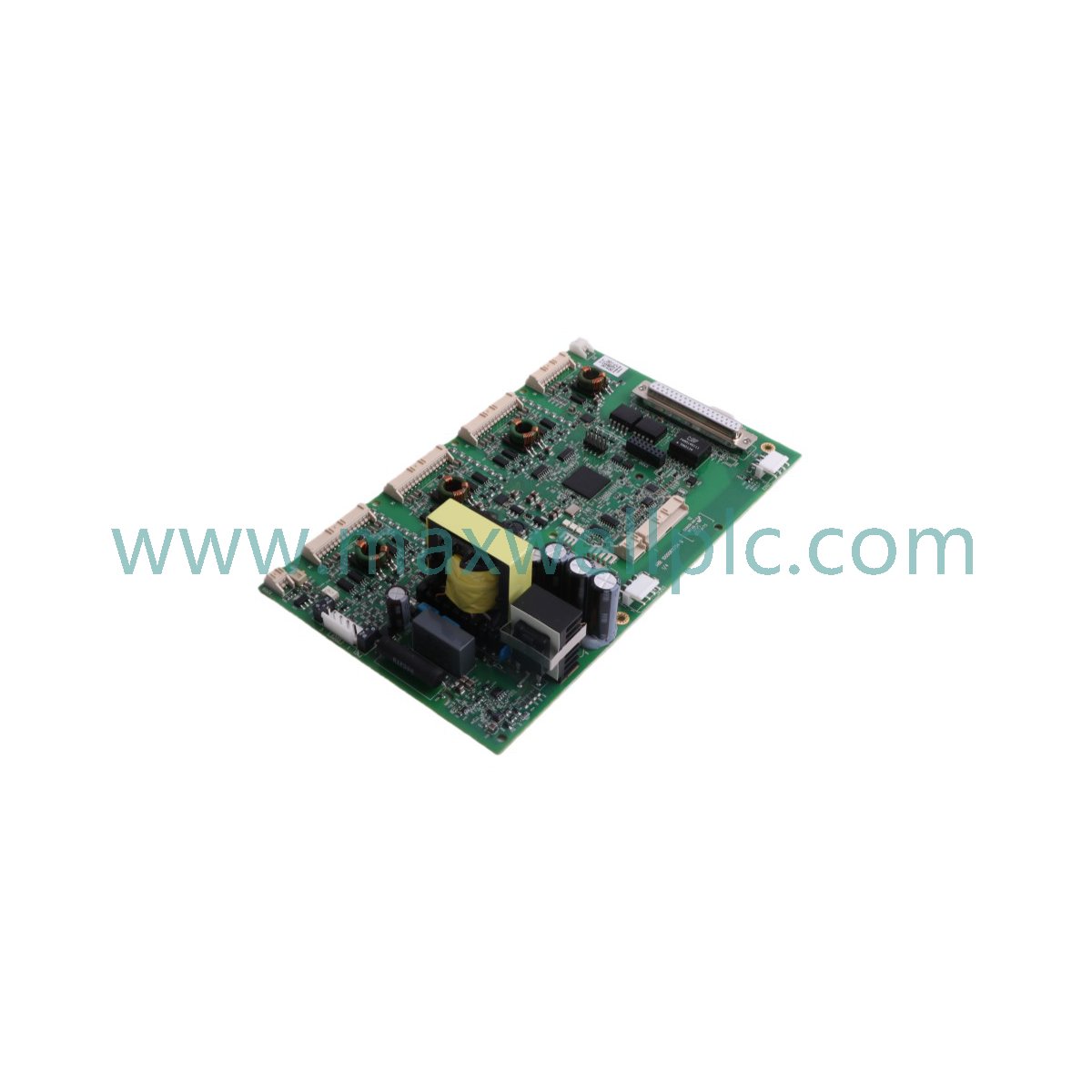

The ABB ZINT-571, also cataloged as the 3AUA0000077333 Main Circuit Interface Board, operates as a dedicated hardware component for gate signal distribution and power feedback acquisition within ACS880-01 drive architectures.

Model Identification

The ZINT-571 serves as the primary interface between the drive control unit and the power electronics stage. It facilitates real-time processing of motor current and voltage feedback, while managing the transmission of PWM gate driver signals to the inverter power semiconductors.

Hardware Specifications

ABB Industrial Control & Drive Communication

The ZINT-571 supports deterministic backplane bus communication velocity for internal signal routing. The board architecture features I/O density scaling to accommodate varied drive power ratings and supports firmware flash compatibility for maintenance of control logic. Integration with drive-level networks ensures synchronized feedback acquisition, allowing the ACS880-01 to maintain precise motor torque and velocity control within high-bandwidth switching environments.

## Ordering info

• ZINT-571 3AUA0000077333 Main Circuit Interface Board.

• Integration manual for ACS880-01 inverter modules.

• Associated hardware components for board mounting and EMI shielding.

Field Installation Guidelines

Mounting

• Install the interface board within the internal control cavity of the ACS880-01 unit.

• Verify that the high-power gate signal cables and low-voltage feedback connectors are firmly seated to prevent signal crosstalk.

Wiring

• Maintain separation between sensitive feedback signal cabling and high-power inverter switching bus bars.

• Ensure all ESD precautions are observed during board handling to protect logic circuitry from electrostatic damage.

Frequently Asked Questions

• Q: Is the ZINT-571 hot-swappable?

  A: No. All power must be removed from the drive and DC bus capacitors must be fully discharged before board removal or installation to prevent hardware damage.

• Q: Does the board require field programming?

  A: The board functions as a hardware interface. Logic processing is performed by the primary control unit; however, firmware compatibility with the main controller must be maintained.

• Q: How does the board handle high-power EMI?

  A: The module integrates isolation and signal buffering circuits specifically to decouple the logic signals from high-power electromagnetic interference generated by the inverter.

• Q: Can I use this for ACS880 models other than the -01 frame?

  A: Compatibility is optimized for the ACS880-01 series. Refer to the specific drive technical manual for compatibility with alternative ACS880 frames.

• Q: What is the purpose of the 100 mA to 500 mA power draw?

  A: The current draw scales dynamically based on the drive's PWM switching frequency and the operational load conditions of the power stage.

• Q: Does the board provide thermal protection?

  A: Yes, it facilitates thermal sensing feedback to the main control board to manage drive protection states based on power stage temperature.

• Q: Are there diagnostic indicators on the board?

  A: Diagnostic status is relayed to the drive's main control unit and displayed on the drive panel; the board does not feature standalone visual status LEDs.

• Q: What is the consequence of incorrect signal filtering?

  A: Improper filtering of analog feedback can lead to ripple currents, inaccurate torque estimation, or drive trips due to unexpected signal noise.
