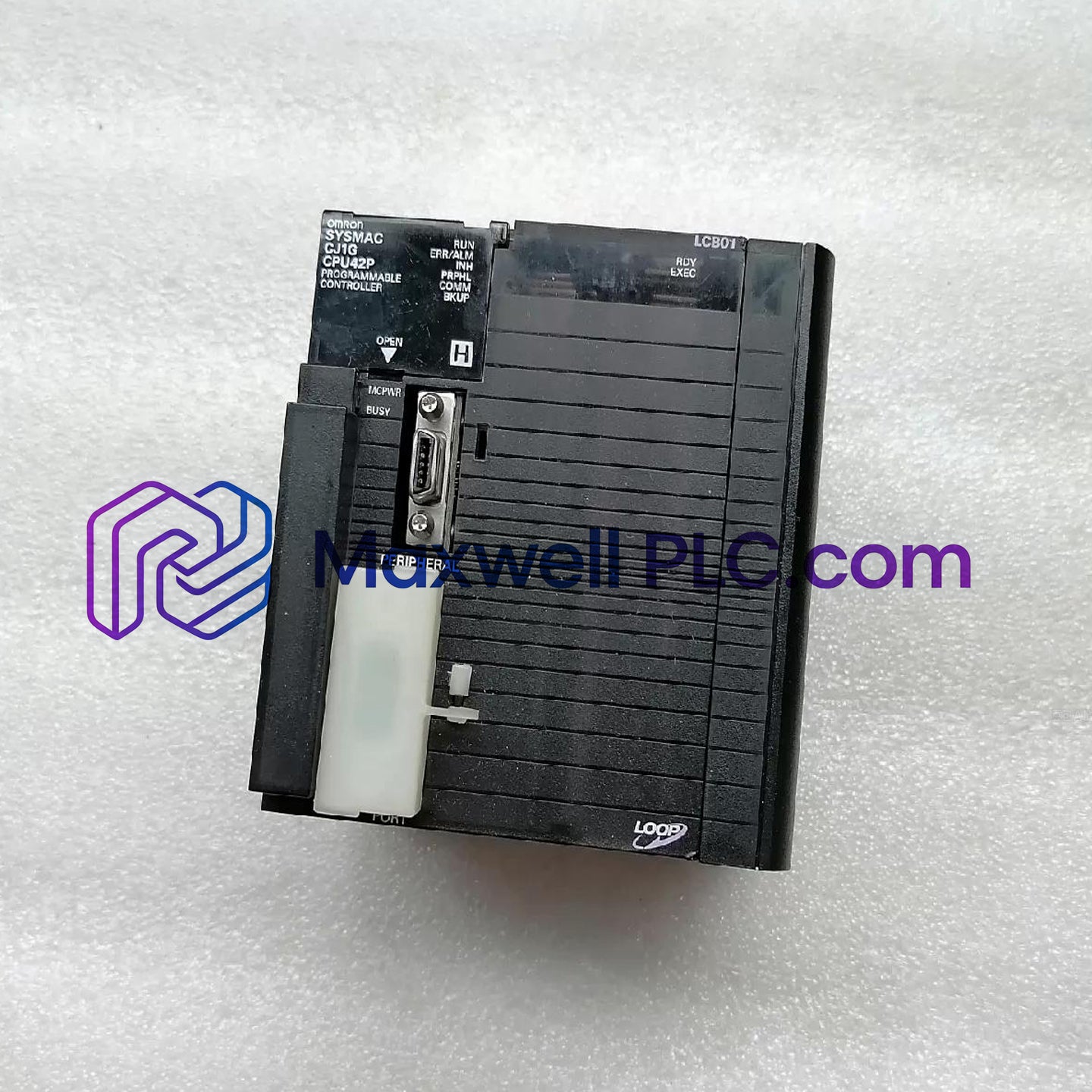

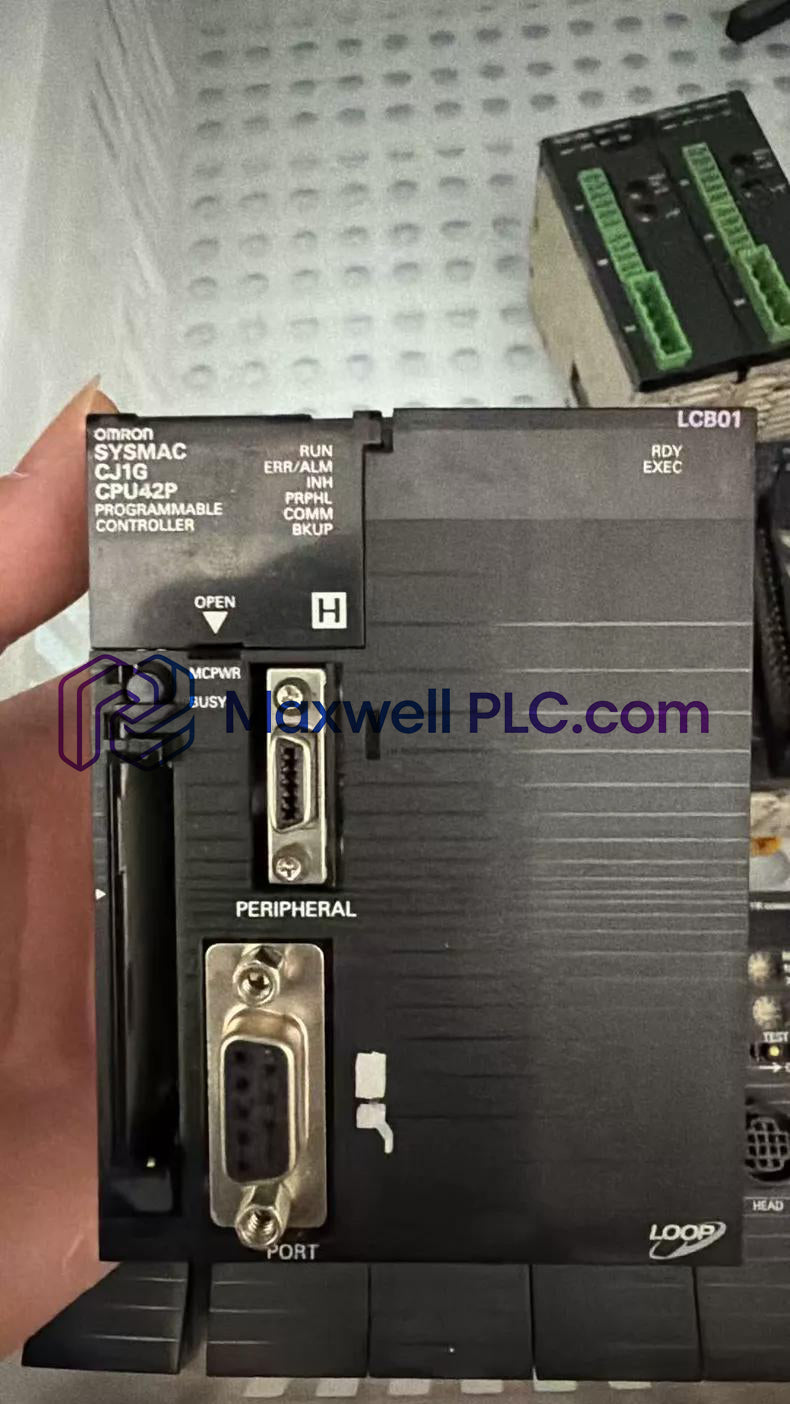

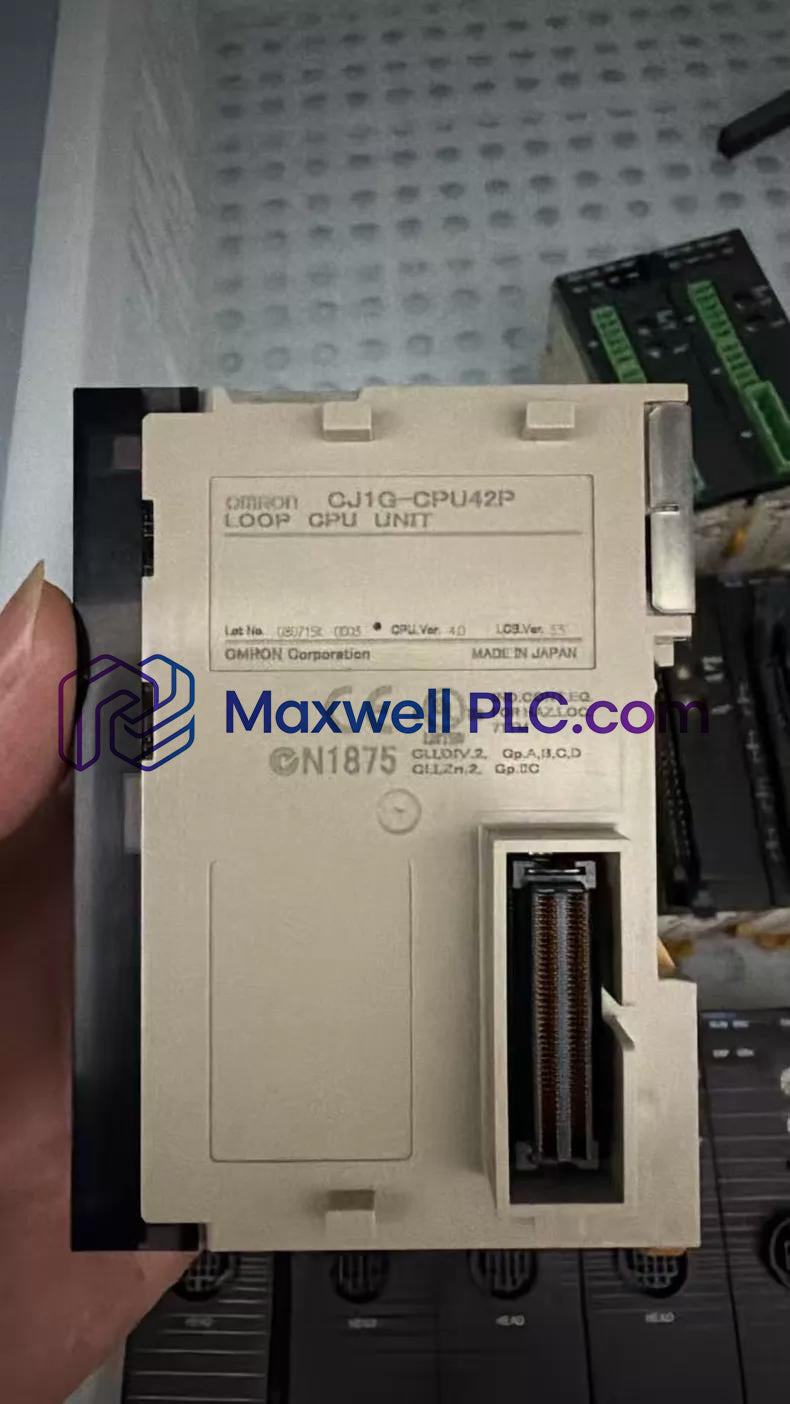

The Omron CJ1G-CPU42P, also cataloged as the CJ1G-CPU42P Loop-Control CPU Unit, operates as a dedicated hardware component for integrated sequence logic and analog loop execution within Omron CJ1 Controller Systems.

Part Number Architecture & Feature Classification

The CJ1G-CPU42P module integrates sequence control with built-in loop control capabilities in a single CPU hardware package. The base model prefix "CJ1G" designates high-speed CJ-series architecture, while the suffix "P" indicates process engine capabilities, enabling execution of up to 50 function blocks for continuous analog control alongside 10 Ksteps of standard ladder logic execution.

Operational Hardware Specifications

Deterministic Network Routing & Backplane Execution

The CPU unit manages internal system routines over the CJ-series backplane bus communication velocity profile, providing synchronized scanning across local I/O modules and communications units. The controller maintains firmware flash compatibility across memory management tools, supporting real-time data exchange over EtherNet/IP deterministic networks without delaying loop calculations.

Packing List & Included Components

• 1 x Omron CJ1G-CPU42P Loop-Control Processor Unit

• 1 x Protective Connector Cap Set

• 1 x Technical Installation Guide

Mounting Configuration & Grounding Rules

• Rack Mounting & Space Constraints

  Install the CPU unit directly onto a standard 35 mm DIN rail within a rigid enclosure. Maintain at least 50 mm vertical ventilation clearance above and below the module to allow unhindered heat dissipation.

• Earthing & Field Cable Segregation

  Connect the power supply unit functional earth (FE) terminal to a dedicated ground bus with a resistance under 100 ohms. Keep signal cables isolated from high-voltage wiring channels to mitigate high-frequency noise interference.

Technical Support FAQs

• What is the current draw from the 5 VDC backplane bus for the CJ1G-CPU42P?

  The CJ1G-CPU42P module draws approximately 0.95 A from the internal 5 VDC system backplane power rail during operation.

• Is hot-swapping supported when replacing the CPU processor on the backplane?

  No, hot-swapping is not supported. Mains power to the system power supply unit must be turned off prior to removal or insertion.

• How many analog control loops can be processed by the internal function blocks?

  The process engine supports execution of up to 50 function blocks for analog control and feedback routines simultaneously.

• What is the maximum local I/O expansion footprint for this unit?

  The processor addresses up to 960 local digital and analog I/O points across the CJ-series expansion racks.

• What memory structure is dedicated to user register retention?

  Data storage comprises 64 K words divided into 32 K words of standard DM and 32 K words of EM across 1 memory bank.

• How are sequence execution program files updated or transferred?

  User programs are loaded through the integrated peripheral interface or optional serial port using CX-Process and CX-Programmer software tools.

• Does the unit retain program logic and DM parameters during input power loss?

  Yes, an internal lithium battery maintains user RAM programs, system configuration values, and non-volatile DM memory content.

• What are the physical temperature limits for reliable cabinet installation?

  The hardware operates within ambient temperature boundaries of 0 to 55 deg C under non-condensing atmospheric conditions.
