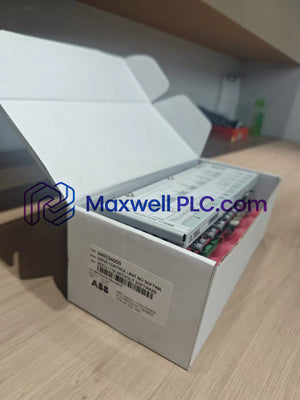

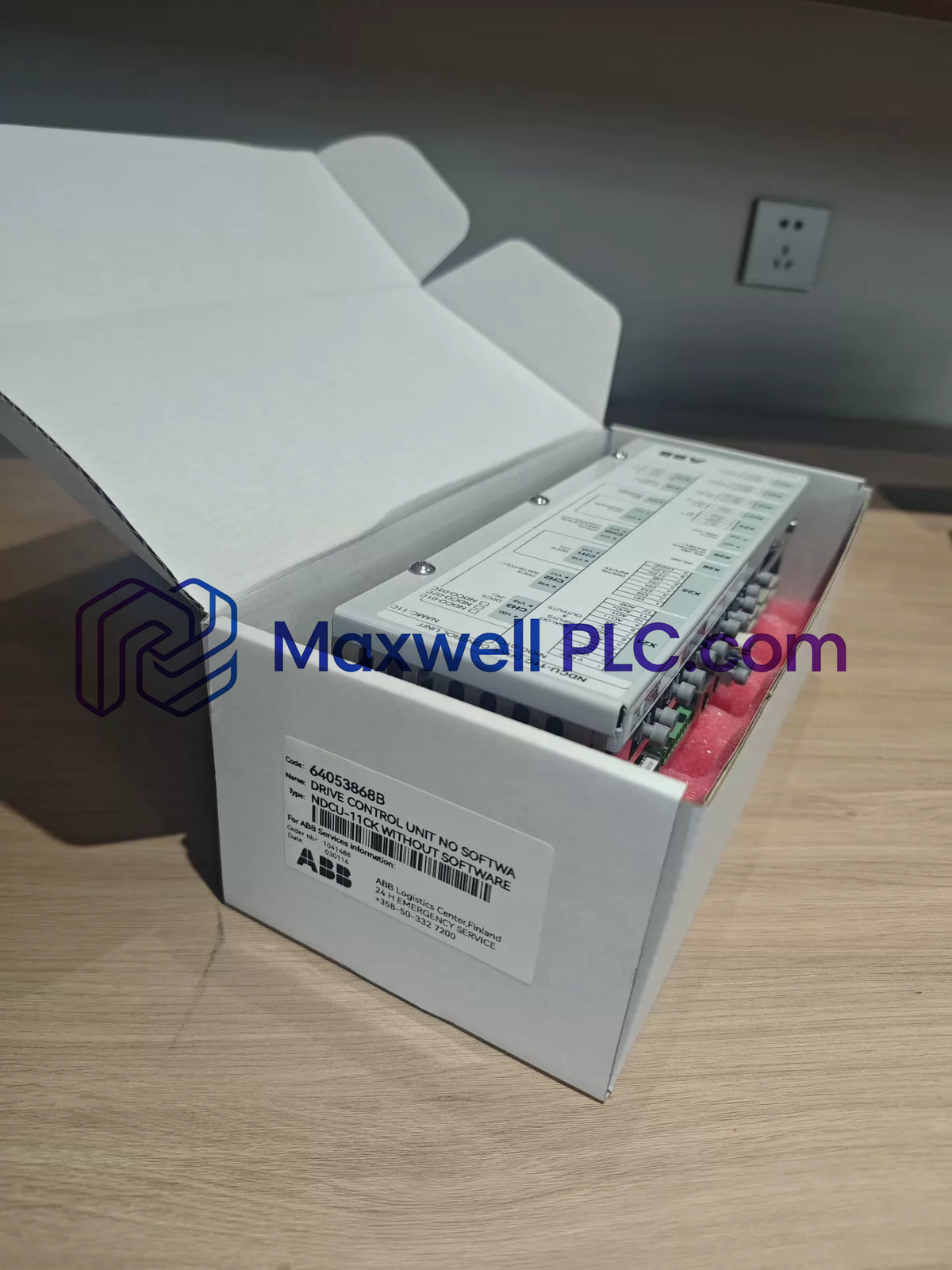

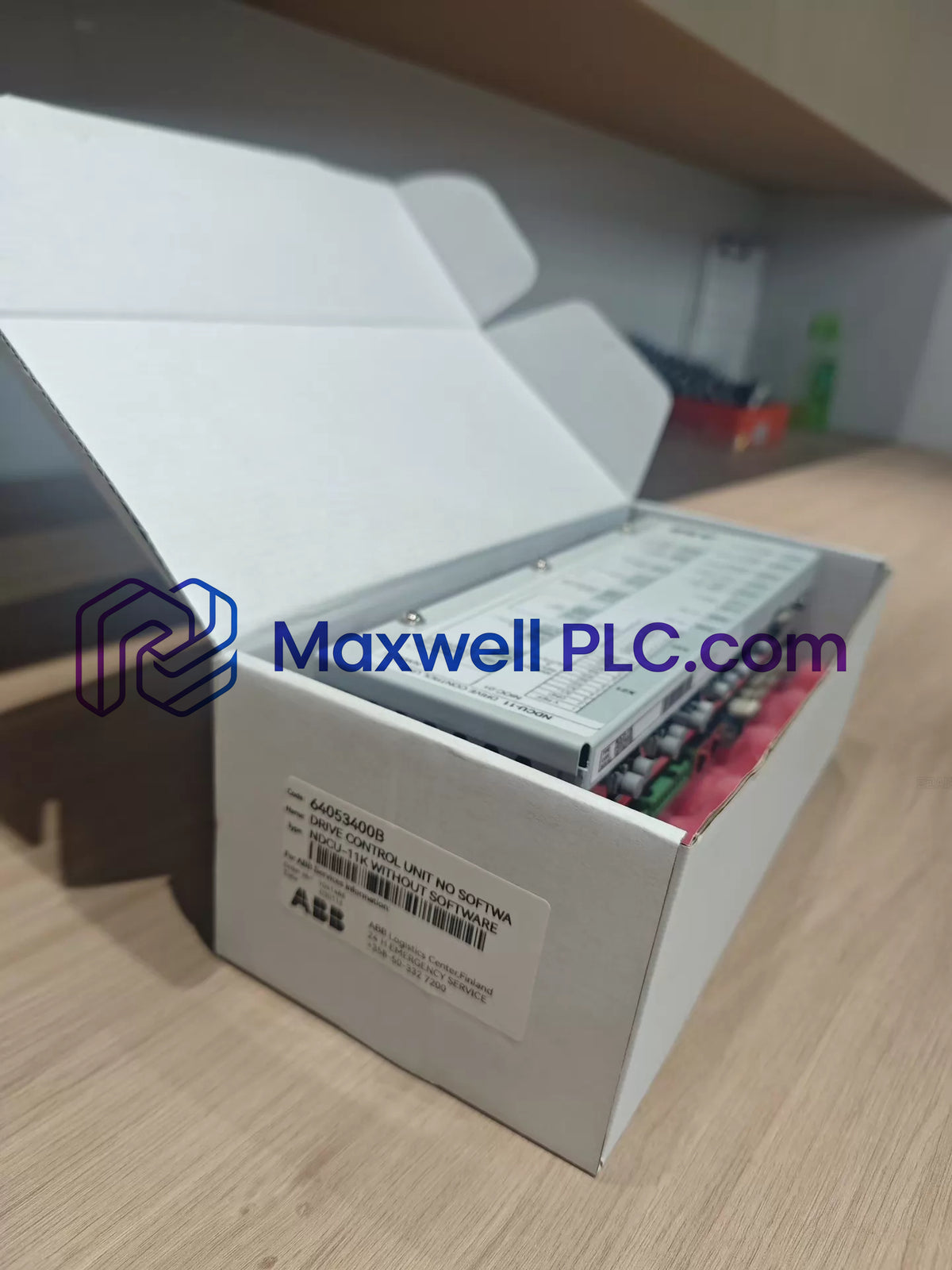

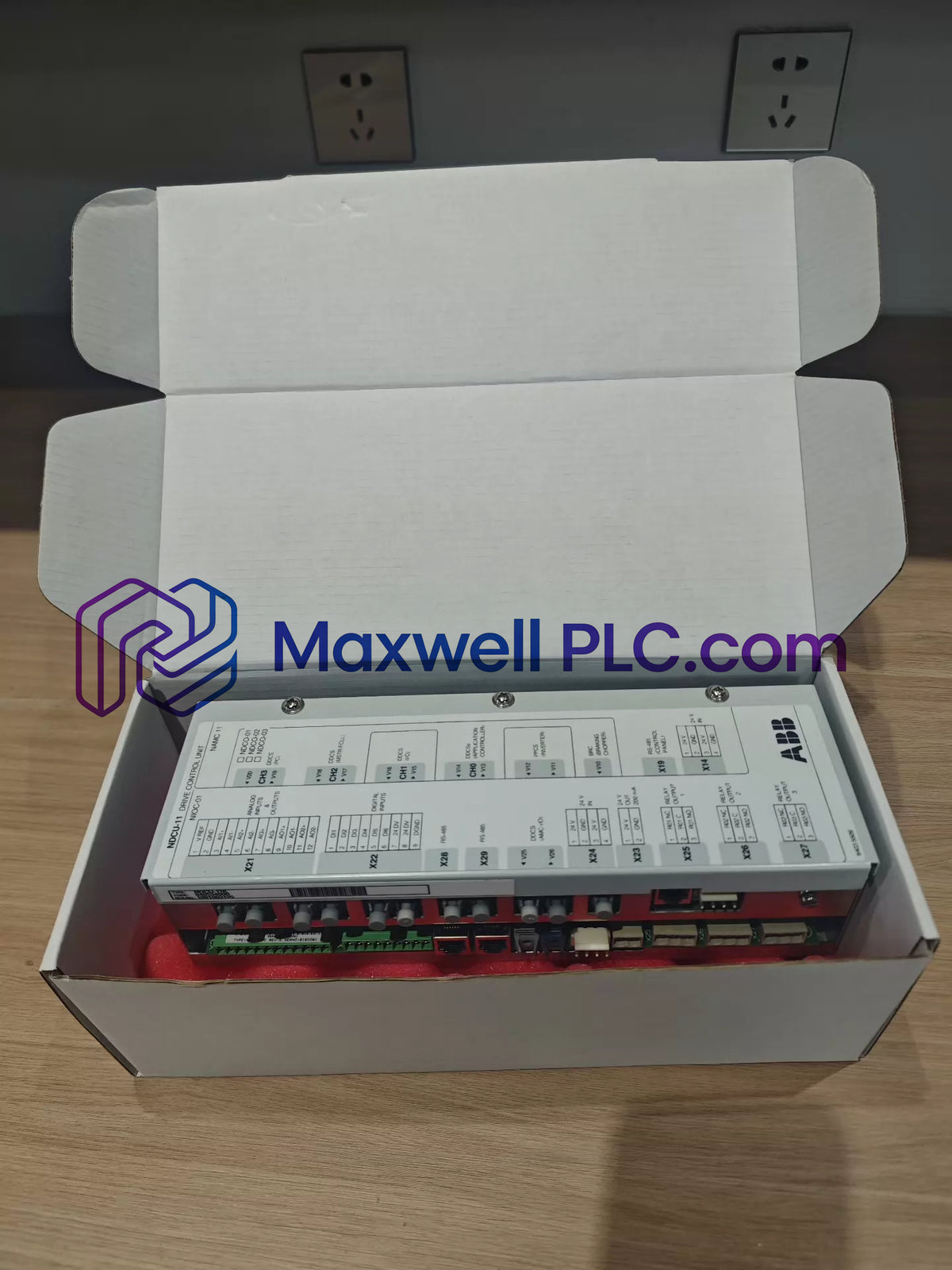

Configured for high-speed motion control and drive regulation across industrial automation platforms, the ABB NDCU-11CK 64053868B (NDCU-11CK Drive Control Unit) provides direct physical/electrical execution.

Architectural Suffix & Hardware Breakdown

• NDCU-11: Base drive control unit architecture integrating NIOC-01 and NAMC-11 circuit boards.
• 11CK / 64053868B: Specific hardware manufacturing and firmware revision identifier for exact replacement tracking.
• NIOC-01 & NAMC-11 PCB: Dedicated control and interface printed circuit board assembly housed within the unit.
• Fibre Optic Interface: Dual 2-meter optical cable links for high-speed deterministic controller-to-drive communication.

Hardware Specifications

Deterministic Network & Backplane Integration

The control unit executes high-speed drive synchronization, leveraging deterministic network communication and backplane bus communication velocity Licences to maintain torque and speed loop stability. Firmware flash compatibility ensures seamless integration with system updates across demanding industrial drives and motion architectures.

Delivery Package Contents

• 1 x ABB NDCU-11CK (64053868B) Drive Control Unit
• 1 x Internal Control Board Assembly (NIOC-01 & NAMC-11 PCB)
• 1 x Wire Set for 24 VDC Power Supply Connection
• 2 x 2-Meter Fibre Optic Communication Cables

Mechanical Mounting & Grounding Instructions

DIN-Rail and Enclosure Mounting

• Mount the control unit securely onto a standard DIN rail or inside a designated industrial control cabinet enclosure.
• Maintain a minimum clearance of 100 mm around thermal ventilation paths to prevent internal component overheating.

Earthing and Shielding Requirements

• Connect the module to the cabinet protective earth (PE) busbar using a low-impedance flat copper braid or copper busbar; fixing screws alone are insufficient for noise suppression.
• Route fibre optic and 24 VDC power supply cables through segregated wiring channels away from high-voltage motor power lines.

Frequently Asked Questions

• Can the NDCU-11CK drive control unit be hot-swapped while power is active?

  No, input power must be completely shut off before disconnecting or replacing the drive control unit to prevent electrical damage to the internal PCBs.

• What nominal input voltage is required for the control supply?

  The unit operates on a regulated +24 VDC control supply input.

• What auxiliary voltage rails are generated on-board for internal logic?

  The internal power supply provides a regulated +5 VDC rail capable of delivering up to 4 A of current.

• What is the electrical isolation rating of the control circuits?

  The hardware provides 1500 VDC galvanic isolation to protect internal control logic from high-voltage transients.

• What are the allowable operating ambient temperature limits?

  The unit functions continuously within an ambient temperature range of 0 deg C to +50 deg C.

• How should the unit be grounded inside the control cabinet?

  Proper grounding requires a flat copper braid or copper busbar tied directly from the module chassis to the cabinet PE bar.

• What communication accessories are included with the hardware package?

  The delivery package includes two 2-meter fibre optic cables and a dedicated 24 VDC power supply wire set.

• What is the total weight of the standalone control unit module?

  The module weighs approximately 1.25 kg net.
