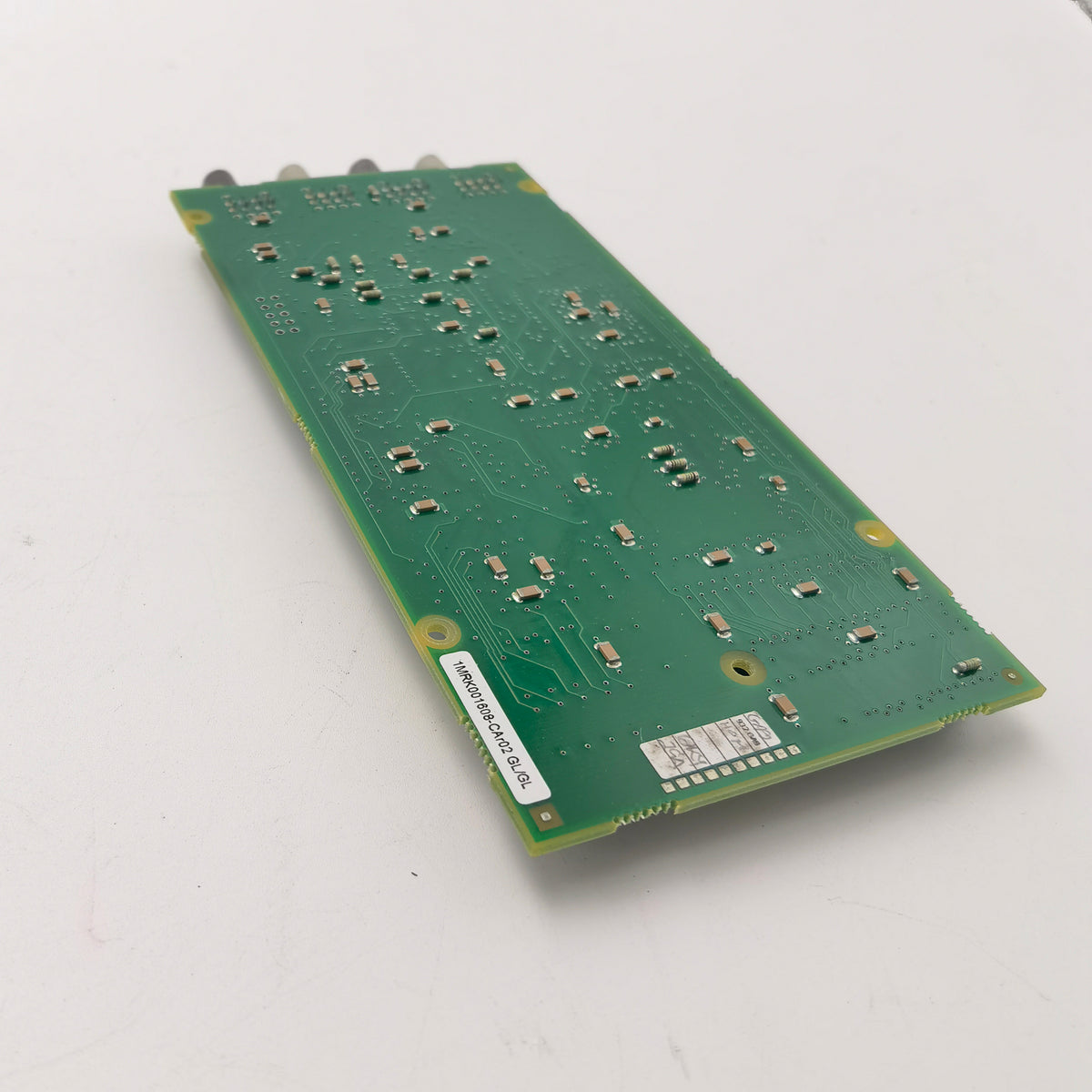

The ABB HIEE300867R0001 PPB022 DE, also cataloged as the PPB022 DE Processor Board, operates as a dedicated hardware component for application logic execution and bus signal processing within System 800xA and Symphony Harmony/Plus platforms.

Hardware Identification & Subsystem Architecture

The hardware part number and board classification designate functional attributes within the controller subrack:

• HIEE300867R0001: OEM part number designating the specific PCB hardware assembly.
• PPB022 DE: Circuit board type code identifying the processor execution board variant.
• AC 800PEC / 800xA: DCS controller infrastructure supported by the processor board hardware interface.

Technical & Operating Specifications

Deterministic Execution & System Bus Interface

The processor board maintains high backplane bus communication velocity by executing logic routines in dedicated timing cycles. System memory architectures allow firmware flash compatibility across controllers while maintaining isolation boundaries. Dual bus interfaces distribute control tasks and maintain determinism across cyclic I/O scanning phases.

Packing List & Supply Content

• 1 x ABB HIEE300867R0001 PPB022 DE Processor Board

Installation & Static Safety Procedures

• Anti-Static Measures: Always wear a grounded ESD wrist strap connected to cabinet earth before handling or inserting the circuit board.
• Power Disconnection: Verify 24 VDC power is isolated at the subrack terminal strip prior to plugging the board into the backplane connectors.
• Cable Seating: Ensure all ribbon cables and multi-pin bus connectors align correctly with guide pins and seat completely into socket latches.
• Conduit Routing: Maintain physical separation between 24 VDC power supply wiring and external high-voltage process connections inside the cabinet.

Frequently Asked Questions

• What is the input voltage rating for the HIEE300867R0001 processor board?

  The board requires a nominal supply voltage of 24 VDC, drawing less than 0.65 A during normal processing operations.

• What inrush current should be calculated for power supply sizing?

  The board draws an inrush current of less than 3 A for a duration of 100 ms during initial 24 VDC power application.

• How much firmware flash memory is integrated on the board assembly?

  The board contains 18 MB of onboard Flash PROM allocated for firmware image storage and execution parameters.

• What is the electrical isolation rating between board circuits and ground?

  Galvanic isolation is rated at 500 VDC between the internal logic circuitry and the chassis ground interface.

• Can the processor board be hot-swapped while the rack is fully energized?

  No, input 24 VDC power to the controller rack section must be isolated before board insertion or removal to prevent component damage.

• How many control tasks can be executed simultaneously on this hardware platform?

  The processing architecture supports configuration for up to 32 concurrent applications and 32 execution tasks.

• What storage temperature limits apply to this hardware during transit?

  The board is rated for storage temperatures ranging from -25 deg C to +70 deg C in non-condensing environments.

• What procedure ensures proper cable seating during replacement?

  Inspect all ribbon cable connectors for bent pins and press multi-pin headers down until retainers latch fully into place.
