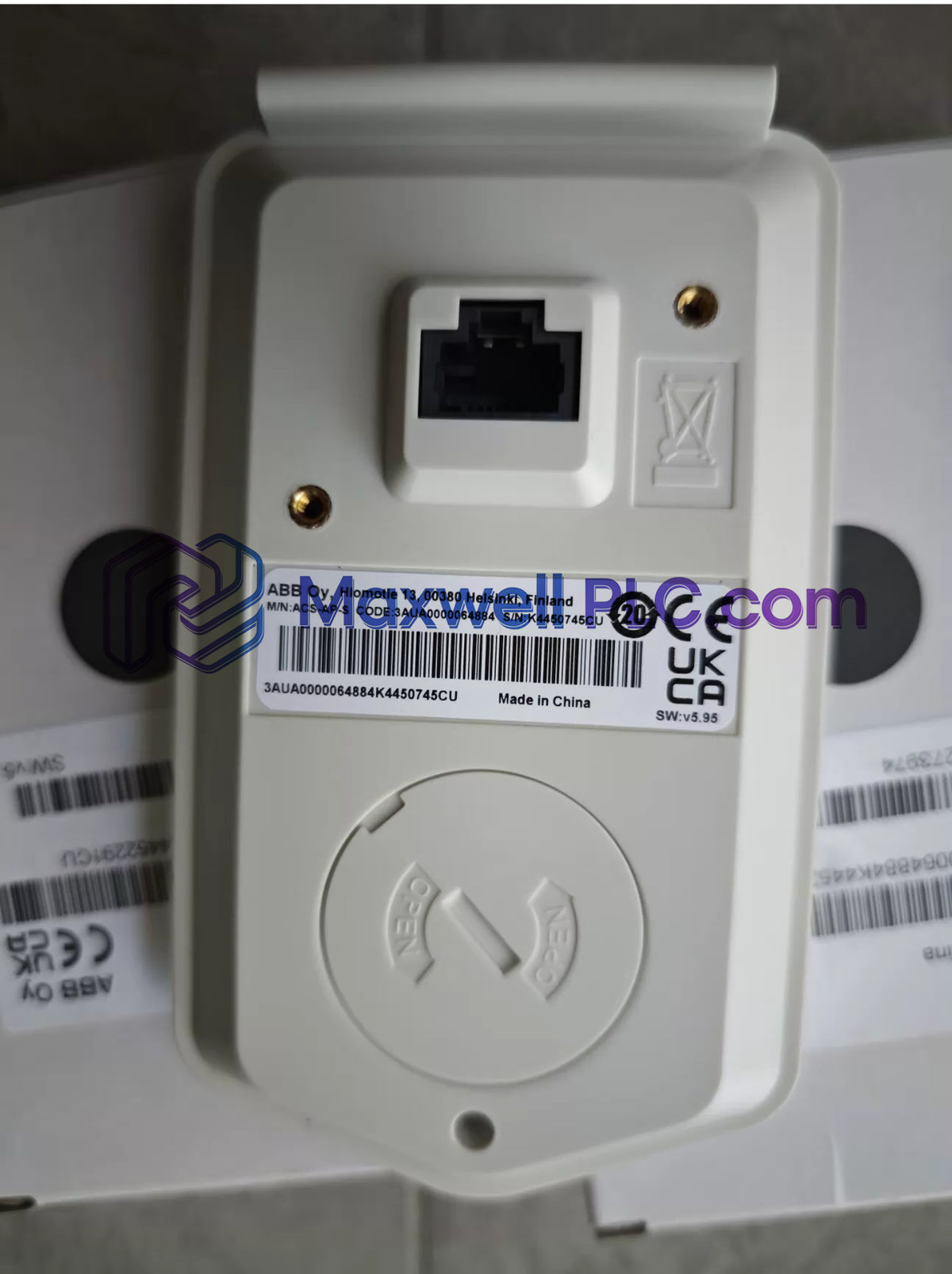

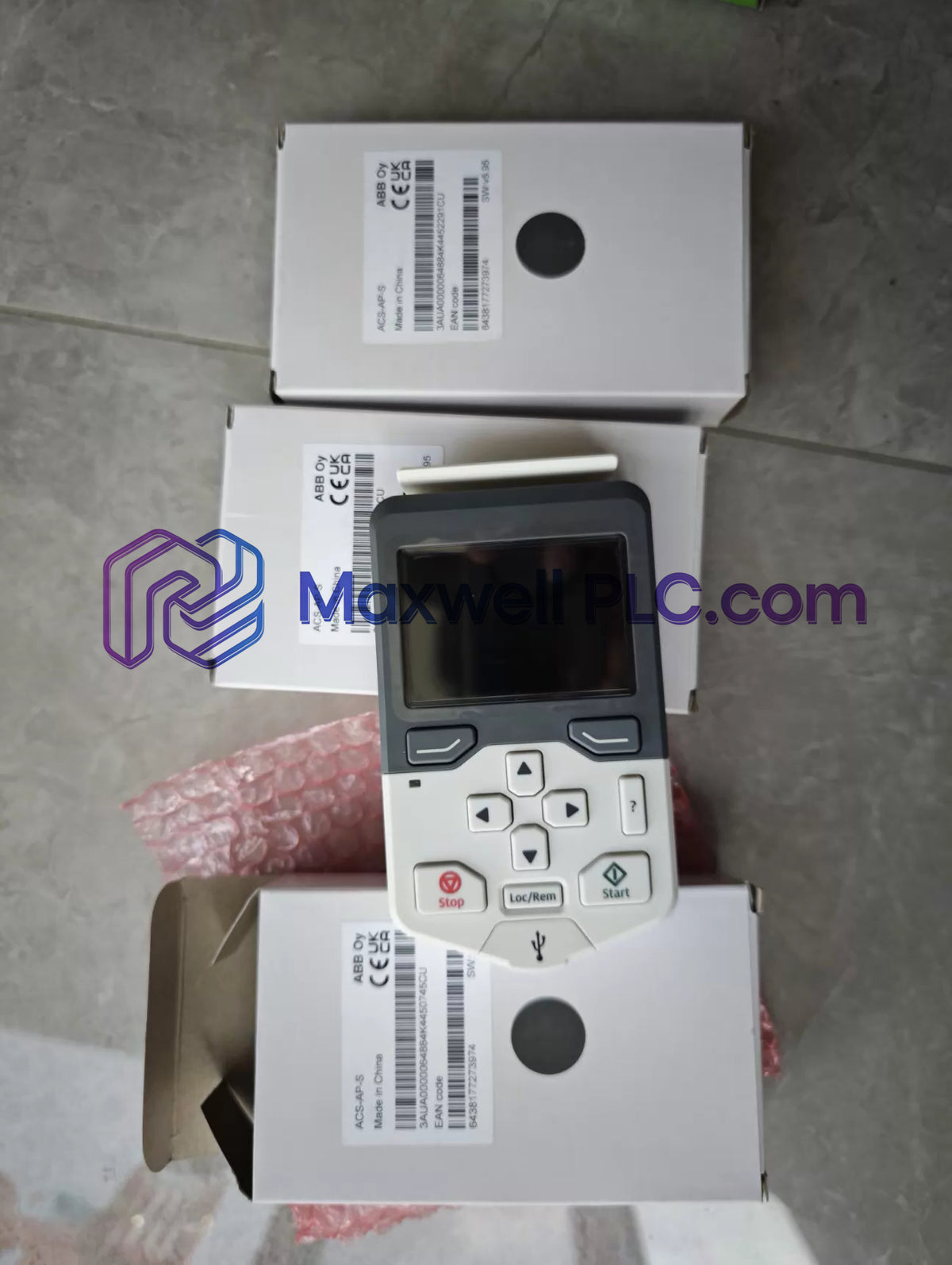

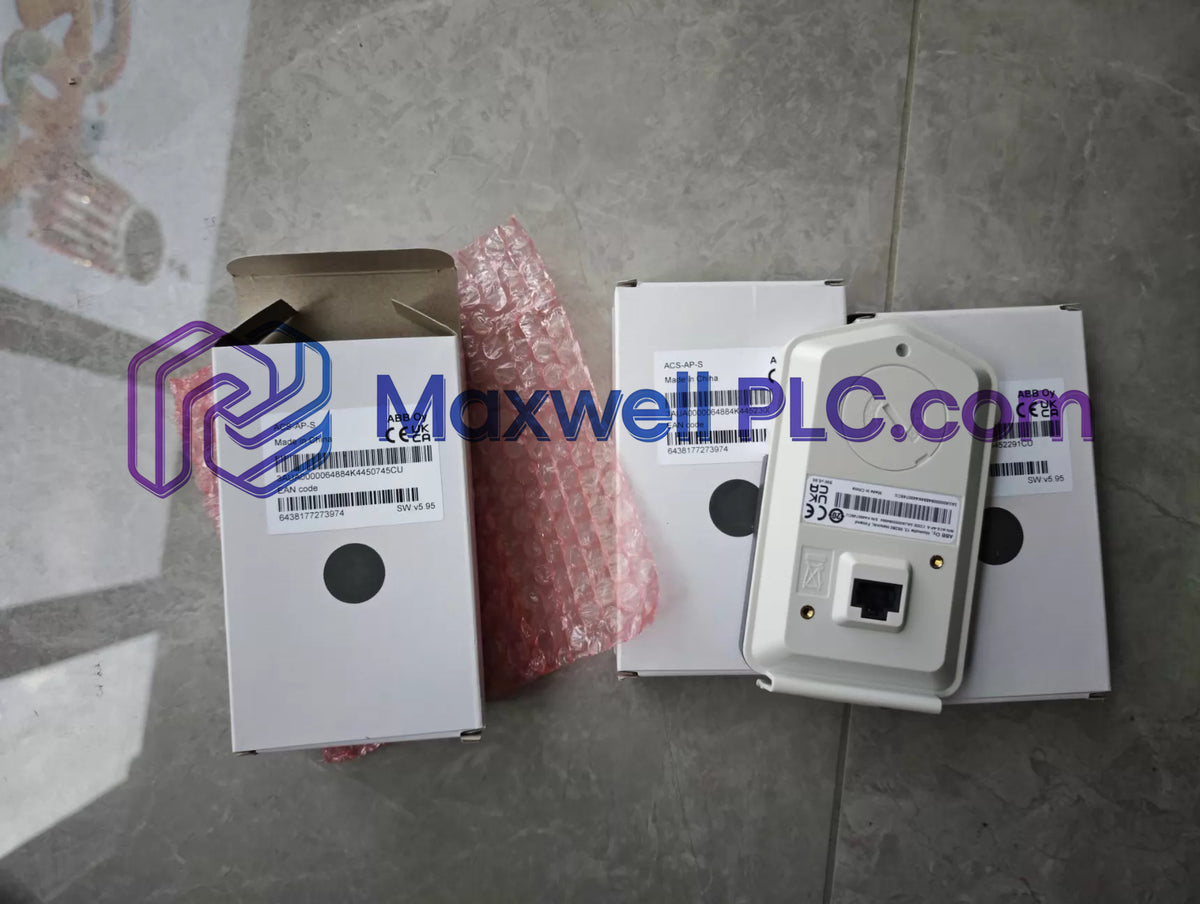

The ABB ACS-AP-S 3ABD0000064884, also cataloged as the ACS-AP-S assistant control panel, operates as a dedicated hardware component for human-machine parameter configuration and drive state visualization within ACS580 control networks.

Hardware Variant & Interface Overview

• Manufacturer Ordering Code: 3ABD0000064884
• Base Panel Variant: ACS-AP-S
• Display Interface: Backlit LCD matrix (128 x 64 pixels resolution)
• Operator Keypad: Sealed dustproof membrane keyboard
• Front Ingress Rating: IP54 compliant front enclosure protection
• Mean Time Between Failures: > 150000 hours

Physical & Electrical Data

Real-Time Bus Transmission & Firmware Integration

The control panel features firmware flash compatibility to support dynamic language loading and firmware parameter uploads/downloads across host VFD controllers. High-speed backplane bus communication velocity licences ensure real-time telemetry rendering and fault log polling over Profinet / EtherNet/IP networks without introducing latency during motor parameter adjustments.

Logistics Scope of Supply

• 1 x ABB ACS-AP-S assistant control panel (3ABD0000064884)
• 1 x Panel mounting gasket and locking clip kit
• 1 x User guide technical manual sheet

Cabinet Door Mounting & Field Wiring Directives

• Door Panel Cutout Preparation: Install the panel into a smooth enclosure cutout using the integrated sealing gasket to preserve the IP54 front ingress rating.
• Hot Plug Protocol: Align the panel rear interface connector precisely with the drive bezel slot before pushing into place to prevent pin deflection.
• Cable Shield Anchorage: When utilizing remote door mounting kits, employ fully shielded twisted-pair patch cables with grounded metallic connector shells.
• Auxiliary Input Line Routing: Route optional 0 to 10 V analog feedback lines separately from high-voltage AC power wiring to avoid noise pickup.

Frequently Asked Questions

• What supply voltage is required to power the ACS-AP-S control panel?

  The panel operates on an auxiliary 24 VDC (+/-10 %) supply delivered directly through the drive RJ-45 connection interface.

• What maximum power dissipation is generated by the unit during full backlighting?

  The unit draws a maximum electrical power consumption of 5 W under full LCD backlight and processing load conditions.

• Can the control panel be inserted or detached while the host drive is energized?

  Yes, the panel interface supports hot-swapping into the drive bezel slot without interrupting motor control execution.

• What display resolution and visual interface are incorporated on the panel?

  The display features a backlit LCD matrix delivering 128 x 64 pixels resolution with multi-language graphic menu navigation.

• What electrical isolation is maintained between interface signals and frame ground?

  The internal electronics incorporate 500 V channel-to-ground isolation to guard against ground loop differential noise.

• What environmental protection rating applies to the panel front face?

  The front membrane keypad and display window conform to IP54 dust and splash protection standards when seated properly.

• What vibration resistance tolerance does the hardware withstand?

  The internal circuit board and enclosure assembly withstand continuous mechanical vibration levels up to 1G across 5 to 100 Hz.

• How are firmware updates transferred to the control panel?

  Firmware flash compatibility allows firmware packages and parameter sets to be flashed directly via the drive backplane connection.
