ABB TB511-ETH 1SAP111100R0270 Terminal base AC500 V2

ABB

ABB TB511-ETH 1SAP111100R0270 Terminal base AC500 V2

SKU: 1SAP111100R0270

In Stock

Dimensions: 10.2 x 5.1 x 15.2 cm
Country of origin: Sweden
Payment: T/T, Western Union
Shipping port: Xiamen

Categories : ABB, All Products

Tags : ABB AC500 V2, AC500, Bus Communication Interfaces, Programmable Logic Controllers, Terminal Bases

1 years warranty

Delivery time: 3-7 business days

Free 30 days return

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

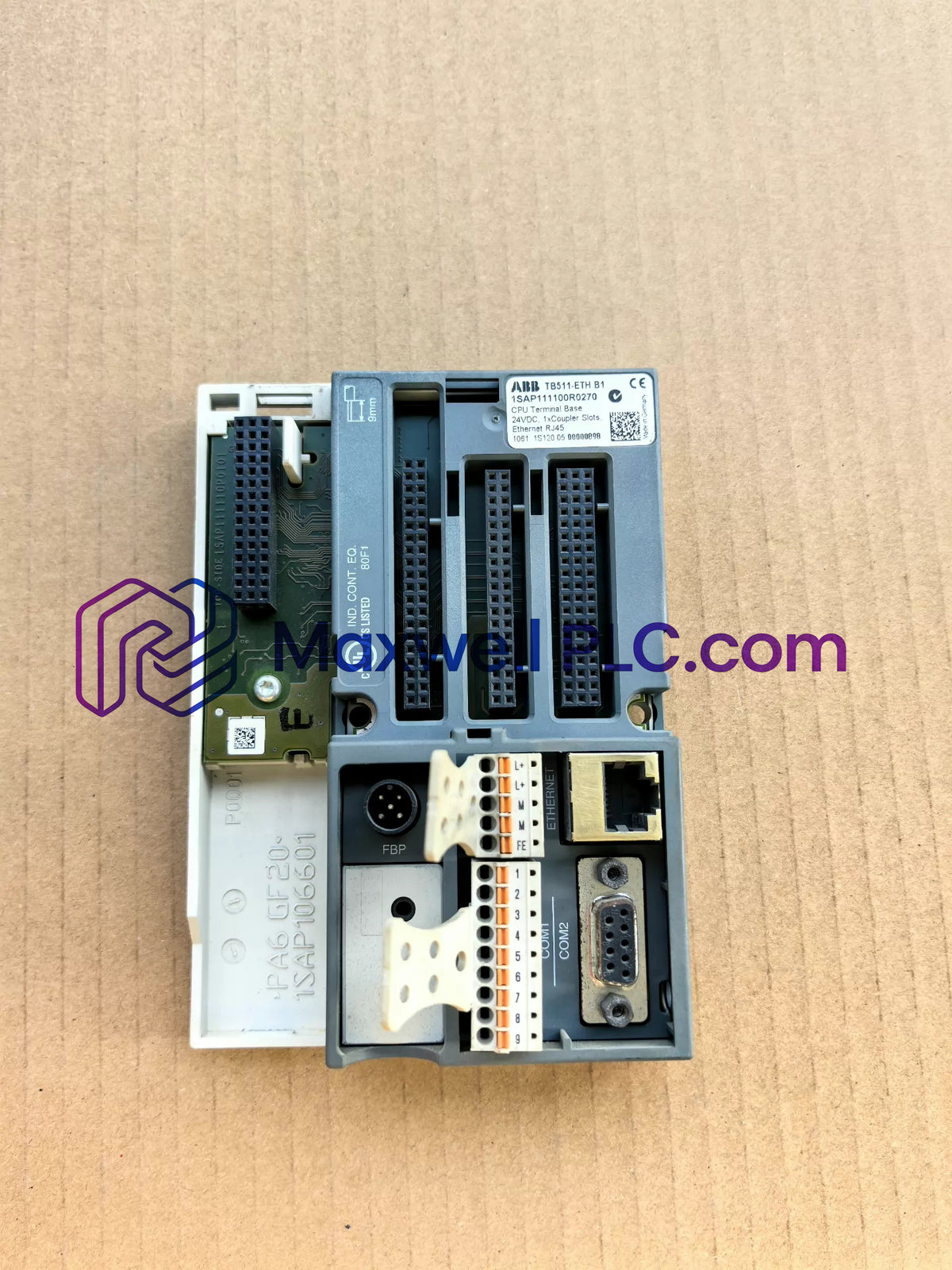

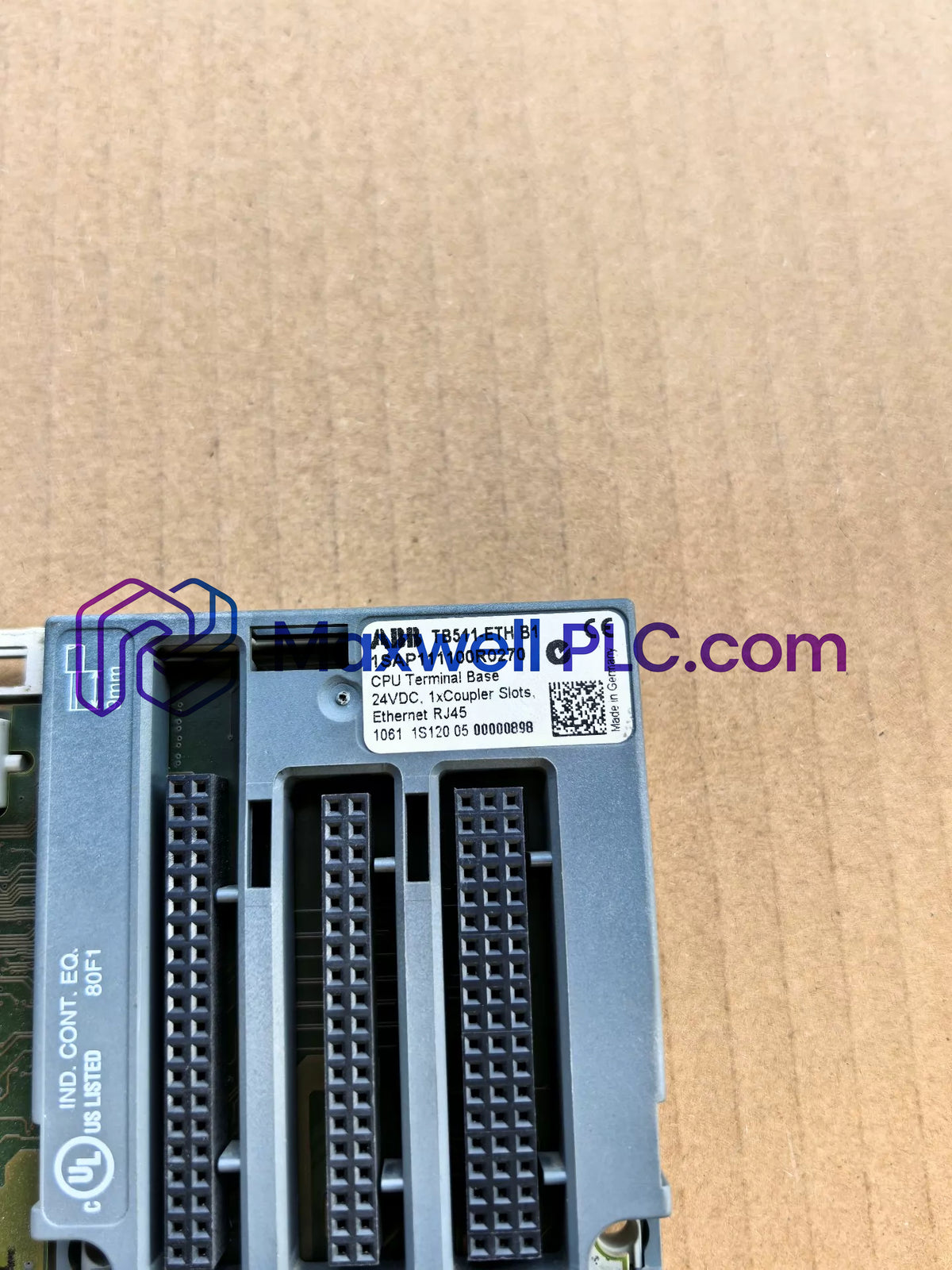

Configured for central processor mounting and field communication expansion in AC500 V2 platforms, the ABB 1SAP111100R0270 (TB511-ETH Terminal base) provides direct physical/electrical execution.

Architectural Suffix & Hardware Breakdown

TB511-ETH: Base module designation for AC500 V2 terminal bases incorporating Ethernet routing and dual serial ports.
1SAP111100R0270: Official commercial part number identifying standard replacement and new assembly stock.
AC500 V2 Compatibility: Dedicated physical layout matching second-generation processor units and expansion slots.
1 Communication Slot: Holds one expansion communication module alongside onboard Ethernet and serial interfaces.

Technical Performance Parameters

Parameter	Specification
Model	TB511-ETH (1SAP111100R0270)
Brand	ABB
Origin	Sweden
Weight	0.20 kg
Shipping Dimensions	10.2 x 5.1 x 15.2 cm
Product Type	Terminal Base
Series	AC500 V2
Supply Voltage	24 VDC
Input Voltage Type	DC
Interfaces	D-SUB, RJ45, Terminal Blocks
Communication Ports	1 Ethernet, 2 Serial (RS232/RS485)
Degree of Protection	IP20
Operating Temperature	0 to +60 deg C
Power Consumption	Passive bus backplane (approx. 0.1 W)
Tariff Code	8537101190

Deterministic Network & Backplane Velocity

The unit establishes low-latency signal distribution across the internal backplane bus, supporting high backplane bus communication velocity Licences for real-time task control. Full firmware flash compatibility on attached CPU units ensures instant synchronization with Profinet and EtherNet/IP deterministic networks without data packet distortion.

Delivery Package Items

1 x ABB TB511-ETH (1SAP111100R0270) Terminal Base
1 x Protective Static-Shielding Box
1 x Hardware Mounting Information Leaflet

Mechanical Mounting & Field Wiring Rules

DIN-Rail Enclosure Assembly

Mount the base unit onto a standard 35 mm DIN rail inside an IP54 industrial control enclosure.
Secure side locking clips to maintain bus connector continuity with adjacent I/O terminal units.

Communication & Power Termination

Connect a 24 VDC supply to the primary power input terminals to feed the CPU internal rail.
Route serial RS232/RS485 wiring via D-SUB/terminals and Ethernet via RJ45 using shielded twisted-pair cables grounded at the enclosure entrance.

Frequently Asked Questions

Can CPU modules be unseated from the TB511-ETH base while 24 VDC power is active?

No, removing or inserting CPU modules on a live terminal base can cause electrical arcing and backplane port corruption.
What interface connections are provided on the base unit?

The hardware features one RJ45 Ethernet port, D-SUB and terminal blocks for two serial interfaces (RS232/RS485).
What is the ingress protection rating of the terminal base housing?

The module housing conforms to IP20 ingress protection standards, requiring installation in a sealed cabinet.
What input supply voltage is required for terminal base operation?

The terminal base requires a nominal power supply voltage of 24 VDC.
How many communication expansion slots are present on the unit?

The TB511-ETH terminal base contains 1 slot for an additional communication module.
What ambient temperature range is allowable during continuous execution?

The terminal base operates continuously in thermal environments ranging from 0 deg C to +60 deg C.
How is shielding connected for serial and Ethernet lines?

Connect cable shields directly to the functional earth DIN rail using conductive clamping blocks near terminal entry points.
Does the terminal base draw significant operating power?

No, the unit functions as a passive backplane routing base with negligible internal power consumption.
