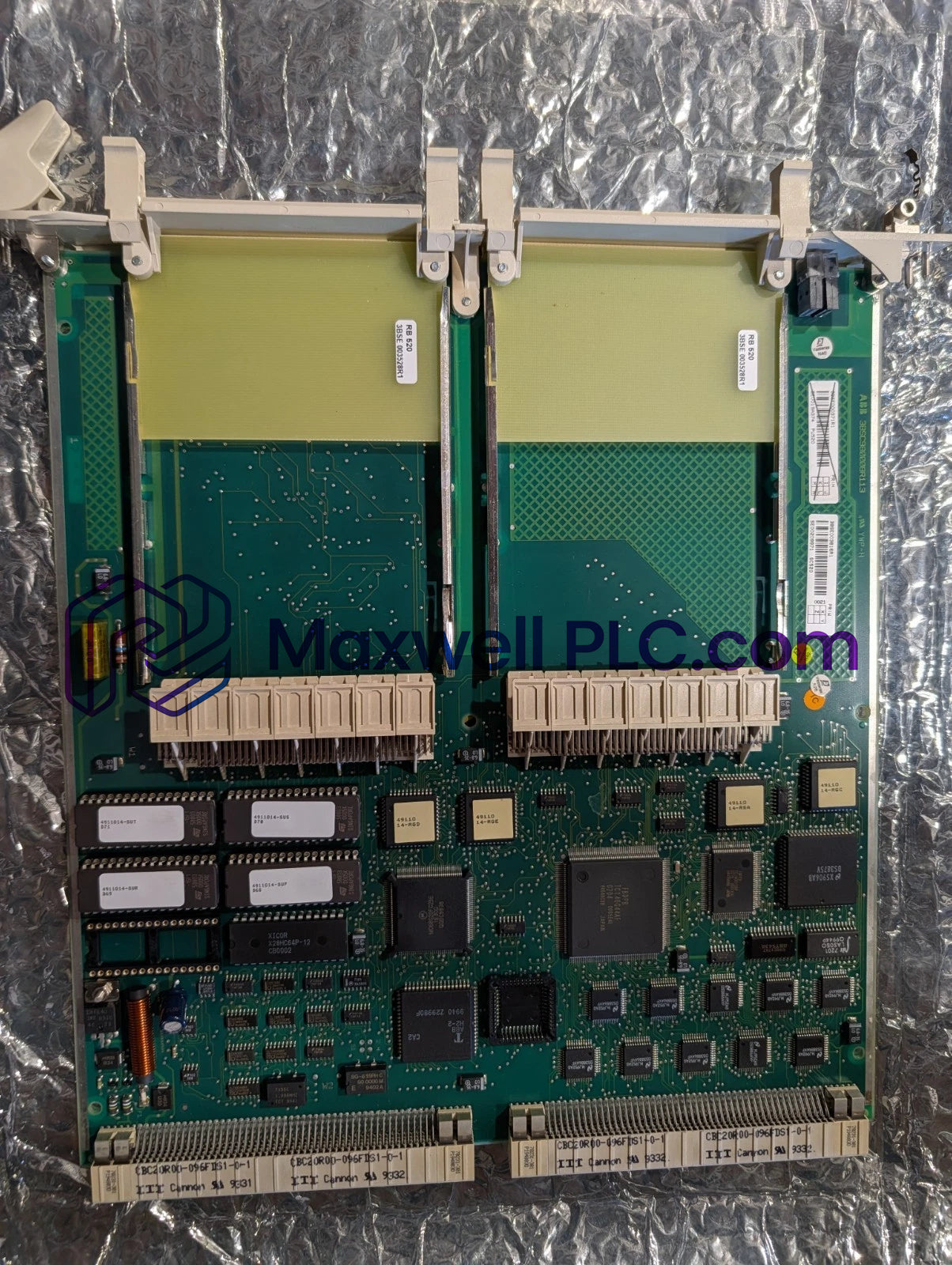

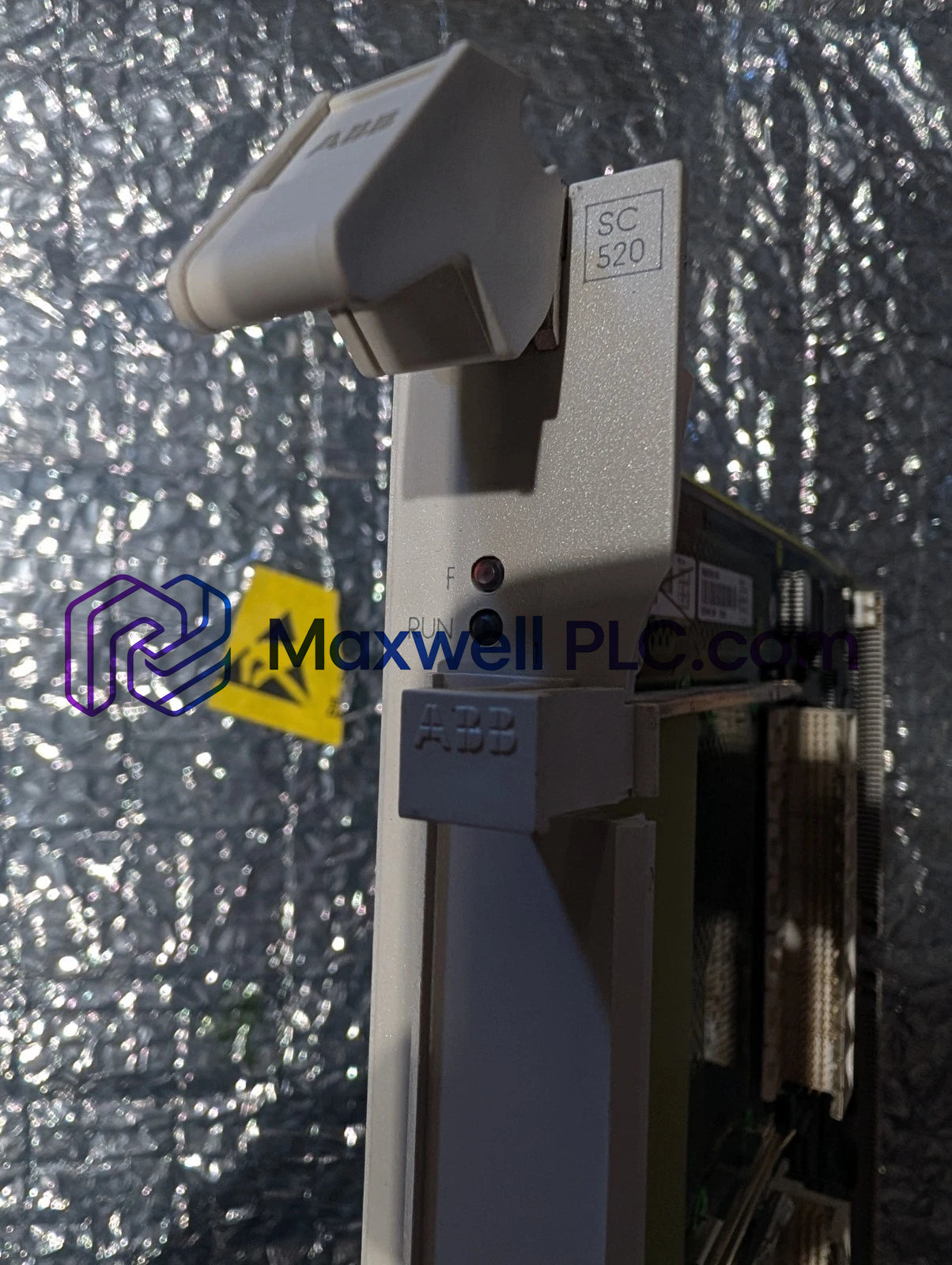

The ABB SC520M 3BSE016237R1, also cataloged as the SC520M Submodule Carrier, operates as a dedicated hardware component for S800 I/O module interfacing within ABB Advant OCS and 800xA control system platforms.

Model Identification & Configuration

The SC520M 3BSE016237R1 is a submodule carrier designed to provide the mechanical and electrical interface between S800 I/O modules and ABB controller systems. The unit supports S800 bus connection to the main controller and provides screw terminal field wiring access.

The carrier functions as a passive hardware platform for module installation, power distribution, and bus communication within ABB modular control architectures.

Hardware Specifications

ABB I/O Backplane Integration

The SC520M provides a physical mounting and electrical interface point for ABB S800 I/O modules. The carrier supports I/O density scaling within Advant OCS and 800xA systems by allowing modular expansion of field-level signal interfaces.

The unit supports ABB backplane bus communication structures, enabling data transfer between installed I/O modules and the main controller. Communication processing and firmware functions are handled by the associated ABB controller and I/O hardware.

The 1.5 Mbps bus interface provides the communication path between the submodule assembly and system control layer.

Electrical Interface and Hardware Characteristics

The SC520M operates from a 24 VDC supply and provides module-level power distribution with a maximum backplane current of 1 A per slot.

The 500 VAC isolation specification provides electrical separation between system sections. Field wiring is connected through screw terminals, allowing direct connection of compatible I/O signal circuits.

The carrier itself does not execute control logic, signal calculation, or network protocol conversion. It serves as the hardware mounting and connection structure for ABB modular I/O components.

Ordering Information

• 1 x ABB SC520M 3BSE016237R1 Submodule Carrier
• 1 x Original carrier assembly
• I/O modules, terminal blocks, field cables, controllers, and configuration software are not included unless specifically listed.

Field Installation Guidelines

Mechanical Installation

• Mount the SC520M in the designated ABB Advant OCS or 800xA cabinet position.
• Confirm mechanical locking and module alignment before operation.
• Maintain sufficient cabinet space for wiring access and maintenance.

Electrical Installation

• Connect the 24 VDC supply according to ABB wiring requirements.
• Verify polarity before energizing the module carrier.
• Route field signal wiring separately from high-voltage power cables.
• Ensure proper grounding and shielding practices for connected signal circuits.

System Commissioning

• Verify S800 bus connection before controller startup.
• Confirm installed I/O module compatibility with the carrier.
• Check communication status through ABB system engineering tools.

Frequently Asked Questions

• Q: What is the main function of ABB SC520M 3BSE016237R1?

  A: The SC520M provides the mounting structure and electrical interface for ABB S800 I/O modules in Advant OCS and 800xA systems.

• Q: Does the SC520M contain a processor or firmware?

  A: No. The submodule carrier is a hardware interface component and does not execute application logic or store control firmware.

• Q: What supply voltage does SC520M require?

  A: The carrier operates from a 24 VDC supply with an allowed tolerance of +/-10%.

• **Q: What is the maximum backplane current per slot?

  A: The specified maximum backplane current is 1 A per slot for connected module operation.

• **Q: What communication bus does SC520M use?

  A: The carrier connects to the ABB S800 bus interface with a specified bus speed of 1.5 Mbps.

• **Q: Can SC520M be used outside ABB Advant OCS or 800xA systems?

  A: The module is designed for ABB Advant OCS and 800xA architectures with compatible S800 I/O hardware.

• **Q: What type of field connection is provided?

  A: The carrier provides screw terminal connections for compatible I/O wiring arrangements.

• **Q: Does SC520M require external communication configuration?

  A: Communication settings are managed through the installed ABB controller and engineering environment, not within the passive carrier.
