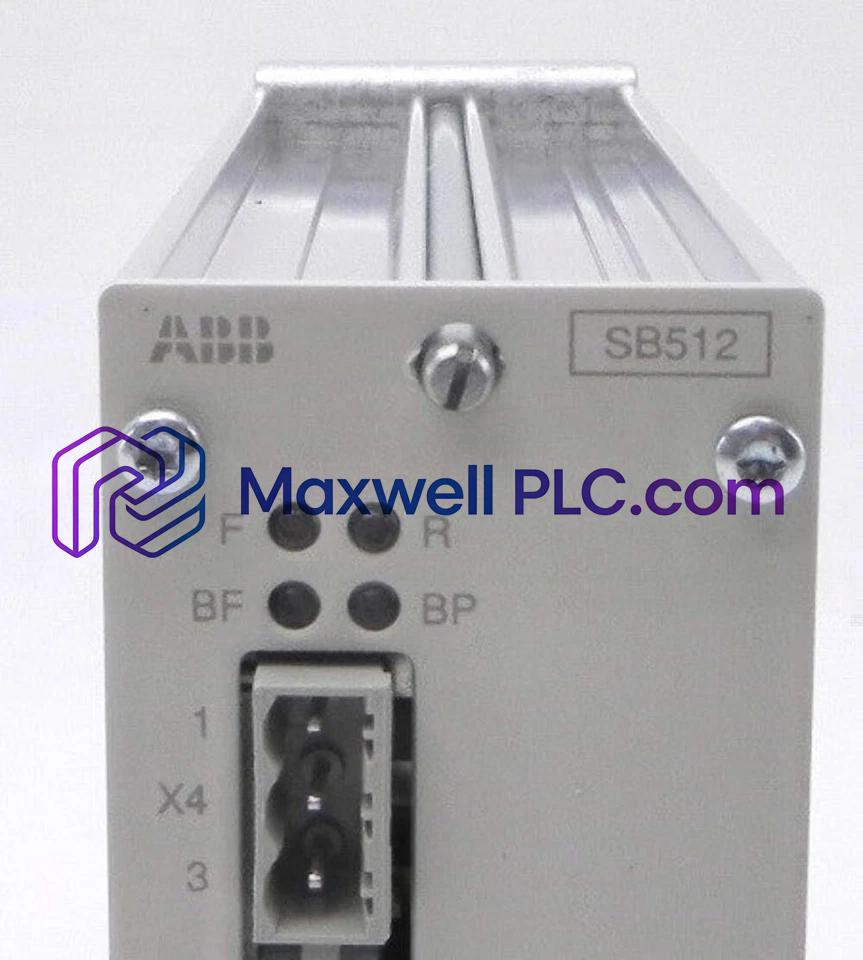

The ABB SB512 3BSE002098R1, also cataloged as the SB512 Power Supply, operates as a dedicated hardware component for auxiliary power conversion and DC field voltage distribution within ABB S100 I/O system subracks.

Technical Identifier Matrix

• Base Part Number: SB512
• ABB Global Part ID: 3BSE002098R1
• Series Platform: S100 I/O
• Tariff Code: 8537101190

Hardware Specifications

Backplane Power Bus Velocity and Channel Isolation

The ABB SB512 3BSE002098R1 interface connects directly into the S100 I/O subrack backplane to provide conditioned DC field power to adjacent input and output modules. Incorporating low-noise switching circuitry with peak-to-peak ripple restricted to under 50 mV, the supply suppresses line transience across local I/O channels.

Internal power conversion maintains high operational efficiency exceeding 85%, minimizing thermal output within closed control cabinets over the extended operating range of -25 to +70 deg C. The power supply backplane coupling enforces galvanically isolated power distribution, protecting sensitive control processor buses from potential external field power surges or earth fault loops.

Package Contents & Ordering Information

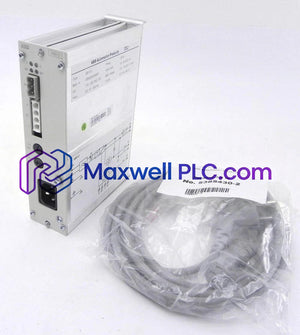

• 1x ABB SB512 3BSE002098R1 Power Supply Module
• 1x Subrack Guide Installation Sheet

Field Installation Guidelines

• Subrack Insertion: Align the SB512 board edge with the plastic card guides inside the S100 I/O subrack. Firmly slide the module until the rear multi-pin connector seats completely into the backplane socket.
• Retaining Fasteners: Tighten the upper and lower captive front panel screws to secure the module mechanically and ensure continuous ground continuity across the chassis frame.
• Thermal Spacing: Maintain unobstructed vertical air convection paths above and below the subrack assembly. Ensure cabinet fan airflow prevents ambient enclosure temperatures from exceeding 70 deg C.
• Shielding & Earth Grounding: Ensure the S100 I/O subrack rack frame connects directly to cabinet earth using a heavy copper ground braid. Ground conductors must be routed to avoid high-frequency noise pickup.

Frequently Asked Questions

• What input voltage range does the SB512 3BSE002098R1 accept?

  The module accepts standard line inputs rated from 110-230 VAC/DC, converting power for local S100 I/O subrack distribution.

• What is the continuous output current rating of the power supply?

  The power supply outputs a continuous current of 1 A (up to 2 A peak load) at 10-24 VDC field voltage.

• What is the peak-to-peak noise specification for the DC output rail?

  The power supply produces continuous output ripple and noise levels below 50 mV peak-to-peak.

• Can the SB512 power supply module be installed or removed while the subrack is powered?

  No, input supply power to the subrack must be isolated prior to removing or inserting the SB512 power supply module.

• What is the certified operational temperature range for field installations?

  The hardware is rated for continuous field operation across ambient temperatures ranging from -25 to +70 deg C.

• What thermal clearance is required around the S100 I/O subrack for this module?

  A minimum free space of 50 mm above and below the subrack housing is recommended to maintain passive convective cooling.

• Does the module provide integrated galvanic isolation for field power output?

  Yes, internal switching topologies provide galvanic isolation between primary power conversion circuits and backplane signal lines.

• What is the physical shipping weight and origin for the SB512 3BSE002098R1?

  The module has a net weight of 0.84 kg and is manufactured in Sweden.
