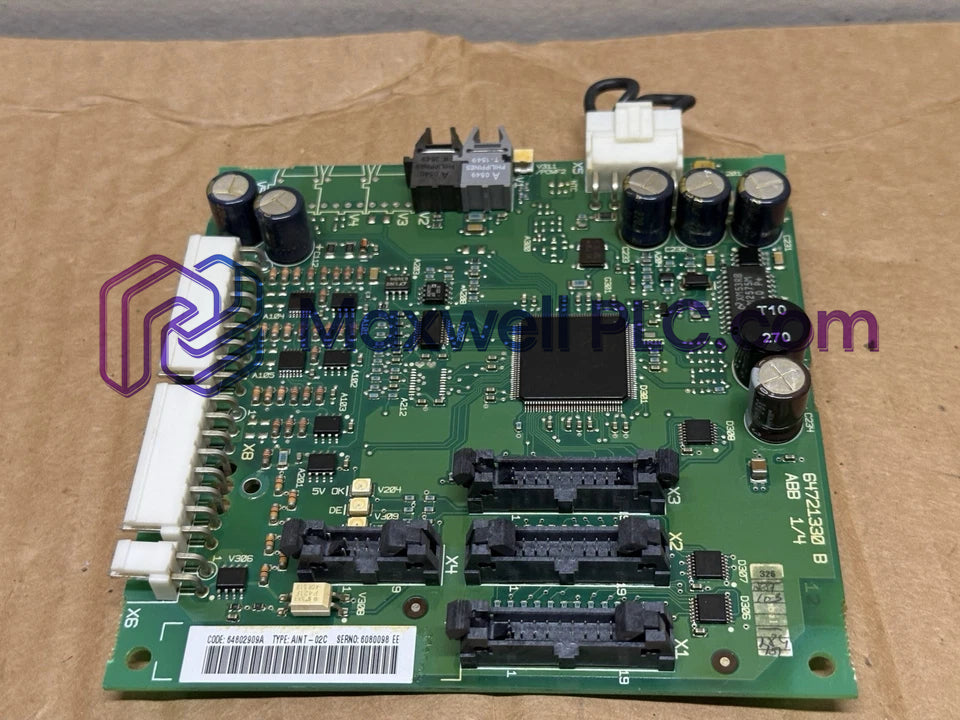

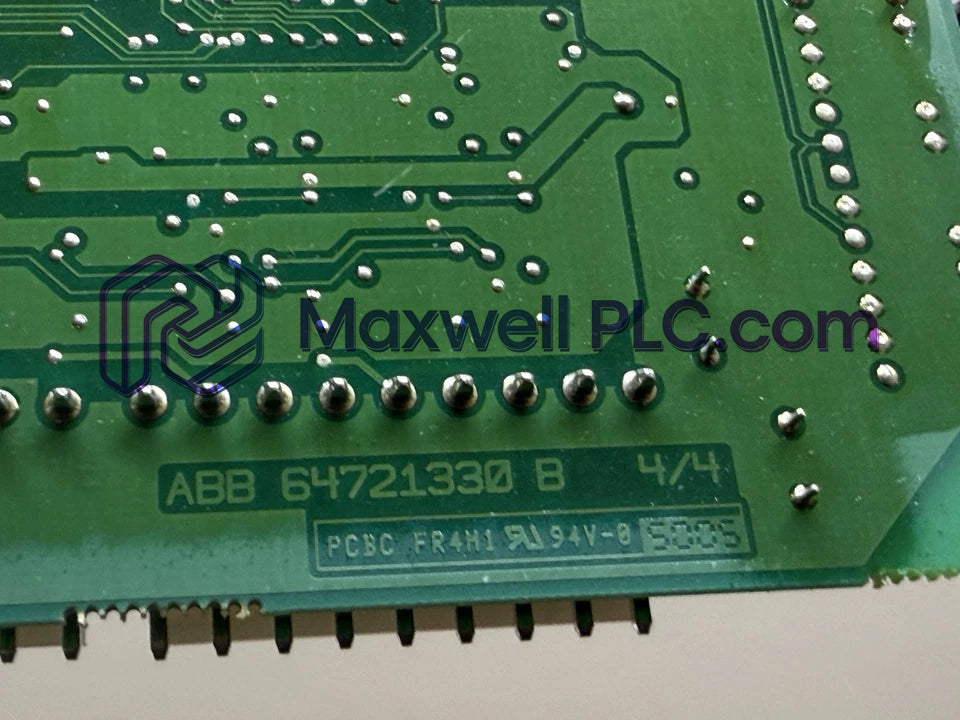

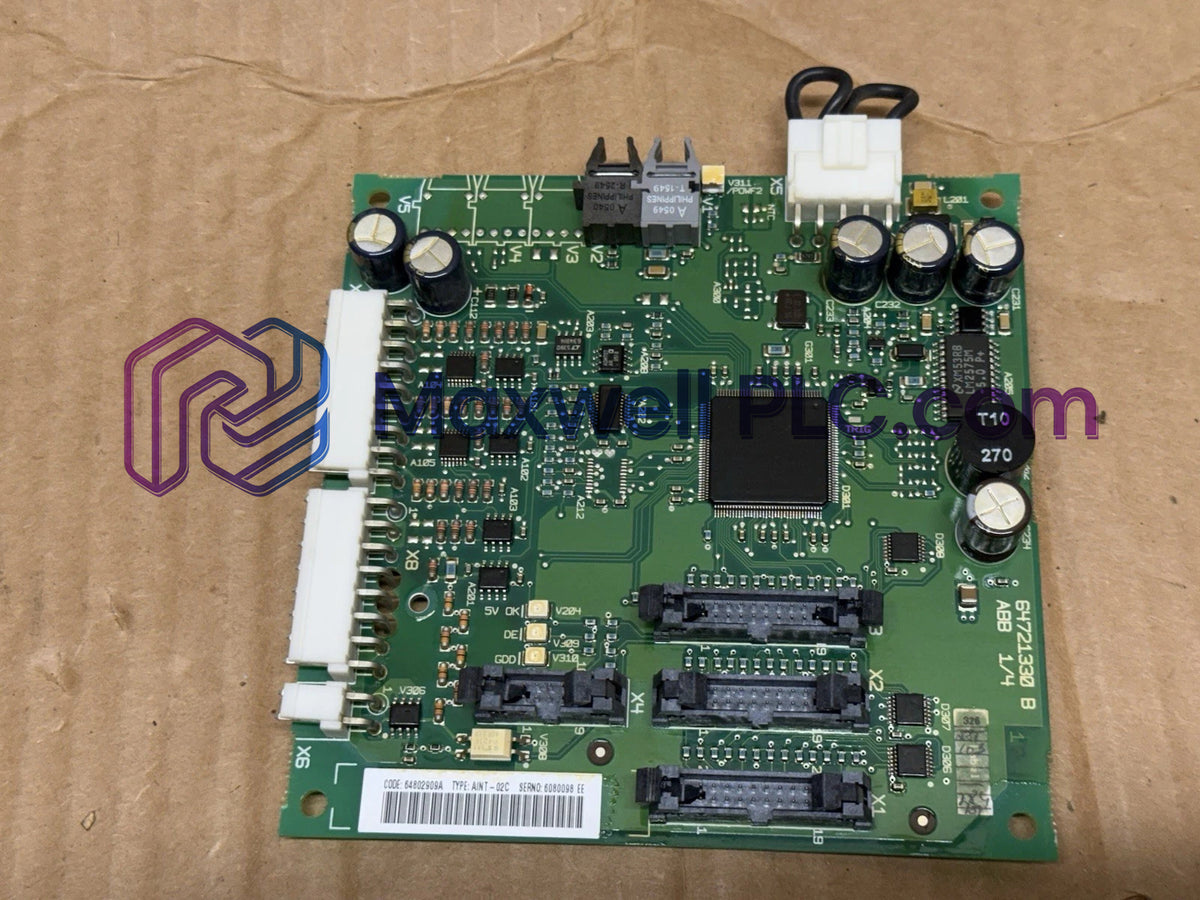

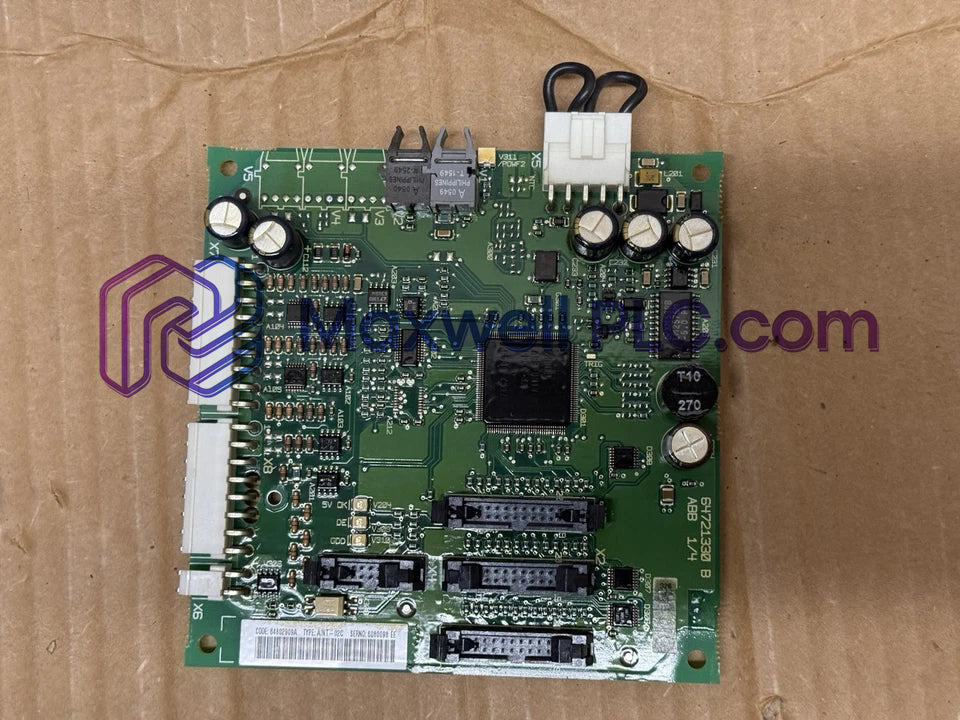

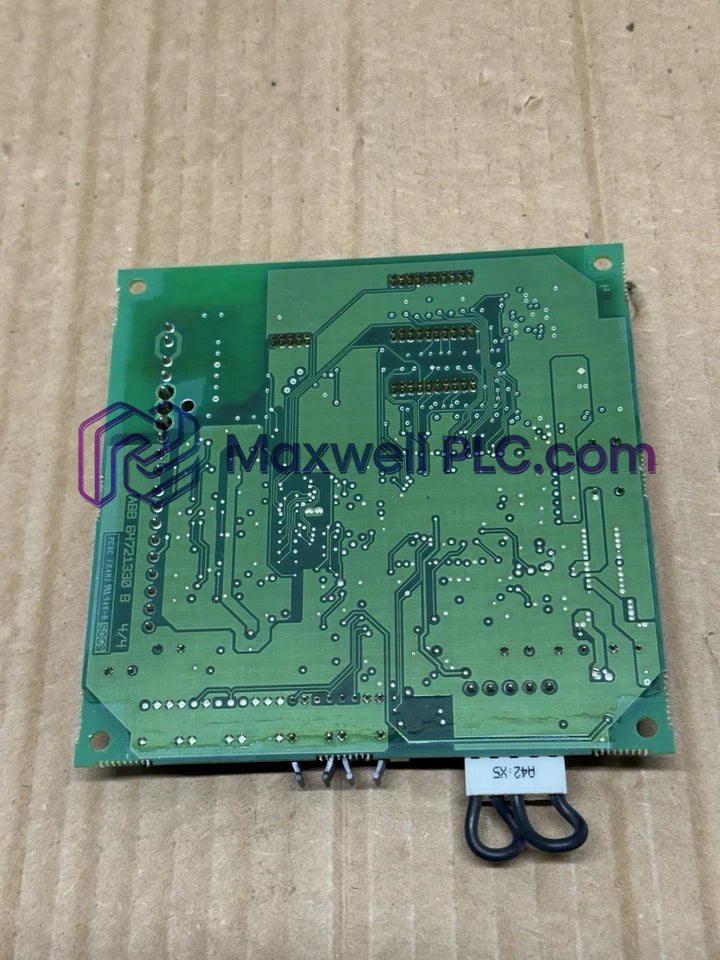

AINT-02 64802909 ABB Interface Board ACS 800

ABB

AINT-02 64802909 ABB Interface Board ACS 800

SKU: AINT-02

In Stock

Dimensions: 12.1 x 12.3 x 1.5 cm
Country of origin: Sweden
Payment: T/T, Western Union
Shipping port: Xiamen

Categories : ABB, ABB Drives, All Products

Tags : ABB ACS 800, ACS 800, Digital I/O Cards, Drive Interface Boards, Inverter Control Hardware

1 years warranty

Delivery time: 3-7 business days

Free 30 days return

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

The ABB AINT-02 64802909, also cataloged as the AINT-02 Interface Board, operates as a dedicated hardware component for internal signal conditioning and driver communication within ACS 800 drive architectures.

Identification & Designation Structure

Base Designator: AINT-02
Manufacturing Part Number: 64802909
Functional Classification: Drive Main Interface Board
Topology Integration: Direct chassis-bus connector interface within ACS 800 frequency converter power units

Physical & Electrical Data

Parameter	Specification
Model	AINT-02 64802909
Brand	ABB
Origin	Sweden
Weight	0.1 kg
Shipping Dimensions	12.1 x 12.3 x 1.5 cm
Input Voltage	24 VDC (+/-10%)
Power Consumption	8 W (typical)
Isolation Voltage	1500 VAC (channel-to-channel)
Communication Speed	Up to 1 Mbps
Signal Channels	16 digital I/O
Operating Temp	-25 to +60 deg C
Storage Temp	-40 to +85 deg C
Humidity	5-95% RH (non-condensing)
Tariff Code	8537101190

Drive Interface & Deterministic Backplane Dynamics

The AINT-02 board links the main control unit to the internal gate driver circuits. The board processes deterministic high-speed backplane bus communication data to ensure precise firing pulses to power semiconductors. High channel-to-channel isolation safeguards sensitive control processing elements from voltage surges across the inverter power stage, maintaining stable drive operation under variable load conditions.

Standard Delivery Content

1 x ABB AINT-02 64802909 Interface Board
Integrated protective anti-static packaging shell

Mounting & Wiring Procedures

Electrostatic Discharge Protection

Wear a grounded wrist strap connected to earth ground before handling the circuit assembly.
Keep the board inside the ESD protective bag until immediate insertion into the drive frame.

Physical Mounting Sequence

De-energize the ACS 800 drive chassis and verify that bus capacitors have fully discharged before opening the enclosure.
Align the board guides with the mounting slots inside the control unit assembly.
Secure all retaining hardware to ensure low-resistance earth grounding through the metal chassis standoffs.

Technical Query Resolution

What is the nominal input operating voltage for the board?

The board requires a regulated input supply of 24 VDC with a tolerance margin of +/-10 percent.
How much power does the board draw during standard operation?

Typical power consumption stands at 8 W during standard operational load conditions inside the drive.
What galvanic isolation rating applies to individual signal paths?

The channel-to-channel isolation limit is rated at 1500 VAC across all onboard measurement circuits.
What is the maximal communication speed across the interface?

The board supports high-speed signal processing and serial data rates up to 1 Mbps.
How many total digital input and output channels are provided?

The board incorporates 16 digital I/O signal channels dedicated to drive state execution.
What thermal parameters dictate safe operational environments?

The board functions within an ambient thermal band spanning from -25 deg C up to +60 deg C.
What are the standard shipping dimensions for replacement inventory?

Packaging measures 12.1 cm length by 12.3 cm width by 1.5 cm height with total weight of 0.1 kg.
Is hot-swapping permitted while the drive unit remains powered?

Hot-swapping is prohibited; main power and control supplies must be fully disconnected before servicing.
