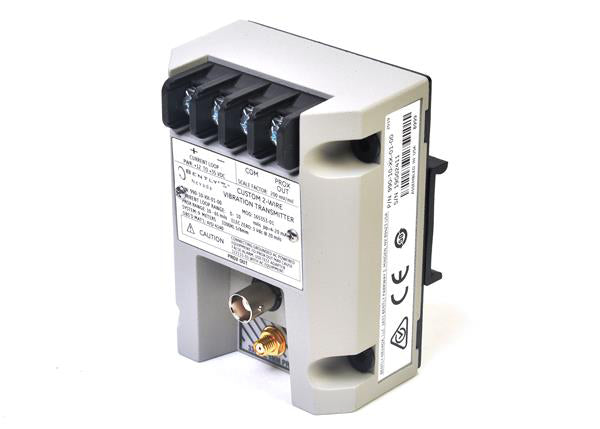

Configured for raw vibration signal conversion and loop-powered feedback generation within industrial monitoring loops, the Bently Nevada 990-04-07-01-05 (990-04-07-01-05 Vibration Transmitter) provides direct physical signal conditioning and voltage-to-current translation.

Nomenclature and Suffix Matrix Analysis

• 990: Identifies the core transmitter hardware family designed for machinery vibration monitoring loops.
• 04: Specifies the full-scale option range configured for 0 to 4 mils peak-to-peak (0 to 100 micrometers peak-to-peak).
• 07: Denotes the specific frequency response and filtering configuration matrix parameters.
• 01: Indicates the mechanical mounting hardware option featuring 35 mm DIN rail clips.
• 05: Designates agency approvals covering CSA Division 2 and ATEX Zone 0 / ATEX Zone 2 hazardous location classifications.

Core Hardware Specifications

Transducer Scaling and Rotor Dynamics Processing

The transmitter processes raw signals derived from eddy-current probe inputs by maintaining precise gap voltage validation against standard -10 VDC targets. Proper eddy-current probe scaling ensures accurate displacement measurements across rotating machinery shafts. Rotor dynamics are monitored continuously to capture peak-to-peak vibration values while internal cross-talk suppression filters minimize electrical noise interference across adjacent signal loops during high-speed operation.

Shipping Package Contents

• 1 x 990-04-07-01-05 Vibration Transmitter unit
• 1 x 35 mm DIN rail mounting clip assembly
• 1 x Technical documentation sheet

Mechanical and Electrical Installation Guidelines

• Rail Mounting: Secure the transmitter directly onto a standard 35 mm DIN rail inside the designated field junction box or control cabinet.
• Terminal Wiring: Connect the DC power source ranging from +12 VDC to +35 VDC strictly to the designated loop input terminals.
• Signal Shielding: Ground the signal cable shield properly at one end to prevent ground loops and mitigate electromagnetic interference.

Frequently Asked Questions

• What is the primary function of this transmitter unit?

  The module converts raw proximity transducer inputs into a proportional 4-20 mA loop current output for industrial monitoring systems.

• What power supply voltage is required to operate the device?

  The transmitter requires an external direct current input ranging from +12 VDC to +35 VDC at the transmitter terminals.

• What is the specified full-scale vibration measurement range?

  The full-scale option is configured for 0 to 4 mils peak-to-peak, equivalent to 0 to 100 micrometers peak-to-peak.

• What frequency response limits apply to this hardware?

  The unit delivers a frequency response spanning from 5 Hz to 6,000 Hz with a tolerance of +0, -3 dB.

• How is the transmitter physically mounted in the field?

  The device utilizes standard 35 mm DIN rail clips for secure mechanical installation within enclosures.

• What hazardous area certifications are associated with this part number?

  The hardware carries agency approvals covering CSA Division 2, ATEX Zone 0, and ATEX Zone 2 environments.

• Why is gap voltage validation important for this device?

  Monitoring the -10 VDC target baseline ensures the connected eddy-current probe operates within its linear range.

• Does this module include safety instrumented system ratings?

  The unit functions as a standard analog vibration transmitter without integrated Safety Integrity Level certification loops.
