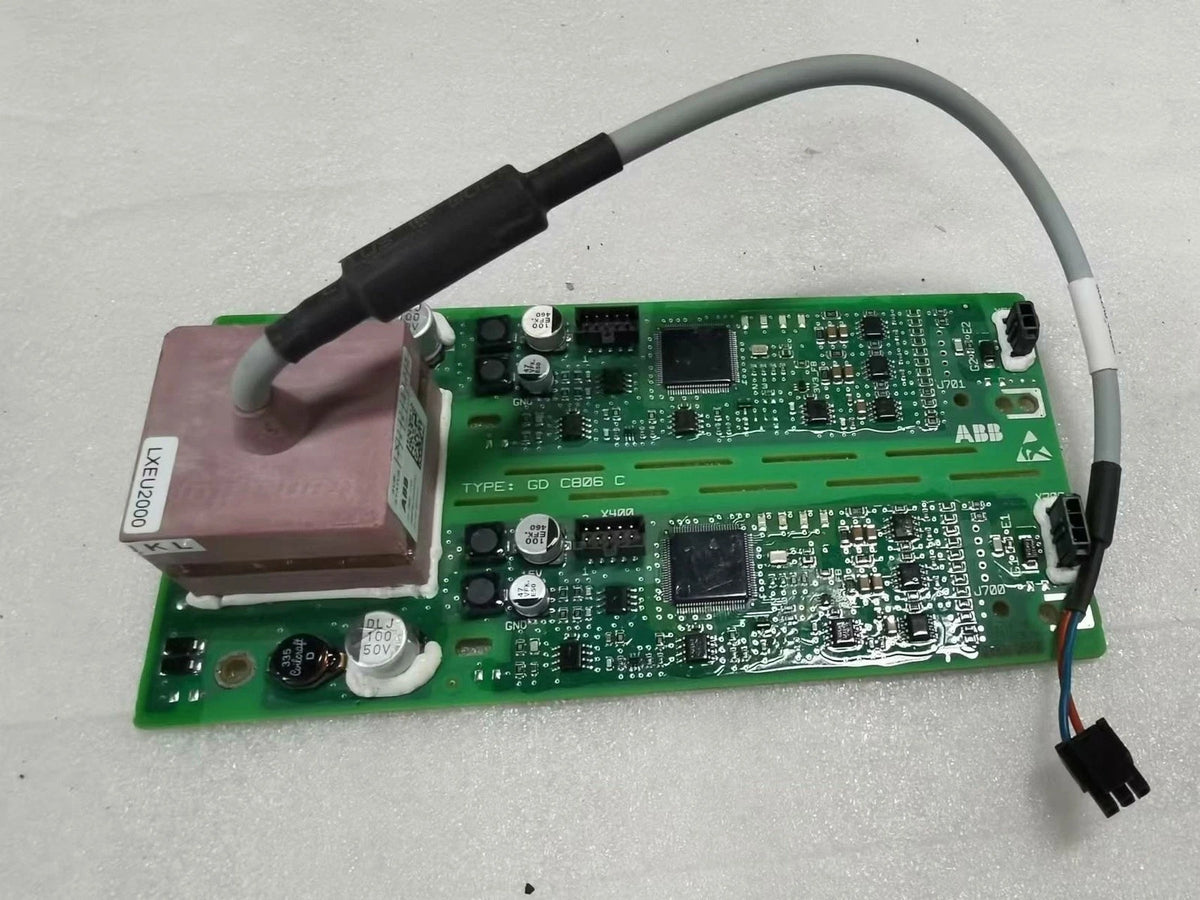

The ABB 3BHE044249R04002 GDC806 C4002, also cataloged as the GDC806 C4002 Control Motherboard, operates as a dedicated hardware component for centralized system logic routing and local module coordination within AC 800PEC processing platforms.

Variant Configuration & Circuit Architecture

The hardware catalog sequence defines internal circuit routing and baseboard functional tiers:

• 3BHE044249R04002: OEM hardware assembly part number for the physical printed circuit motherboard.
• GDC806: Dedicated motherboard subrack platform designation for AC 800PEC controller nodes.
• C4002: Circuit board revision code specifying integrated signal bus topology and power bus distribution.

Technical & Environmental Specifications

High-Speed Backplane Bus Integration

The motherboard architecture provides optimized backplane bus communication velocity across attached expansion daughtercards and processor modules. Integrated firmware flash compatibility guarantees continuous system clock synchronization across high-density controller slots, eliminating inter-module transmission delays during fast control loop cycles.

Delivery Package Details

• 1 x ABB 3BHE044249R04002 GDC806 C4002 Control Motherboard
• 4 x Subrack corner standoff mounting screws

Assembly & Wiring Guidelines

• Main Power Cutoff: Ensure external 24 VDC power supplies are fully isolated before installing or seating the motherboard into the enclosure chassis.
• ESD Safe Handling: Operators must wear a grounded electrostatic discharge wrist strap when touching exposed board edges or connector pins.
• Mechanical Securing: Fasten all board standoff hardware to the enclosure mounting plate to maintain ground continuity across the entire assembly chassis.
• Signal Cable Separation: Route low-voltage system bus cables separately from power supply conductors inside cabinet wire trays.

Frequently Asked Questions

• What supply voltage does the 3BHE044249R04002 control motherboard require?

  The motherboard operates from a standard nominal 24 VDC power distribution rail within the system cabinet.

• Is live insertion or hot-swapping supported for this control motherboard?

  No, power to the subrack assembly must be completely de-energized prior to installing or removing the motherboard.

• What range of ambient temperatures does the board support during operation?

  The motherboard is specified for operation within ambient thermal limits of -10 deg C to +60 deg C.

• How is chassis earthing established on the GDC806 motherboard?

  Chassis earth grounding is established directly via the metal mounting standoffs screwed into the grounded cabinet frame.

• Are configuration DIP switches required to be set prior to motherboard installation?

  Board-level routing is handled automatically via system bus addressing; verify physical jumpers match OEM hardware documentation.

• What physical dimensions are required for chassis space planning?

  The unit measures approximately 14.7 cm x 10.3 cm x 3.5 cm, requiring standard clearance for backplane heat dissipation.

• How does the board prevent damage from static discharge during installation?

  Integrated ESD suppression networks safeguard signal traces, provided technicians follow standard wrist-strap grounding procedures.

• Does replacing the motherboard require reloading controller firmware?

  Firmware resides on the main CPU module; however, system initialization verifies motherboard hardware compatibility on startup.
