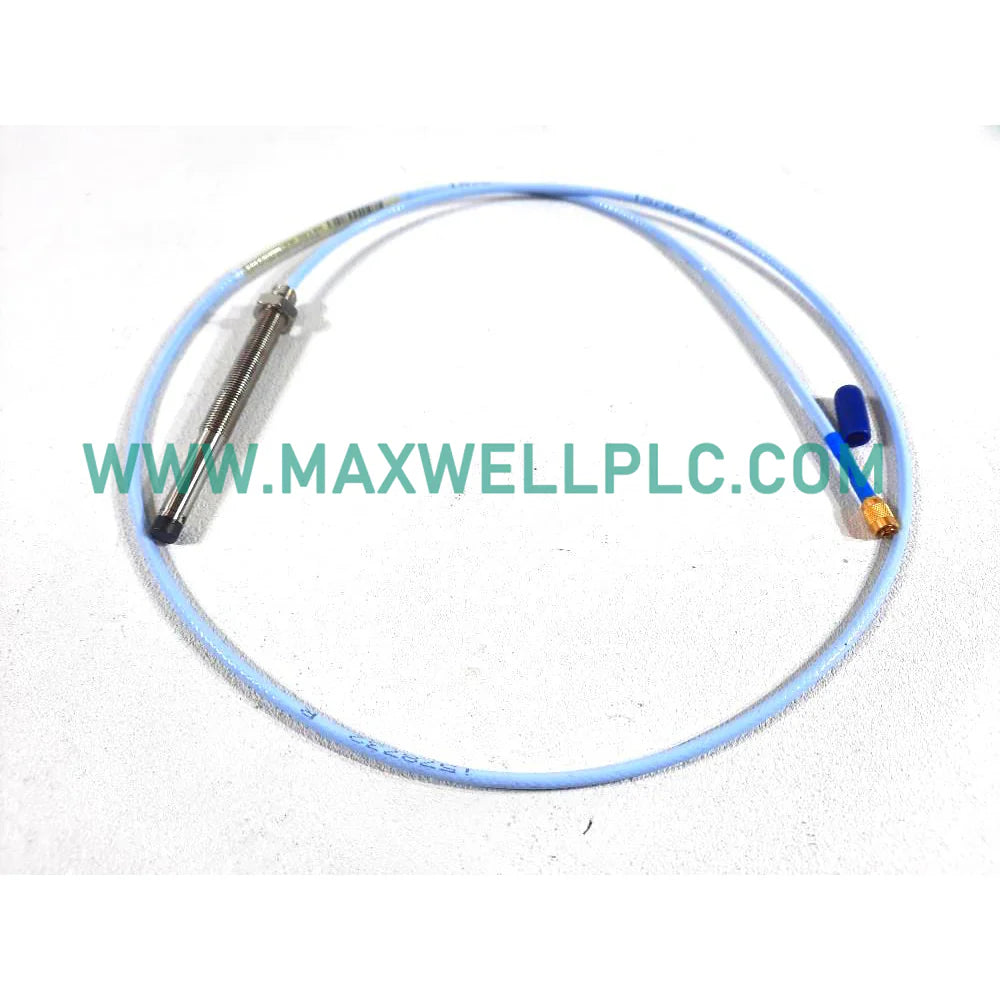

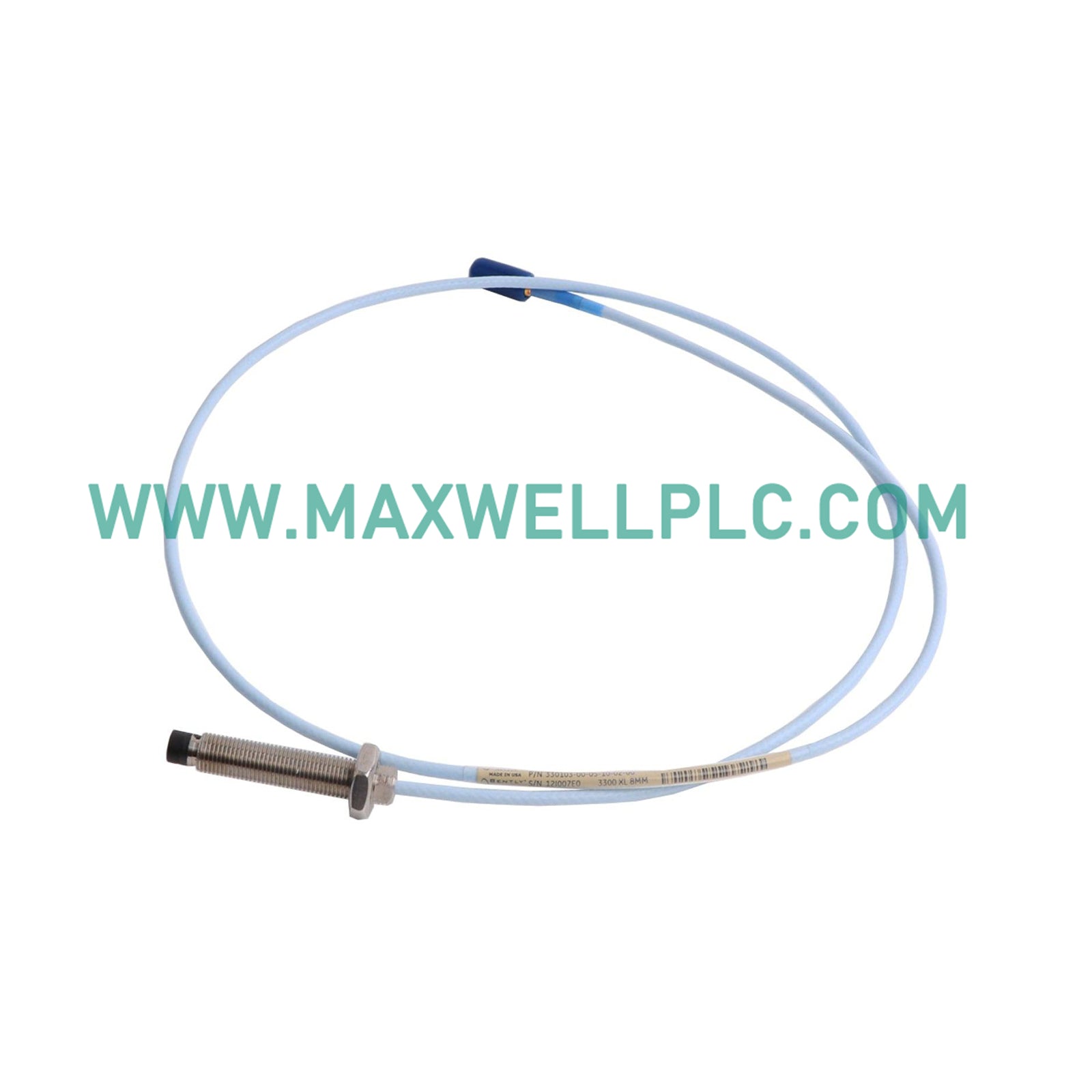

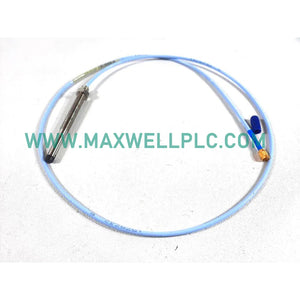

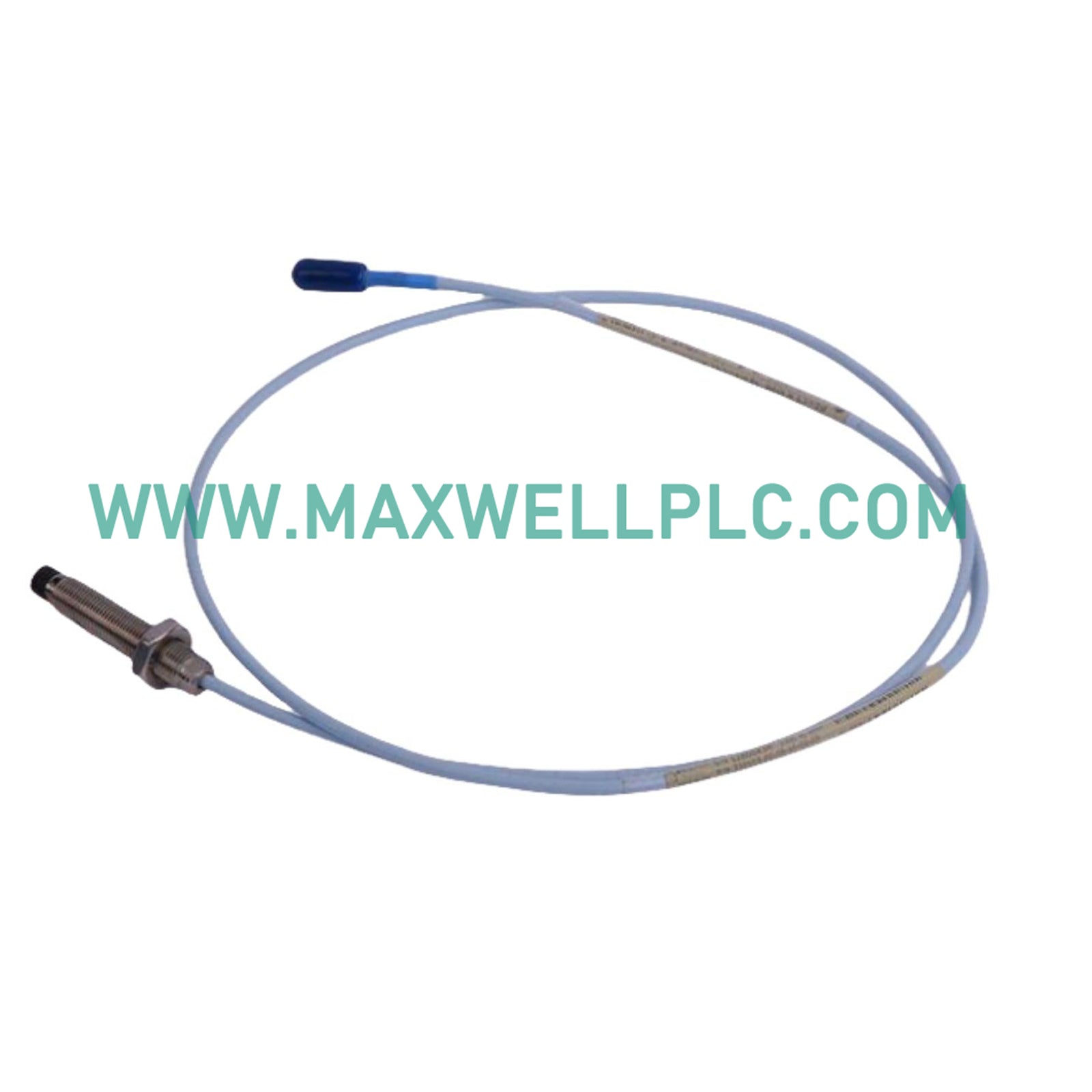

The Bently Nevada 330851-02-000-060-50-00-05, also cataloged as the 330851 Proximity Probes, operates as a dedicated hardware component for non-contacting displacement measurement within 3300 XL platforms. Configured as a large-scale 25 mm sensor tip system, the hardware tracks physical gap variations between the probe face and rotating machine targets by generating high-frequency eddy-current field modulations.

Suffix Nomenclature Breakdown

• 330851: Base model designator for the 3300 XL 25 mm proximity probe assembly.
• 02: Case thread configuration specifying an M30 x 2 metric threaded body.
• 000: Minimum unthreaded length code mapping to 0 mm of smooth cylindrical sleeve.
• 060: Minimum threaded length configuration defining a 60 mm fully threaded section.
• 50: Total system length option selecting a 5.0 meter (16.4 feet) integrated cable.
• 00: Armor configuration selecting a standard layout without flexible metal armor.
• 05: Agency approval variant selecting the international multiple approvals matrix.

Hardware Specifications

Eddy-Current Probe Scaling & Rotor Dynamics

The 25 mm sensor diameter extends the linear measurement envelope to track larger dynamic displacement fields. Continuous monitoring depends on precise eddy-current probe scaling constants, converting broad mechanical shaft motion into proportional voltage transitions. The system configuration records fluid-film changes and low-frequency rotor dynamics states, while structural shielding across the 5.0 meter loop maintains target cross-talk suppression safety factors when running near large industrial machinery structures.

Ordering Info

• 1 x 330851-02-000-060-50-00-05 Proximity Probe Unit
• 1 x Coaxial Connector Interface Insulator Sleeve

Field Installation Guidelines

Mechanical Seating and Probe Positioning

• Thread the M30 x 2 case structure into the pre-drilled brackets, checking for clean mechanical thread engagement across the full 60 mm line.
• Adjust insertion depth to align the physical sensor gap with the mid-scale operational voltage point before tightening the primary anchoring hex nuts.

Cable Routing and External Shielding

• Run the unarmored 5.0 meter cable through protective conduits, maintaining minimum bend radii to protect the internal coaxial components.
• Terminate the outer braid shield element strictly at the host instrumentation monitor rack common terminal block to prevent destructive ground loops.

Frequently Asked Questions

• Is hot-swap disconnection of the coaxial terminal permitted while the monitoring system is live?

  Yes, the loop configuration allows hot-swap sensor replacement or maintenance without causing terminal damage or monitor channel faults.

• How does the 25 mm tip diameter affect standard eddy-current probe scaling parameters?

  The large tip geometry widens the electromagnetic field distribution, expanding the linear window but reducing the millivolt-per-mil response factor compared to smaller 8 mm tips.

• What problem occurs if the field installation alters the calibrated 5.0 meter cable loop length?

  Cutting or splicing the cable changes the resonant loop impedance parameters, which invalidates factory calibration and introduces tracking measurement drift.

• What is the thermal operational boundary for the unarmored coaxial cable assembly?

  The raw materials and high-temperature outer jacket maintain technical structural properties across an operational range up to +177 deg C.

• How is cross-talk suppression managed when installing multiple 25 mm probes side by side?

  Engineers must enforce large lateral spacing distances between adjacent probe bodies to prevent magnetic fields from bleeding together.

• Does this probe component require an external DC power supply terminal block hookup?

  No, this is a passive transducer assembly that receives its operating RF excitation directly from the matched 3300 XL Proximitor module.

• What physical failure occurs if the housing is installed with fewer than 5 full threads of engagement?

  Low thread engagement increases stress during structural vibration, leading to stripped threads, loose alignment, or total mechanical failure.

• What baseline target configuration is verified during field gap voltage validation?

  Technicians measure the DC bias output via the Proximitor to check that the static installation clearance sits squarely inside the tracking window.
