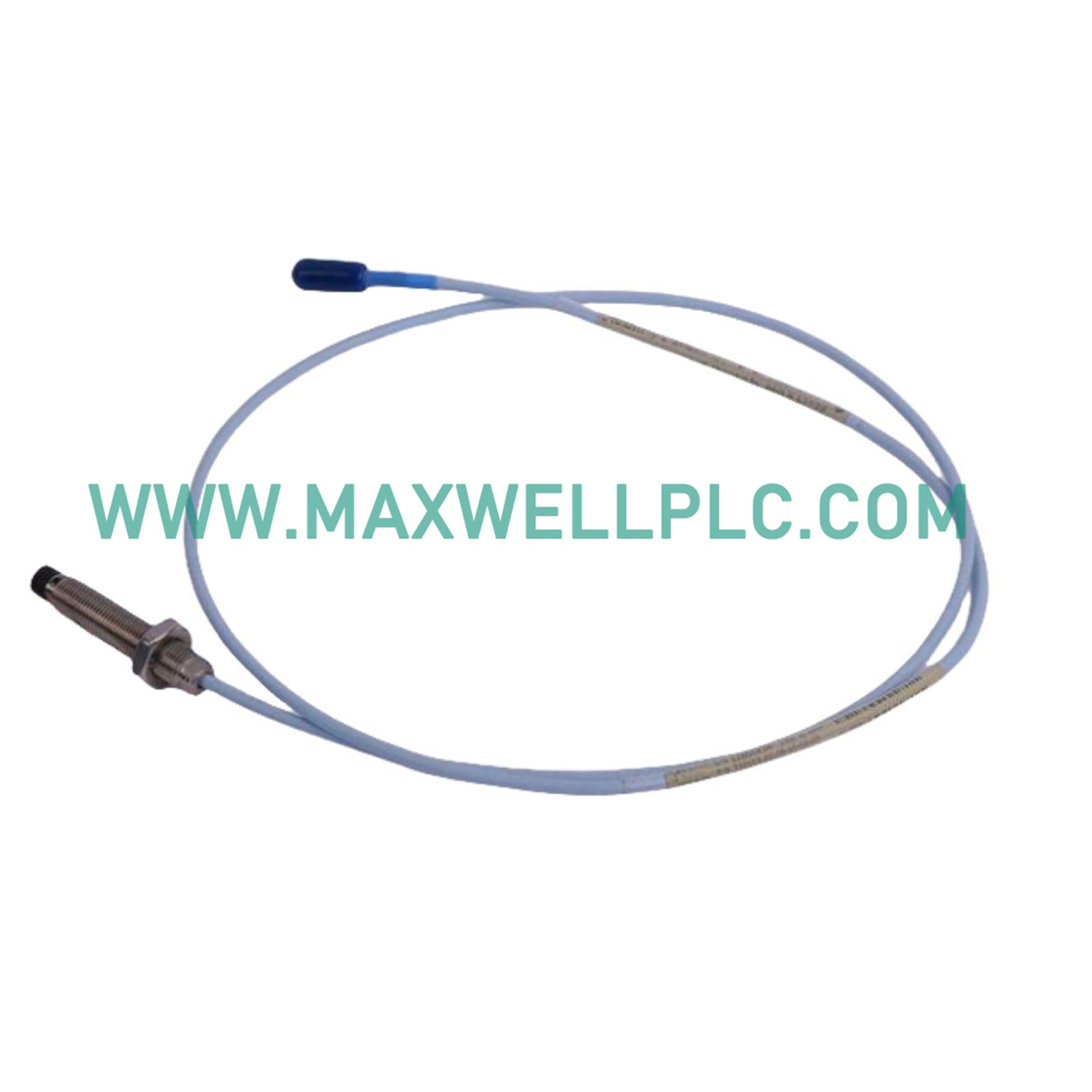

Configured for high-accuracy displacement and vibration measurements in rotating machinery, the Bently Nevada 330104-01-15-50-02-05, also cataloged as the 330104-01-15-50-02-05 Proximity Probe, provides direct physical/electrical execution.

Model Matrix and Suffix Configuration

• Base Series: 330104 (3300 XL 8 mm Proximity Probe)
• Thread and Armor Option: 01 (M10 x 1 thread with integral stainless steel armor)
• Unthreaded Length: 15 (15 mm minimum unthreaded length)
• Case Length: 50 (150 mm overall case length)
• Total Cable Length: 02 (5.0 meters / 16.4 feet)
• Connector and Agency Option: 05 (Miniature coaxial ClickLoc connector with CSA, ATEX, IECEx approvals)

Hardware Specifications

Rotor Dynamics and Gap Voltage Validation

Engineered to capture precise radial vibration and axial position parameters, the probe maintains strict eddy-current probe scaling to convert target proximity into a linear voltage output. Gap voltage validation targets a nominal -10 VDC baseline when paired with matching 3300 XL Proximitor sensors and extension cables. Furthermore, integrated coaxial shielding combined with stainless steel armor execution ensures cross-talk suppression and mitigates electromagnetic interference across multi-channel industrial turbine instrumentation tracks.

Scope of Delivery Manifest

• 1 x Bently Nevada 330104-01-15-50-02-05 3300 XL 8 mm Proximity Probe
• 1 x M10 x 1 Mounting Locknut Set
• 1 x Hazardous Area Certification Insert

Mechanical Installation Guidelines

• Thread Engagement Limits: Ensure the mounting hole is clean and that maximum thread engagement of the M10 x 1 probe case does not exceed 15 mm.
• Torque Specifications: Tighten the probe housing to a recommended torque of 5.1 N m (45 in lb), ensuring the limit does not exceed 7.3 N m (65 in lb) to prevent structural thread deformation.
• Transducer Separation: Maintain a minimum radial separation of 25 mm (1.0 inch) between adjacent transducer tips to avoid electromagnetic cross-talk interference during multi-probe configurations.

Frequently Asked Questions

• What is the probe tip diameter for this model?

  The probe utilizes a standard 8.0 mm tip diameter designed for eddy-current proximity measurements.

• What type of mechanical cable protection is included?

  The assembly features an integrated stainless steel protective armor jacket surrounding the coaxial cable.

• What is the total physical length specified by the part number?

  The total system cable length is 5.0 meters (16.4 feet) as designated by the model configuration options.

• Does this passive sensor require an external DC power source?

  No, the probe operates passively, relying entirely on the radio frequency excitation signal delivered by the Proximitor sensor.

• What is the recommended installation torque for the probe case?

  The recommended installation torque is 5.1 N m (45 in lb) with a hard maximum cap of 7.3 N m (65 in lb).

• How should cross-talk be prevented between adjacent probes?

  A minimum spatial separation of 25 mm (1.0 inch) must be maintained between adjacent transducer tips during mechanical installation.

• What hazardous location certifications apply to this unit?

  The 05 suffix indicates compliance with CSA, ATEX, and IECEx hazardous area approval standards.

• What is the verified shipping weight of the hardware?

  The gross package weight including transit wrapping is 0.16 kg.
