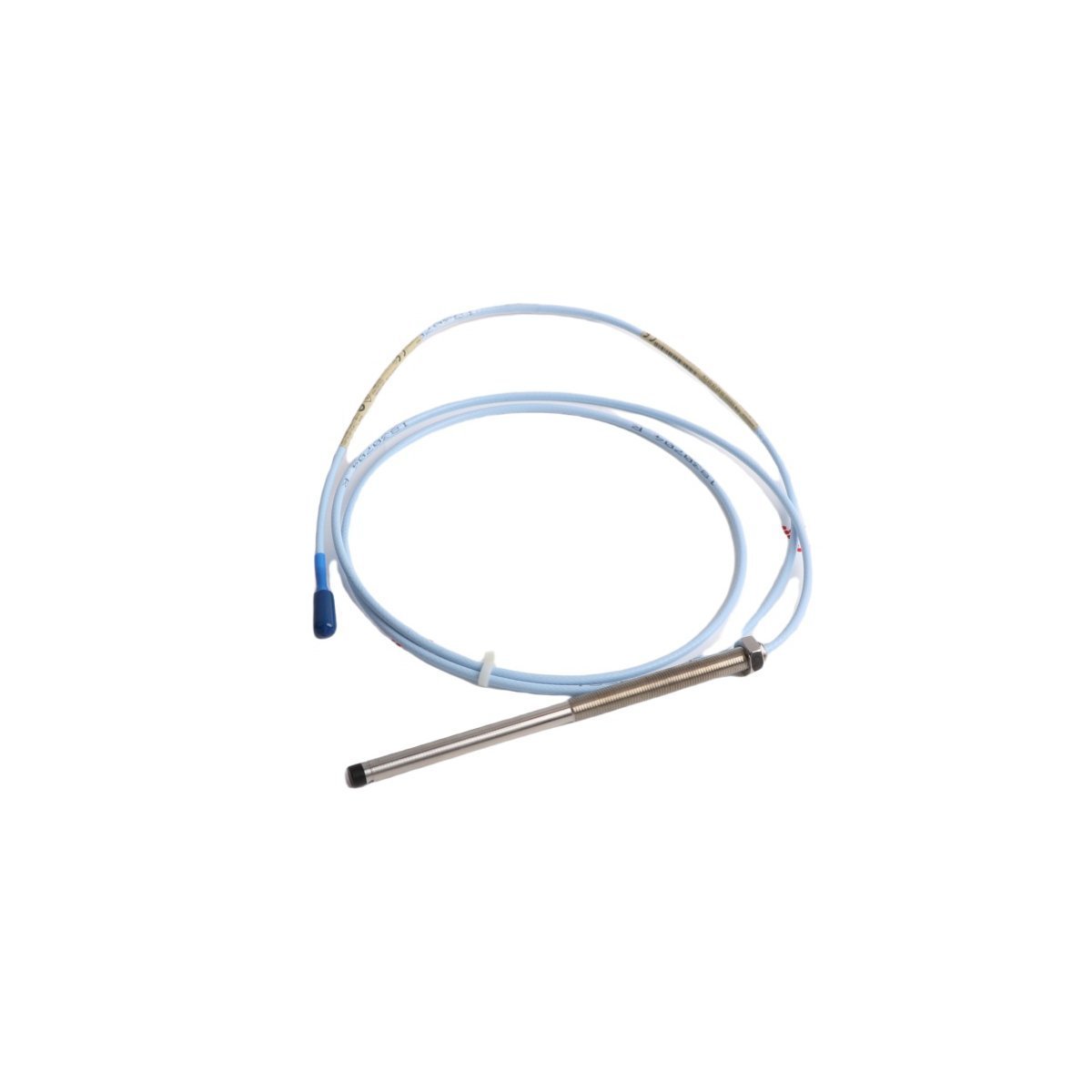

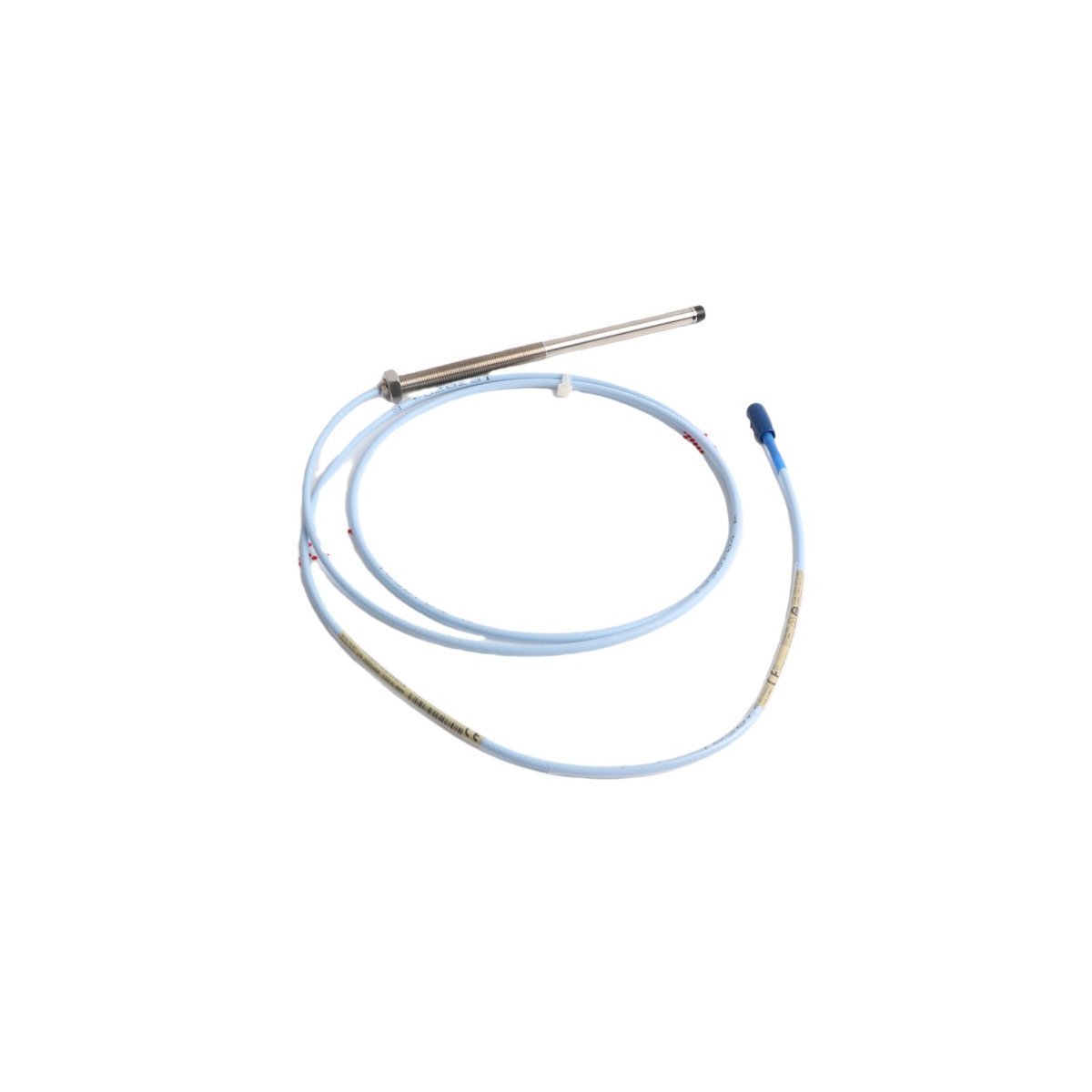

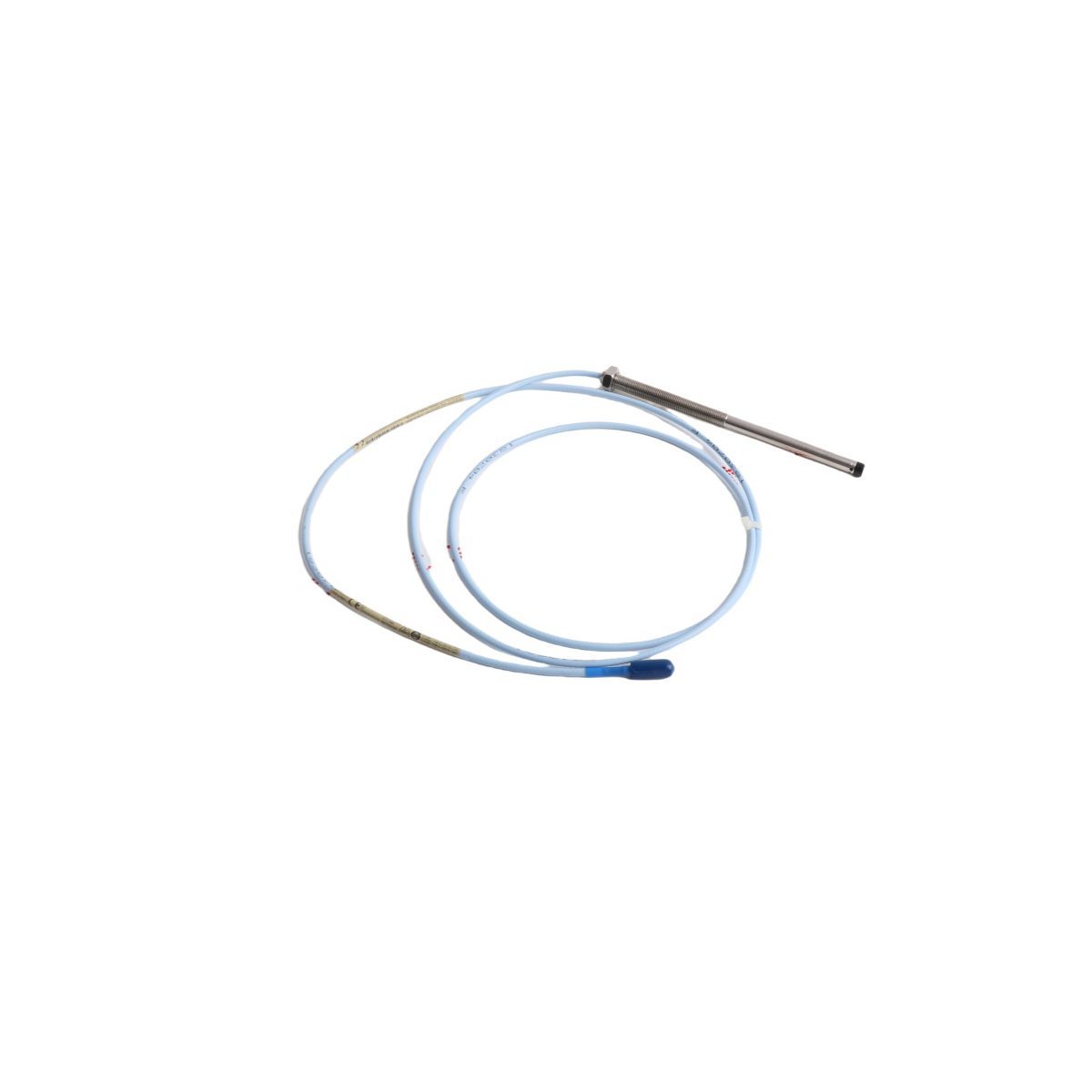

The Bently Nevada 330101-30-60-05-01-05, also cataloged as the 330101 Proximity Probe, operates as a dedicated hardware component for non-contacting vibration and displacement measurement within 3300 XL monitoring systems.

Configuration Matrix

The 330101-30-60-05-01-05 part number specifies a configuration consisting of an 8 mm probe tip diameter, 6.0 meter total system length, 3/8-24 UNF thread, and unarmored cable construction with standard connector termination. This assembly requires pairing with a 3300 XL Proximitor sensor calibrated to the corresponding system length to ensure electrical impedance matching and accurate signal output.

Hardware Specifications

Mechanical Monitoring and Signal Integrity

Effective rotor dynamics monitoring requires precise eddy-current probe scaling. The transducer must be installed to maintain a nominal -10 VDC gap voltage, which positions the sensor at the midpoint of its linear response range. To prevent measurement errors, cross-talk suppression protocols must be observed; this involves maintaining sufficient physical separation between probes to avoid electromagnetic interference between adjacent oscillator fields. Calibration is standardized for AISI 4140 steel; variations in target material conductivity require adjustment of the transducer scaling.

## Ordering info

• 1x 330101-30-60-05-01-05 Proximity Probe

• 1x Installation technical manual

• 1x Probe tip protective cap

• 1x Lock nut and O-ring seal assembly

Field Installation Guidelines

• Mounting Alignment: Install the probe perpendicular to the target surface. An angular misalignment exceeding 5 degrees will degrade measurement linearity.

• Thread Engagement: Verify a minimum of 5 full thread engagements for UNF interfaces to ensure structural stability against mechanical vibration.

• Torque Limits: Tighten the lock nut to 5.1 N-m (45 in-lb). Avoid excessive force to prevent internal thread deformation or probe tip damage.

• Grounding: Maintain shield continuity throughout the cable path. Do not ground the cable shield at intermediate junction boxes to prevent ground loops.

• Proximitor Matching: Ensure the total system length (probe + extension cable) matches the factory-calibrated length of the Proximitor sensor.

Frequently Asked Questions

• Can this probe be used in hazardous areas? Yes, it is compatible with intrinsically safe systems when installed according to agency-approved control drawings.

• What is the impact of cable length modification? The probe and extension cable are calibrated as a unit. Modifying the length alters electrical impedance and invalidates system accuracy.

• Can I use this probe with older 3300 series Proximitors? No, 3300 XL probes are designed specifically for 3300 XL Proximitor sensors; impedance mismatches will occur with older hardware.

• How is the probe tip protected during storage? Use the provided plastic protective cap to prevent impact damage to the sensitive tip geometry.

• Can the probe measure non-metallic targets? No, the eddy-current principle relies on the conductivity of the target material to generate the displacement signal.

• What happens if the gap is too small? Physical contact between the probe tip and the target will result in clipping of the output signal and potential destruction of the probe tip.

• How do I identify a ground loop? Inspect the monitor output for high-frequency noise or 50/60 Hz interference; ensure only a single ground point exists for the signal shield.

• Why is the -10 VDC target used? This voltage represents the center of the linear operating range, providing maximum signal headroom for vibration peaks.
