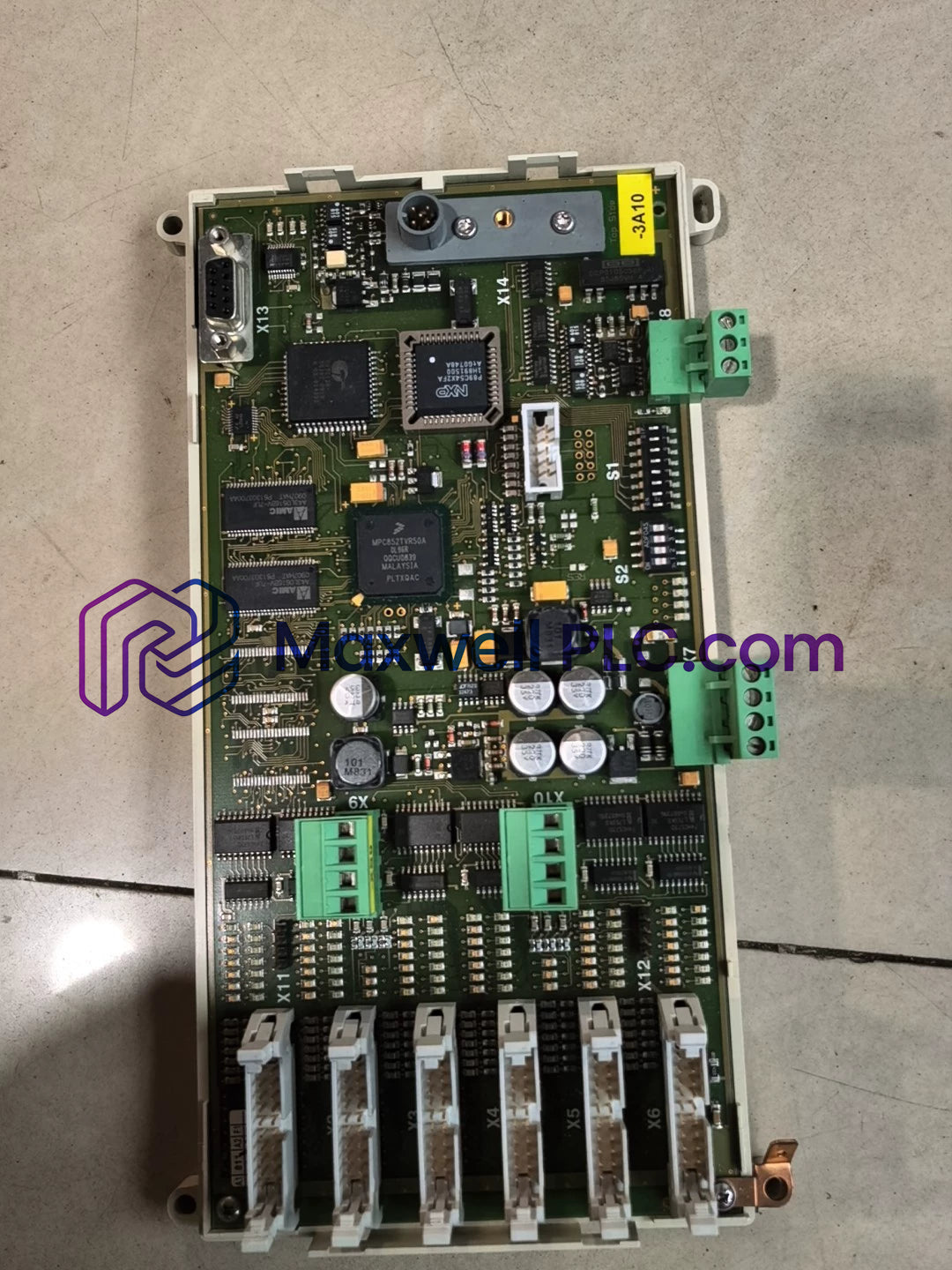

The ABB 1SAY130110R0100 07SS91C2, also cataloged as the 07SS91C2 Circuit Board, operates as a dedicated hardware component for high-frequency gate drive switching and power stage isolation within AC500 control architectures.

Board Architecture & Hardware Variant Matrix

• 07SS91C2: Base printed circuit board assembly designated for gate drive pulse handling.
• 1SAY130110R0100: Official commercial part number designating standard factory production hardware.
• Gate Drive Circuitry: Delivers plus or minus 15 V gate drive outputs at operating switching frequencies up to 20 kHz.
• Galvanic Isolation Barrier: Provides high-voltage signal isolation rated at 2500 VAC to protect backplane control electronics.

Electrical & Physical Specifications

Deterministic Network & Backplane Integration

The circuit board maintains high-speed signal synchronization across deterministic network backplanes, optimizing backplane bus communication velocity Licences. Embedded board logic maintains firmware flash compatibility with host AC500 controller units, ensuring rapid pulse response and maintaining I/O density scaling during high-frequency operation.

Standard Delivery Itemization

• 1 x ABB 1SAY130110R0100 07SS91C2 Circuit Board Assembly
• 1 x Anti-Static Protective Enclosure
• 1 x Factory Component Inspection Sheet

Mounting & Wiring Guidelines

Physical Assembly & Vibration Isolation

• Secure the circuit board inside a designated IP54 metal enclosure using insulated standoff pillars to meet the 2G vibration resistance limit.
• Ensure clear vertical spacing around high-power switching paths to promote natural convection cooling across the board surface.

Power Connection & Grounding Rules

• Connect a regulated 24 VDC supply (within plus or minus 10% tolerance) directly to the designated power input terminals.
• Bond the board ground plane directly to the cabinet protective earth bar using a wide copper strap to suppress high-frequency EMI noise.

Frequently Asked Questions

• Can the 07SS91C2 circuit board be hot-swapped while control power is applied?

  No, main DC input power must be fully isolated before removing or installing the board to prevent electrical arc damage.

• What gate drive voltage output does the circuit board generate?

  The board provides isolated gate drive output voltages rated at plus or minus 15 V for power semiconductor switching.

• What is the maximum switching frequency supported by the gate drive stage?

  The internal switching drive stage operates effectively at pulse frequencies up to 20 kHz.

• What level of electrical isolation exists between control power and gate outputs?

  The board incorporates high-grade galvanic isolation rated for up to 2500 VAC signal isolation.

• What power consumption load does the board impose on the 24 VDC line?

  The circuit board draws a continuous power consumption level of approximately 15 W under nominal operation.

• What are the extreme operating temperature limits for the assembly?

  The unit is specified for operation within ambient thermal environments ranging from -20 deg C to +70 deg C.

• What vibration level can the board withstand in heavy industrial environments?

  The mechanical construction withstands physical vibration limits up to 2G across the 5 to 500 Hz frequency range.

• What is the nominal supply voltage requirement for circuit board operation?

  The unit requires a 24 VDC auxiliary power supply operating within a plus or minus 10 percent tolerance window.
