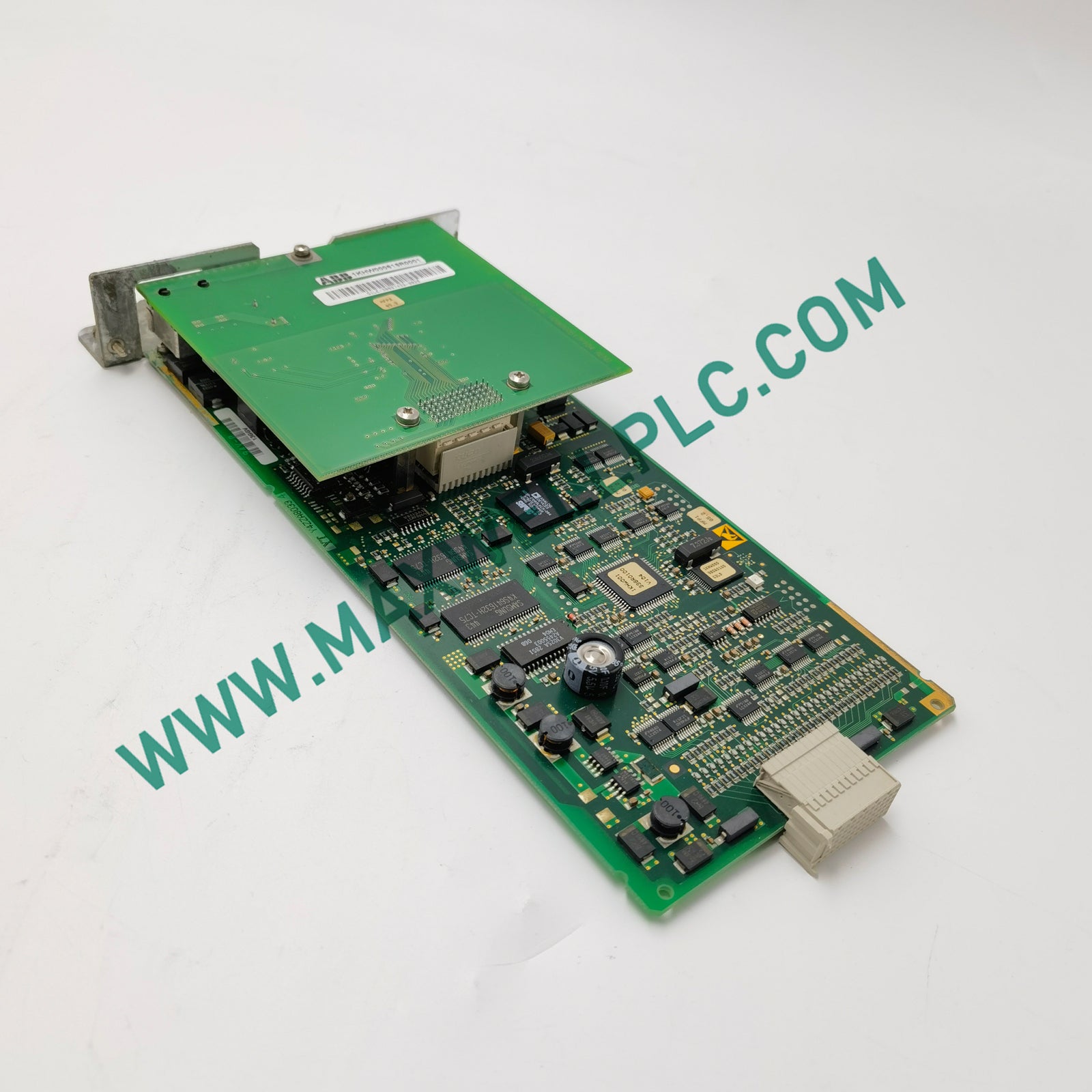

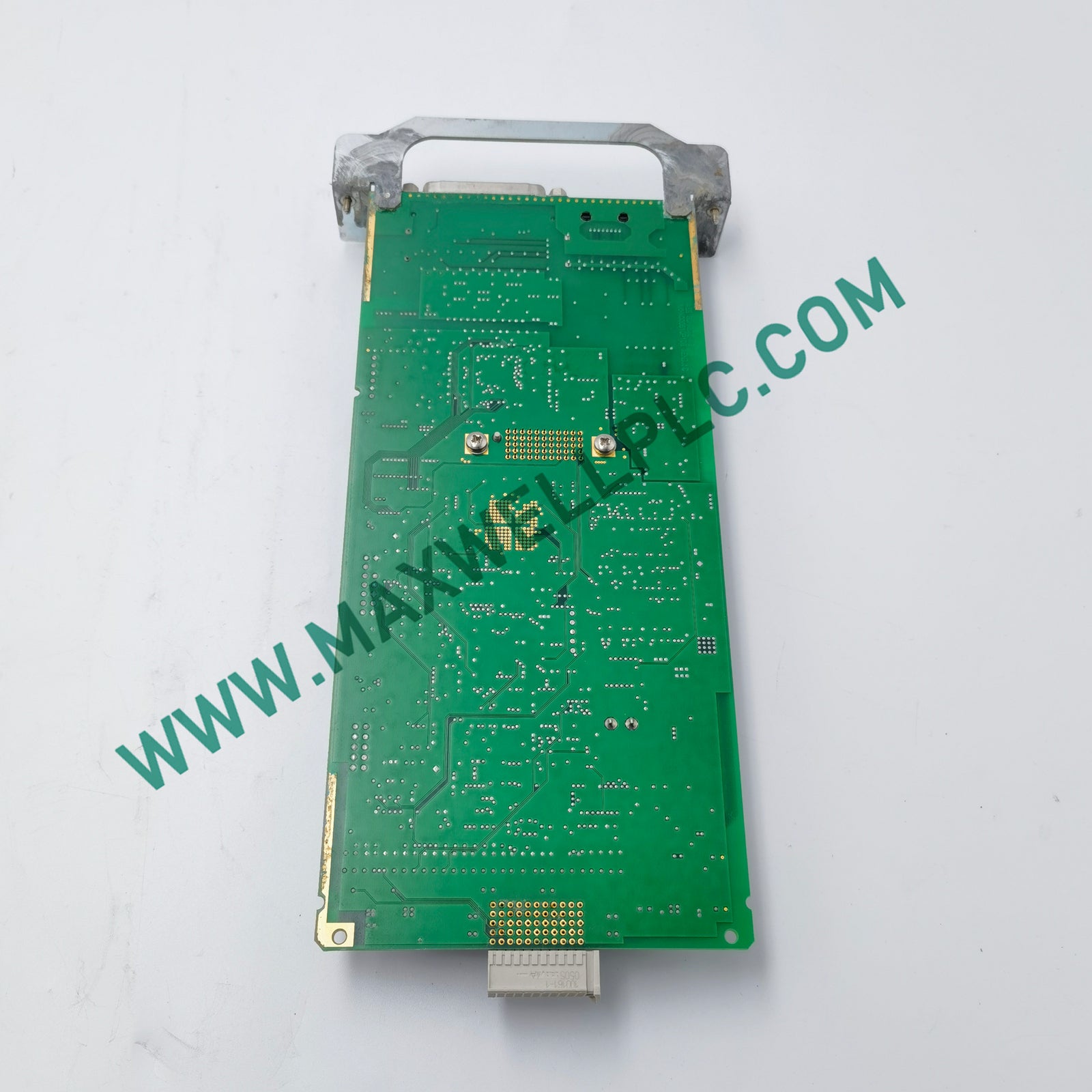

Configured for high-accuracy analog signal acquisition in industrial control platforms, the ABB 1KHW000615R0001 (1KHW000615R0001 Analog Input Module) provides direct physical/electrical execution.

Architectural Classification & Signal Processing Matrix

The ABB 1KHW000615R0001 belongs to the ABB automation I/O product line. Designed as a DIN-rail or rack-mounted interface, this unit converts field voltage (0-10 V DC, +/-10 V DC) and current (4-20 mA, 0-20 mA) loops into digital representations using internal A/D converters. Operating on a nominal 24 V DC system supply, the module processes input channels to maintain tight loop control across automated processes.

Technical Performance Parameters

Deterministic Bus Architecture & Scaling Capabilities

The module transmits converted analog values across local backplanes or Profinet / EtherNet/IP deterministic networks to host controllers. Internal logic supports firmware flash compatibility for field update execution. High I/O density scaling allows dense channel concentration per slot position, enabling real-time scanning cycles while filtering field-induced high-frequency noise prior to bus serialization.

Package Component List

• 1 x ABB 1KHW000615R0001 Analog Input Module
• 1 x Removable Terminal Interface Connector
• 1 x Technical Installation Guide Sheet

Field Cabinet Wiring & Installation Rules

• Turn off all main 24 V DC power sources and loop power supplies prior to inserting or removing the I/O module.
• Mount the module chassis vertically on grounded metallic DIN rails or base plates to ensure adequate thermal convection.
• Route analog current loop and voltage cables in dedicated shielded channels away from AC power conductors.
• Earth all signal cable shields at a single chassis grounding point using 360-degree metallic cable clamps.
• Verify field loop power polarity before energizing terminal blocks to prevent analog input channel protection trips.

Engineering Support FAQ

• What supply voltage is required to power the internal circuitry of the 1KHW000615R0001?

  The module operates from an auxiliary 24 V DC power bus connected through the module terminal header.

• Can analog current and voltage inputs be wired to the module?

  Yes, channels can be configured to accept standard voltage signals (0-10 V DC, +/-10 V DC) or current signals (4-20 mA, 0-20 mA).

• Is hot-swapping supported on live backplanes for this module?

  Hot-swapping depends on the active baseplate; power off local I/O station buses before module insertion or removal to prevent logic errors.

• What operating temperature limits apply to cabinet installation?

  The hardware is rated for continuous operation in cabinet environments ranging from 0 to 60 deg C.

• How are signal cable shields terminated on the field side?

  Ground signal cable shields at one end only, clamped directly to the central protective earth rail to prevent ground loops.

• How does the unit process signals for deterministic network transfer?

  Analog-to-digital converters convert process signals into digital words and send them across the deterministic network bus.

• What storage environment limits must be maintained for spare units?

  Unused units must be stored in dry locations held between -25 deg C and 85 deg C with non-condensing humidity.

• How are system updates applied to the internal control logic?

  Logic updates execute through host controllers using integrated system firmware flash compatibility interfaces.
