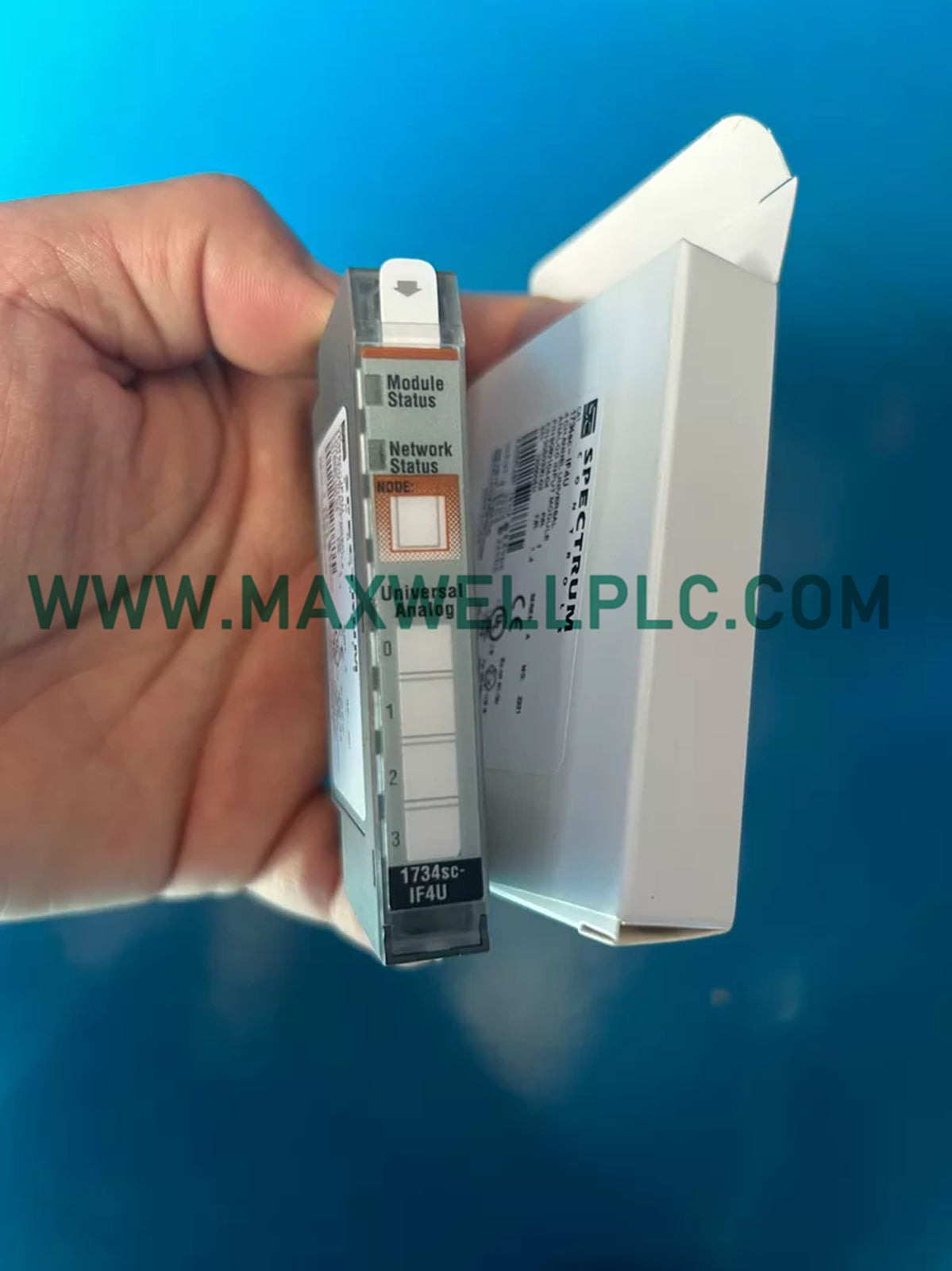

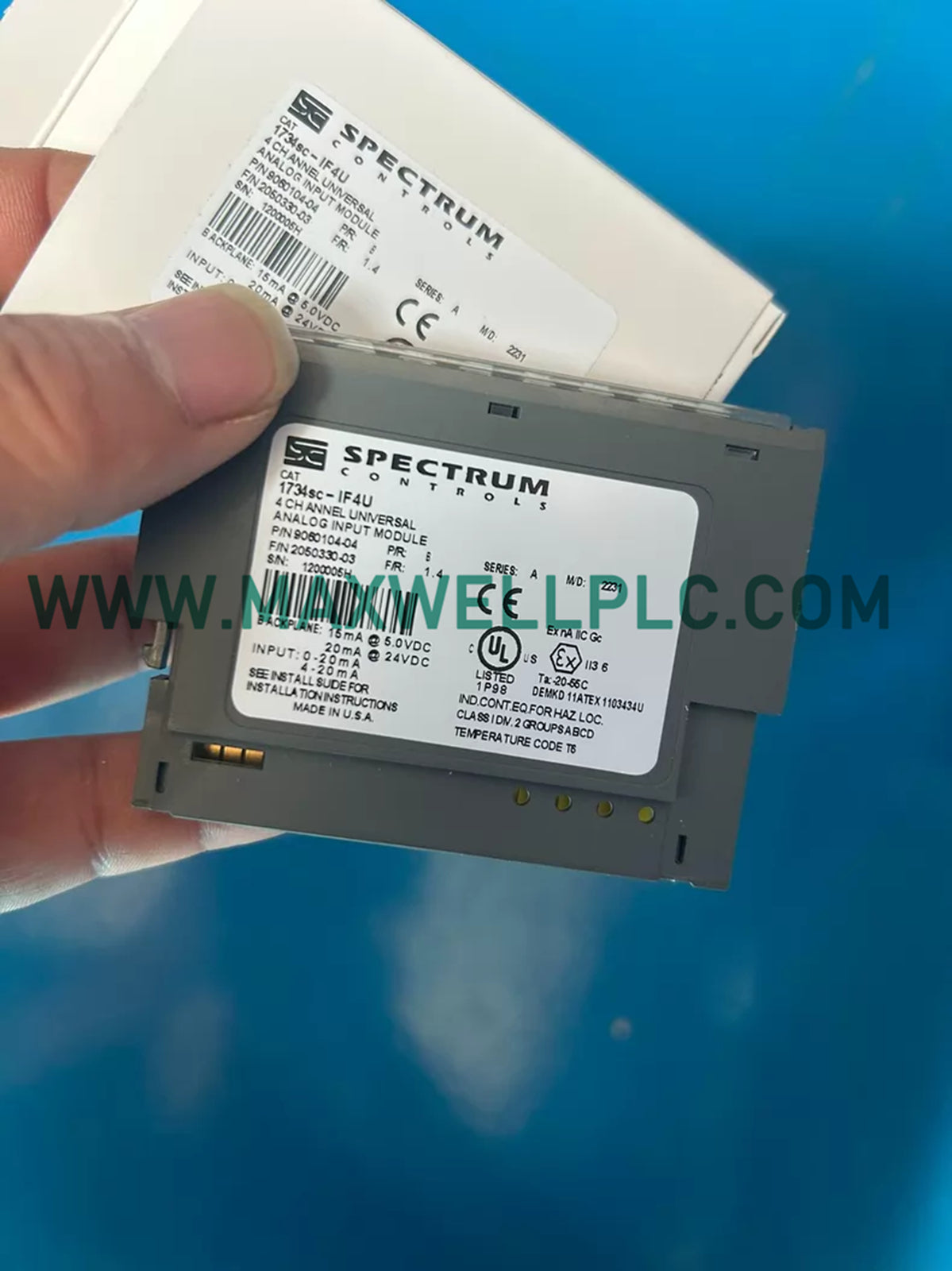

Configured for analog signal acquisition in distributed automation networks, the Allen-Bradley 1734SC-IF4U (1734SC-IF4U Input Module) provides direct physical/electrical execution.

Catalog Designation & Part Nomenclature

• Base Model: 1734SC-IF4U
• Module Architecture: Point I/O Analog Input Platform
• Channel Count: 4 Differential Inputs
• Conversion Resolution: 18 Bits

Hardware Specifications

Backplane Bus & Network Architecture

The internal logic interfaces directly with EtherNet/IP deterministic networks via the modular terminal base communication bus, supporting high-speed data packet transfers. I/O density scaling permits discrete channel configuration parameters to be mapped directly into the controller tag database. Furthermore, firmware flash compatibility ensures seamless integration across legacy and current control platform revisions without data corruption risks.

Delivery Scope

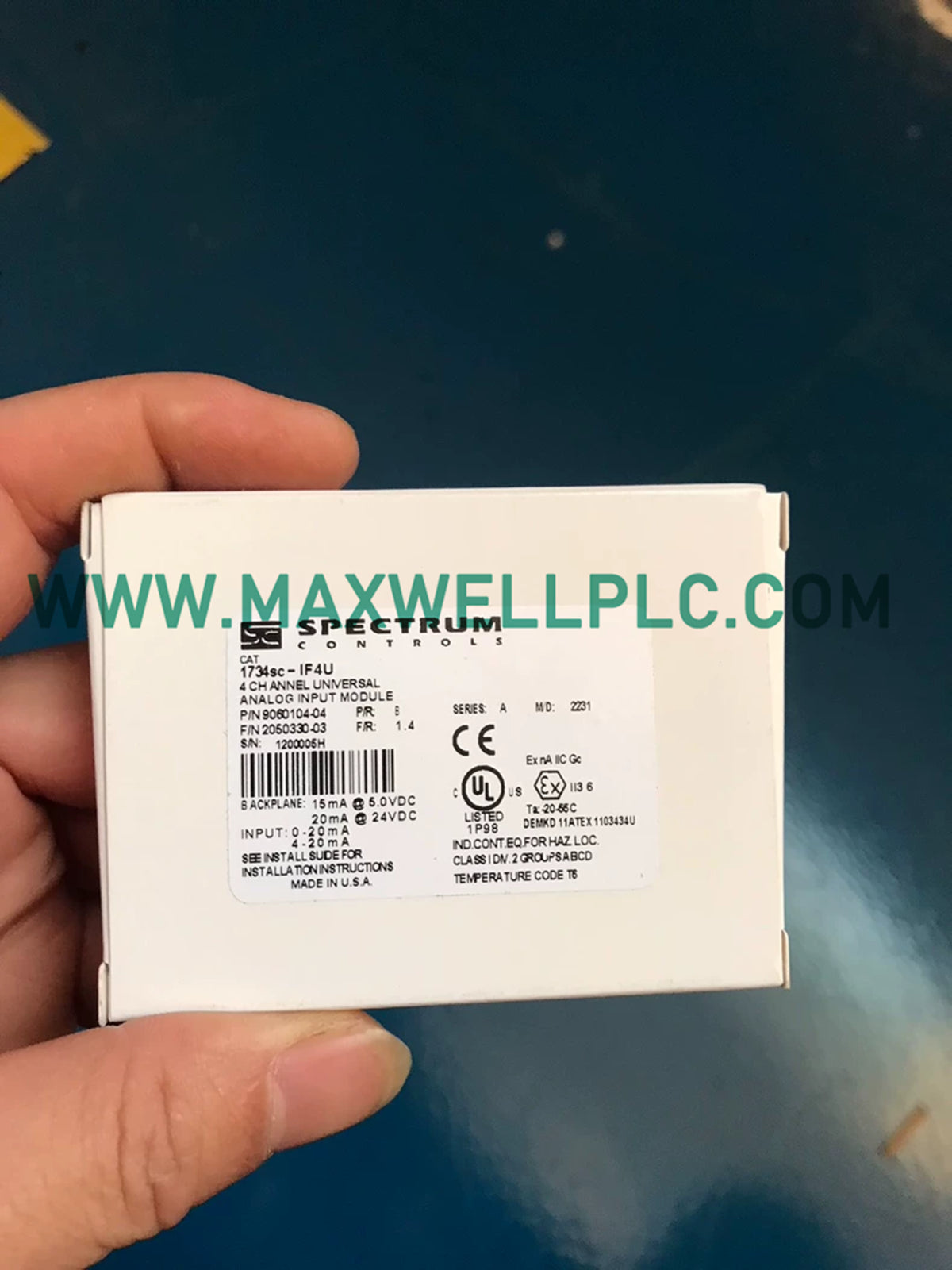

• 1 x Allen-Bradley 1734SC-IF4U Input Module unit
• 1 x Removable terminal block wiring connector insert
• 1 x Technical installation bulletin sheet

Physical Installation Guidelines

• Mount the module exclusively onto a certified 1734 wiring base assembly installed on a standard DIN rail to maintain mechanical stability.
• Ensure power is completely removed from the rack backplane before inserting or extracting the module to prevent electrical arcing on pin contacts.
• Terminate all analog field wiring using twisted-pair shielded cables, grounding the shield drain wire exclusively at one end to reduce electrical noise.
• Verify that total input current and overcurrent protection thresholds do not exceed 32 mA continuous per channel during normal operation.

Operational Inquiry and Verification

• Q: What is the primary function of the 1734SC-IF4U hardware unit?

  A: It functions as a high-resolution analog input module designed to acquire sensor signals within Point I/O architectures.

• Q: How many independent input channels does this specific model support?

  A: The hardware provides 4 dedicated analog input channels for process variable monitoring.

• Q: What is the analog-to-digital conversion resolution of the inputs?

  A: The module processes input signals utilizing an 18-bit conversion resolution for precise measurements.

• Q: What is the specified input impedance value for the channels?

  A: The input impedance is rated at 253 ohm across the operational measurement range.

• Q: Is the module capable of hot-swapping on an active backplane?

  A: Hot-swapping is supported only when the system is powered down or when utilizing approved removable terminal base configurations designed for live insertion.

• Q: What is the physical weight of the module for cabinet load calculations?

  A: The unit weighs 0.04 kg, imposing minimal structural load on the mounting DIN rail.

• Q: How is thermal dissipation handled within the operational environment?

  A: The module features a minimum thermal dissipation of 1 W, requiring standard convective airflow inside the enclosure.

• Q: What overcurrent limit applies to protect the input circuitry?

  A: The input overcurrent protection threshold is established at 32 mA continuous per channel.
