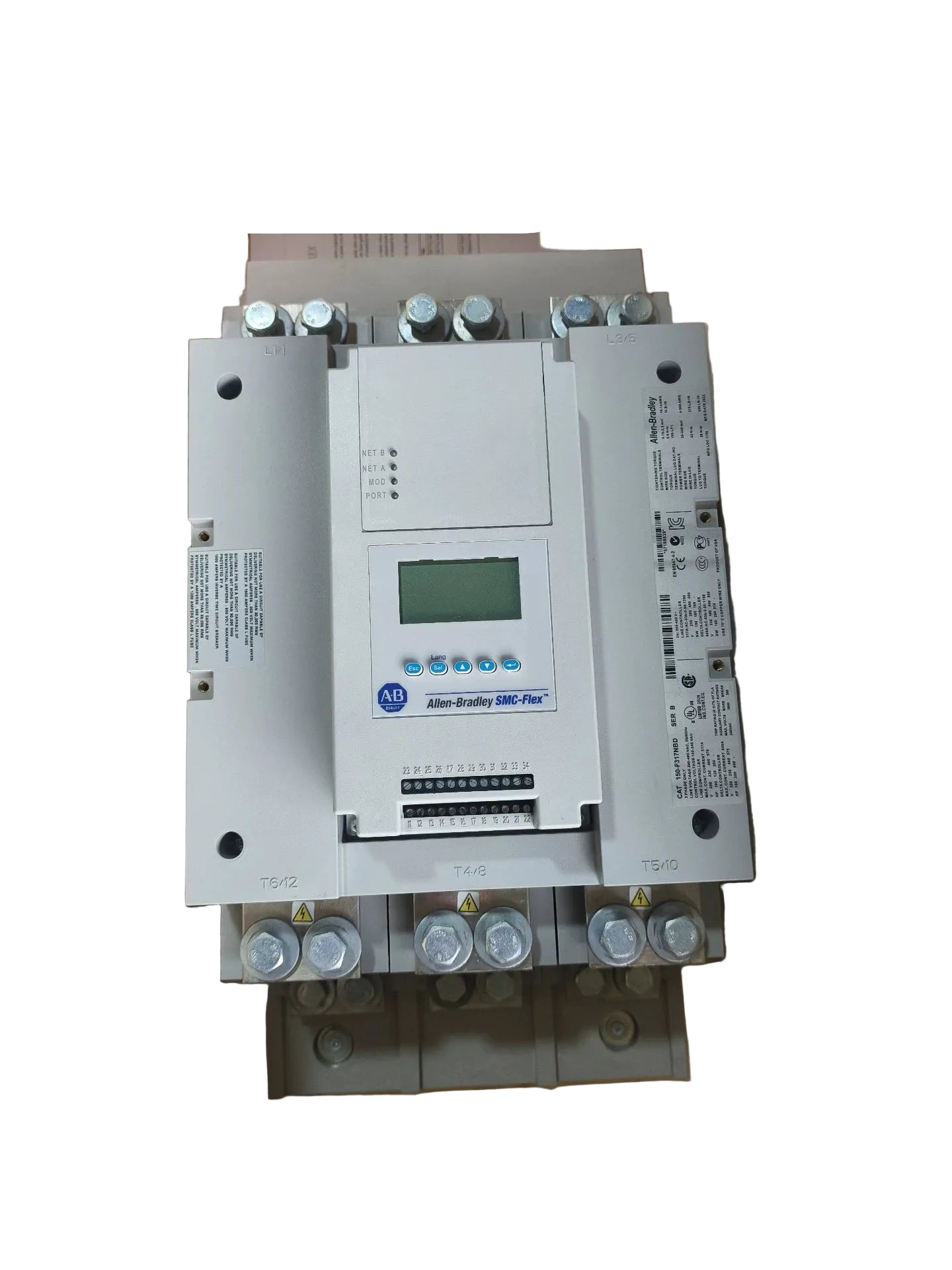

Configured for solid-state motor starting and integrated braking control within industrial drive environments, the Allen-Bradley 150-F25NBRD (150-F25NBRD Smart Motor Controller) provides direct physical electrical execution.

Nomenclature Breakdown & Model Matrix

• 150: Base product family identifier designating Allen-Bradley solid-state controllers.
• F25: Controller rating designator indicating a 25 amp capacity level.
• N: Enclosure type classification indicating an open enclosure configuration.
• BRD: Integrated feature suffix specifying built-in braking control functionality.

Hardware Specifications

Industrial Control & Drive Interface Integration

Engineered for deterministic execution, the controller manages backplane bus communication velocities and supports Profinet and EtherNet/IP deterministic network links. It provides precise I/O density scaling and firmware flash compatibility across integrated automation architectures.

Package Ordering Information

• 1 x 150-F25NBRD Smart Motor Controller unit
• 1 x Low-voltage control terminal plug block set

Physical Installation & Wiring Guidelines

• Mounting Orientation: Install the open enclosure controller vertically on a flat, grounded panel surface to allow optimal convective airflow across the solid-state power stacks.
• Conductor Segregation: Isolate high-voltage 3-phase input lines from low-voltage 24 V AC/DC control circuits to prevent electromagnetic noise coupling.
• Terminal Tightening: Secure all power and control connection screws to manufacturer torque limits to eliminate high-resistance thermal junctions.

Frequently Asked Questions

• Q: What is the continuous current rating of the 150-F25NBRD controller?

  A: The solid-state motor controller delivers a continuous output current rating of 25 amps.

• Q: What is the rated horsepower capacity when operating at 460 V AC?

  A: The unit supports motor loads ranging from 5 to 15 HP at 460 V AC line voltage.

• Q: What input line voltage range does this controller accommodate?

  A: It accepts a 3-phase input line voltage ranging from 200 to 480 V AC at 50/60 Hz.

• Q: What control voltage is required to power the logic interface?

  A: The control voltage operates using a 24 V AC/DC power supply source.

• Q: What are the physical weight and estimated shipping dimensions?

  A: The unboxed unit weighs 2.6 kg with shipping dimensions measuring 7.8 x 24 x 21.8 cm.

• Q: Which country is designated as the place of manufacture?

  A: The hardware controller is manufactured in the United States.

• Q: Does this specific model feature integrated braking functions?

  A: Yes, the unit includes built-in braking control parameters to manage motor deceleration.

• Q: What enclosure type is assigned to this solid-state controller model?

  A: It features an open enclosure design requiring mounting inside a protective industrial cabinet.
