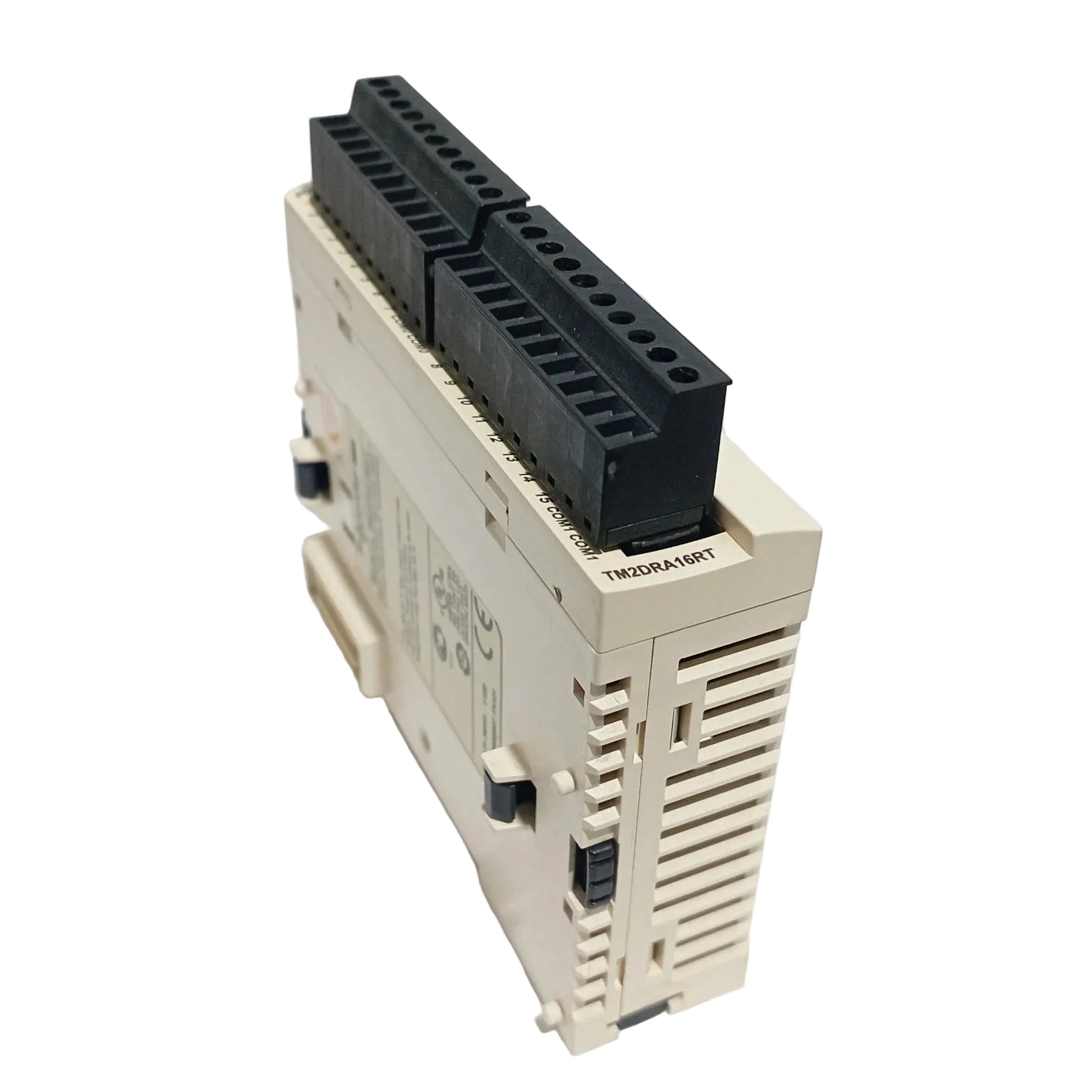

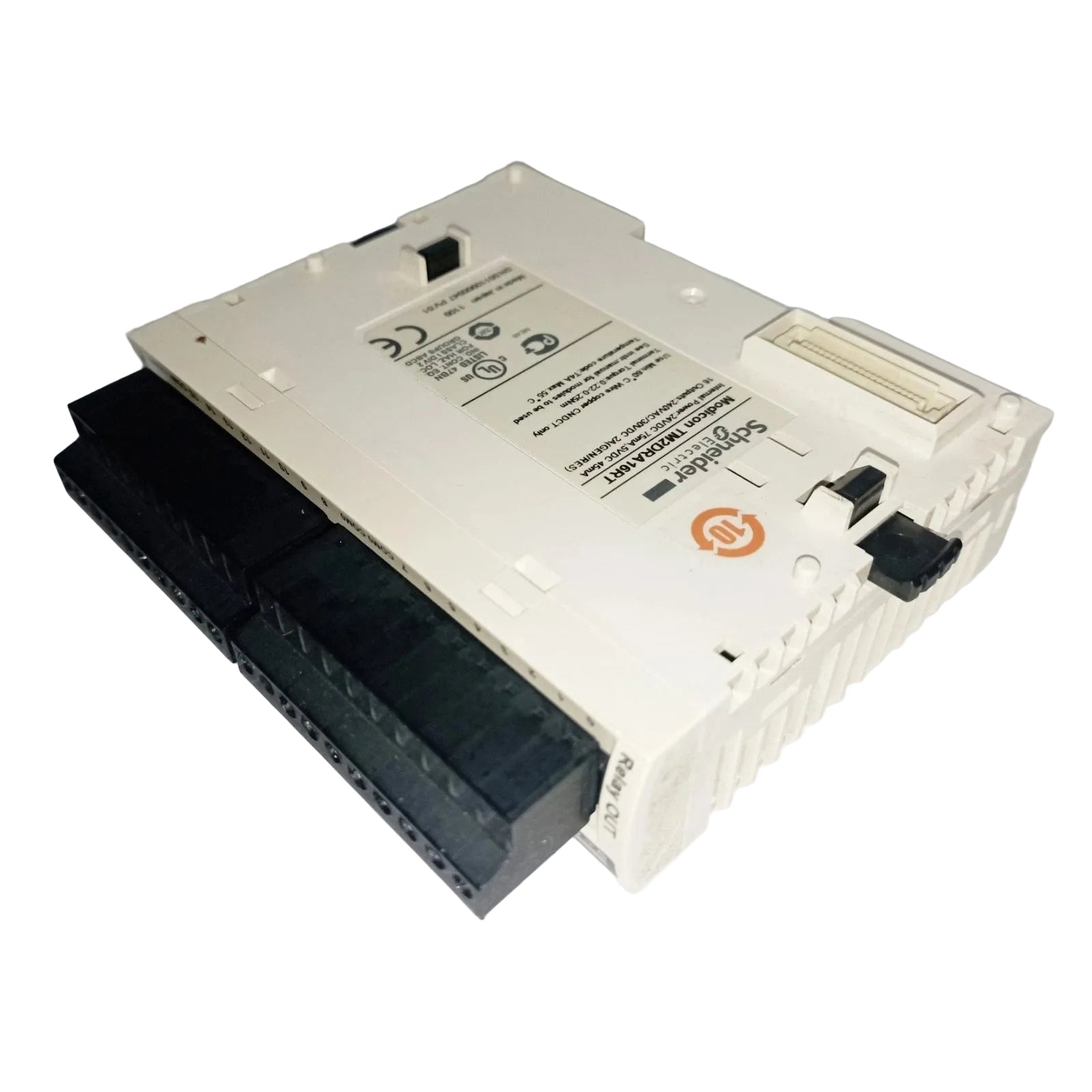

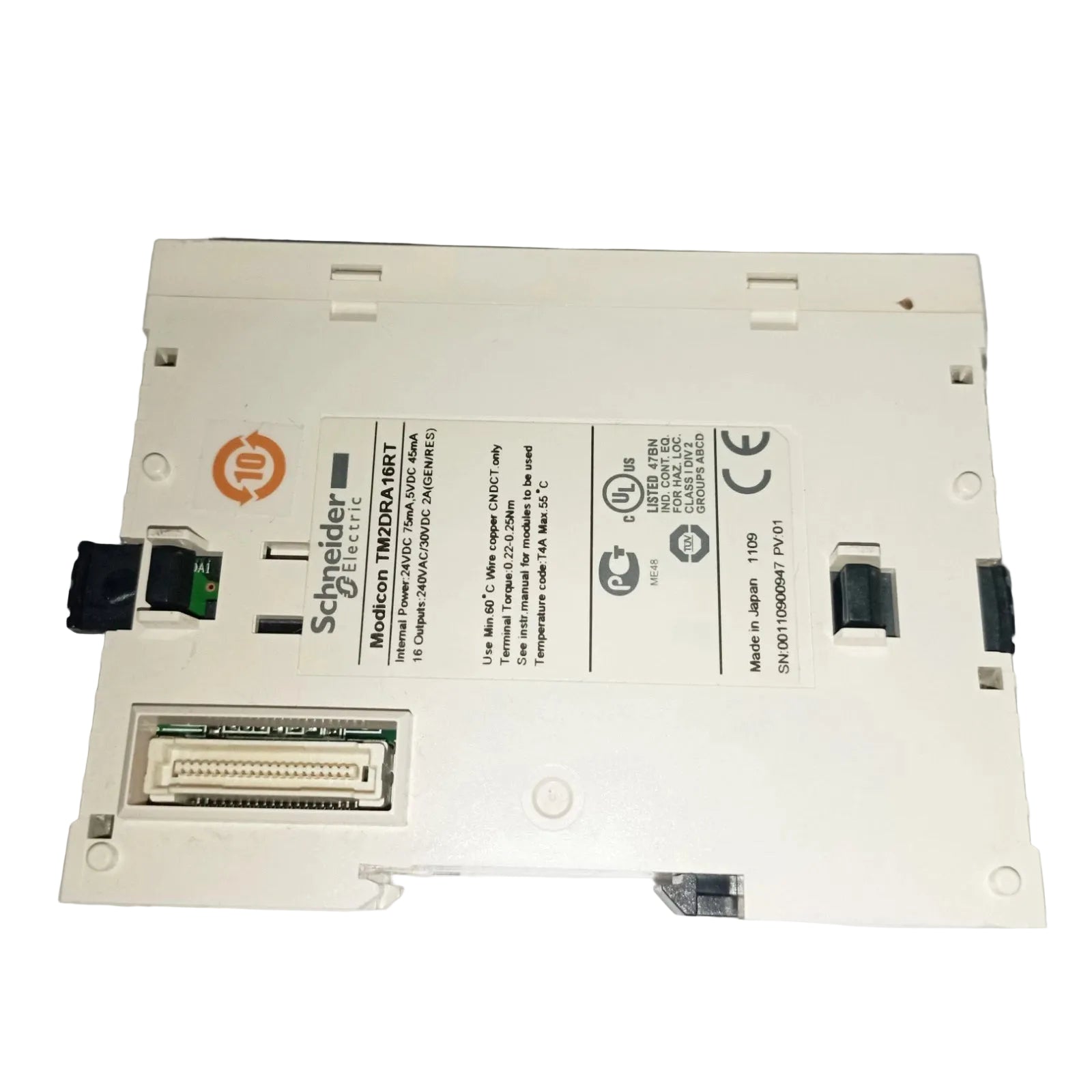

The Schneider Electric TM2DRA16RT, also cataloged as the TM2DRA16 discrete relay output module, operates as a dedicated hardware component for relay-based output switching within the Modicon TM2 expansion I/O architecture. It provides 16 relay output channels for direct control of external loads through the Modicon controller backplane.

Model Identification

The ordering reference TM2DRA16RT is the complete Schneider Electric catalog number.

The manufacturer does not publish an official suffix decoding for this model. The ordering reference should therefore be treated as a complete catalog number without separating individual suffix characters.

Technical Specifications

Firmware and Expansion Bus Compatibility

The TM2DRA16RT communicates through the Modicon TM2 local expansion bus installed alongside compatible Modicon logic controllers. Module recognition depends on controller firmware supporting the installed TM2 expansion configuration.

During controller firmware maintenance, Schneider Electric recommends verifying firmware compatibility before replacing or adding expansion modules. Configuration should be validated using the applicable EcoStruxure Machine Expert or SoMachine engineering software version supported by the target controller.

Ordering Information

Package typically includes:

• 1 × TM2DRA16RT Discrete Relay Output Module

• 1 × Factory-installed removable terminal connector

• 1 × Product identification label

• 1 × Installation documentation (printed or electronic depending on supply source)

Additional accessories may be ordered separately:

• DIN rail hardware

• Spare removable terminal blocks

• Schneider Electric expansion modules

• System wiring accessories

Installation Recommendations

DIN Rail Mounting

• Install on a standard DIN rail specified by Schneider Electric.

• Ensure adequate clearance for cable routing and ventilation.

• Avoid excessive vibration during operation.

Wiring Practice

• Separate relay wiring from communication cables.

• Verify external load ratings before energizing outputs.

• Tighten terminal screws according to Schneider Electric specifications.

• Label field wiring before commissioning.

Grounding

• Connect protective earth according to local electrical regulations.

• Use shielded wiring where required by the installation environment.

• Avoid ground loops between field devices and control cabinet grounding systems.

Technical Questions

• Can the TM2DRA16RT be hot-swapped?

  No. Schneider Electric recommends removing controller power before installing or removing TM2 expansion modules.

• Does every output provide relay isolation?

  The module uses relay outputs that provide electrical isolation between the control electronics and switched field circuits according to the product design.

• Is configuration required after installation?

  Yes. The controller project should include the installed expansion module and be downloaded using compatible Schneider Electric engineering software.

• Can inductive loads be connected directly?

  Inductive loads should use appropriate suppression devices to reduce relay contact arcing and extend relay service life.

• Can the module operate without a Modicon controller?

  No. The TM2DRA16RT functions only as an expansion module connected to a compatible Modicon controller.

• Does relay output polarity matter?

  Relay contacts are electrically isolated switching contacts. Wiring depends on the external circuit being controlled.

• Should communication and output cables share the same cable tray?

  Schneider Electric recommends separating communication wiring from power and switching conductors to reduce electrical interference.

• Is firmware stored inside the module?

  Module operation depends on compatibility with the host controller firmware. Configuration data is managed by the controller project.
