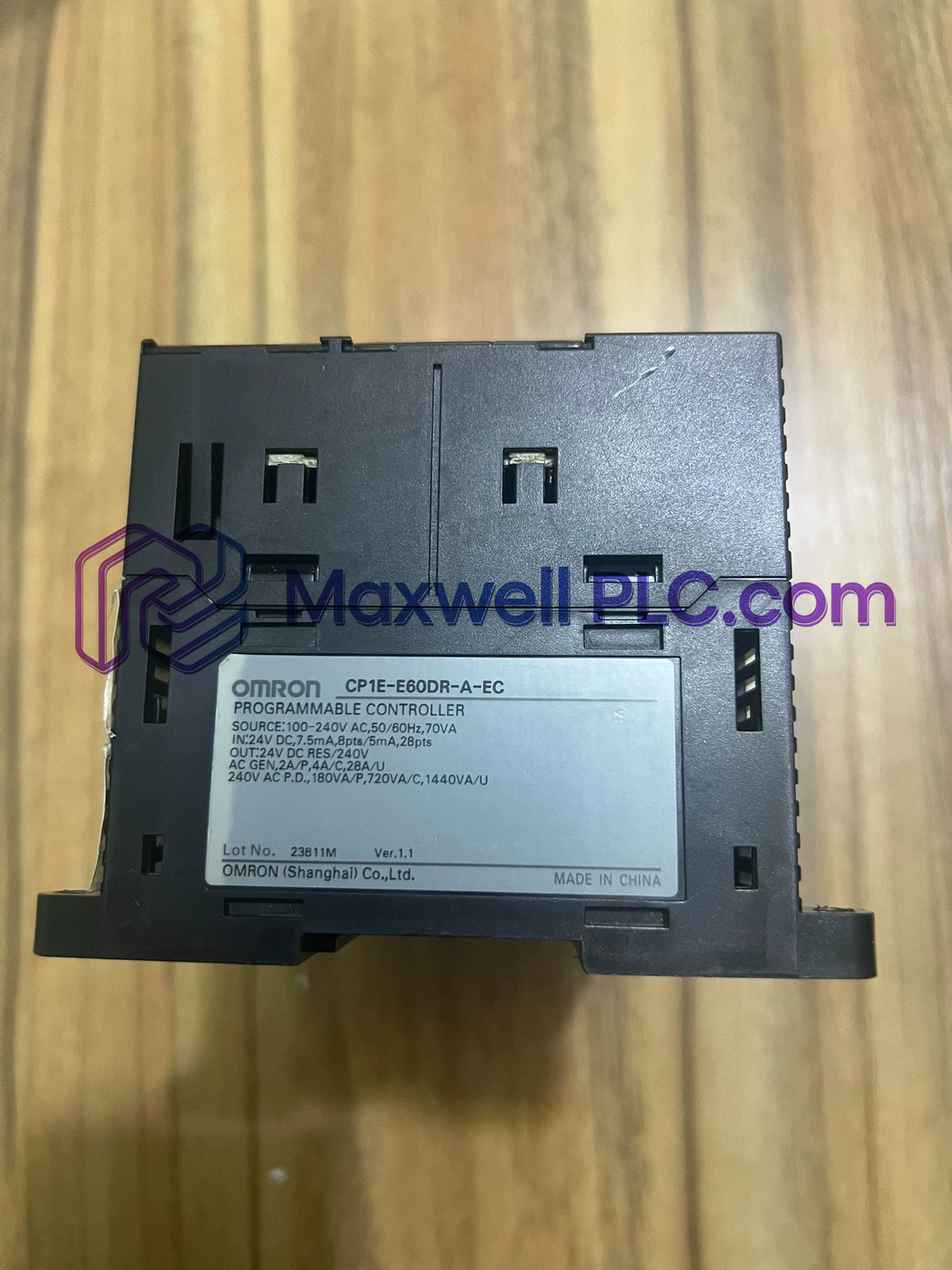

The Omron CP1E-E60DR-A-EC, also cataloged as the CP1E-E60DR-A-EC CPU Unit Hardware, operates as a dedicated hardware component for discrete real-time sequence execution and digital point control within SYSMAC CP1E platforms.

Technical Identifier Matrix

• Base Hardware Model: CP1E-E60DR-A-EC
• Full Part Number: CP1E-E60DR-A-EC
• CPU Model: CP1E Series
• Unit Type (E): Basic model architecture
• I/O Capacity (60): 60 total discrete points (36 inputs, 24 outputs)
• Input Type (D): 24 VDC digital inputs
• Output Type (R): Electromechanical relay outputs
• Power Supply (A): AC power supply (100 to 240 VAC)
• Suffix Variant (-EC): Standard global production / economic execution variant

Hardware Specifications

Omron Backplane Bus Velocity & Real-Time Logic Execution

The CP1E-E60DR-A-EC basic CPU architecture coordinates 60 integrated discrete I/O channels through a dedicated local backplane bus. Cyclic scanning procedures read 24 VDC input signals and transfer program state logic directly to output relay coils. Onboard non-volatile firmware flash storage preserves program execution integrity and system configuration across complete power interruption cycles. High-density I/O integration enables deterministic scan execution while processing complex multi-step ladder instruction sequences.

Package Contents & Ordering Information

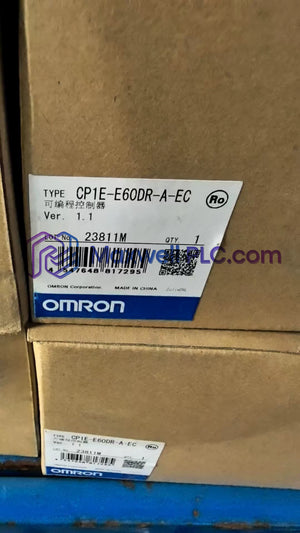

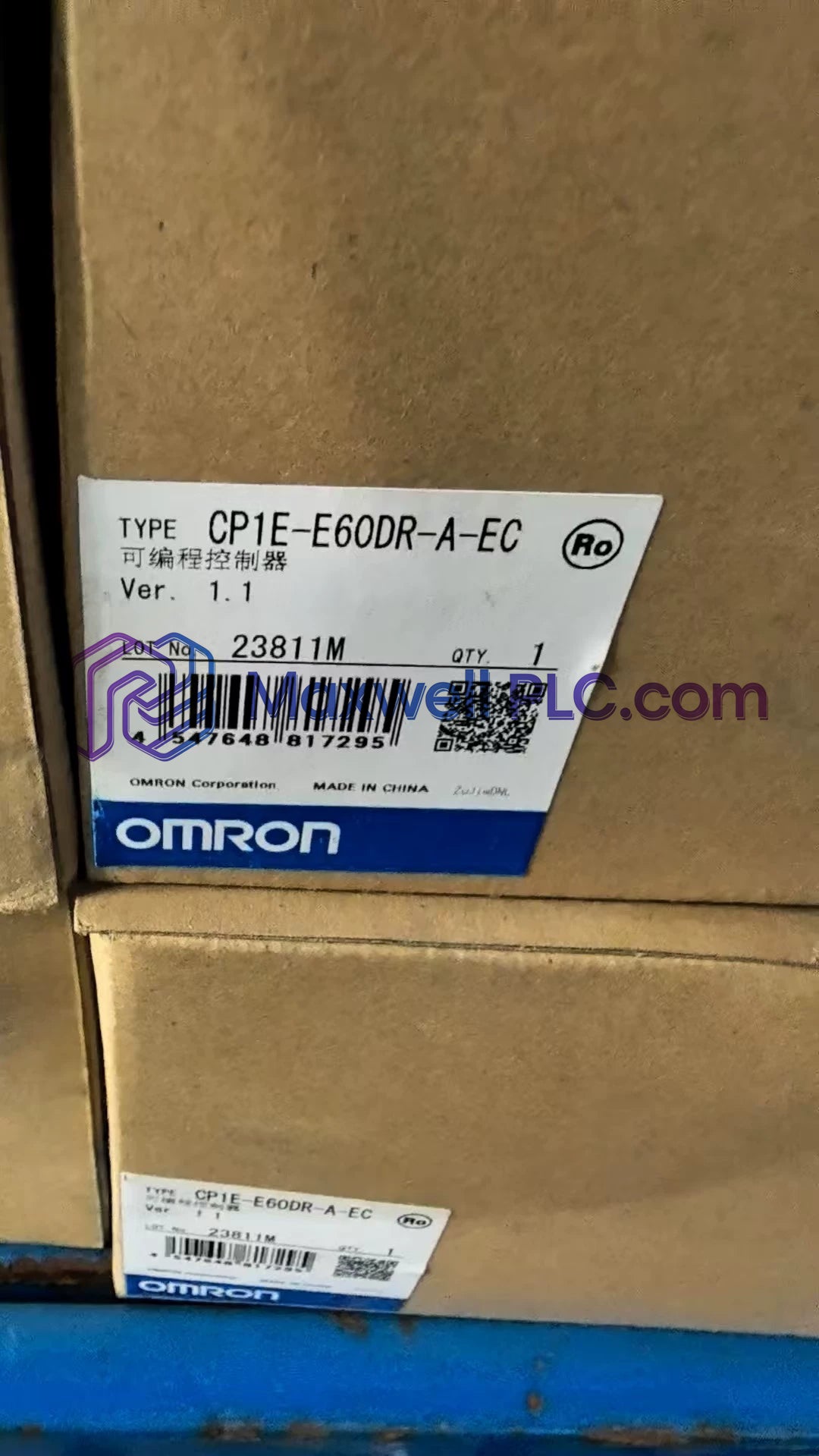

• 1x Omron CP1E-E60DR-A-EC CPU Unit Hardware

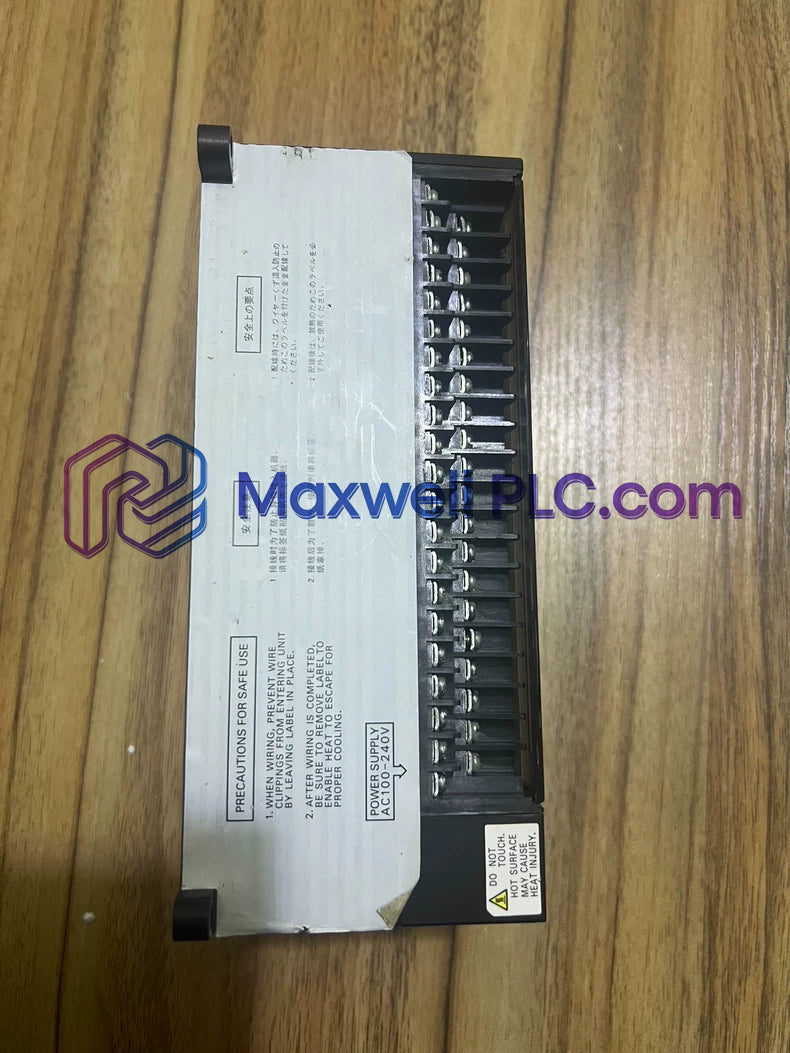

• 1x Removable terminal block protective cover unit
• 1x Hardware specification instruction sheet

Field Installation Guidelines

• Enclosure Mounting: Mount the CPU unit vertically onto a 35 mm DIN rail or surface-mount inside a NEMA/IP control enclosure using M4 screws, maintaining a 50 mm clearance perimeter for convective cooling.
• AC Power Connections: Wire main supply conductors to terminals L1 and L2/N using AWG 18 to AWG 14 copper conductors rated for 100 to 240 VAC nominal (85 to 264 VAC operating limits).
• Relay Output Protection: Connect snubber circuits (RC networks for AC loads or free-wheeling diodes for DC loads) directly across switched field inductive devices to suppress voltage transients.
• Grounding Requirements: Wire both Protective Earth (PE) and Functional Earth (FE) terminals to a single copper grounding bus using a short conductor with earth resistance under 100 Ohms.

Frequently Asked Questions

• Is hot-swapping allowed for expansion modules on the CP1E-E60DR-A-EC CPU?

  No. Main AC line power must be disconnected before connecting or disconnecting local expansion units to avoid electrical damage to the backplane.

• What operating line voltage range is permitted on the main AC power supply terminals?

  The unit operates on a 100 to 240 VAC nominal supply with an allowable operational input range between 85 and 264 VAC at 50/60 Hz.

• How many total built-in discrete I/O channels are managed by this CPU base unit?

  The CPU directly handles 60 built-in discrete I/O channels, consisting of 36 24 VDC inputs and 24 electromechanical relay outputs.

• What output load switching mechanism is incorporated into the CP1E-E60DR-A-EC?

  The 24 output channels utilize electromechanical relays capable of switching both AC and DC field loads within rated operational current boundaries.

• What functional ground resistance value must be verified during system setup?

  The functional ground terminal must be connected to the control panel earth bar with a measured loop resistance strictly under 100 Ohms.

• What cable shielding arrangement is required for discrete field input lines?

  Discrete input wiring must run through twisted-pair cables with continuous 360-deg braid shields bonded to the control panel chassis ground.

• How does the onboard memory preserve user application programs during power outages?

  The controller uses non-volatile flash memory to store application programs and system parameters permanently without relying on battery backup.

• What ambient temperature limits apply during storage of uninstalled spare units?

  Spare units must remain in sealed anti-static bags stored in environments between -20 and +75 deg C under non-condensing relative humidity.
