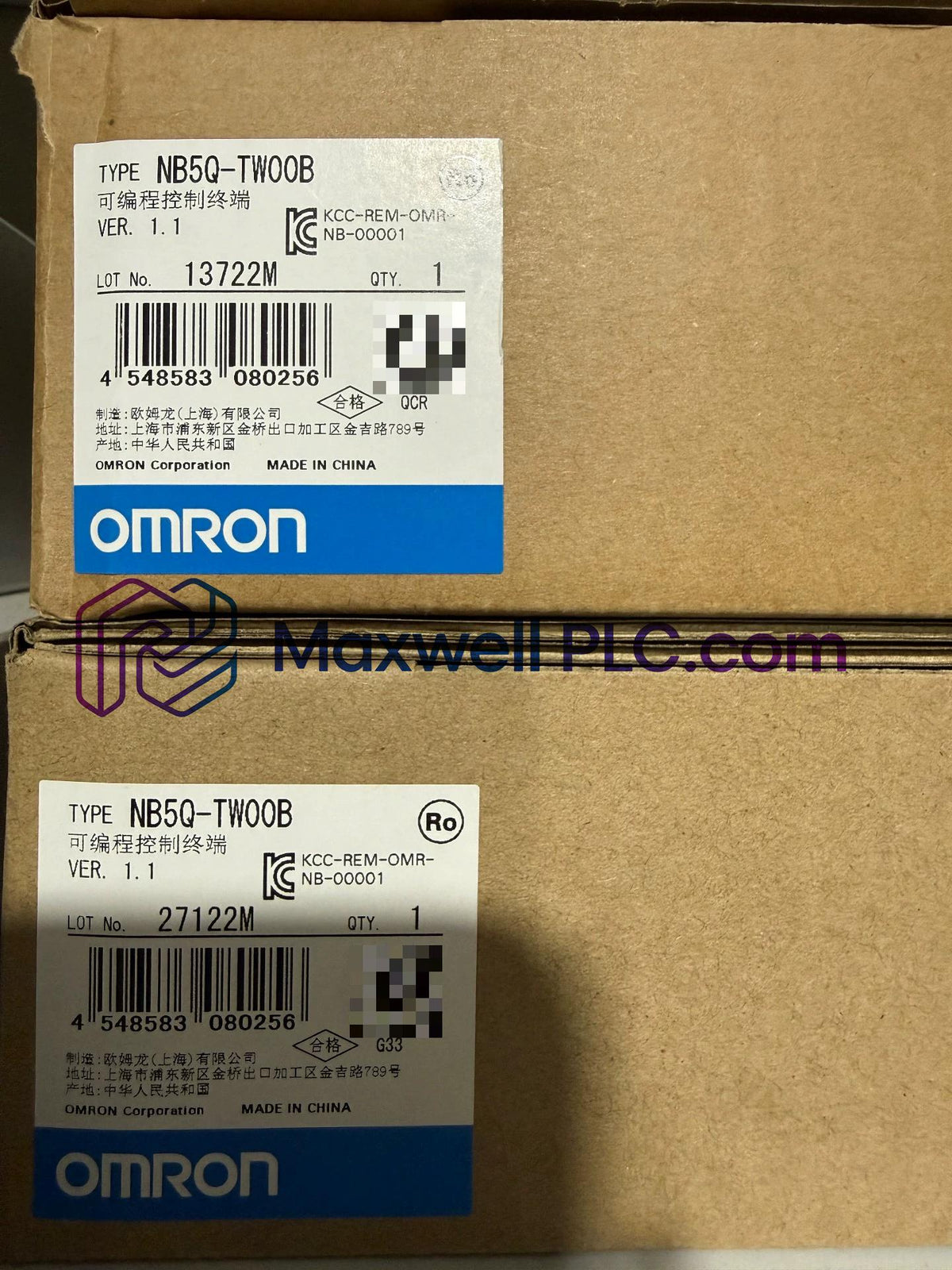

The Omron NB5Q-TW00B, also cataloged as the NB5Q Programmable Terminal, operates as a dedicated hardware component for human-machine interface visualization and operator command entry within industrial automation control systems.

Variant Configuration Index

• NB: Operator interface terminal hardware classification
• 5Q: 5.6-inch diagonal display screen size designation
• T: TFT color LCD display architecture
• W00B: Standard color display configuration with serial communication interfaces

Hardware Specifications

Industrial Controller Interface Execution

The terminal processes status registers and alarm vectors from host programmable logic controllers via serial fieldbus channels. Firmware flash compatibility maintains deterministic network cycle times without introducing latency during high-density I/O density scaling operations across distributed control architectures. Internal memory blocks execute real-time trend rendering and dynamic screen update sequences synchronized with local controller system clocks.

Delivery Package Inventory

• 1 x NB5Q-TW00B Programmable Terminal
• 1 x Mounting Gasket Set
• 1 x Terminal Block Connector for Power Supply
• 1 x Installation Sheet

Cabinet Integration Directives

Physical Panel Cutout

• Prepare a vertical enclosure cutout conforming to standard panel dimensions with smooth, burr-free edges.
• Ensure minimum clearances of 100 mm around all chassis sides to allow convective thermal dissipation.

Terminal Power Installation

• Connect a regulated 24 VDC external power supply to the dedicated power terminal block, observing proper wire polarity.
• Ground the functional earth terminal using a dedicated copper wire attached directly to the central panel earth bar.

Technical Inquiry Resolutions

• What is the service life rating of the resistive touch surface?

  The analog resistive panel withstands a minimum of 1,000,000 actuation operations under nominal 25 deg C test conditions.

• What operating force is required to register a touch input command?

  The mechanical activation threshold requires an applied contact force ranging between 0.5 N and 0.8 N.

• How are screen graphics rendered on the liquid crystal display?

  The unit utilizes a 5.6-inch TFT LCD displaying 65,536 colors at a native resolution of 320 x 234 pixels.

• Does the terminal support direct DC field power input?

  Power is supplied via an industrial 24 VDC external power source routed to the integrated power terminal block.

• What installation method is required for enclosure mounting?

  The panel installs flush into a control cabinet cutout using rear-mounting clamp brackets and a sealing gasket.

• What environmental protection rating does the front panel achieve when mounted?

  The front panel provides IP65 oil-tight protection when correctly clamped with an intact mounting gasket.

• How is communications wiring terminated at the rear chassis?

  Serial communication leads terminate into standard D-sub connectors located on the rear interface panel.

• Can firmware updates be loaded into the non-volatile system memory?

  System firmware updates flash into internal non-volatile memory via host programming software connections.
