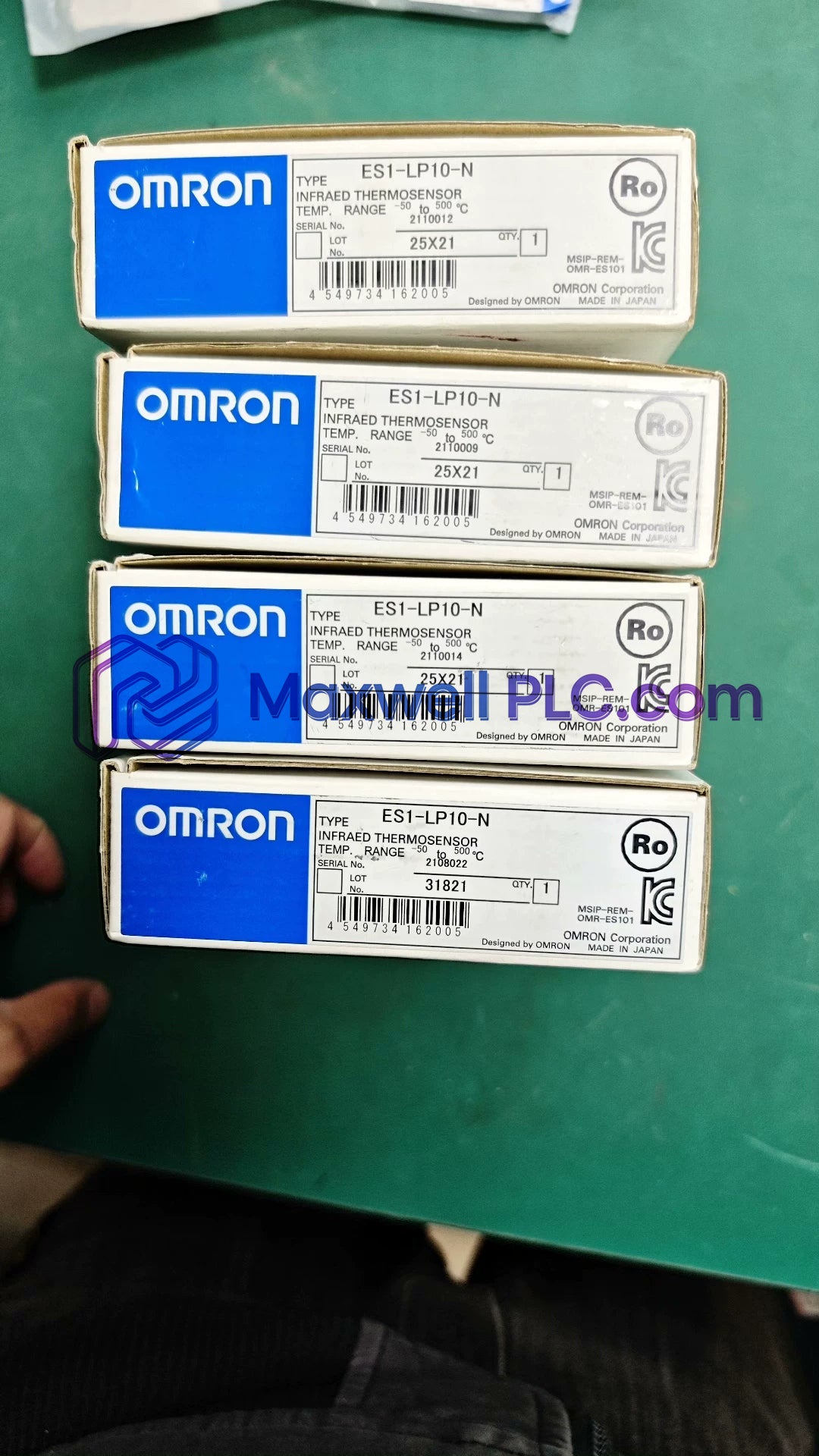

ES1-LP10-N Omron Infrared Thermosensor

ES1-LP10-N Omron ES1 Series Infrared Thermosensor

Omron

ES1-LP10-N Omron ES1 Series Infrared Thermosensor

SKU: ES1-LP10-N

In Stock

Dimensions: 15 x 10 x 5 cm
Country of origin: Japan
Payment: T/T, Western Union
Shipping port: Xiamen

Categories : All Products, Omron

Tags : Omron ES1 Series, Temperature Sensors

1 years warranty

Delivery time: 3-7 business days

Free 30 days return

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

The Omron ES1-LP10-N, also cataloged as the ES1-LP10 Infrared Thermosensor, operates as a dedicated hardware component for non-contact infrared thermal measurement within automated process monitoring and PLC sensor networks.

Hardware Specifications

Parameter	Specification
Model	ES1-LP10-N
Brand	Omron
Origin	Japan
Product Type	Infrared Thermosensor
Measurement Temperature Range	-50 to 500 deg C
Target Size	8 mm dia. (at a distance of 100 mm)
Detection Element	Thermopile
Lens Type	Silicon
Measurement Wavelength	8 to 14 um
Power Supply Voltage	12 to 24 VDC / USB bus power
Allowed Voltage Fluctuation	95% to 105%
Power Consumption	30 mA max. (at 24 VDC)
Operating Temp	0 to 55 deg C
Operating Humidity	35% to 85% (without condensation)
Weight	Approx. 0.095 kg
Shipping Dimensions	Standard industrial sensor casing

Deterministic Network Connectivity & I/O Integration

The ES1-LP10-N incorporates high-precision thermopile sensing circuitry designed to interface with Omron control systems. Through optimized backplane bus communication velocity and direct interface compatibility, measurement data transfers seamlessly into EtherNet/IP deterministic networks or localized PLC processing loops. Internal firmware flash compatibility ensures rapid calibration retention and synchronization without signal latency across multi-node automation architectures.

Field Installation Guidelines

Optical Path Alignment: Align the sensor axis perpendicular to the target surface. Maintain an operational distance around 100 mm to ensure the target spot fits completely within the 8 mm diameter spot boundary.
Ambient Thermal Shielding: Avoid direct exposure to sudden ambient temperature changes. When mounting in high-heat environments, utilize thermal radiation shielding to prevent internal sensor drift.
Cable Strain & Grounding: Route supply lines away from high-voltage AC motor drives. Ground shielding wires at a single termination point to reduce high-frequency electromagnetic interference.

Order Fulfillment Information

1 x Omron ES1-LP10-N Infrared Thermosensor
Standard USB connection / power wiring harness
Protective sensor housing assembly
Industrial anti-static shipping enclosure

Frequently Asked Questions

Q: Does the ES1-LP10-N thermosensor include an integrated laser targeting pointer?

A: No, the ES1-LP10-N model is engineered without an integrated laser pointer element.

Q: What power options are supported for operating the sensor electronics?

A: The sensor accepts an external supply of 12 to 24 VDC (95% to 105% tolerance) or direct power via USB bus connection.

Q: What sensing technology is used to detect infrared radiation across the -50 to 500 deg C range?

A: The module employs a thermopile detection element coupled with a specialized silicon lens operating in the 8 to 14 um wavelength band.
