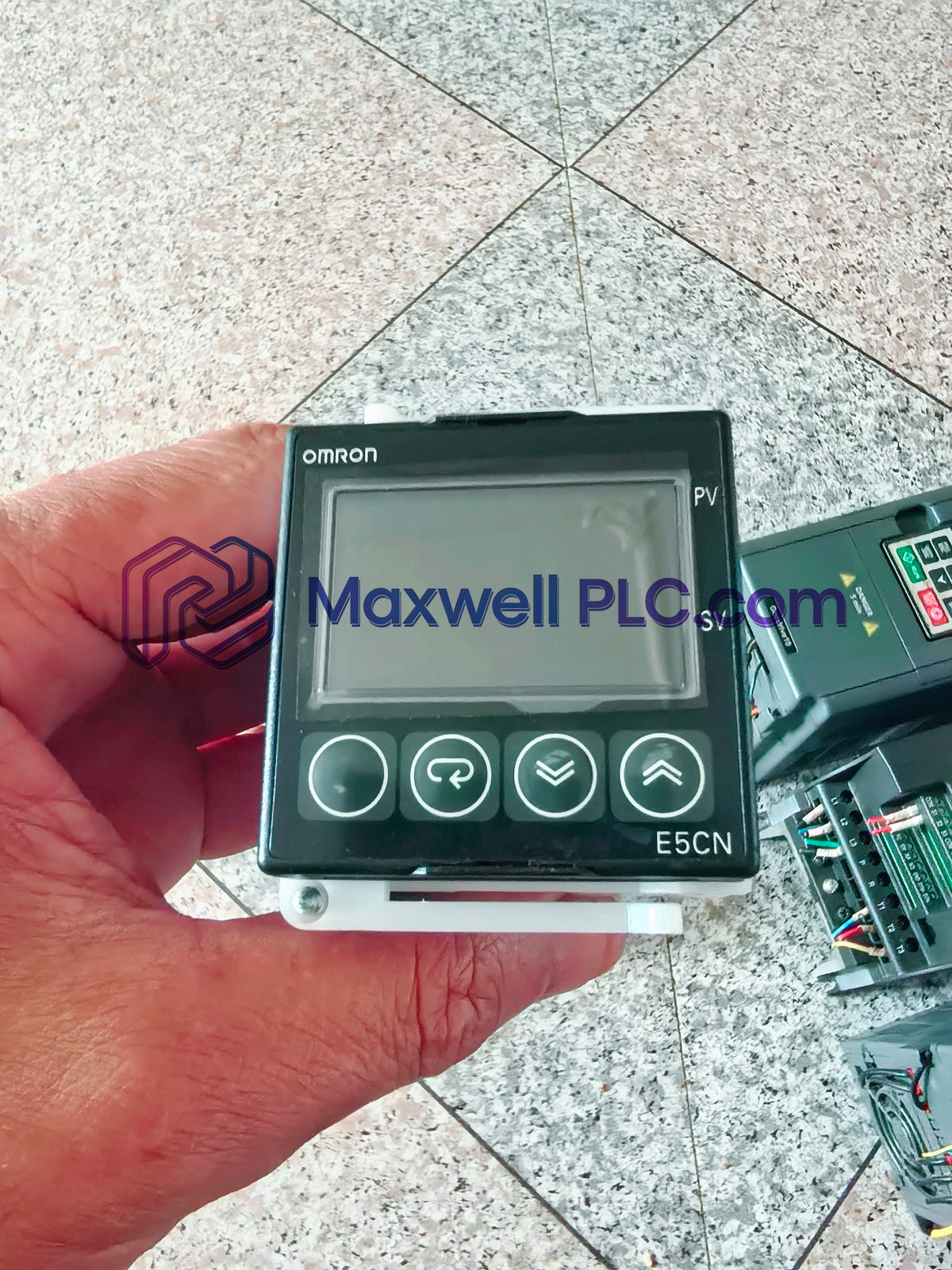

The Omron E5CN-C2TU AC100240, also cataloged as the E5CN Digital Temperature Controller, operates as a dedicated hardware component for closed-loop thermal regulation within industrial automation panels. The module accepts sensor inputs from thermocouples or platinum resistance thermometers, driving continuous linear current outputs and dual auxiliary alarm relays based on real-time process value variations.

Part Code Structure & Model Designation

• E5CN: Compact 1/16 DIN panel-mount (48 x 48 mm) process controller platform
• C2: Linear current output (Control Output 1) with 2 integrated auxiliary relay outputs
• T: Configurable input hardware supporting thermocouple or RTD elements
• U: Plug-in socket mounting housing structure for simplified enclosure installation
• AC100240: Rated line power supply operating across 100 to 240 VAC nominal range

Technical Performance Matrix

Backplane Integration and Network Determinism

The controller executes low-latency sampling routines to prevent feedback phase delays in thermal loops. High-speed serial integration options interface with centralized PLC backplanes, maintaining deterministic polling intervals across industrial control architectures. Real-time process variables, alarm thresholds, and manual overrides map directly to gateway nodes for seamless data exchange across Profinet and EtherNet/IP networks.

Standard Package Items

• 1 x Omron E5CN-C2TU AC100240 digital temperature controller unit
• 1 x Plug-in terminal socket base assembly
• 1 x Printed product installation instruction sheet

Mechanical Assembly and Field Wiring Practices

Enclosure Mounting and Socket Coupling

• Cut out a standard 1/16 DIN panel aperture (45 x 45 mm) and push the housing into place using the panel adapter.
• Snap the rear terminal socket assembly into the housing locks to secure mechanical rigidity and pin engagement.

Signal Shielding and Power Separation

• Route thermocouple and RTD wiring through dedicated conduits kept at least 300 mm away from motor power cables.
• Connect cable shields to a single grounding point near the panel entry to prevent ground potential loops.

Technical FAQs

• What input power range supports steady operation of the controller?

  The unit accepts an AC line voltage between 100 and 240 VAC at 50 or 60 Hz with up to 10% line tolerance.

• How does the current output control external actuators?

  The analog current channel outputs a proportional signal to drive SCR power units or motorized valve positioners.

• Can the module be removed from its socket while line power is active?

  No, hot-plugging the unit under load can cause electrical arcing across rear socket terminals and damage internal circuits.

• What function does the internal ON/OFF counter serve for maintenance?

  The integrated counter tallies relay activation cycles, giving operators clear data to replace electromechanical components prior to failure.

• What accuracy levels apply when reading platinum resistance thermometers?

  Platinum RTD input processing maintains a high indication accuracy within +/-0.2% of the measured process value.

• Is simultaneous connection of a thermocouple and RTD allowed?

  No, the terminal block supports only one sensor connection at a time, matched to the selected input parameter mode.

• How should unassigned auxiliary alarm output contacts be handled?

  Leave unassigned alarm terminals unwired and insulated to avoid electrical interference or accidental shorts.

• What internal isolation exists between the input circuit and control power?

  Full galvanic isolation separates the high-voltage AC power terminals from low-voltage sensor inputs and control outputs.
