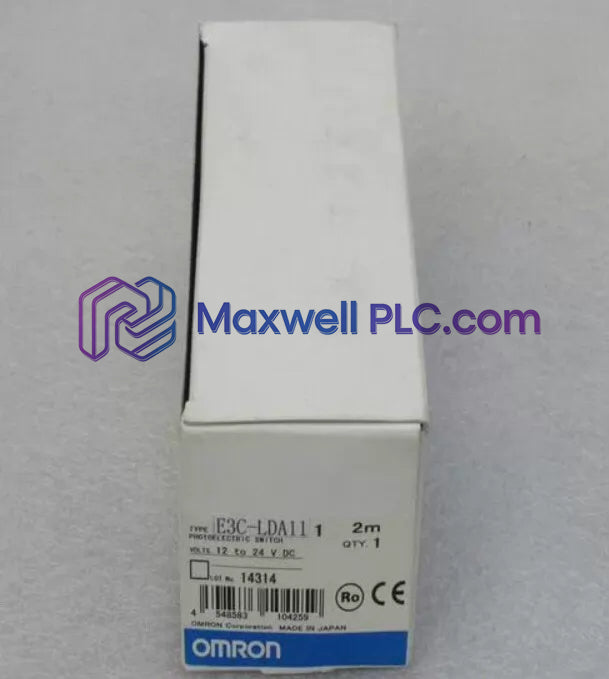

Configured for optical threshold detection and digital signal conditioning in automated sensing loops, the Omron E3C-LDA11 (E3C-LDA11 Photoelectric Sensor with Separate Digital Amplifier) provides direct physical/electrical execution. Operating with a maximum current consumption of 45 mA, the unit interfaces separate optical sensor heads to process discrete switching logic. Built-in mutual interference prevention circuits enable side-by-side sensor deployment, outputting discrete signals to upstream controllers while maintaining an IP50 enclosure rating under IEC 60529 standards.

Model Structure Analysis

• E3C: Omron high-precision separate photoelectric sensing family platform.
• LDA: Digital amplifier unit with dual-display threshold programming capabilities.
• 11: Pre-wired connector/terminal configuration variant for direct signal wiring.

Technical Performance Metrics

Signal Conditioning & Distributed Automation Routing

The digital amplifier conditions low-level optical signals from separate sensing heads before routing discrete logic to remote I/O nodes. Integrating these switching signals into Profinet / EtherNet/IP deterministic networks enables deterministic high-speed registration. Standardized threshold processing allows high I/O density scaling across multi-station indexing tables while maintaining firmware flash compatibility across network bus couplers.

Package & Component List

• 1 x Omron E3C-LDA11 Digital Photoelectric Sensor Amplifier
• 1 x Mounting Bracket Kit
• 1 x Operating Manual

Mounting & Field Cabling Directives

• DIN-Rail Attachment: Snap the amplifier base onto a standard 35 mm DIN rail until the spring latch locks securely into place.
• Sensor Head Wiring: Connect the dedicated separate sensor head cable into the quick-clamp terminal block, ensuring correct polarity.
• Signal Separation: Route low-voltage DC output cables through dedicated wire troughs away from AC drive power cables.
• Environmental Shielding: Maintain an IP50 operating environment by installing the unit inside a sealed panel housing free from conductive dust.
• Interference Prevention: Align optical sensor heads to utilize the internal mutual interference prevention feature when mounting adjacent units.

Engineering Technical FAQ

• Can the E3C-LDA11 digital amplifier unit be installed or replaced while power is applied?

  No. Main DC supply power must be completely disconnected before wiring or swapping sensor units to prevent internal damage.

• How does the internal mutual interference prevention feature function?

  It automatically offsets optical emission pulse timing, allowing adjacent sensor heads to operate side-by-side without optical cross-talk.

• What physical protection level does the IP50 rating ensure?

  IP50 protects against dust accumulation inside the housing but provides no protection against liquid ingress or pressurized water sprays.

• How does maximum current draw impact power supply sizing?

  Each unit draws up to 45 mA; total current allocation must be calculated by summing all connected amplifier modules on the 24 VDC bus.

• What cable routing rules apply to the sensor head signal lines?

  Sensor head cables must be kept separate from high-current AC motor leads to prevent electromagnetic noise coupling into digital logic.

• Does the amplifier retain user threshold settings after a complete power loss?

  Yes. All programmed threshold values and timing parameters are saved in non-volatile memory and restored upon power restoration.

• What mounting orientation provides optimal mechanical stability?

  Vertical DIN-rail mounting is recommended to optimize heat dissipation and prevent mechanical stress on the signal wiring terminals.

• Is external circuit protection required on the main power supply loop?

  Installing a fast-acting inline fuse on the 24 VDC power supply feed prevents damage from field-side wiring short circuits.
