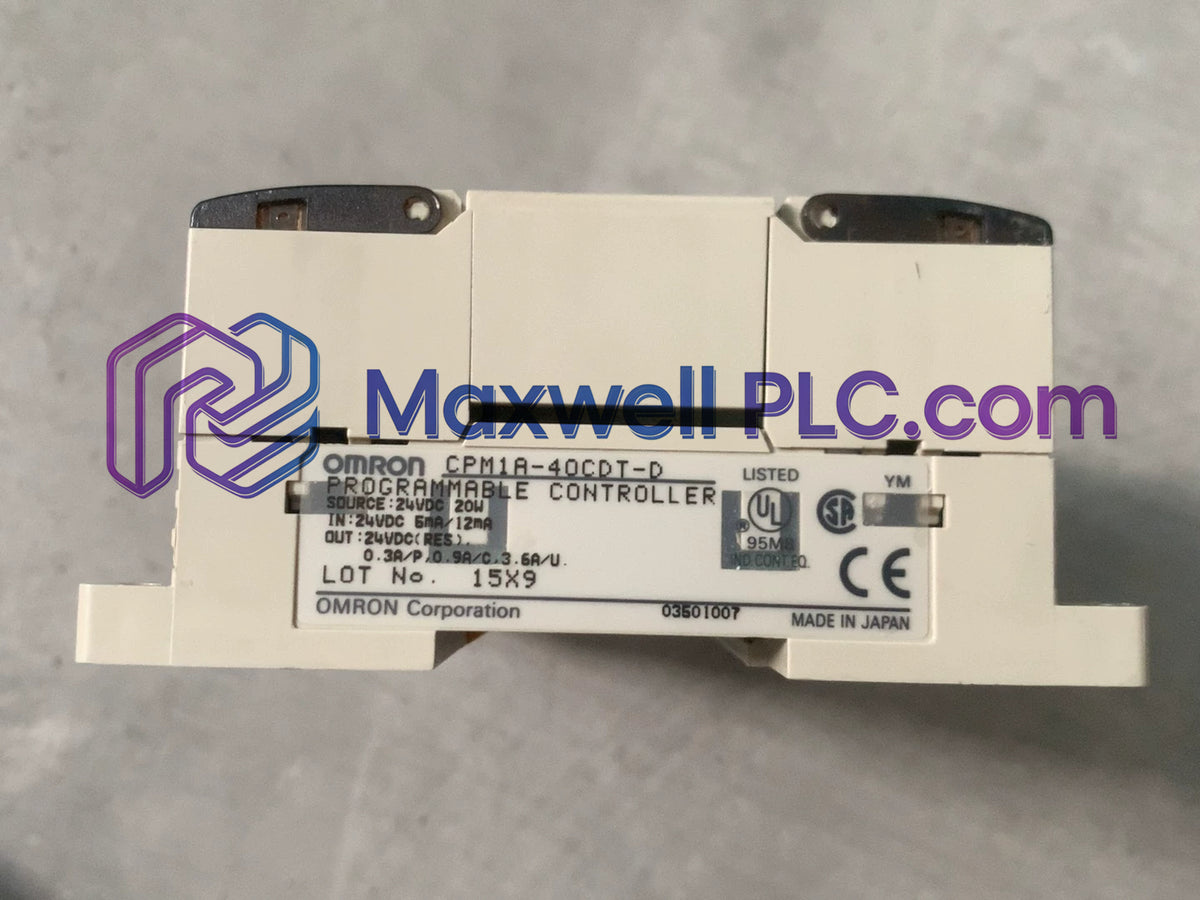

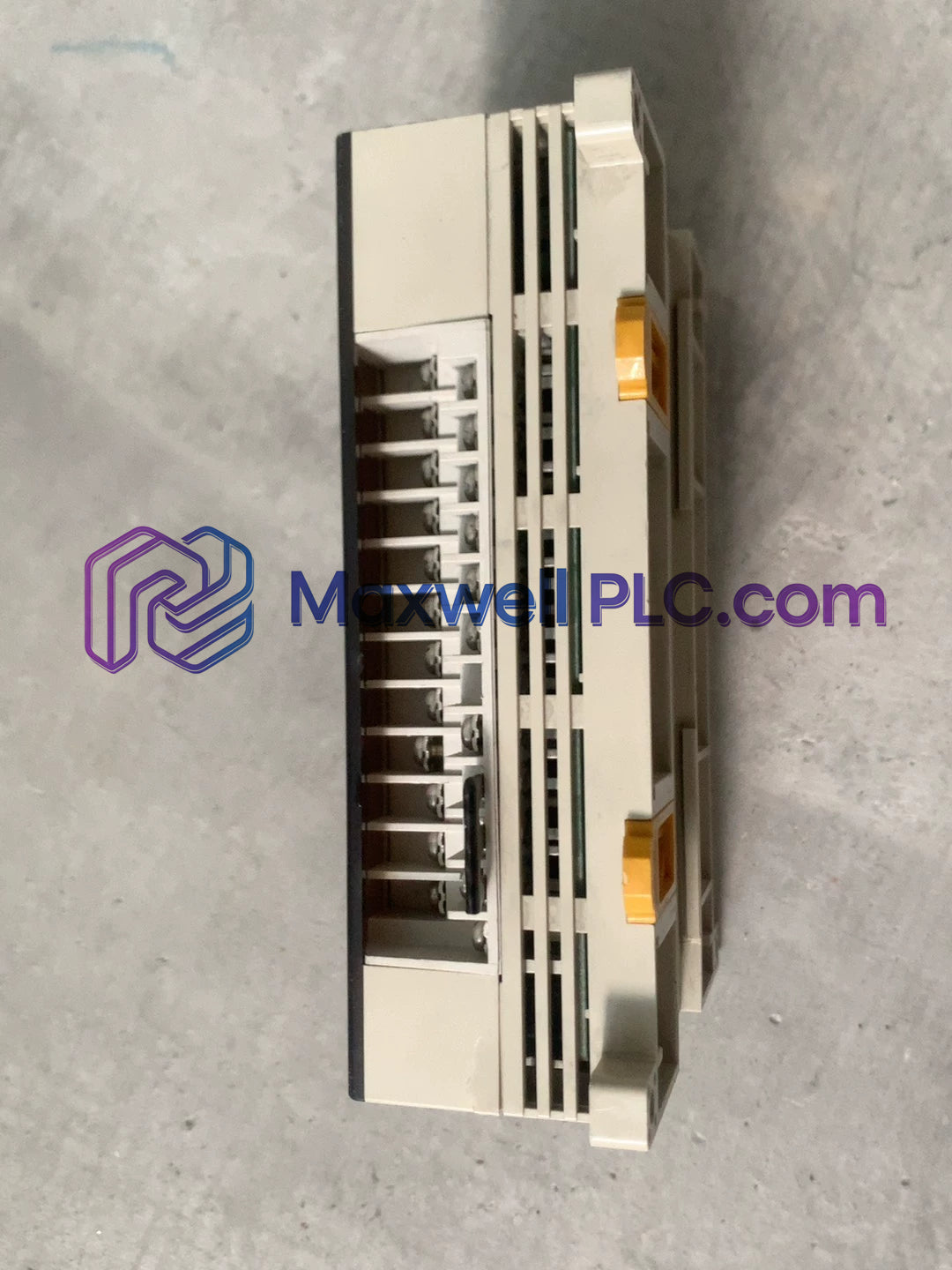

The Omron CPM1A-40CDT1-D-V1 serves as the primary CPM1A-40CDT1 CPU Processor utilized to execute discrete input/output processing and high-speed pulse motion sequences across SYSMAC CPM1A platforms.

Model Nomenclature Breakdown

• CPM1A: Compact micro programmable logic controller series designation.
• 40: 40 total integrated terminal points (24 inputs and 16 outputs).
• C: Central processing unit base architecture.
• D: 24 VDC discrete digital input circuit configuration.
• T1: Transistor output stage (PNP sourcing type).
• D: 20.4 to 26.4 VDC main operating power supply requirements.
• V1: Enhanced execution status supporting expanded instruction set parameters.

Technical & Operating Specifications

Industrial Bus Throughput & Deterministic Control

The embedded backplane bus communication velocity handles synchronous data refresh cycles across connected expansion modules, enabling flexible I/O density scaling up to 3 units. Internal execution microcode maintains absolute firmware flash compatibility with CX-Programmer routines while communicating deterministically across serial or host link network topologies.

Shipping Package Contents

• 1 x Omron CPM1A-40CDT1-D-V1 Processor Base Unit

Installation & Panel Wiring Practices

Base Hardware Mounting

Mount the unit onto a rigid 35 mm DIN rail or secure it to a grounded metal backpanel using M4 mounting screws through the integral corner mounting slots.

DC Power Circuit Wiring

Supply 20.4 to 26.4 VDC to the designated power terminals. Wire the functional ground terminal directly to the panel main earth bus using a short, heavy-gauge copper lead.

Output Load Wiring

Connect load devices to the 16 PNP sourcing transistor outputs, ensuring correct 24 VDC external power polarity is maintained across output commons to protect output drivers.

Frequently Asked Questions

• What is the input voltage rating for the main power supply?

  The controller operates on a direct current supply range of 20.4 to 26.4 VDC.

• What logic processing speed does the CPU execute instructions at?

  Basic ladder instructions execute within a deterministic time frame of 0.72 us to 1.72 us.

• What output driver configuration is implemented on this CPU?

  The output section utilizes 16 PNP sourcing transistor outputs requiring external DC supply.

• How many total local expansion units can be added to the base rack?

  The system supports up to 3 CPM1A expansion I/O or special function modules.

• What high-speed counting capabilities are integrated onboard?

  The processor features 1 high-speed encoder input channel capable of processing frequencies up to 5 kHz.

• What is the maximum pulse train frequency generated by the unit?

  The integrated pulse output channel delivers position drive trains up to 2 kHz.

• How much memory is allocated for user logic and system parameters?

  The CPU contains 2 kWords of user program capacity and 1 kWords of dedicated data memory storage.

• Is hot-swapping supported when replacing local expansion modules?

  No, system power must be disconnected prior to inserting or removing expansion units from the side bus connector.
