CJ2H-CPU64 Omron CJ2H PLC

Omron

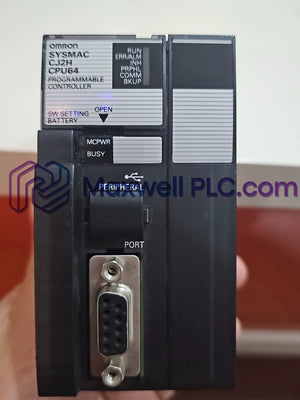

CJ2H-CPU64 Omron CJ2 Family Programmable Logic Controller

SKU: CJ2H-CPU64

In Stock

Dimensions: 6.5cm x 4.9cm x 9.0cm
Country of origin: Japan
Payment: T/T, Western Union
Shipping port: Xiamen

Categories : All Products, Omron, Omron PLC Controllers & CPUs

Tags : CJ2 Series, CPU Units, Omron PLCs, Programmable Controllers

1 years warranty

Delivery time: 3-7 business days

Free 30 days return

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Configured for deterministic program execution and cyclic control in the Omron CJ2 PLC platform, the Omron CJ2H-CPU64 (CJ2H-CPU64 Programmable Logic Controller) provides CPU processing, user-program storage, I/O management, and serial communication functions. The CPU supports 50K steps of user memory, 2560 I/O bits, function blocks, and execution times down to 0.016 us for basic instructions.

Technical Identifier Matrix

Identifier	Specification
Manufacturer	Omron
Product Number	CJ2H-CPU64
Product Family	CJ2
CPU Series	CJ2H
Product Type	Programmable Logic Controller CPU
Mounting	Panel-mounted PLC system
User Memory	50K steps
I/O Bits	2560 bits
Memory Card Support	128 MB, 256 MB, 512 MB
Communication Method	Half-duplex
Synchronization	Start-stop
Maximum Baud Rate	115.2 kbps

Hardware Specifications

Parameter	Specification
Model	CJ2H-CPU64
Brand	Omron
Product Type	Programmable Logic Controller CPU
Origin	Not specified in supplied data
Weight	0.2 kg
Dimensions	6.5 cm x 4.9 cm x 9.0 cm
Shipping Weight	2 kg
Shipping Dimensions	Not specified in supplied data
Enclosure	Panel-mounted
Grounding	Less than 100 ohm
Supply Voltage	5 VDC
Current Consumption	0.42 A
User Memory	50K steps
I/O Bits	2560 bits
Overhead Processing Time	100 us
Basic Instruction Execution	0.016 us min.
Special Instruction Execution	0.048 us min.
Cyclic Task Flags	128 flags
Function Block Definitions	2048 max.
Function Block Instances	2048 max.
Memory Card Capacity	128 MB, 256 MB, 512 MB
Communication Method	Half-duplex
Synchronization Method	Start-stop
Baud Rates	0.3 to 115.2 kbps
Maximum Transmission Distance	15 m

Omron CJ2H CPU Processing and Communication

The CJ2H-CPU64 executes the PLC application through its CPU processing engine and communicates with connected devices through supported serial interfaces. The specified 0.016 us minimum basic-instruction execution time applies to the instruction execution layer, while the 100 us overhead value represents CPU processing overhead.

The controller provides 2560 I/O bits and supports 128 cyclic task flags. Function-block capacity is specified at 2048 definitions and 2048 instances. Memory-card capacities of 128 MB, 256 MB, and 512 MB provide removable storage options for applicable CJ2 system configurations.

Serial communication parameters include half-duplex transmission, start-stop synchronization, selectable baud rates from 0.3 kbps through 115.2 kbps, and a maximum transmission distance of 15 m under the specified interface conditions.

Package Contents & Ordering Information

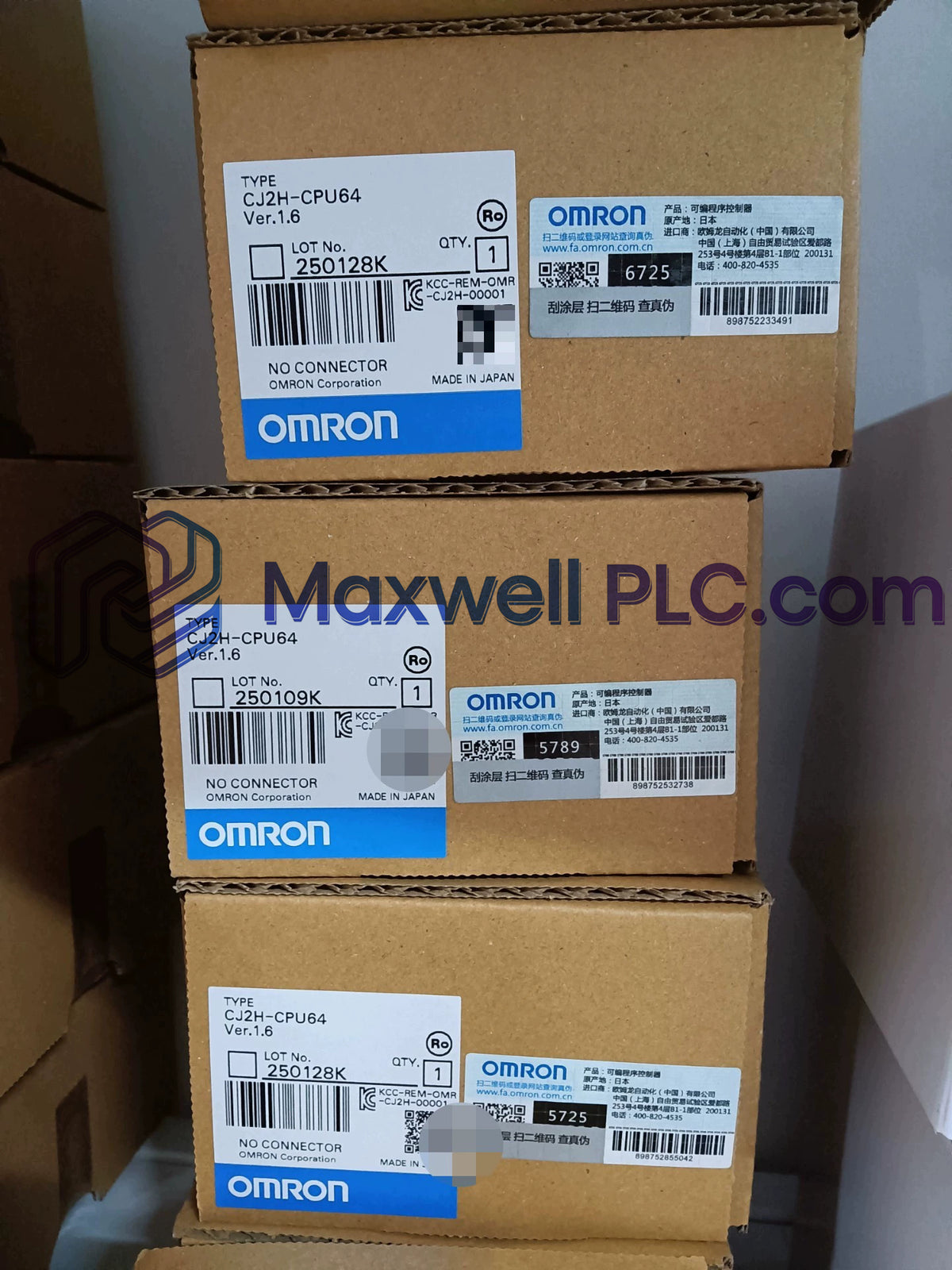

1x Omron CJ2H-CPU64 CPU Unit
Model: CJ2H-CPU64
Series: CJ2H
Family: CJ2
Memory Card: Not included unless specifically listed
Terminal blocks, cables, mounting accessories, and communication adapters are not included unless specifically listed.

Field Installation Guidelines

Install the CPU in the CJ-series PLC rack according to the applicable Omron hardware configuration.
Maintain the specified grounding resistance of less than 100 ohm.
Verify the 5 VDC system supply and the 0.42 A specified CPU current consumption.
Confirm rack configuration and I/O allocation before transferring the application.
Install memory cards only in the configuration and orientation specified by Omron.
Do not remove a memory card while the CPU is performing an active memory operation.
Configure serial communication parameters consistently between the CPU interface and connected equipment.
For communications using the maximum specified 15 m transmission distance, use suitable industrial communication cabling and follow Omron wiring requirements.
Verify firmware and CPU unit compatibility before transferring or restoring a PLC project.
Keep wiring separated from high-energy switching conductors to reduce electrical interference.

Frequently Asked Questions

Q: What supply voltage does the CJ2H-CPU64 use?
A: The supplied specification identifies 5 VDC as the CPU supply voltage and specifies a current consumption of 0.42 A.
Q: How much user memory is provided?
A: The CJ2H-CPU64 provides 50K steps of user memory for PLC application programming within the CJ2H CPU architecture.
Q: What is the basic instruction execution time?
A: The minimum specified execution time for basic instructions is 0.016 us. Actual application scan performance depends on the program and system configuration.
Q: What I/O capacity is specified?
A: The CPU supports 2560 I/O bits. Actual usable I/O capacity depends on the CJ-series rack configuration and installed I/O units.
Q: Which memory-card capacities are supported?
A: The supplied data lists 128 MB, 256 MB, and 512 MB memory cards. Compatibility should be checked against the applicable CJ2H CPU firmware.
Q: What serial communication speed is supported?
A: Selectable baud rates range from 0.3 kbps to 115.2 kbps. The interface uses half-duplex communication with start-stop synchronization.
Q: What is the maximum specified communication distance?
A: The supplied specification gives a maximum transmission distance of 15 m. Cable type, electrical noise, and interface configuration affect practical communication performance.
Q: What grounding resistance is specified?
A: The supplied specification requires grounding resistance below 100 ohm. The installation should follow Omron grounding and wiring requirements for the CJ-series system.
