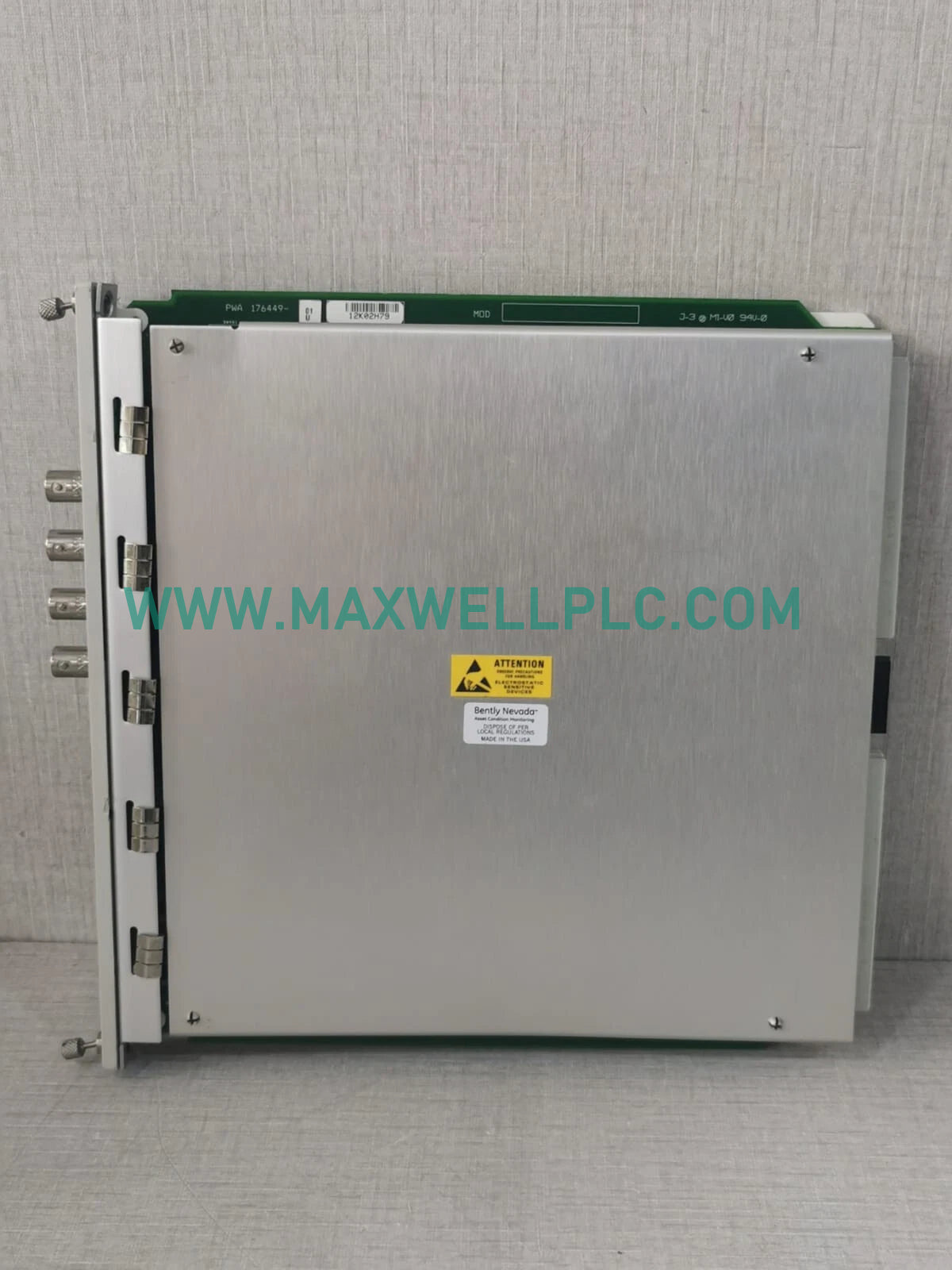

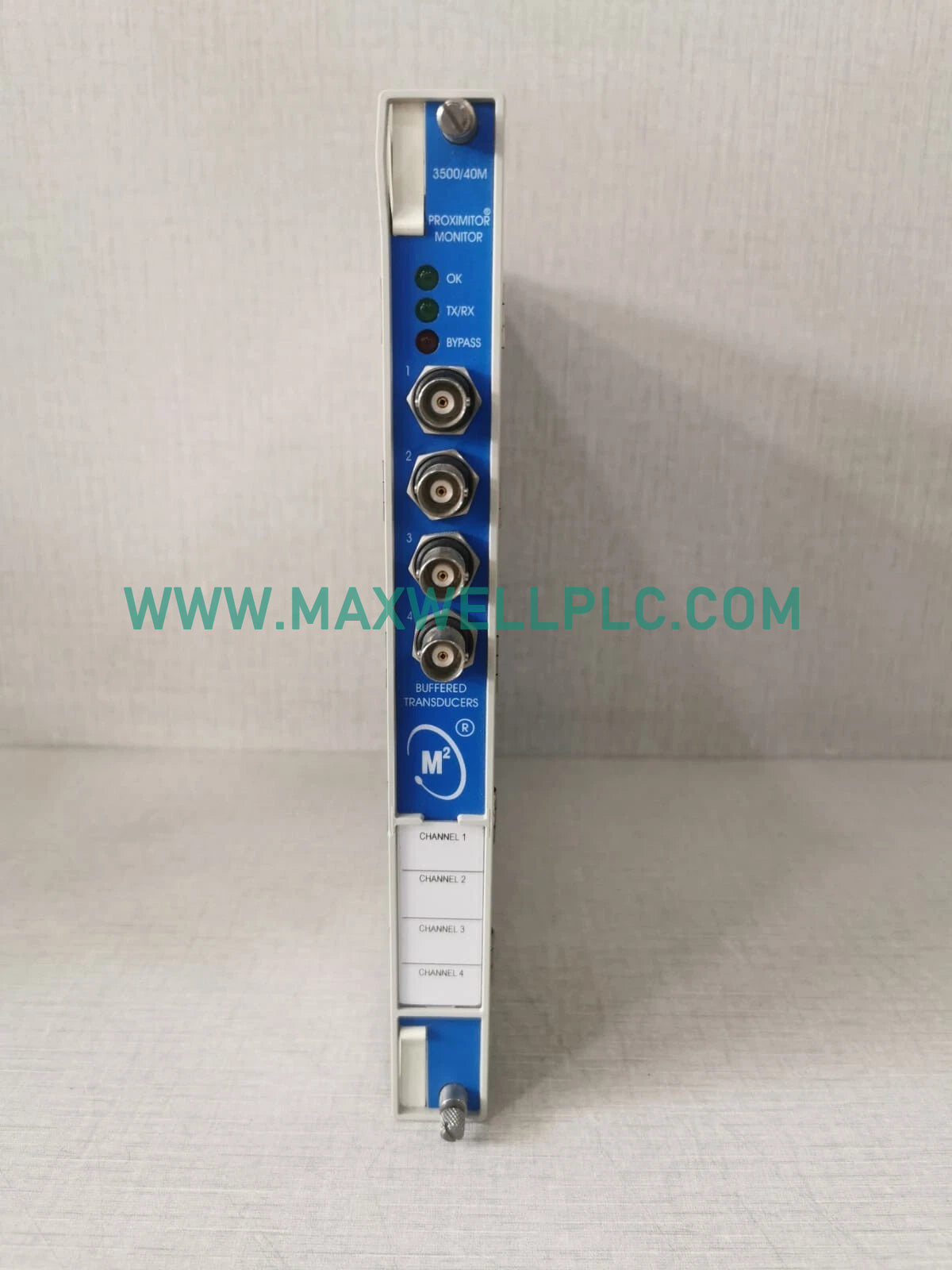

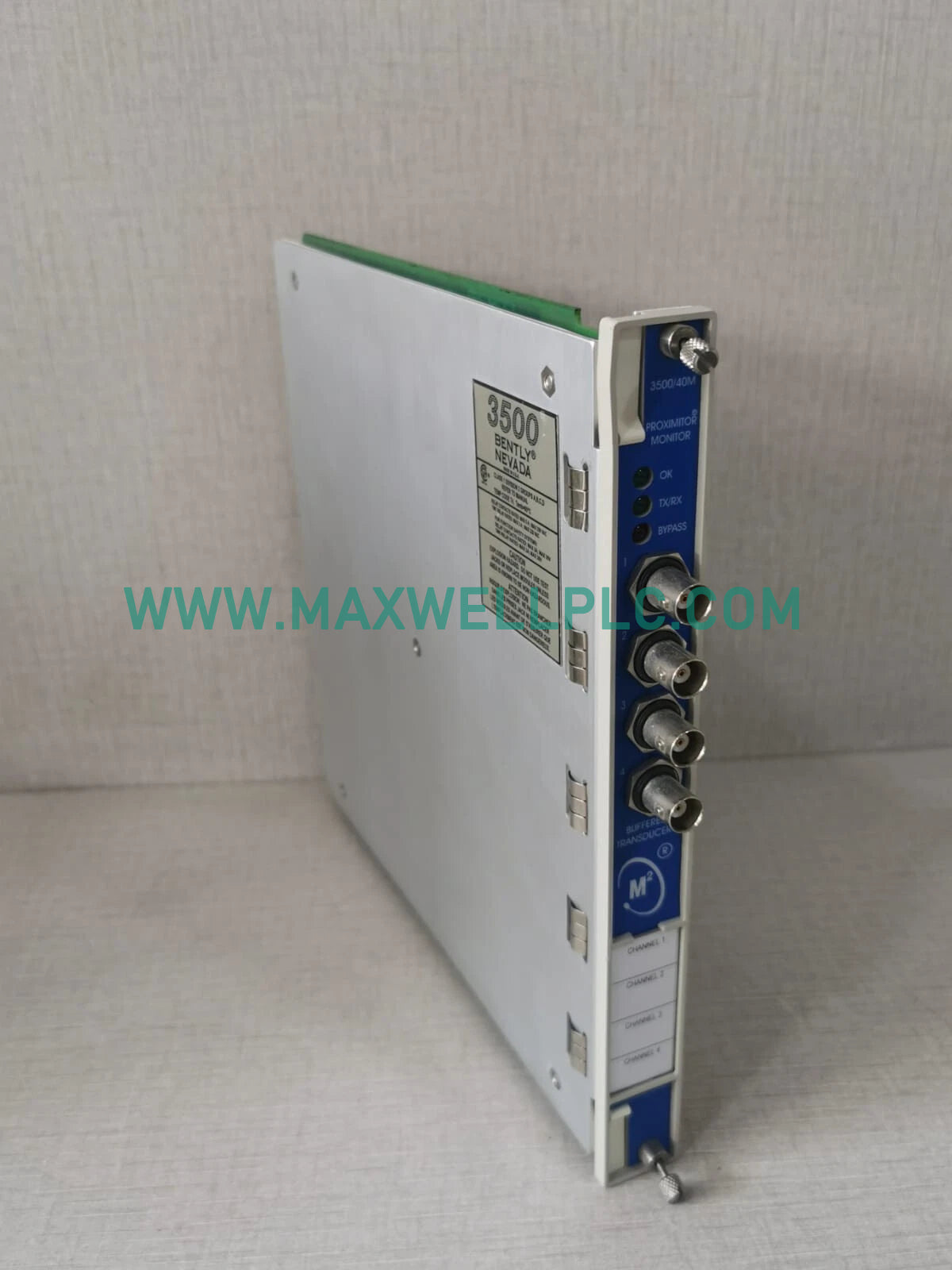

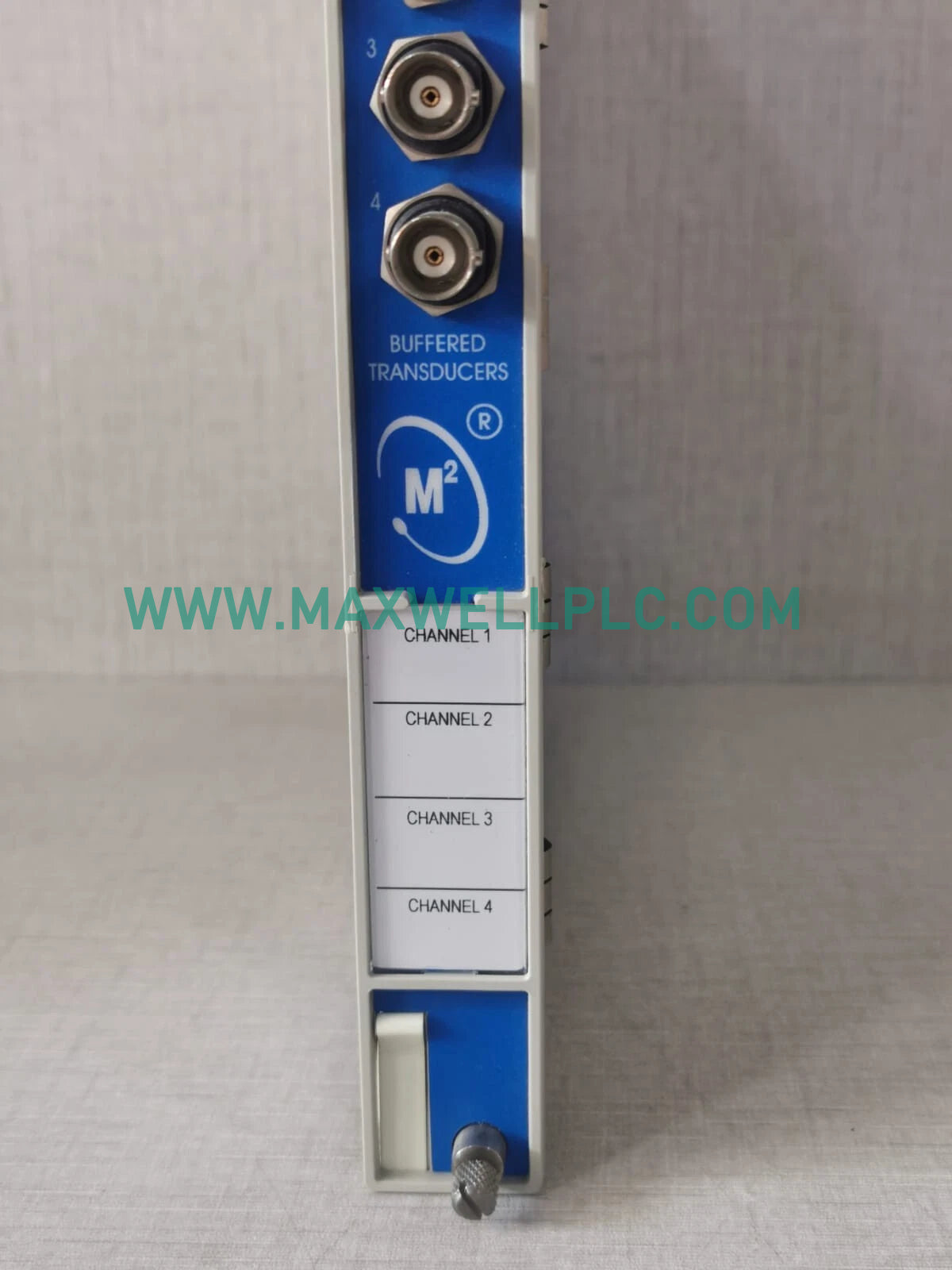

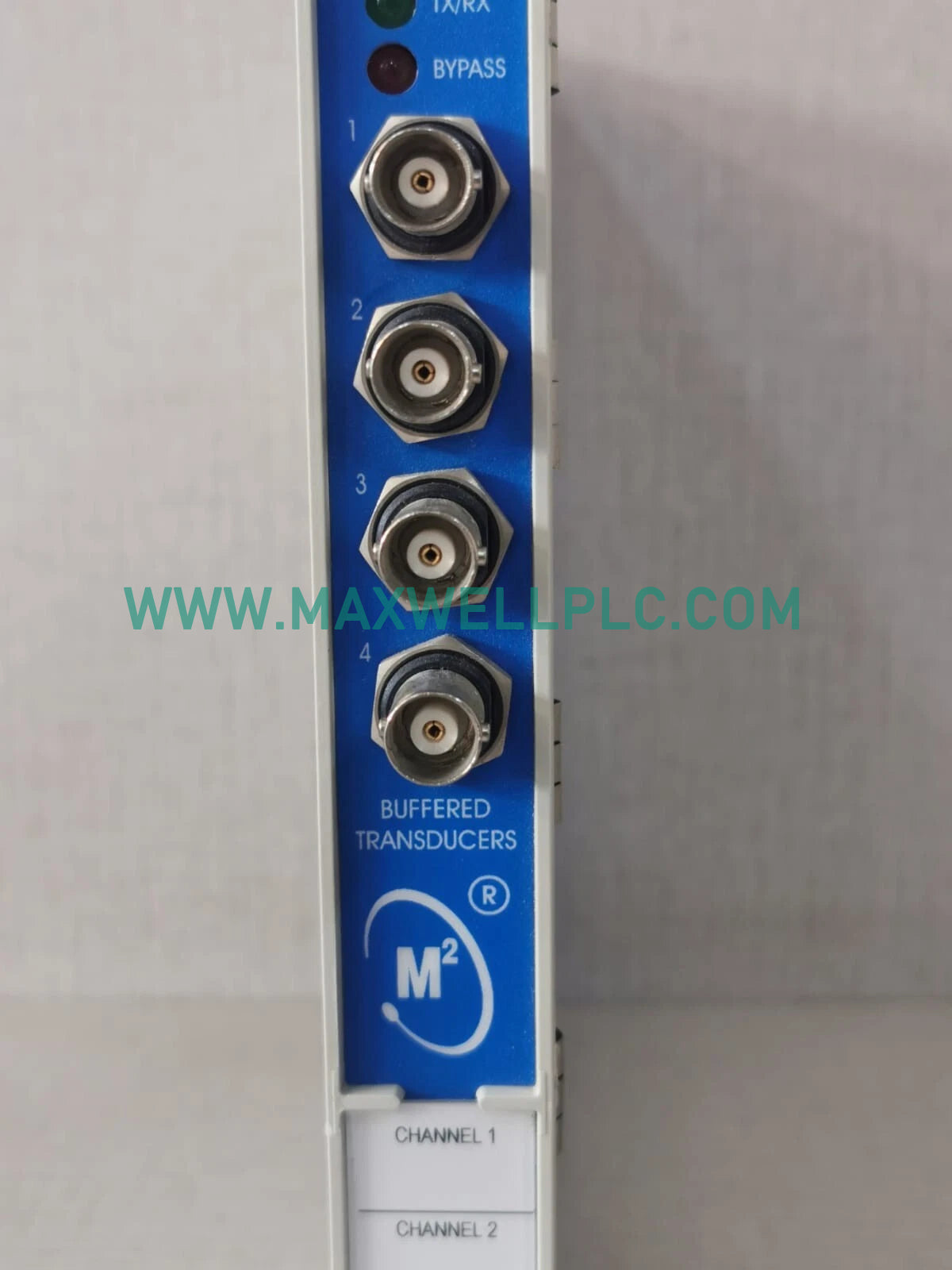

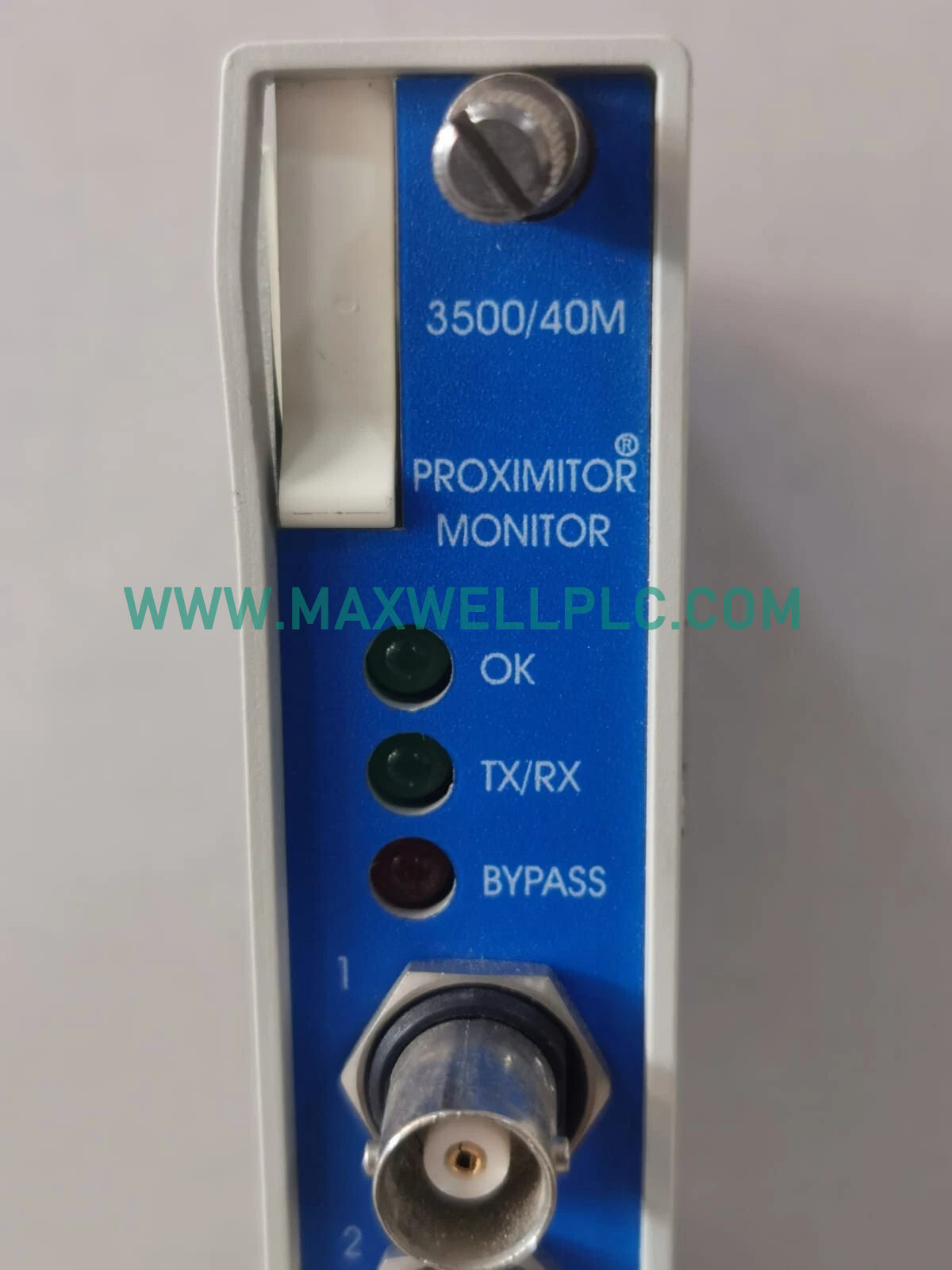

Configured for proximity transducer signal acquisition in rotating machinery protection networks, the Bently Nevada 3500/40M-01-00, also cataloged as the 3500/40M Proximitor Monitor, provides direct physical/electrical execution.

Model Matrix & Configuration Breakdown

Hardware Specifications

Rotor Dynamics & TSI Signal Processing Architecture

The monitor processes dynamic radial vibration and axial position parameters by enforcing strict eddy-current probe scaling rules across all active channels. Gap voltage validation routines continuously monitor incoming signals against -10 VDC targets to ensure linear displacement tracking without saturation. Cross-talk suppression circuitry minimizes electromagnetic coupling between adjacent channels, securing signal fidelity for high-speed rotor dynamics diagnostics.

Package Contents

• 1 x Bently Nevada 3500/40M-01-00 Proximitor Monitor Module
• 1 x Associated Proximitor I/O Module with Internal Terminations
• 1 x Factory Conformance Inspection Record

Physical Installation & Wiring Guidelines

• Chassis Slot Allocation: Insert the front monitor module firmly into the designated primary rack slot while aligning the rear I/O module directly behind it.
• Internal Termination Wiring: Connect field transducer signal wires directly to the internal terminal blocks of the I/O card, utilizing shielded twisted-pair cabling.
• Shield Grounding: Terminate coaxial cable shields at the dedicated rear ground studs to eliminate high-frequency electromagnetic interference.
• Thermal Management: Maintain recommended vertical airflow clearances within the 3500 rack housing to ensure operational temperatures remain within the -30 deg C to +65 deg C limit.

Operational Inquiry & Technical Troubleshooting

• Q: Does this monitor module support live insertion and removal under power?

  A: Hot-swapping is permitted for 3500 monitor cards, but system configuration rules and safety precautions must be adhered to.

• Q: What is the nominal output impedance of the monitor signal outputs?

  A: The output impedance is rated at 550 ohms for standard signal transmission lines.

• Q: How many proximity transducer channels can a single module handle?

  A: The hardware architecture accepts input signals from 1 to 4 independent proximity transducers simultaneously.

• Q: What voltage is supplied by the internal transducer power circuit?

  A: The module supplies a regulated -24 V DC excitation voltage to power external proximity probes.

• Q: How are gap voltage errors identified during initial calibration?

  A: Initial gap voltages must validate against standard -10 VDC baseline targets to ensure proper linear probe response.

• Q: What is the typical power dissipation of the fully loaded monitor assembly?

  A: Power consumption averages 7.7 Watts under normal operational workloads.

• Q: Are special protocol settings required for backplane communication?

  A: Backplane communication speed and rack rack-addressing parameters are handled automatically via internal hardware jumpers and rack configuration software.

• Q: What preventive maintenance is recommended for terminal connections?

  A: Periodic inspection of terminal screw torques and connector seating is advised to prevent high-resistance contact faults.
