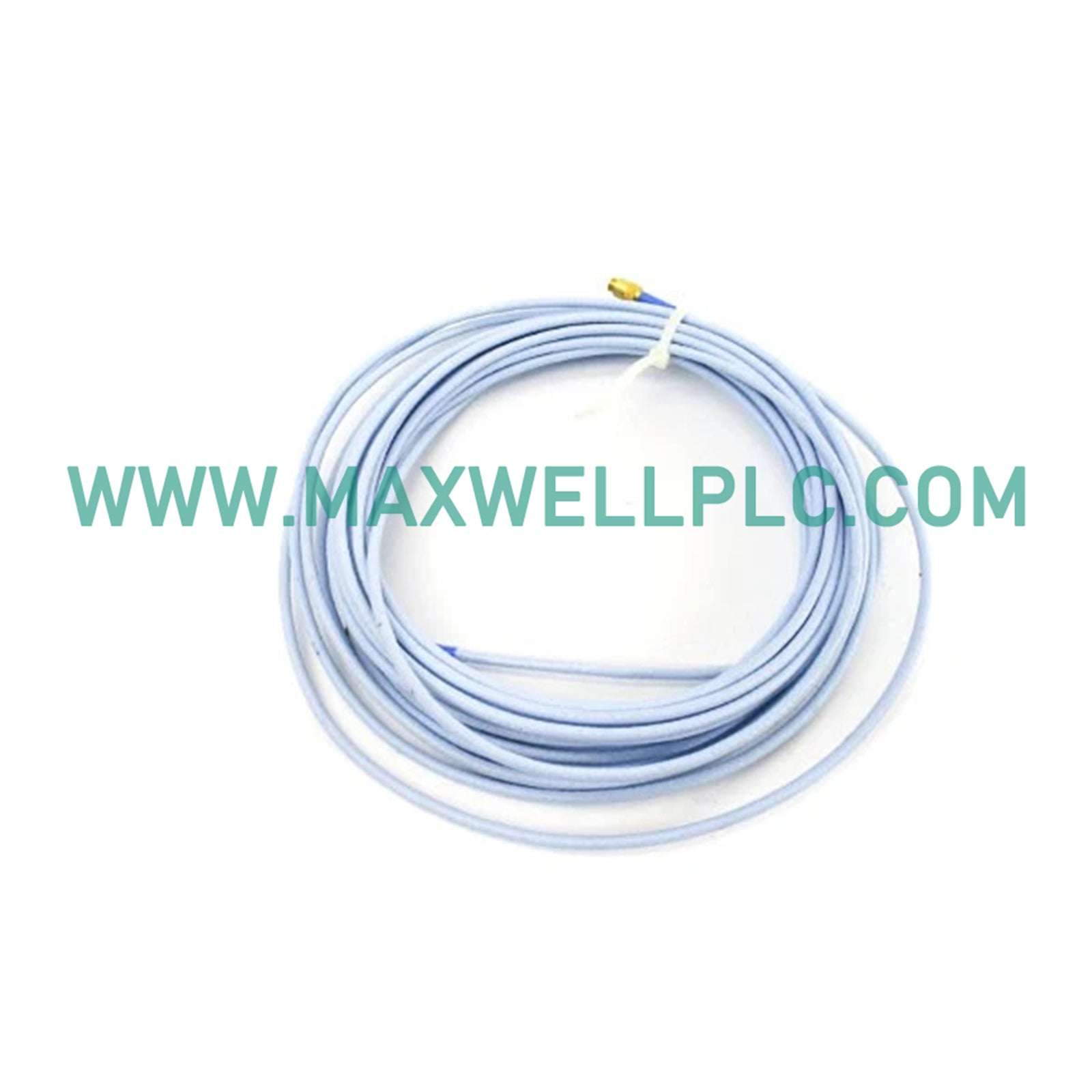

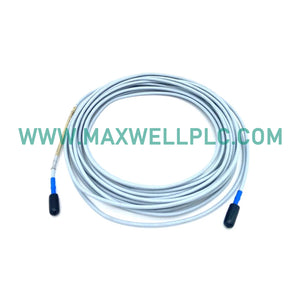

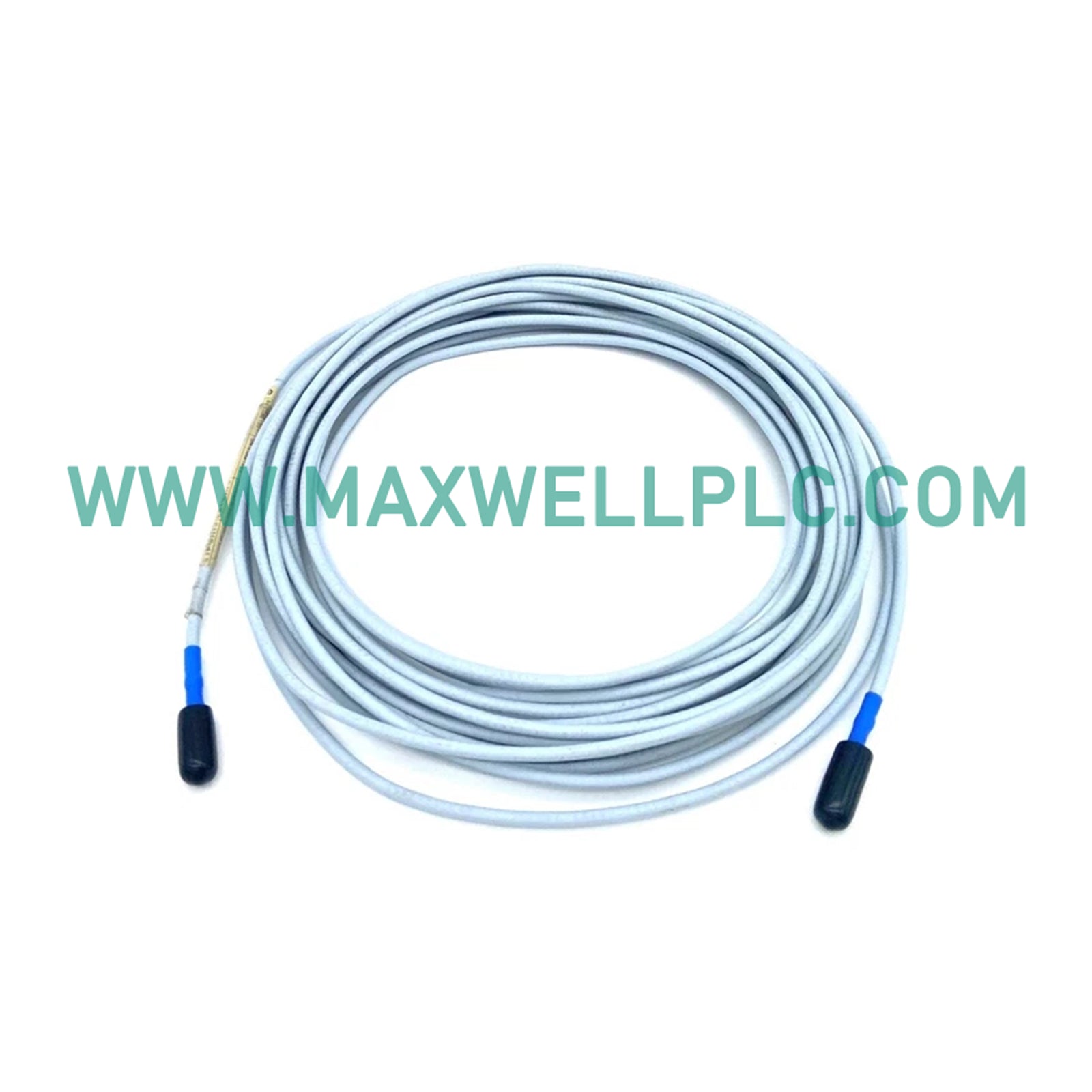

Configured for high-temperature vibration and position measurements in rotating machinery, the Bently Nevada 330194-15-25-50-05, also cataloged as the 330194-15-25-50-05 Proximity Probe, provides direct physical/electrical execution.

Model Matrix and Suffix Breakdown

• Base Series: 330194 (3300 XL 8 mm Extended Temperature Range Proximity Probe)
• Unthreaded Length: 15 (150 mm unthreaded length option)
• Case Length: 25 (250 mm overall case length option)
• Total Cable Length: 50 (5.0 meters / 16.4 feet)
• Agency Approvals: 05 (CSA, ATEX, IECEx certified)

Hardware Specifications

Rotor Dynamics and Gap Voltage Validation

Designed for extreme thermal environments, this proximity probe preserves precise eddy-current probe scaling to ensure linear voltage output corresponding to shaft displacement. During commissioning, gap voltage validation targets a nominal -10 VDC baseline when interfaced with a matched 3300 XL Proximitor sensor. Furthermore, robust coaxial shielding combined with stainless steel armor execution ensures cross-talk suppression and isolates the high-frequency carrier signal from electromagnetic interference inside heavy industrial enclosures.

Standard Scope of Supply

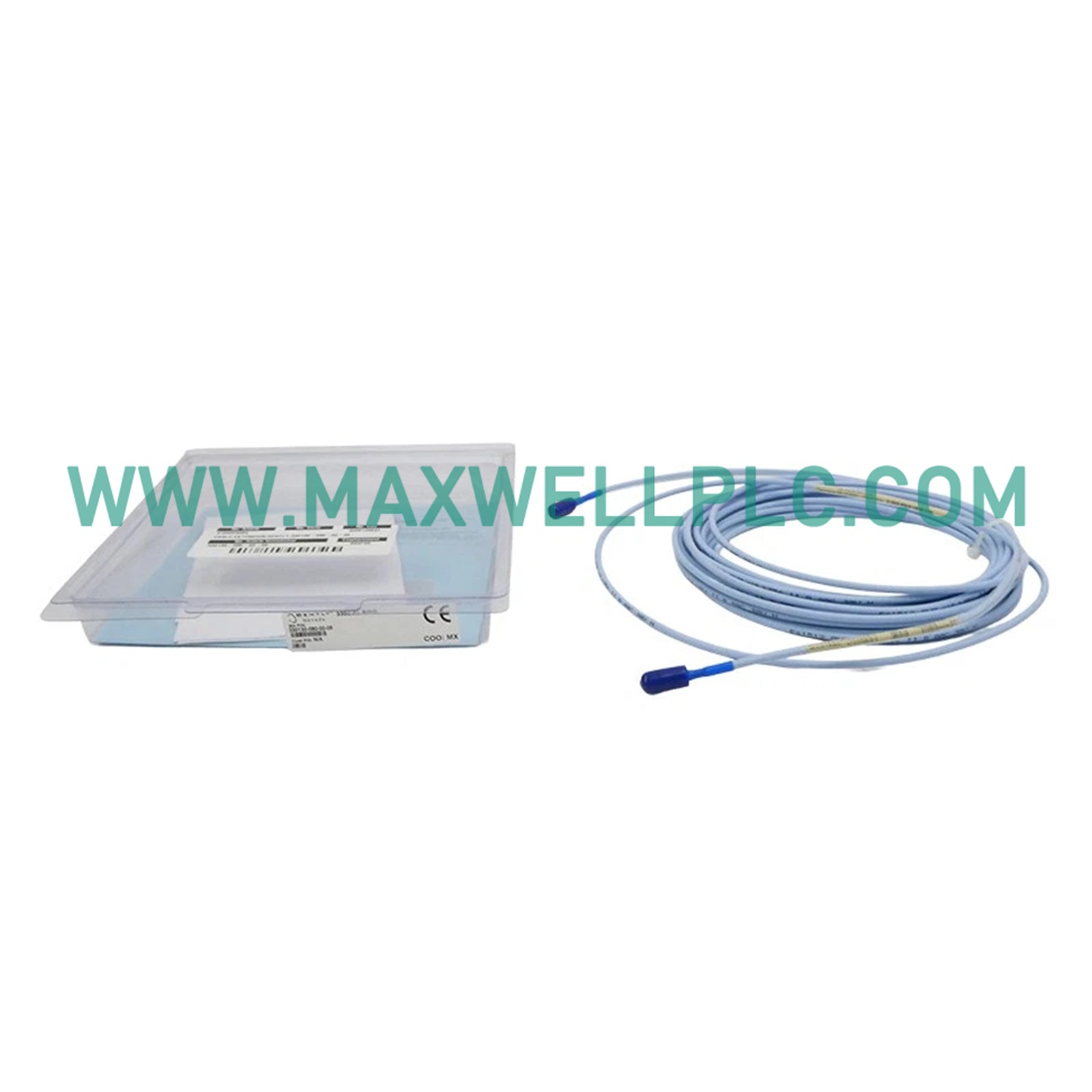

• 1 x Bently Nevada 330194-15-25-50-05 Extended Temperature Range Proximity Probe
• 1 x M10 x 1 Mounting Locknut Set
• 1 x Hazardous Area Certification Documentation Insert

Mechanical Installation and Mounting Guidelines

• Thread Engagement Limits: Ensure the mounting bracket hole is free of debris and that maximum thread engagement of the M10 x 1 probe case does not exceed 15 mm.
• Torque Specifications: Tighten the probe case to a recommended torque of 5.1 N m (45 in lb), ensuring the limit does not exceed 7.3 N m (65 in lb) to avoid thread stripping.
• Transductor Separation: Maintain a minimum side clearance of 25 mm (1.0 in) between adjacent transducer tips to prevent electromagnetic cross-talk interference during multi-probe setups.

Frequently Asked Questions

• What is the designated cable length for this probe assembly?

  The total integrated cable length is 5.0 meters (16.4 feet) as specified by the 50 suffix code.

• What thread size is utilized on the probe case housing?

  The probe features an M10 x 1 metric threading profile equipped with protective stainless steel armor.

• What is the operating temperature threshold for this ETR probe?

  The sensor functions within an ambient range of -52 deg C to +100 deg C while supporting extended tip thermal ratings.

• Does this passive sensor require an external DC power source?

  No, the proximity probe relies entirely on the radio frequency excitation signal supplied by the connected Proximitor sensor.

• What is the recommended installation torque for the probe case?

  The recommended installation torque is 5.1 N m (45 in lb) with a hard maximum cap of 7.3 N m (65 in lb).

• How should cross-talk be prevented between multiple probes?

  A minimum spatial separation of 25 mm (1.0 in) must be maintained between adjacent transducer tips during installation.

• What hazardous location certifications are included with this part?

  The 05 suffix confirms compliance with CSA, ATEX, and IECEx hazardous area certification standards.

• What is the verified shipping weight of the packed unit?

  The total gross weight including standard transit packaging is 0.24 kg.
