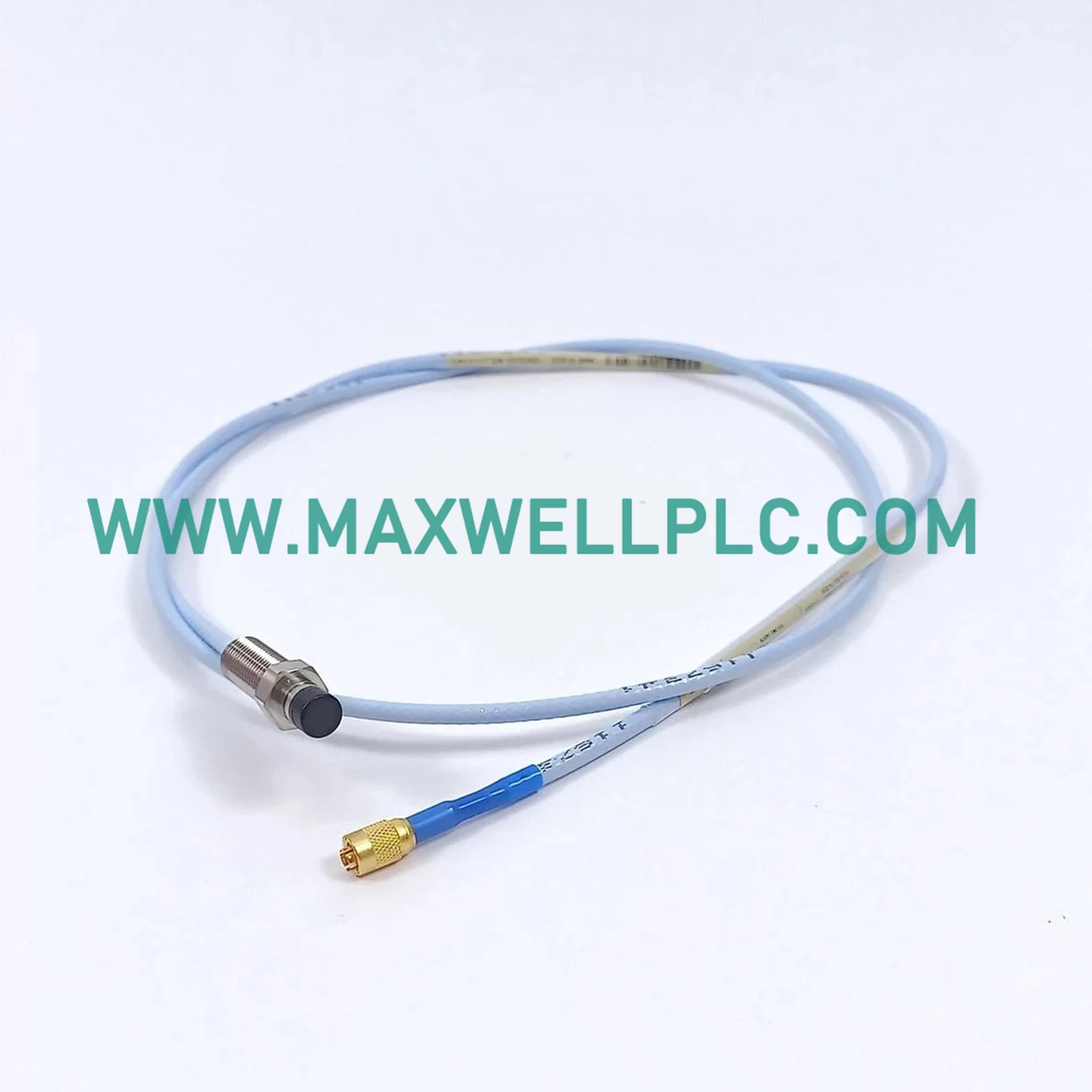

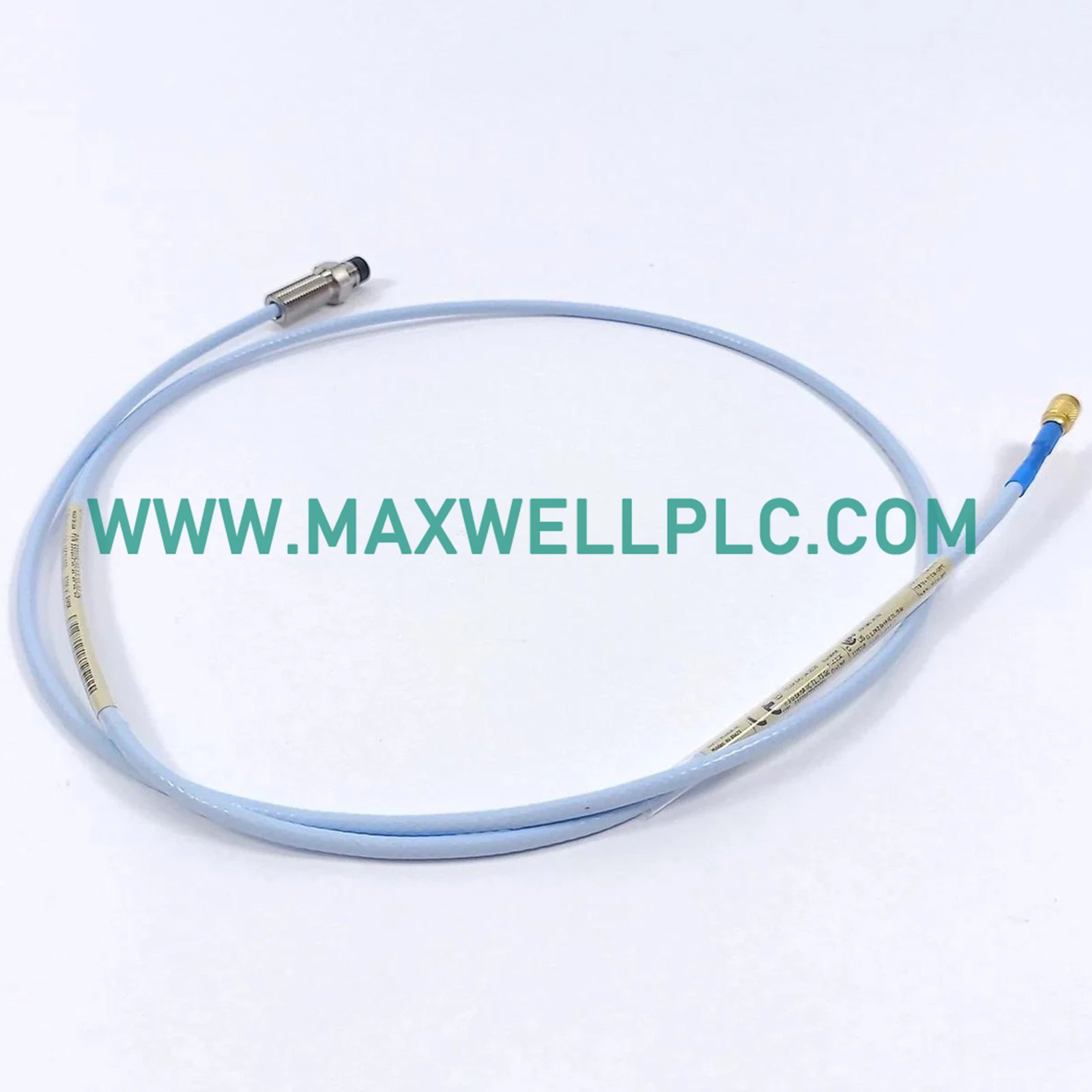

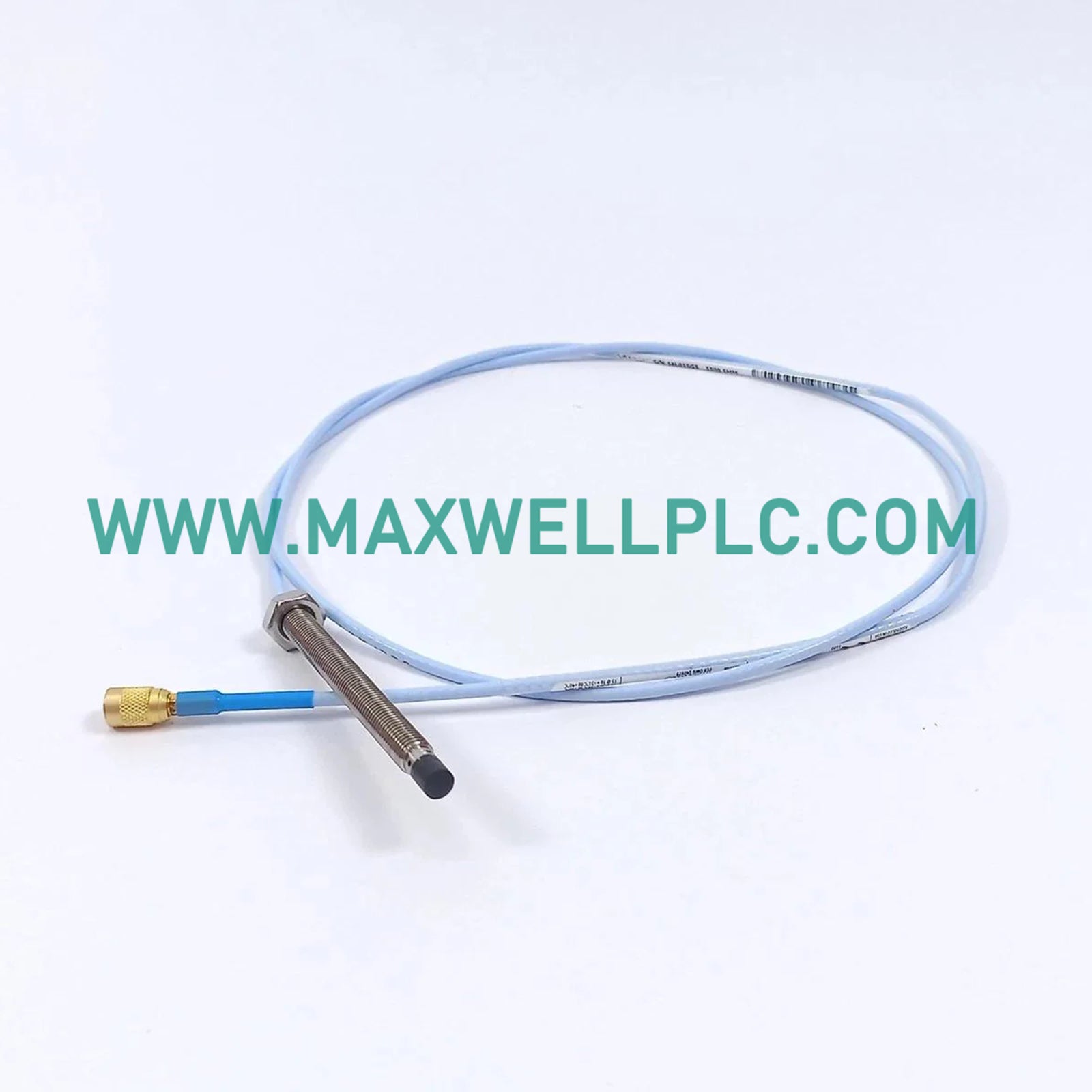

Configured for high-precision radial vibration measurement in turbomachinery protection infrastructure, the Bently Nevada 330103-00-03-05-02-02, also cataloged as the 3300 XL Proximity Probes Proximity Transducers, provides direct physical and electrical execution.

Part Number Breakdown & Configuration Matrix

• Platform Series (330103): Designates the Bently Nevada 3300 XL 8 mm proximity probe series featuring specialized unthreaded length options and integral coaxial cabling designed for eddy-current displacement monitoring systems.
• Probe Case Thread Option (-00): Specifies the exact thread size and pitch configuration. A value of -00 indicates a smooth probe case design without standard threads, utilizing alternative clamping or smooth-bore mounting brackets.
• Unthreaded Length Option (-03): Defines the specific length of the unthreaded portion of the probe case in increments of centimeters, allowing precise physical positioning relative to the bearing housing internal wall.
• Total Cable Length Option (-05): Denotes the overall integral cable length variant associated with the probe assembly. A value of -05 typically corresponds to a 0.5-meter cable configuration designed for direct connection to standard extension cables.
• Armor Option (-02): Indicates the presence of a protective stainless steel flexible armor sheath surrounding the integral coaxial cable to prevent mechanical abrasion and fluid damage in harsh environments.
• Agency Approvals Option (-02): Specifies the hazardous area certification and regional compliance classification (such as CSA, ATEX, or IECEx approvals) for safe installation in explosive industrial atmospheres.

Hardware Specifications

Rotor Dynamics & Signal Integrity

The proximity probe preserves eddy-current probe scaling accuracy by maintaining linear radio frequency response across changing metallic target air gaps. Proper gap voltage validation (-10 VDC targets) relies on precise mechanical positioning relative to the rotating shaft journal. Furthermore, advanced cross-talk suppression shielding prevents high-frequency electromagnetic interference from distorting rotor dynamics and radial vibration telemetry.

Ordering Info

• 1 x Bently Nevada 330103-00-03-05-02-02 3300 XL Proximity Probe unit
• 1 x Brass mounting lock nut with safety wire holes
• 1 x Technical reference installation sheet

Field Installation Guidelines

• Mechanical Mounting: Position the smooth-case probe body inside the designated mounting clamp, ensuring the correct unthreaded insertion length and radial clearance from surrounding structural metal are maintained to prevent side-viewing errors.
• Air Gap Setting: Adjust the probe depth until a digital multimeter reads exactly -10 VDC at the proximitor monitor output terminal, establishing the optimal electrical center of the linear range.
• Cable Route Protection: Secure the armored coaxial cable inside a dedicated protective conduit, avoiding sharp bends and physical contact with high-voltage AC motor power lines.

Advanced Engineering Inquiries

• Q: How does maintaining proper side-clearance from machine casing threads prevent erroneous vibration readings?

  A: Adequate radial clearance prevents the electromagnetic field generated by the probe tip from interacting with surrounding metal boundaries, eliminating distortion in the linear output scale factor.

• Q: What is the primary electrical consequence of physical damage or cuts to the integral coaxial cable jacket?

  A: Damage allows moisture or oil to breach the outer shield, causing capacitive leakage and high-frequency carrier signal attenuation that results in erratic gap voltage readings.

• Q: Can this 8 mm probe tip operate interchangeably with proximitor sensors of a different system generation without recalibration?

  A: No, matching the probe tip, extension cable, and proximitor monitor as a calibrated system is required to maintain the precise 200 mV/mil sensitivity curve.

• Q: How do extreme operating temperatures near +177 deg C impact the performance of the PPS probe tip material?

  A: The high-temperature polymer maintains structural stability and dielectric strength under severe thermal loads, preventing mechanical softening or signal drift inside the machine bearing housing.

• Q: What occurs to the direct current output signal if the probe tip comes into physical contact with a rotating shaft journal?

  A: Mechanical contact causes severe physical abrasion of the PPS tip and forces the monitor voltage to rail toward zero or negative supply limits, triggering an immediate channel fault alarm.

• Q: Why is it critical to use lock nuts with safety wire during final mechanical installation in high-vibration machinery?

  A: Safety wire prevents the mounting hardware from backing out under continuous engine or turbine vibration, locking the probe air gap permanently in position.

• Q: How does proper outer shield grounding at the monitor termination cabinet protect against electromagnetic interference?

  A: Grounding the shield at a single reference point drains induced electrical noise safely to earth without creating parasitic ground loop currents across the signal circuit.

• Q: What specific verification steps must be performed if a replacement probe is installed on an operating machine train?

  A: Technicians must verify static gap voltage against cold baseline targets and perform dynamic runout checks using a displacement analyzer before clearing the unit for full load rotation.
